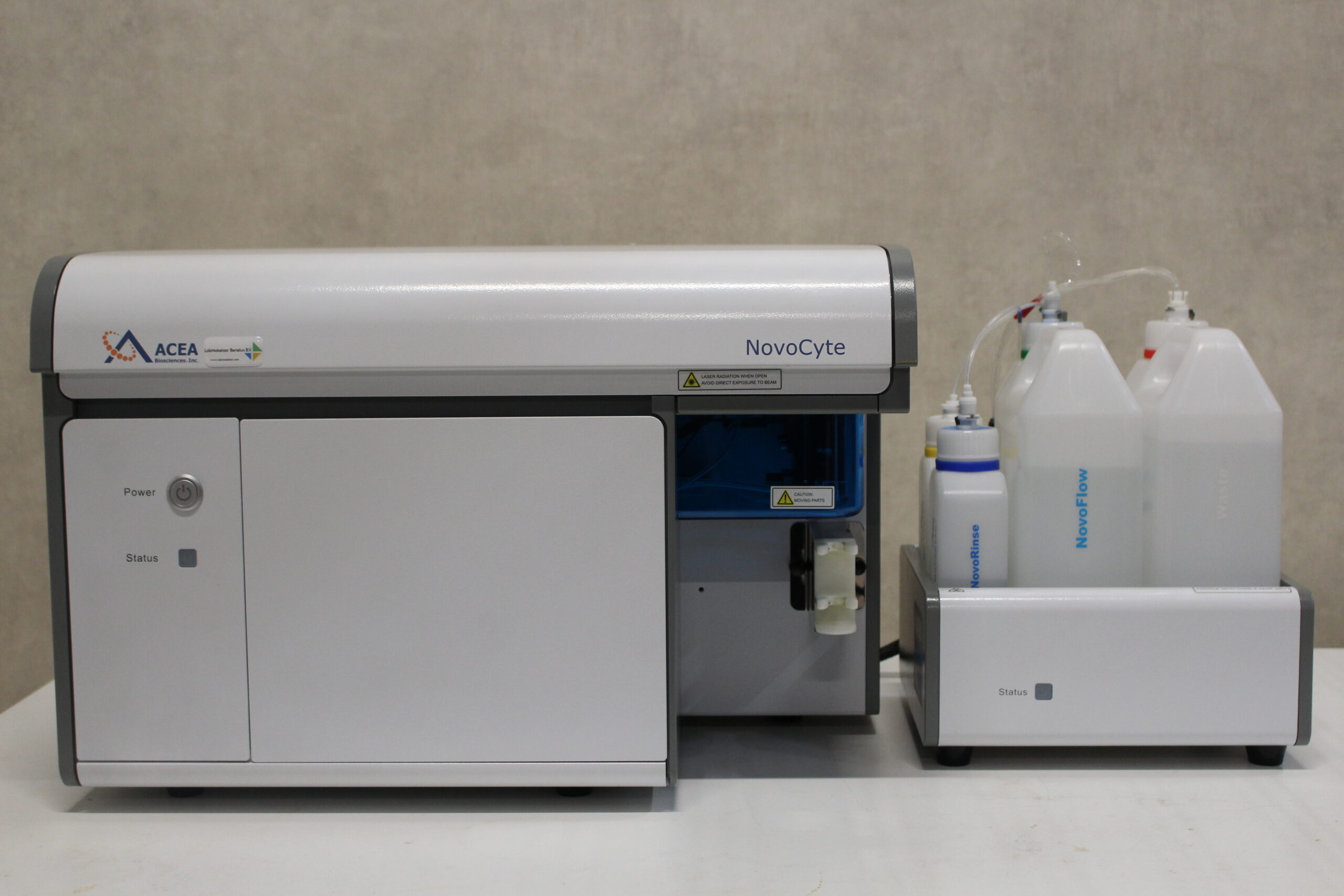

Acea Biosciences NovoCyte 2000 Flow Cytometer
Lasers: Blue 488 nm, Red 640 nm
Detectors: 530, 585, 675 nm
Laser configuration: Spatially separated beams with 10 x 80 m elliptical spots
Optical alignment procedure: Fixed, no operator alignment required
Flow cell: 170 x 290 m rectangular quartz flow cell
FSC/SSC resolution: FSC < 0.5 m, SSC < 0.2 m
Cell size: 0.2 – 50 m
Fluorescence threshold sensitivity: FITC < 75 MESF, PE < 50 MESF
Fluorescence resolution: < 3% CV for CEN
Filters: User interchangeable
Sample Acquisition Rate: 35,000 events/second
Volumetric Absolute Count Precision: CV <5%
Sample flow rate: 5 – 120 L/min
Sheath flow rate: 6.5 ml/min
Sample aspiration volume: 10 – 100 L
Liquid container contents: 3 l casing, 3 l waste, 500 ml cleaning, 500 ml decontamination
Transfer: <0.1%
Fluidics maintenance: automated start-up, cleaning, sanitizing and shutdown
Manual sample loading: 12 x 75 mm tube
Dimensions (WxDxH): 600 x 450 x 390 mm
Weight: 39 kg
