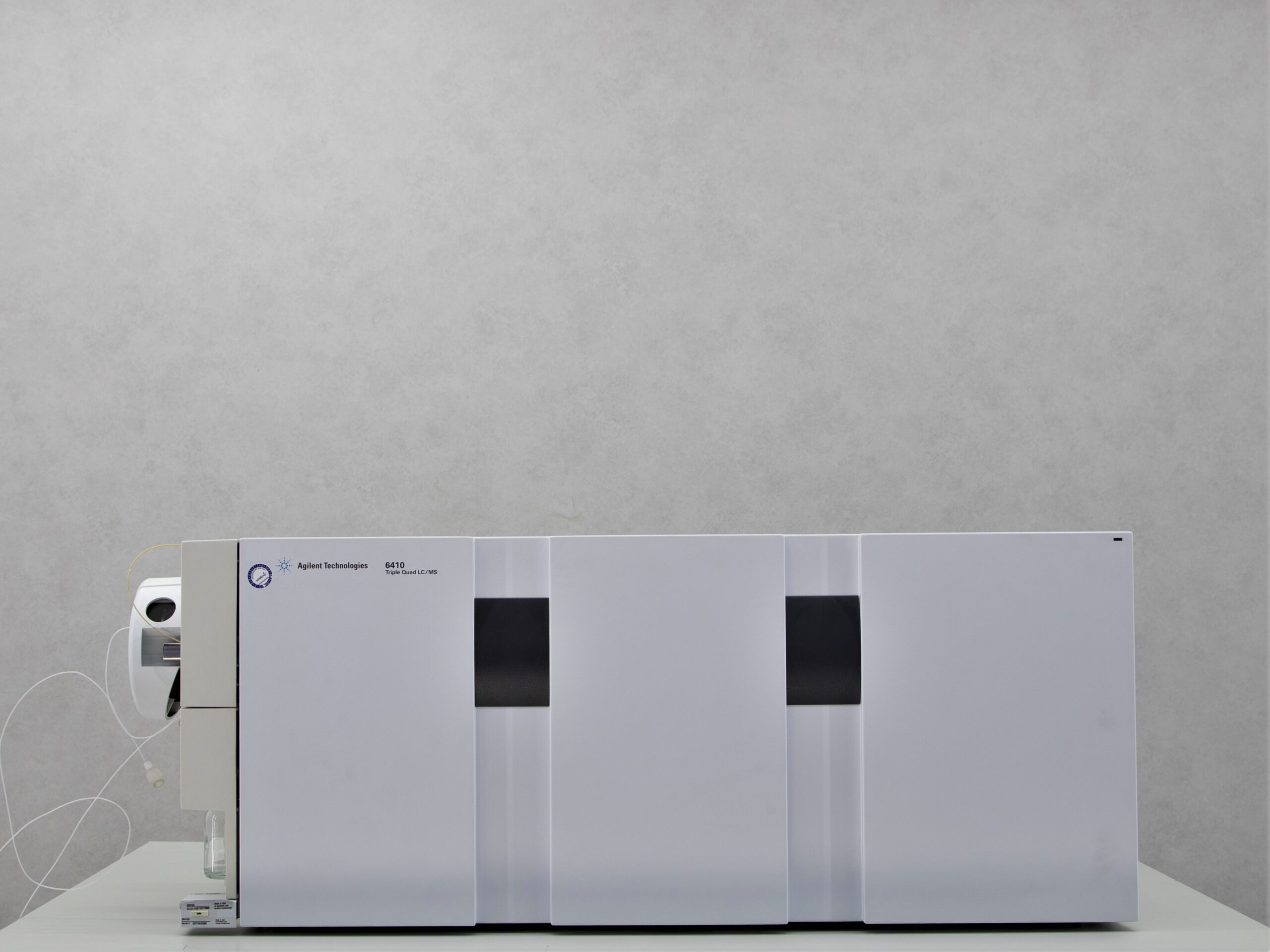

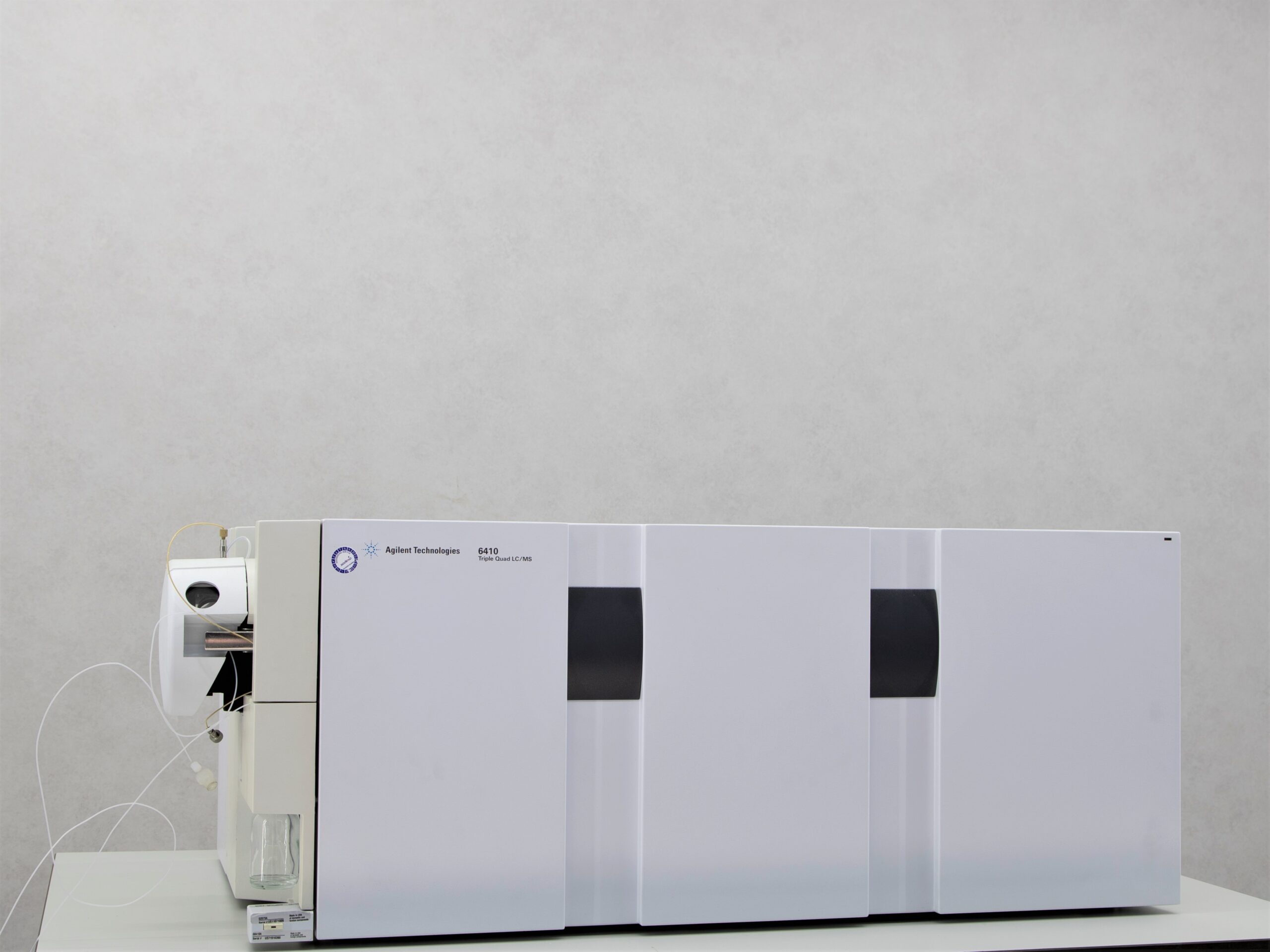

The Agilent 6410A Triple Quadrupole LC/MS system can be used for quantitative applications in pharmaceutical ADME/DMPK studies, biomarker validation, clinical research, food safety, forensics, toxicology, and environmental analyses.
Agilent 6400 Series Triple Quadrupole LC/MS can be stet up in several configurations:

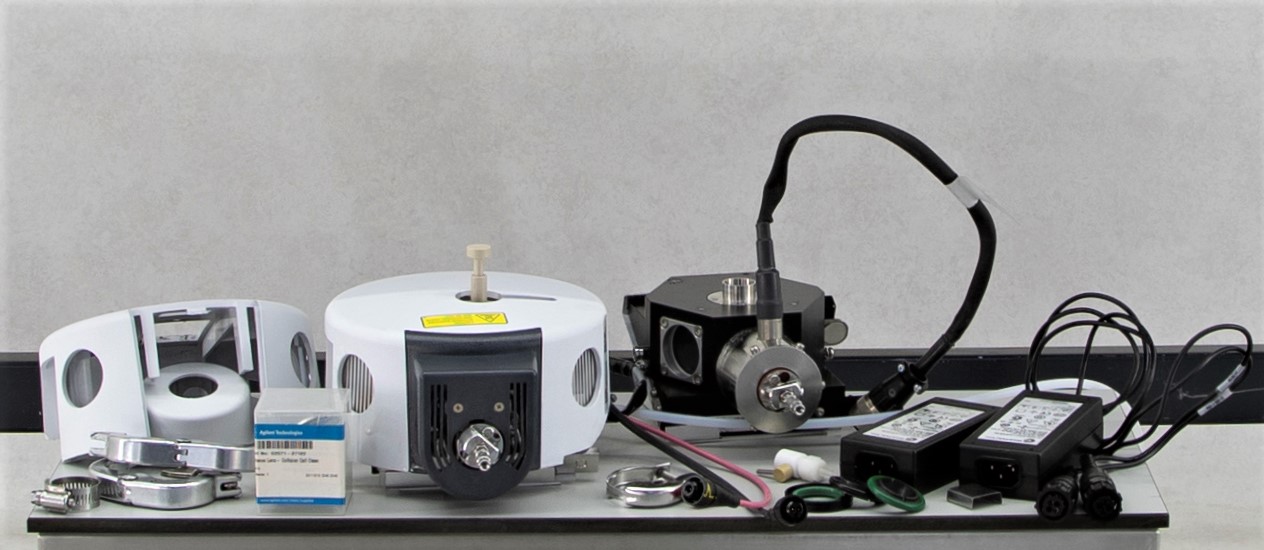

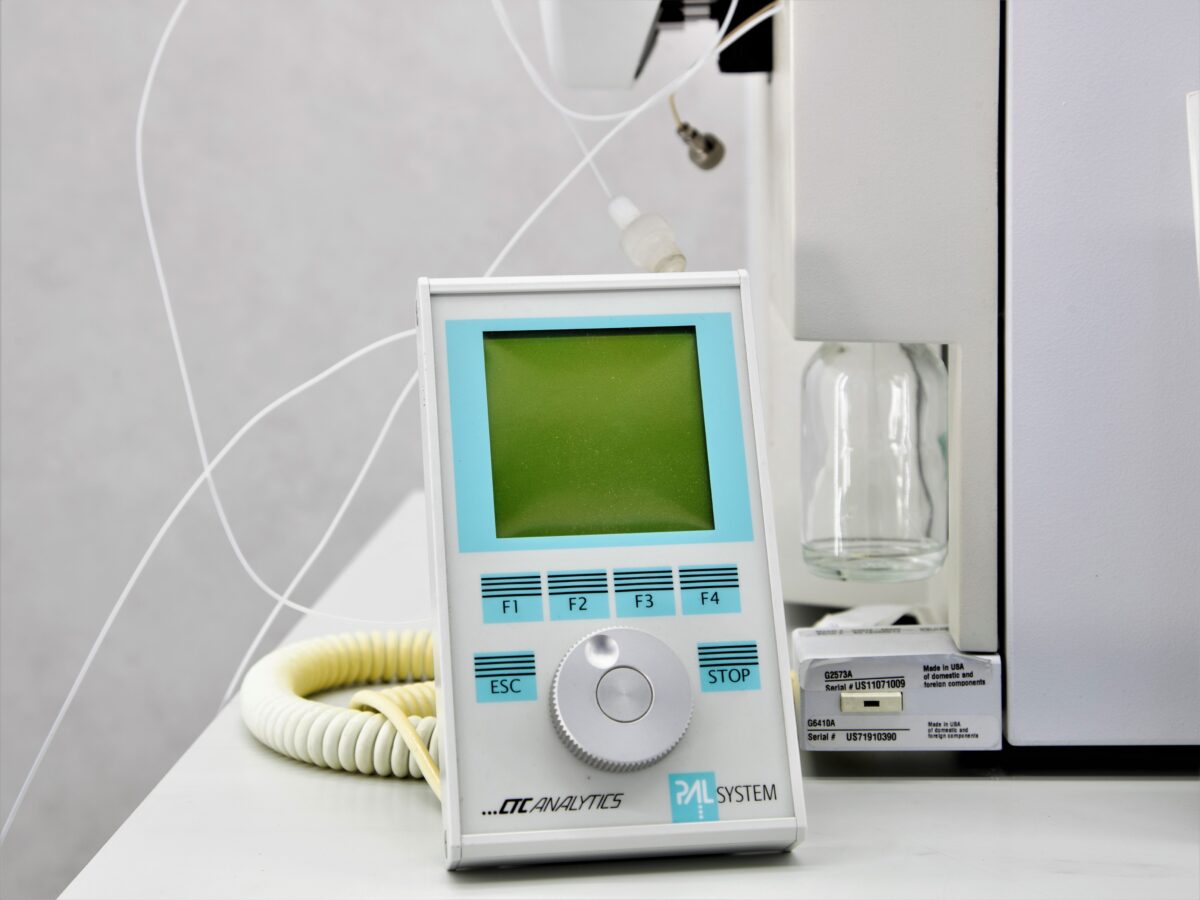

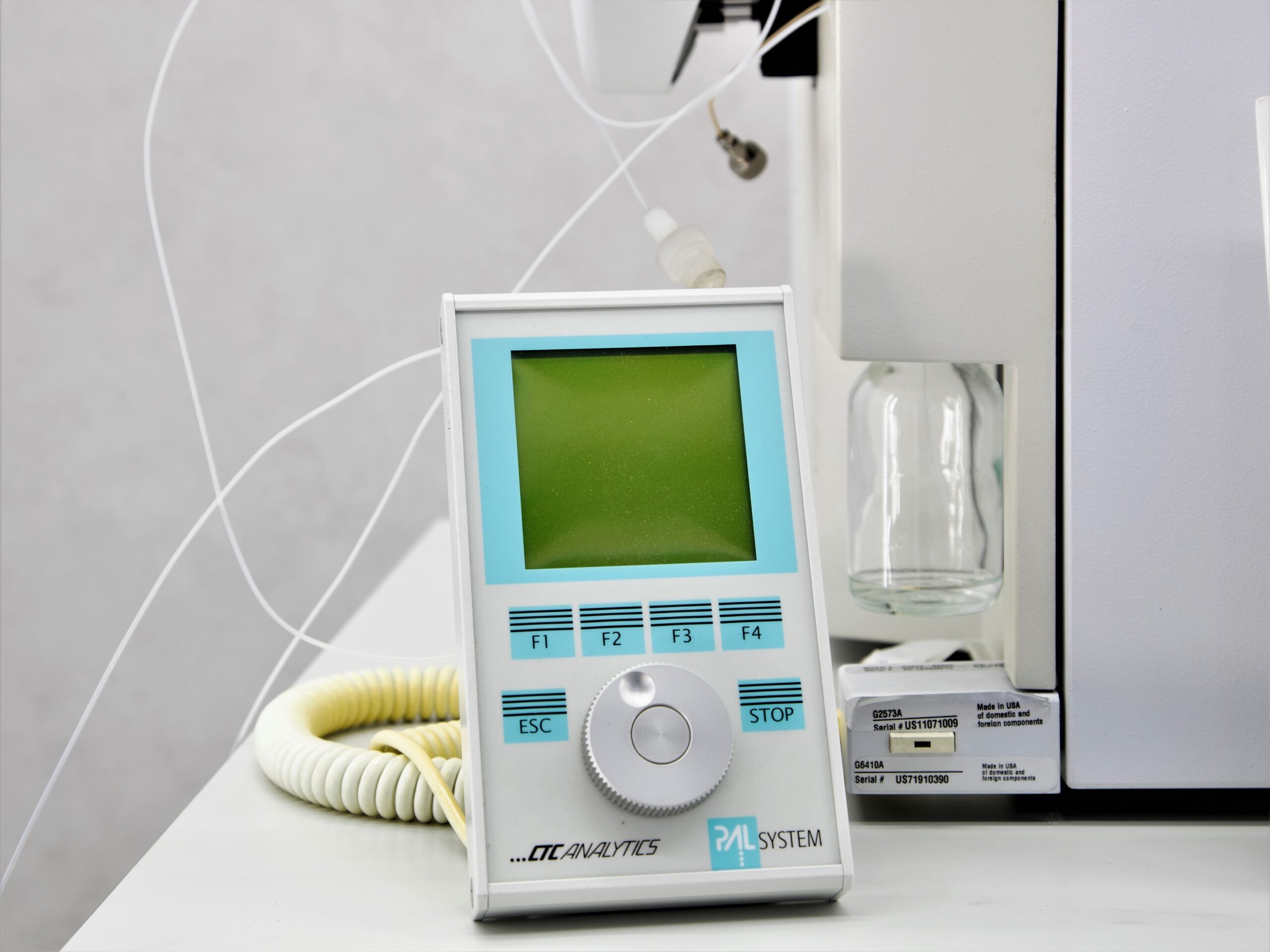

- For normal flow LC/MS with a binary pump, quaternary pump, well-plate sampler (or autosampler or CTC PAL autosampler). The supported ion sources are ESI, APCI, APPI, and MMI.
- For microflow LC/MS with a capillary pump, micro well-plate sampler (or CTC PAL micro-plate autosampler) and ESI, APCI or MMI ion sources.
- For nanoflow LC/MS with a nanoflow pump, capillary pump, micro well-plate sampler and HPLC-Chip/MS interface (used in place of a standard nanospray source) to increase reliability and boost performance with narrow peak dispersion and lower dead volumes.
Technical specifications:
Voltage: 220-240 V
Current: 15 A
Power: 2500 W
Operating temp range: 15–35°C (59–95°F)
Operating humidity range: < 85% @ 35°C
Heat dissipation: < 4500 BTU/hr
Outer dimensions (W) x (D) x (H): 111 x 66 x 47 cm
Weight: 108 kg
