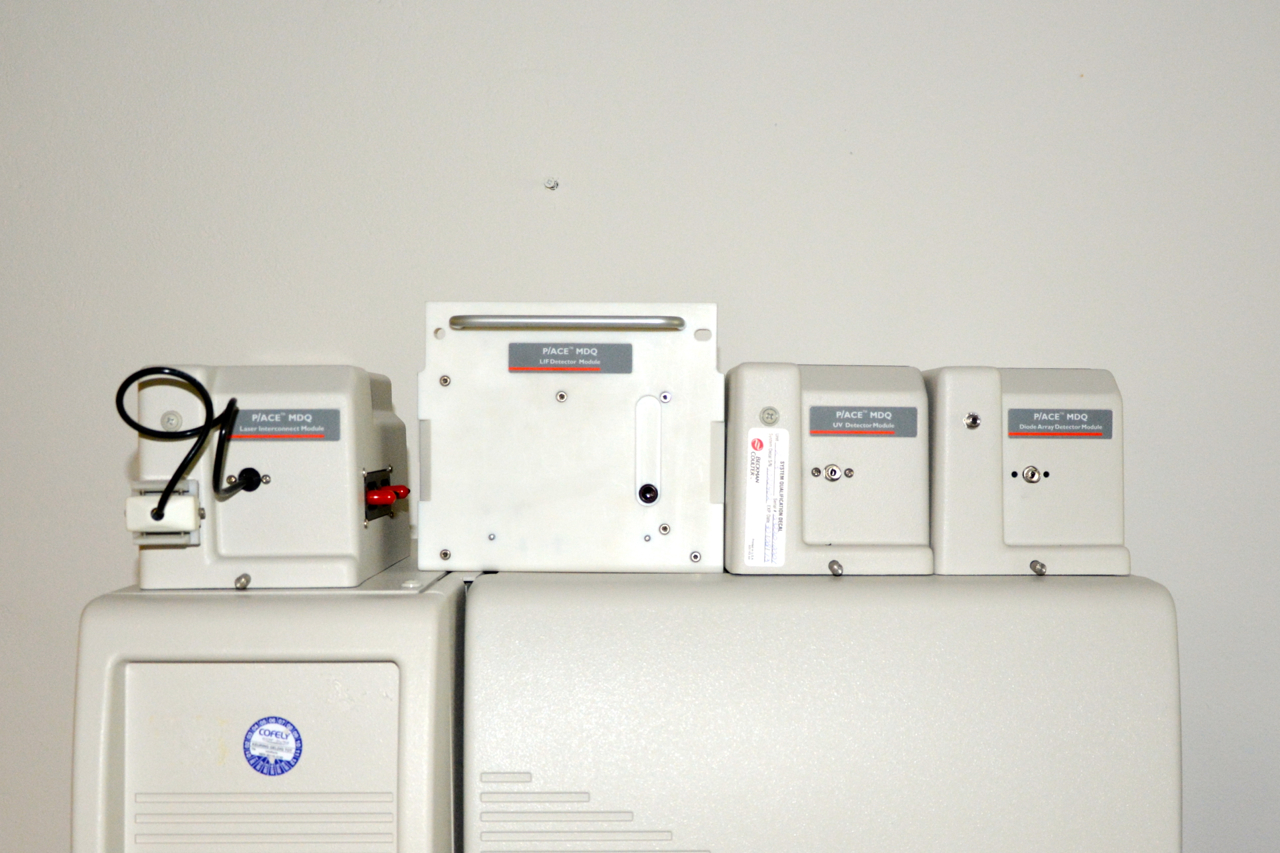

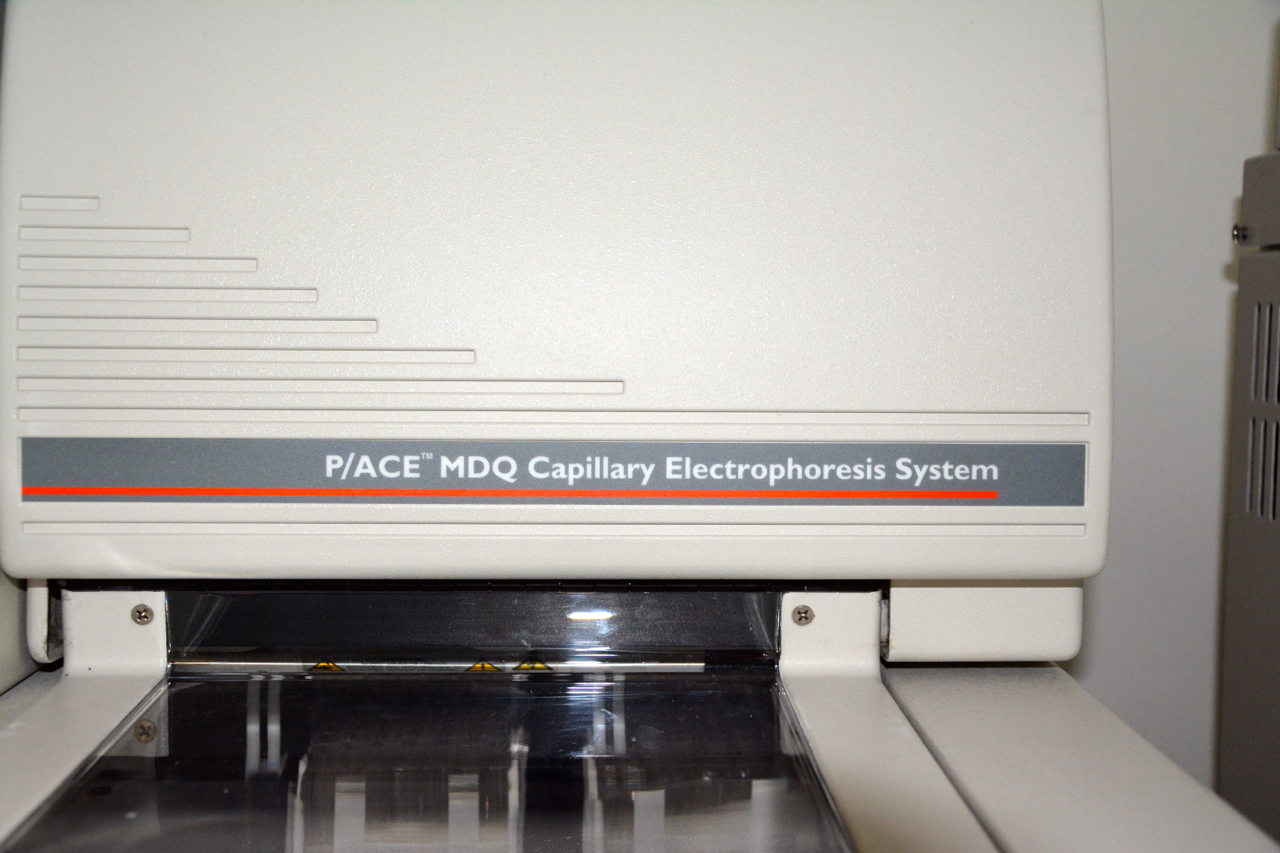

Used Capillary Electrophorese from Beckman Coulter, including 488 nm Laser module (LIF detector).
Technical specifications:
Voltage: 230V
RS232 connection
Modes of operation: Constant/Gradient Voltage
Constant/Gradient Current
Constant/Gradient Power
Variable pressure
Sample introduction: Pressure, vacuum, electrokinetic.
Voltage range: 1 – 30 kV ( 1-10 kV for injections), programmable in 0,1 kV increments, reversible voltage programmed through user interface.
Current range: 3-300 μ Amps
Pressure range: -5 tot +100 psig (rinse / separations), -5 tot +25 psig (sample introduction).
Sample temperature: +5°C – +60°C

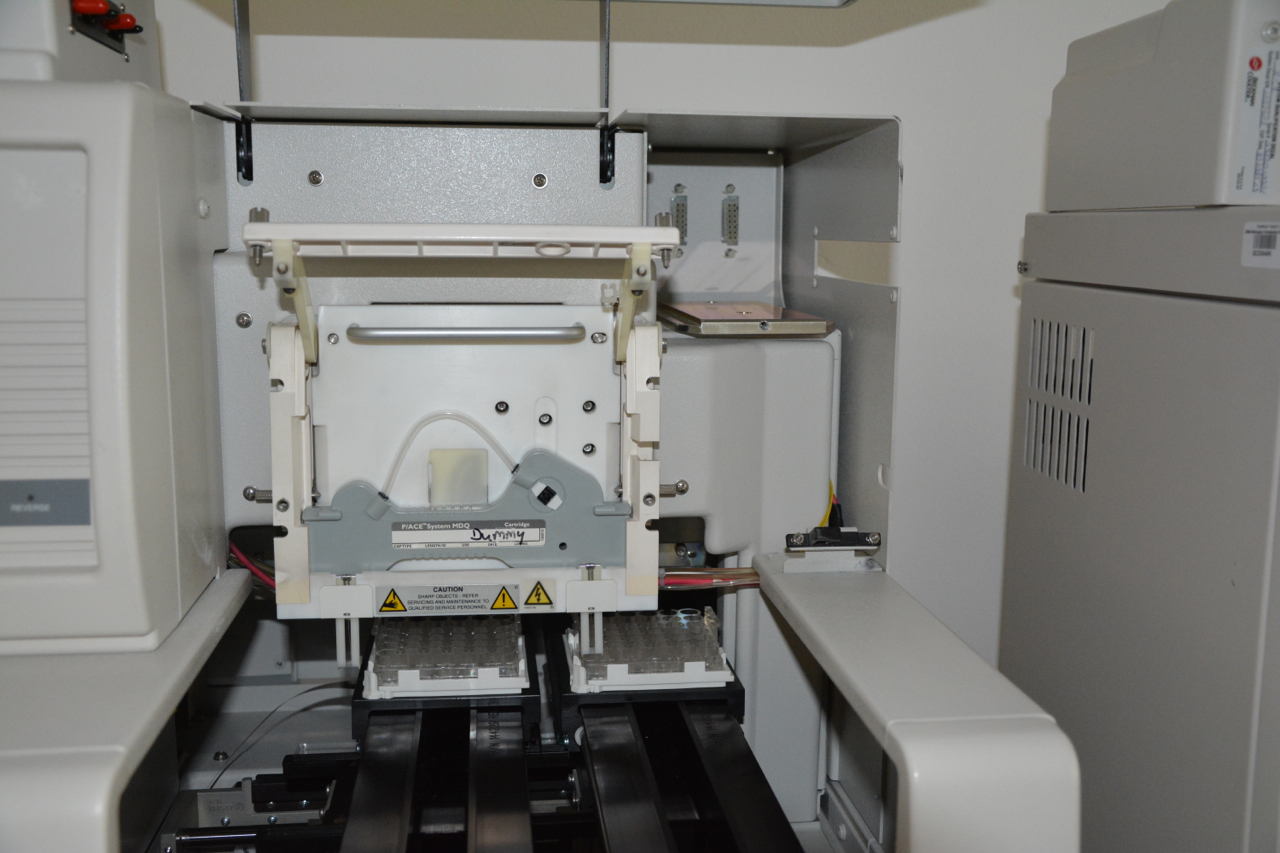

Suitable for the following sample trays:
2x 96-well plates
2x 48 2 ml vials
2x 48 0.5 ml vials
2x 48 PCR vials
Suitable for the following buffer trays:
2x 36 2 ml vials
4x 25 ml trays
Capillary cartridge temp.: recirculating liquid coolant +15°C to +60°C (when ambient is defined as +25°C)
Wavelength range: DioArray 190 – 600 nm
UV/Vis 200, 214, 254, 280 nm standard filter 190 – 600
nm
Detectors: Dioarray, UV/Vis & Laser-Induced Fluorescence (LIF).

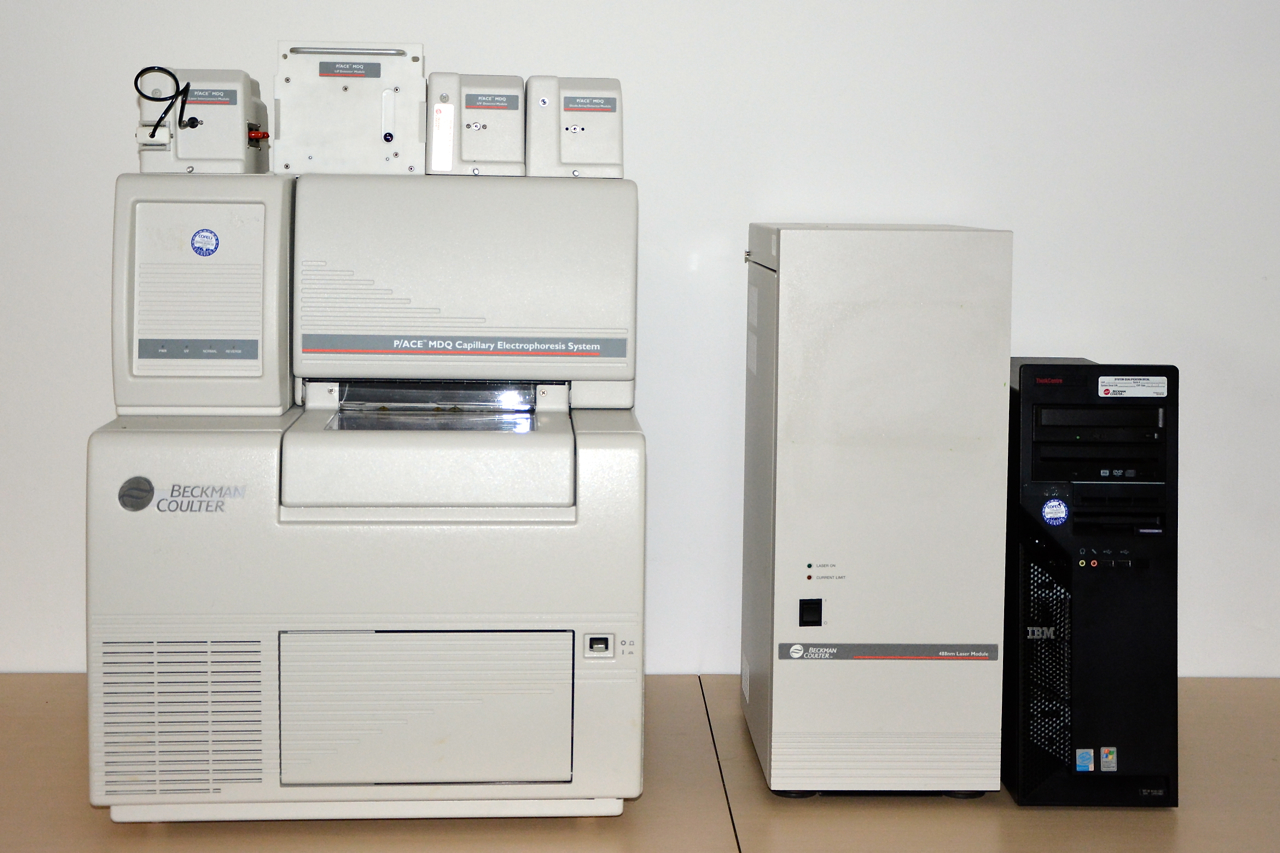

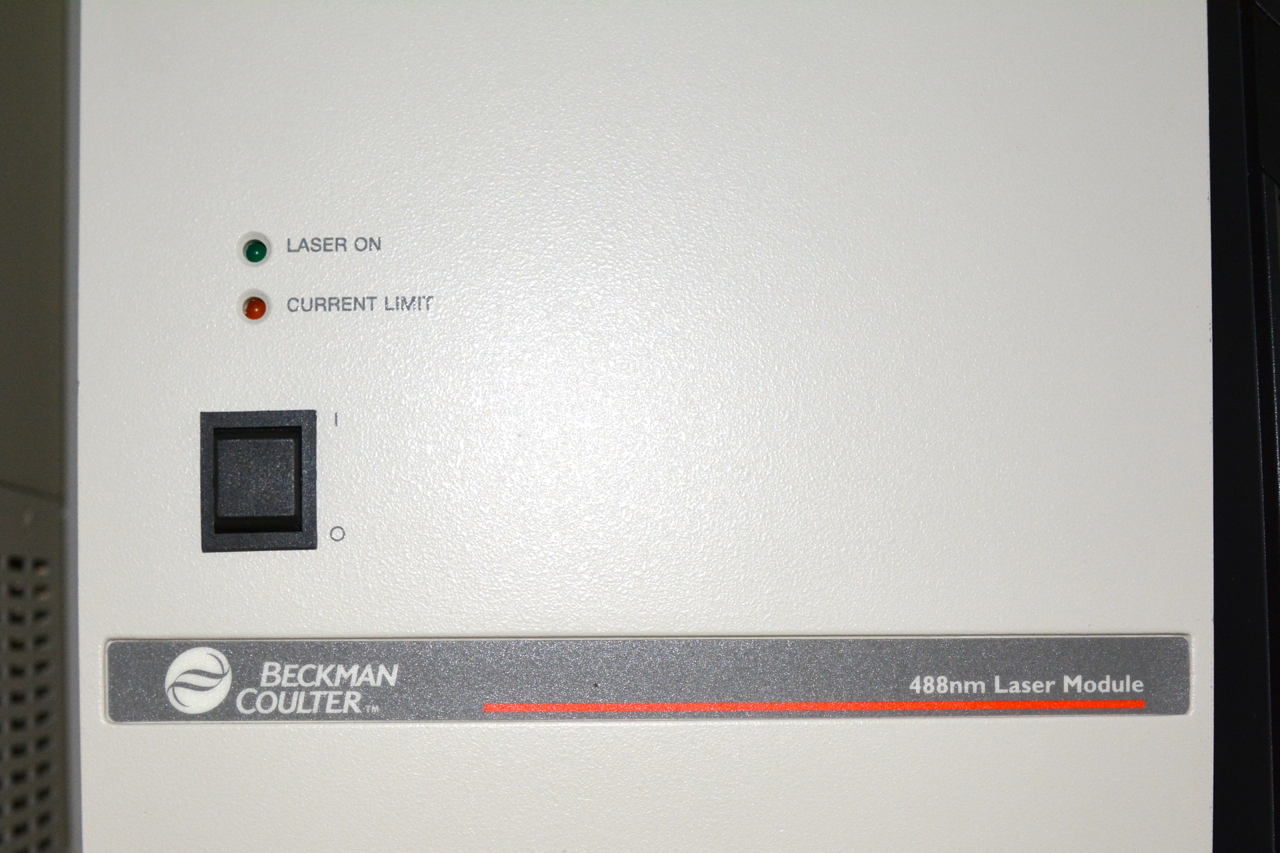

This capillary electrophoresis will come with 488 nm laser module (LIF detector) and computer.
External dimensions (W) x (D) x (H): 57 x 62 x 69 cm
