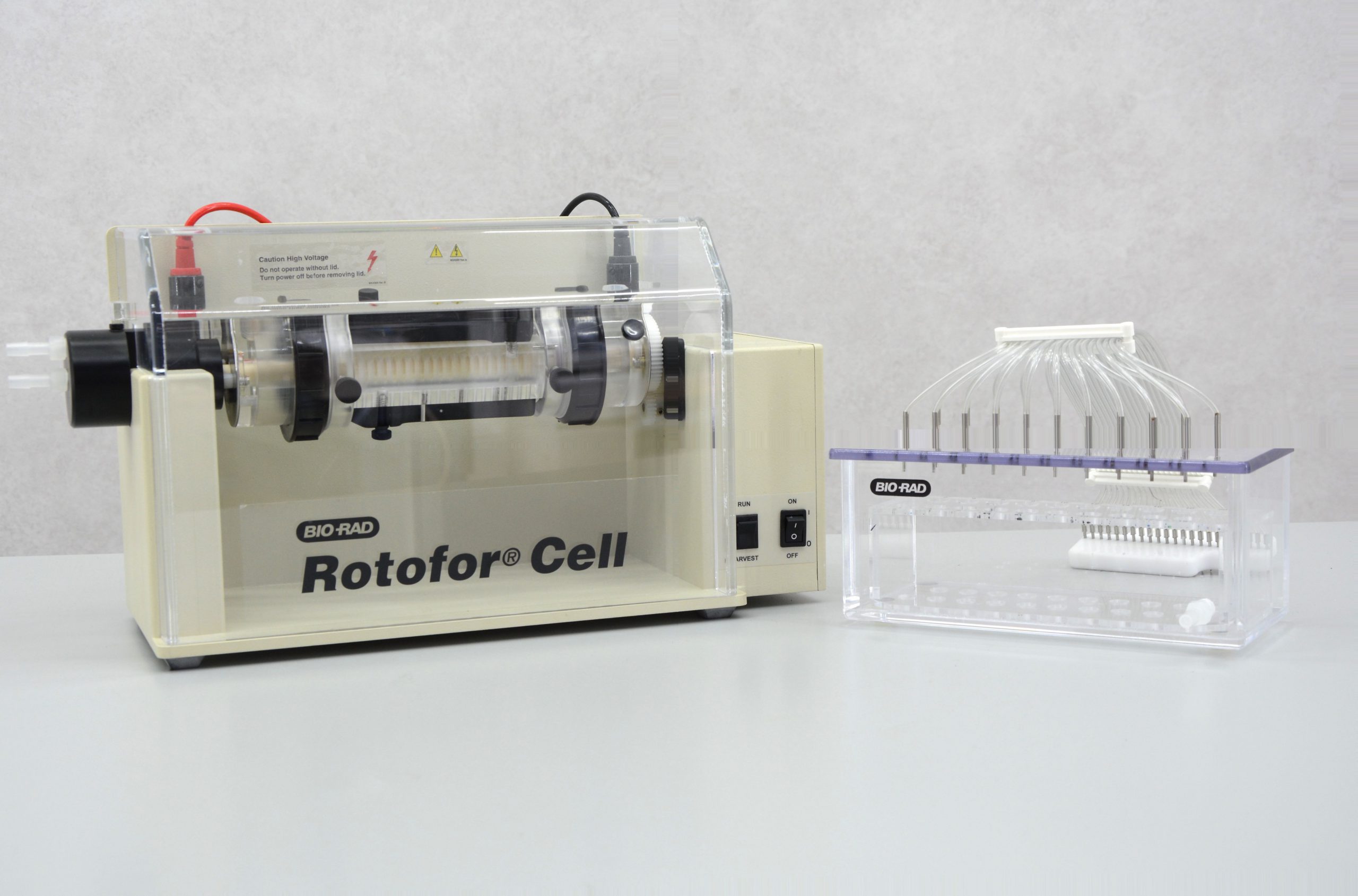

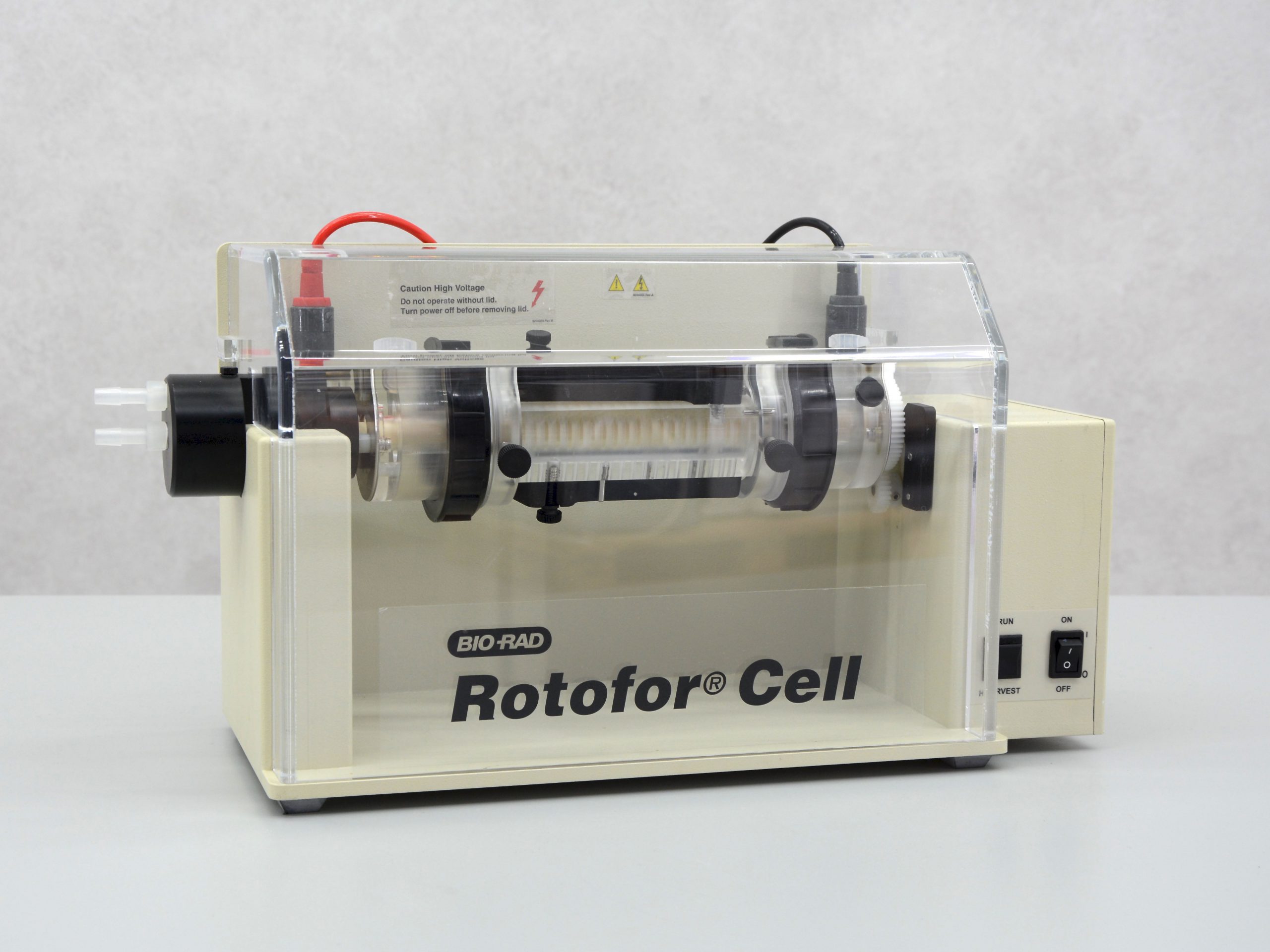

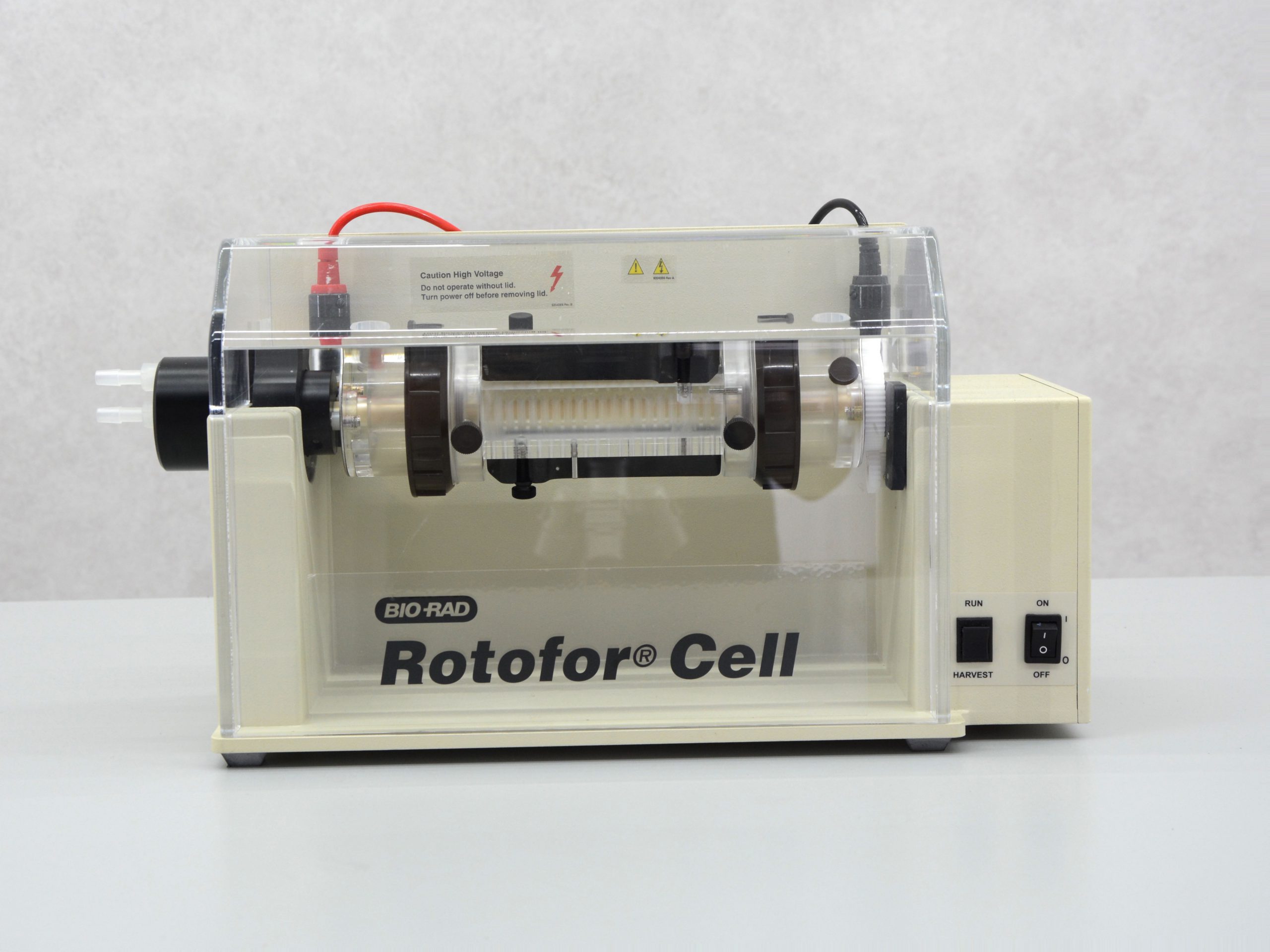

Bio-Rad Rotofor Preparative IEF Cell

The preparative isoelectric focusing cell of the brand Bio-Rad type Rotofor is designed for protein purification by using liquid phase isoelectric focusing (IEF) to separate proteins into 20 fractions in free solution. In addition, the Bio-Rad Rotofor Prep IEF Cell processes protein quantities from micrograms to grams. The Bio-Rad Rotofor is ideally suited for the isolation of uncharacterised proteins from raw or partially purified samples. Selected fractions from an initial run can be collected, pooled and re-fractionated, allowing up to 1000-fold purification.
Technical specifications
Voltage: 220/240VAC 50/60Hz
Power: 12W
Sample volume: 35 – 60 mL
Fraction volume: 1.75 – 3 mL
Cell power: 12W
Cell voltage: 3000VDC
Harvesting device: accommodation 20 bottles
Dimensions harvesting device (W) x (D) x (H): 21 x 10 x 13 cm
External dimensions (W) x (D) x (H): 43 x 16 x 21.5 cm
