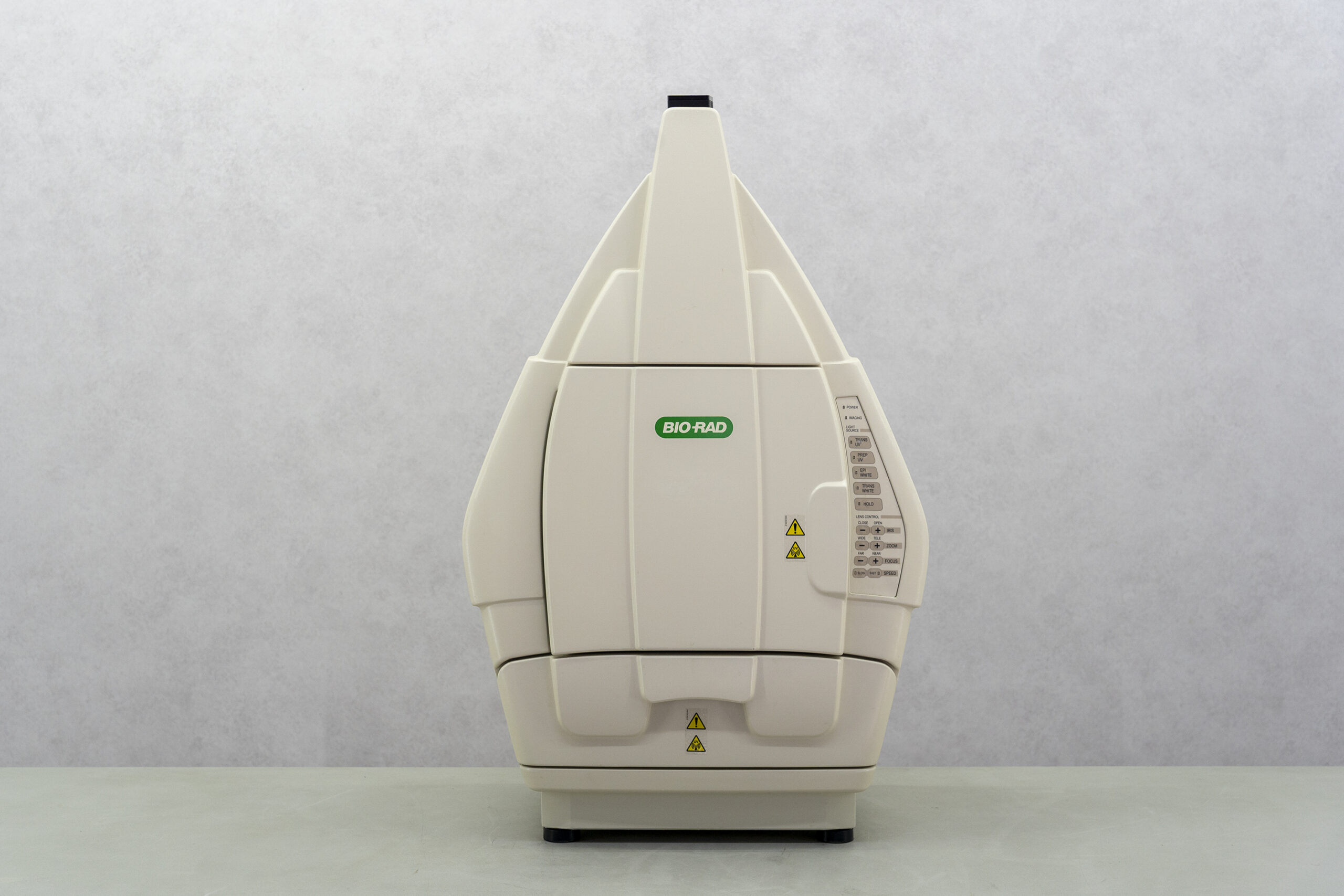

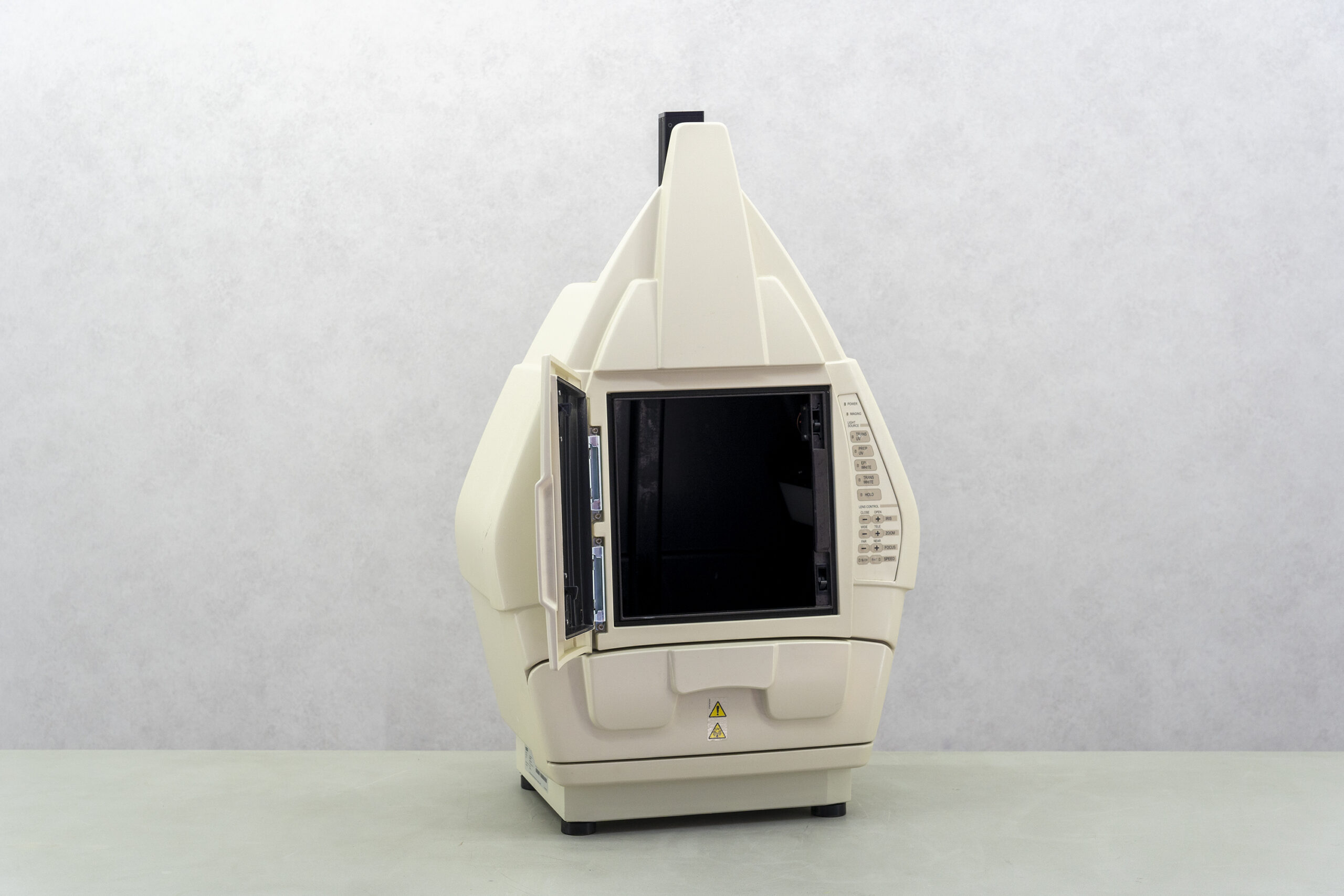

A Bio-Rad brand Universal Hood II digital gel imaging system enables fast and easy visualization, documentation and analysis of nucleic acid and protein gels, blots and macroarrays. The system supports fluorescent and colorimetric detection methods. The user can save and recall all steps for repeatable and reproducible results.
Supplied with Printer
Technical specifications:
Voltage: 230 V
Power: 200VA
Colorimetry/densitometry: Yes
Gel documentation: Yes
Hardware specifications – Maximum sample size: 28×36 cm
Maximum image area: 19.4×26 cm
Illumination control: 3 modes (trans-UV, trans-white, epi-white)
CCD Detector
Lighting source: White light lighting
302 nm UV lamps, 6
254 nm UV lamps, 6
365 nm UV lamps, 6 (optional)
Photo resolution: 4 megapixels
Pixel size (H x V): 4.65 x 4.65 µm
