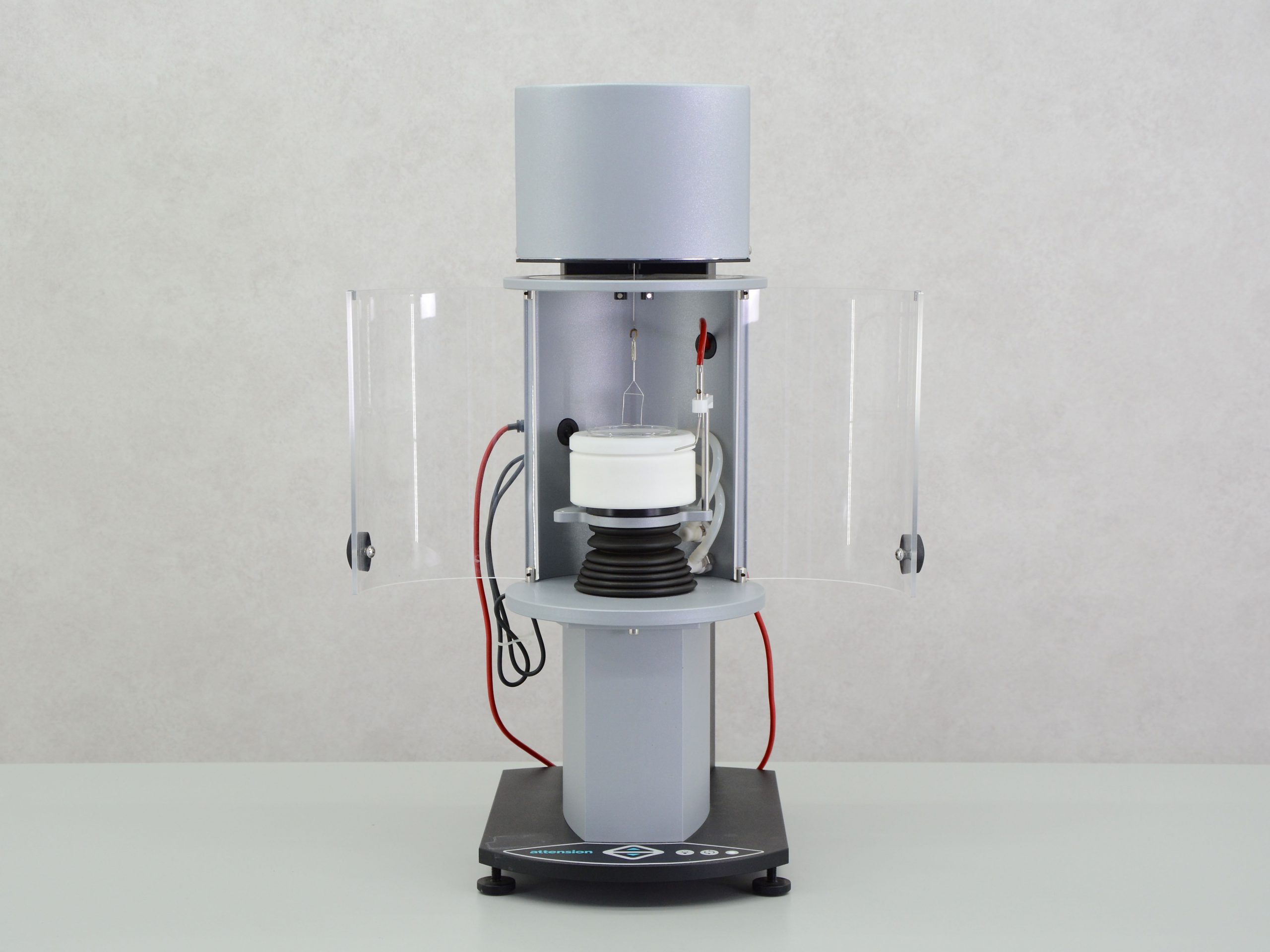

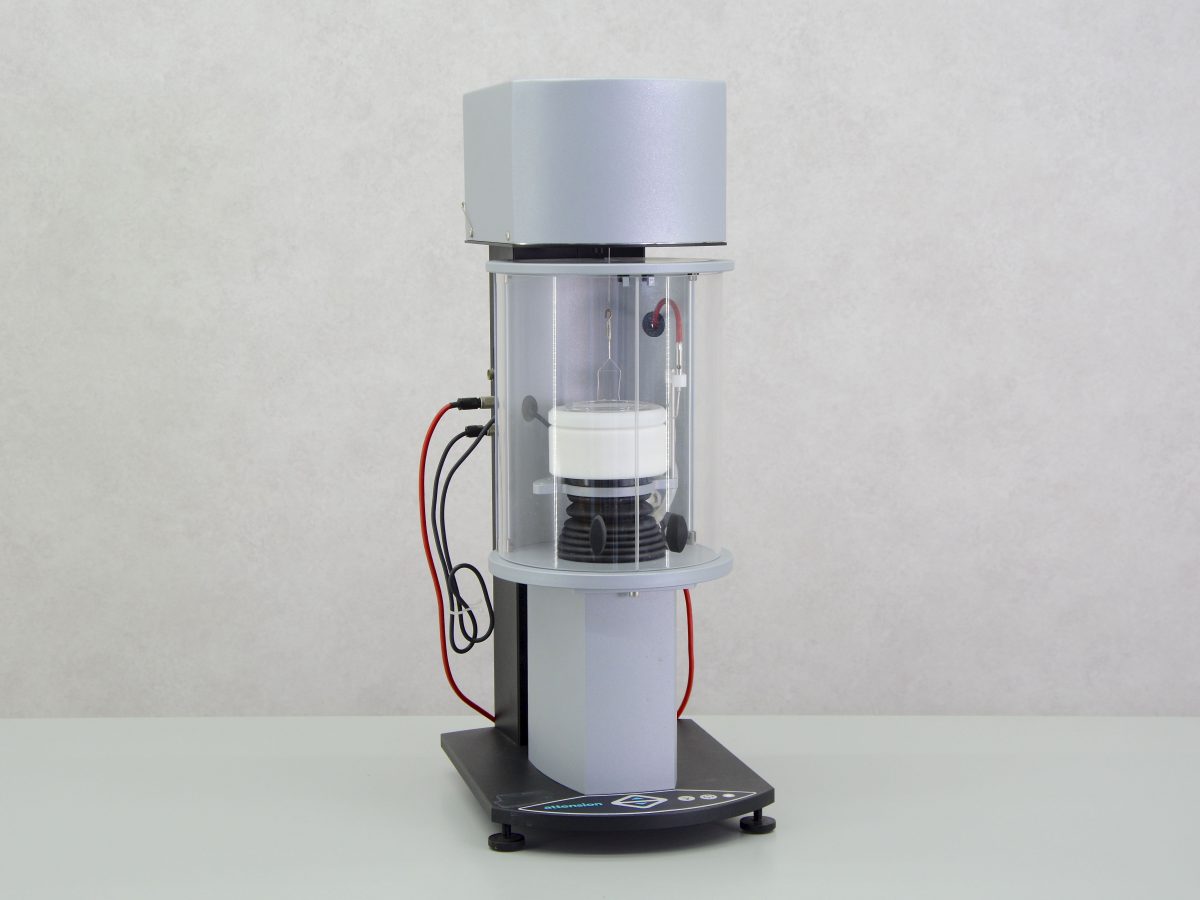

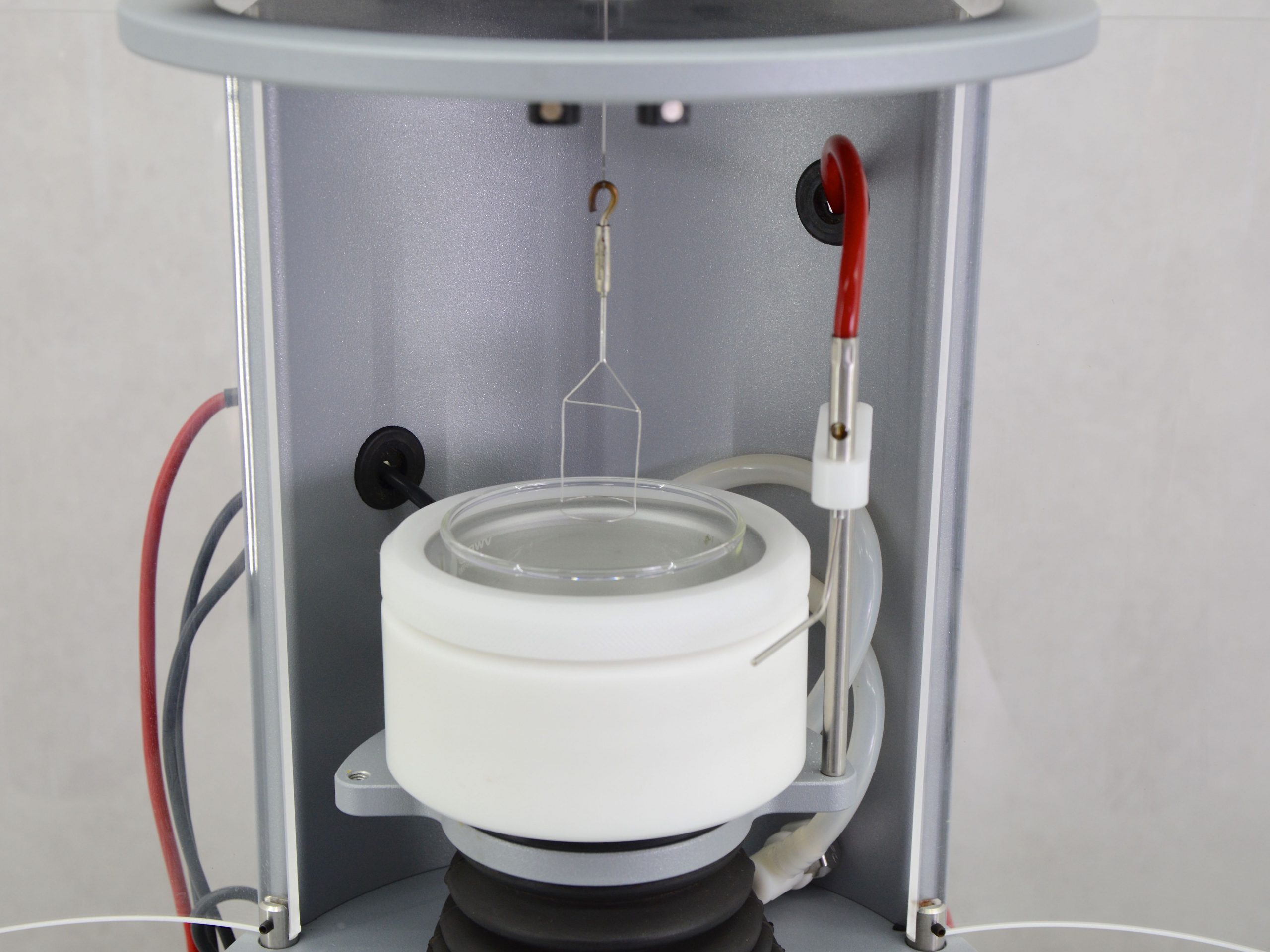

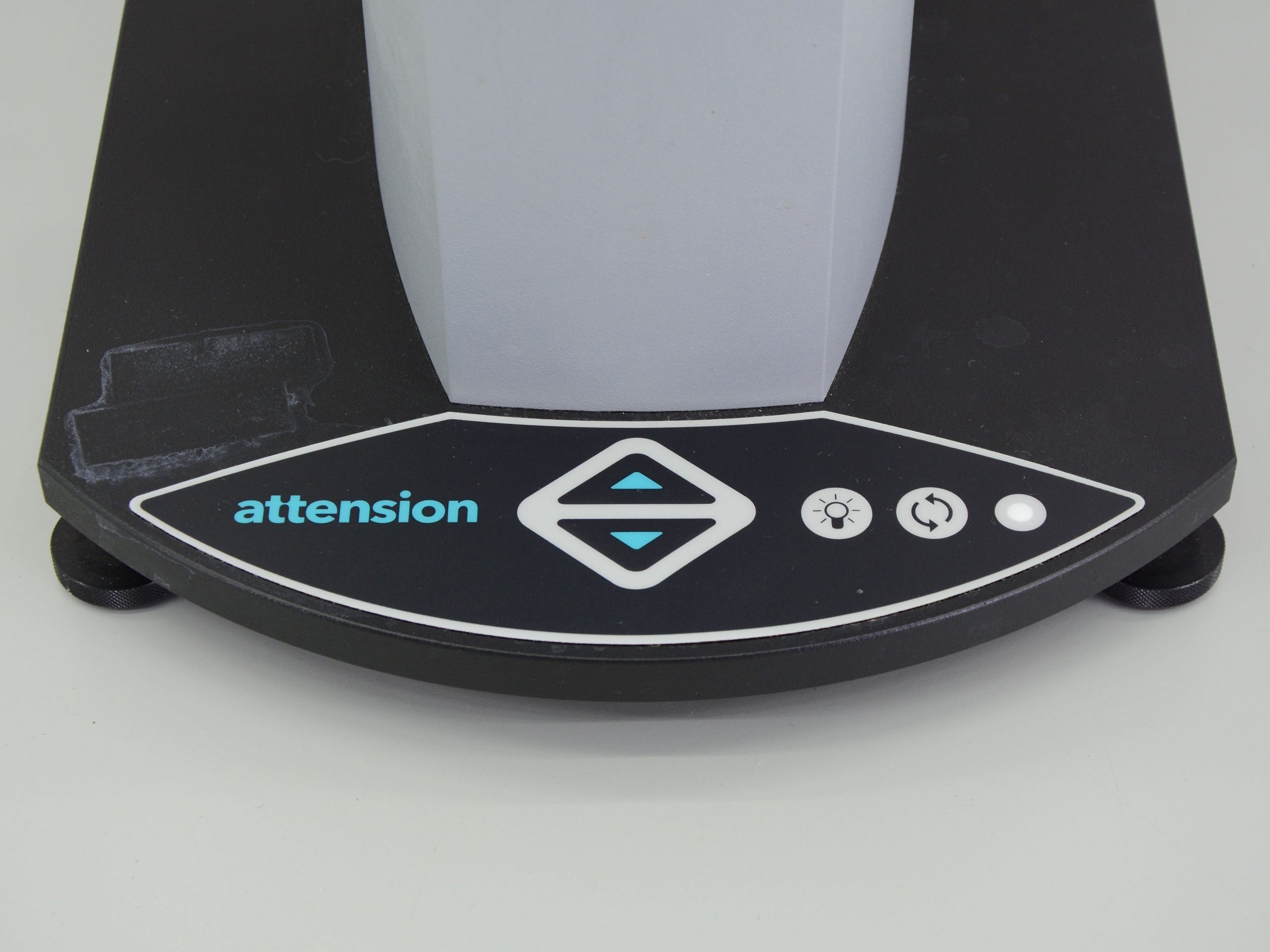

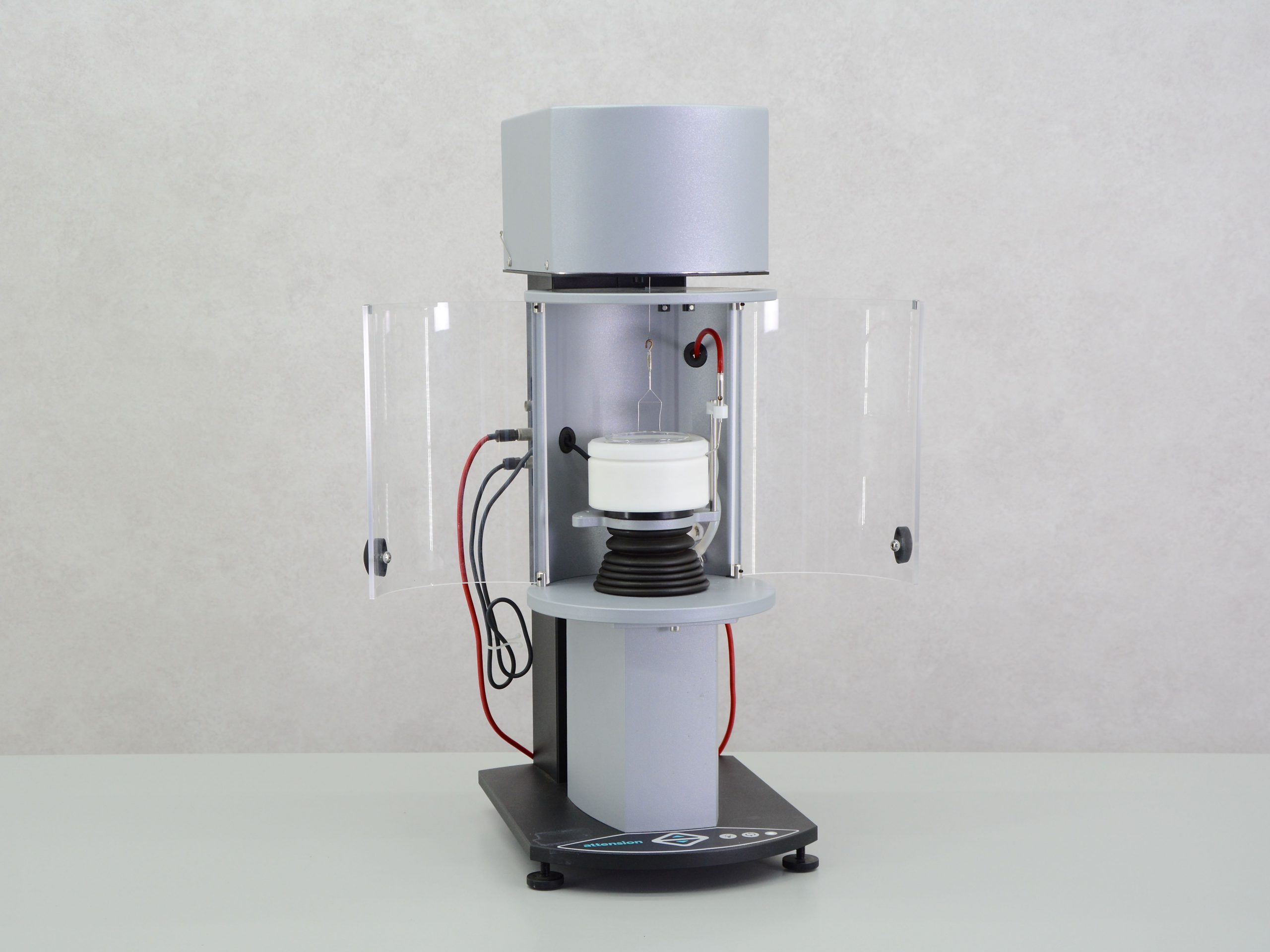

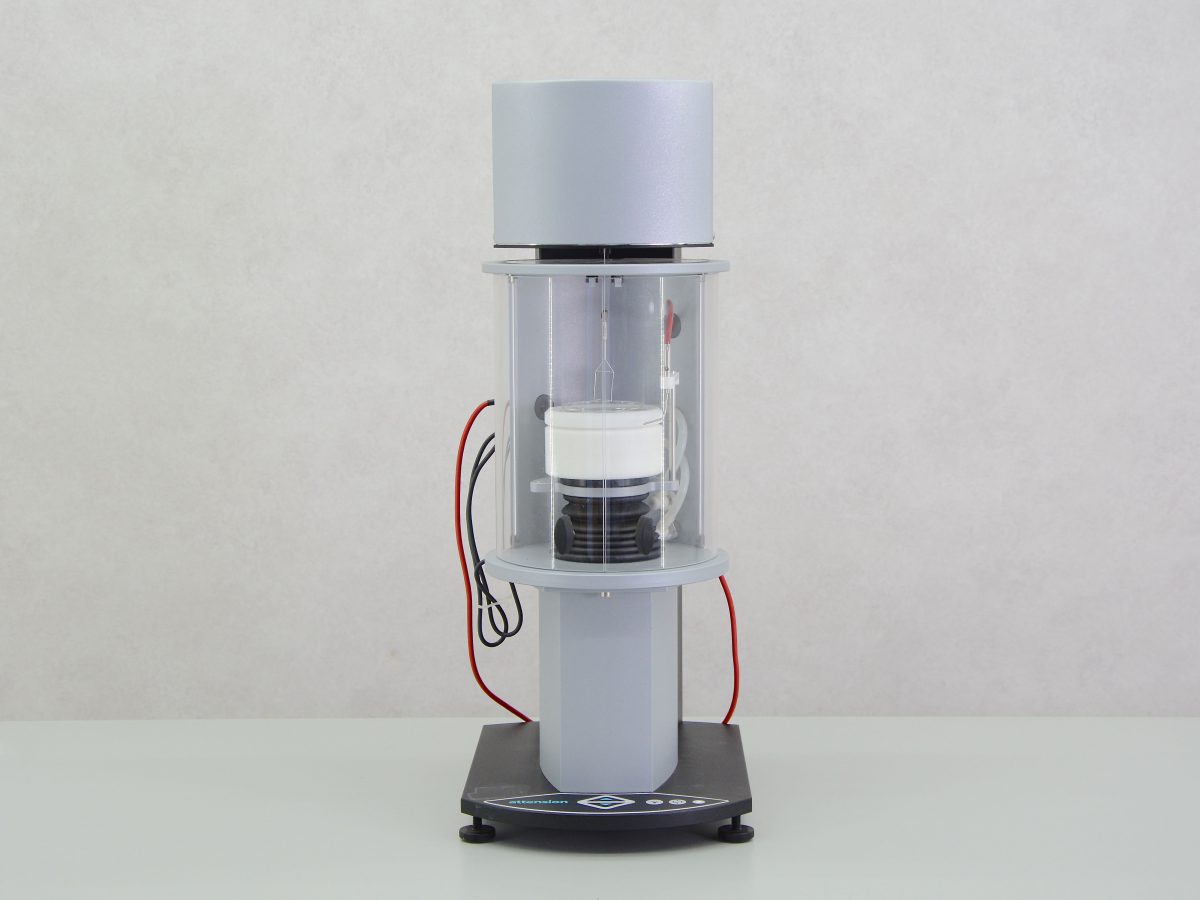

The force tensiometer of the brand Biolin Scientific type Sigma 701 is used in research, development and quality control for the study of surfaces and interfaces. This force tensiometer can measure the surface tension, interfacial tension, critical micelle concentration (CMC), dynamic contact angle, surface free energy (SFE), powder wettability (Washburn), adhesion force, sedimentation and density. In addition, this force tensiometer will be supplied including a temperature sensor and stirrer.
PLEASE NOTE: this force tensiometer will be supplied without software, it is a parts only force tensiometer!
Technical specifications
Voltage: 100-250V AC
Current: 1A
Measuring range: 1 – 2000 mN/m
Density range: 0 – 2.2 g/cm3
Contact angle range: 0 – 180 degrees
Temperature control range: -20 to +200 °C
External dimensions (W) x (D) x (H): 24 x 34 x 62 cm
