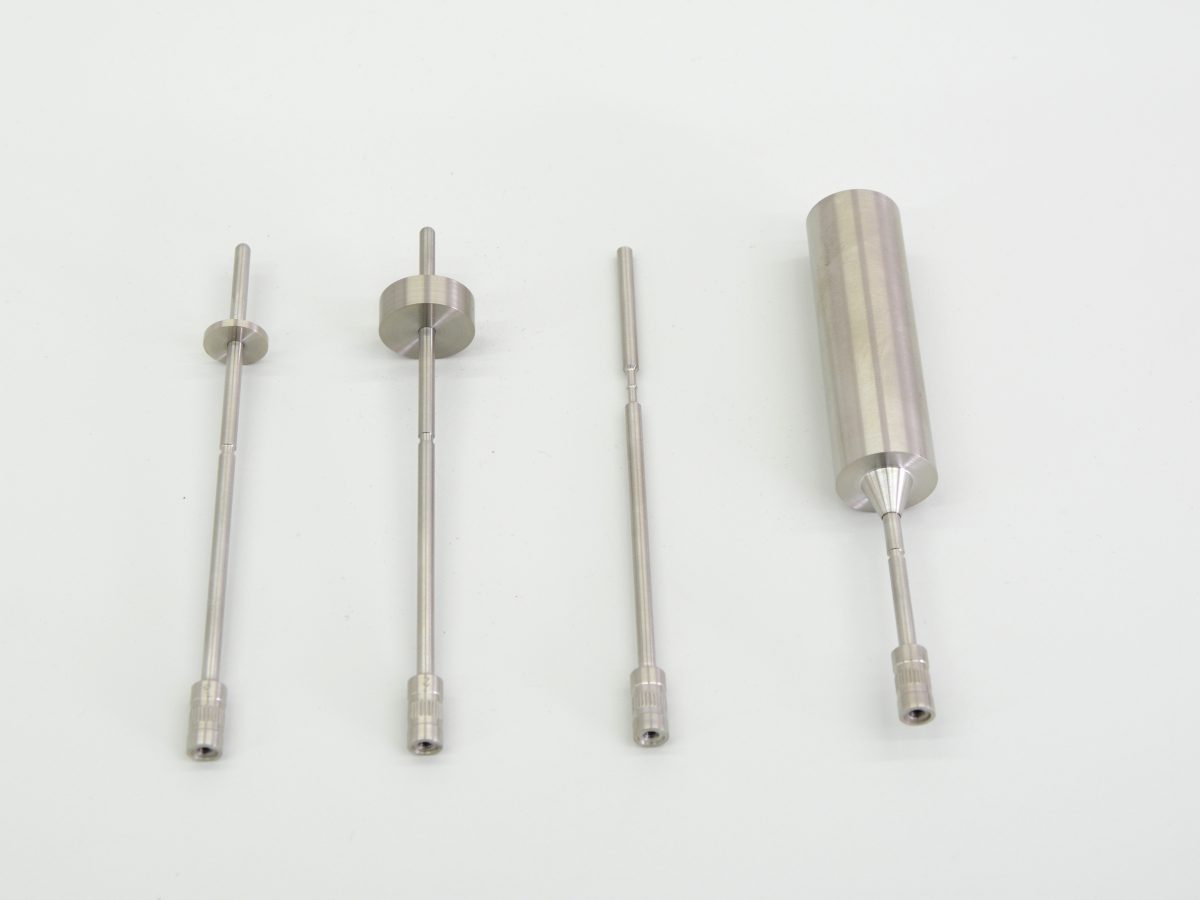

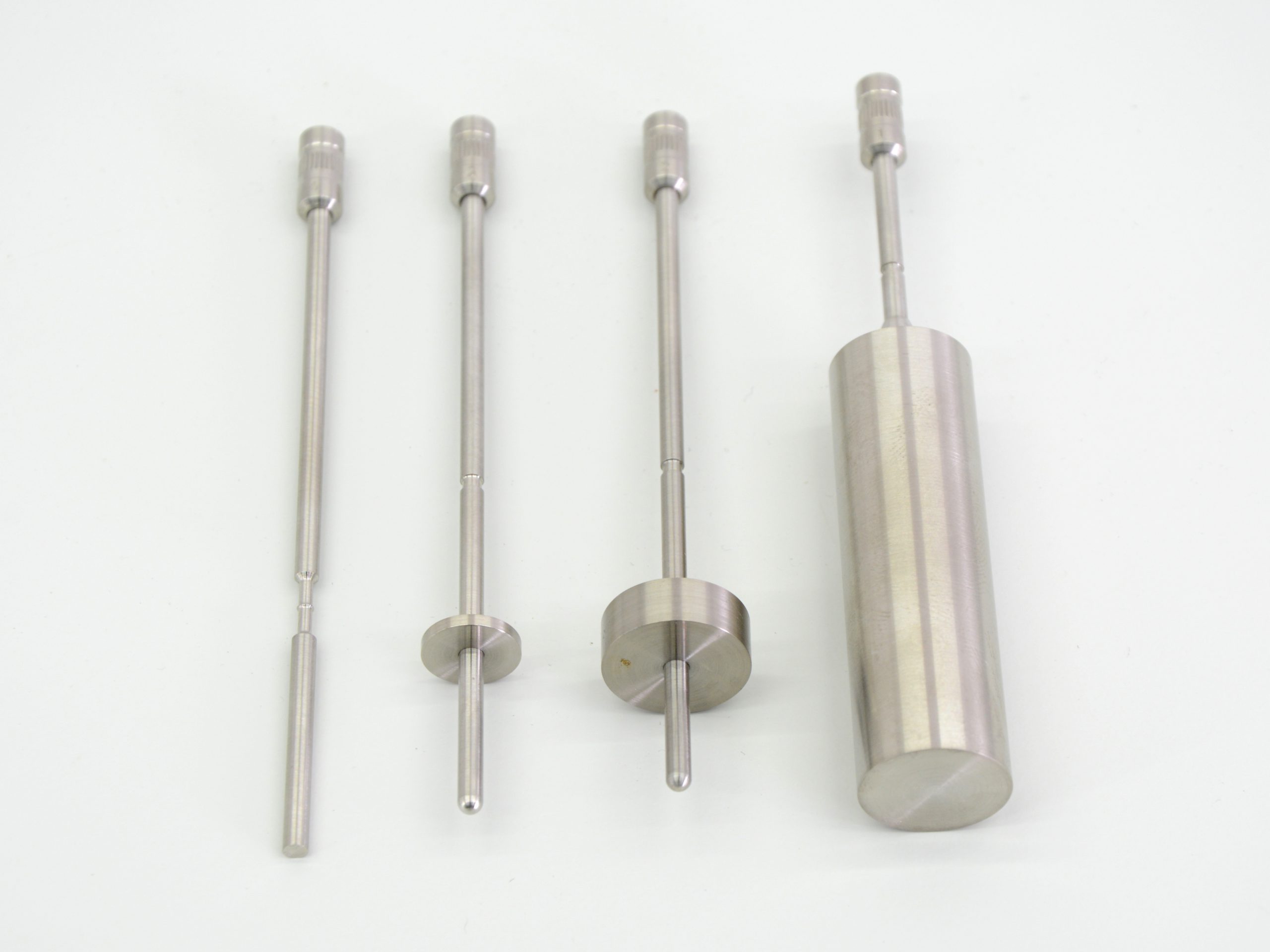

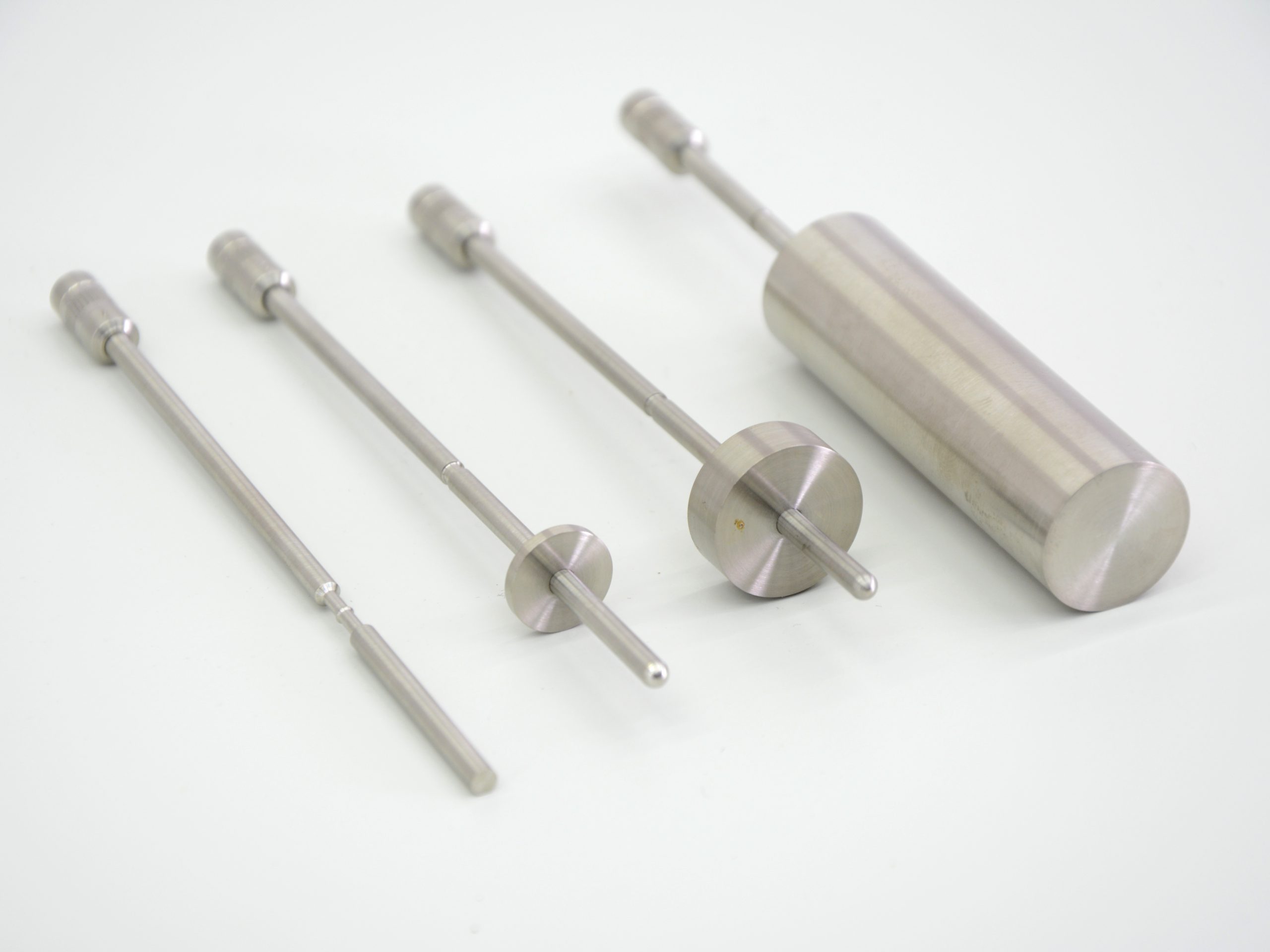

The spindle set of the Brookfield type LV is designed for use in combination with a rotating viscometer. The spindle rotates at a defined speed in the medium. The force in the axis of the spindle can then be measured and converted into viscosity. In this way the viscosity of a sample can be accurately determined.
Spindel type
cP
LV-1 (61)
15-20K
LV-2 (62)
50-100K
LV-3 (63)
200-400K
LV-5 (65)
2K-4M
* Based on standard LV speed: 0.3 – 60 rpm
K = 1 thousand
M = 1 million
