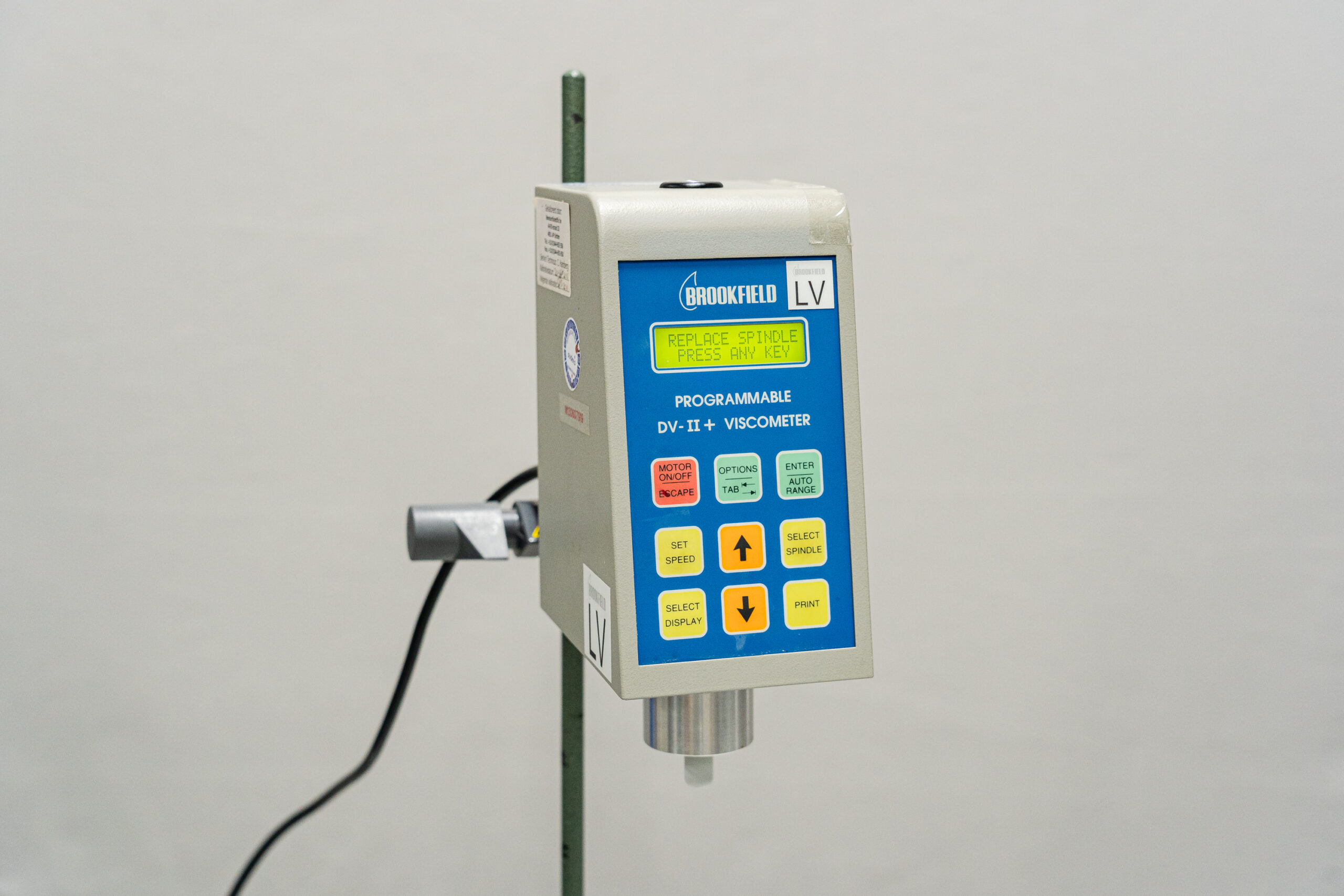

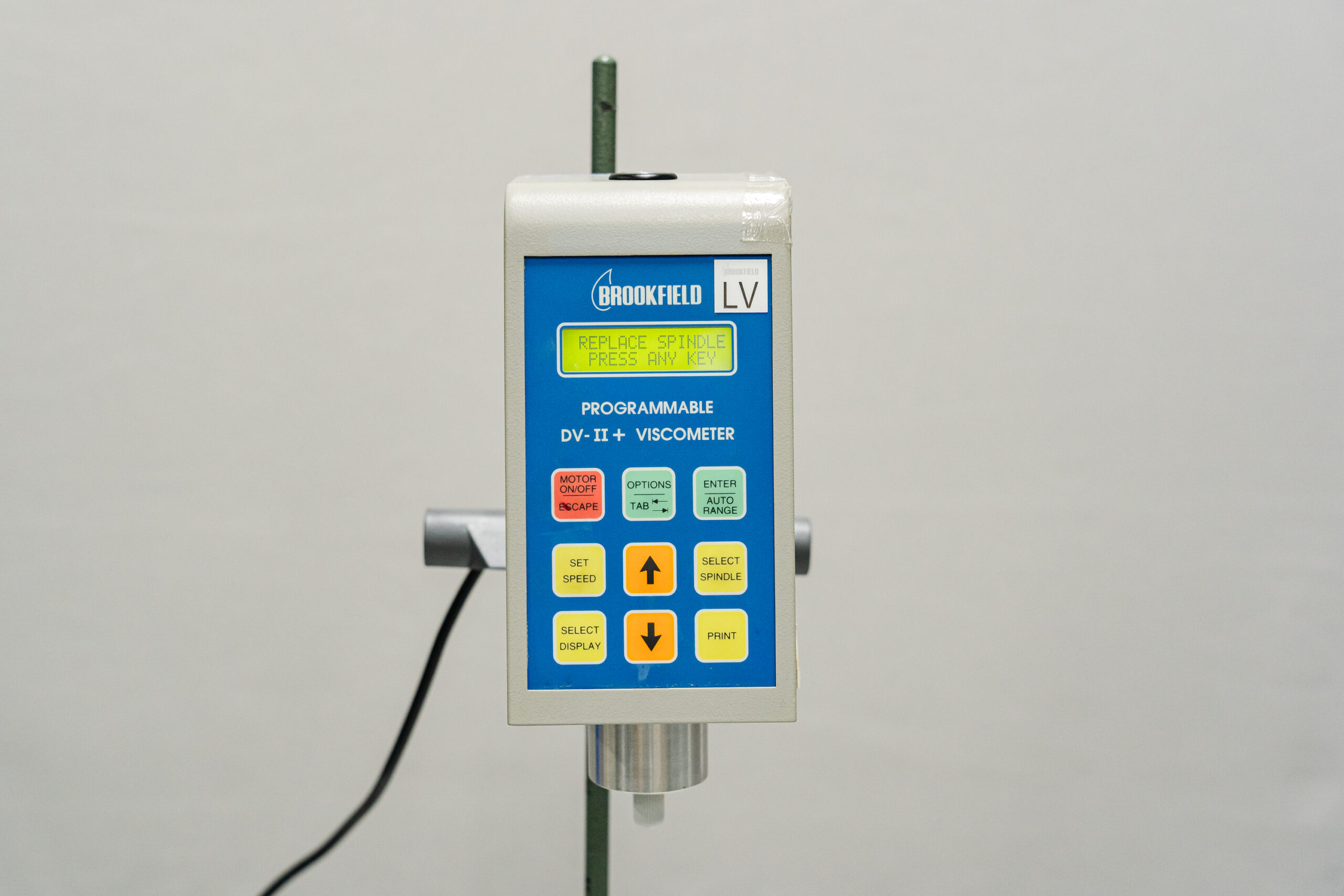

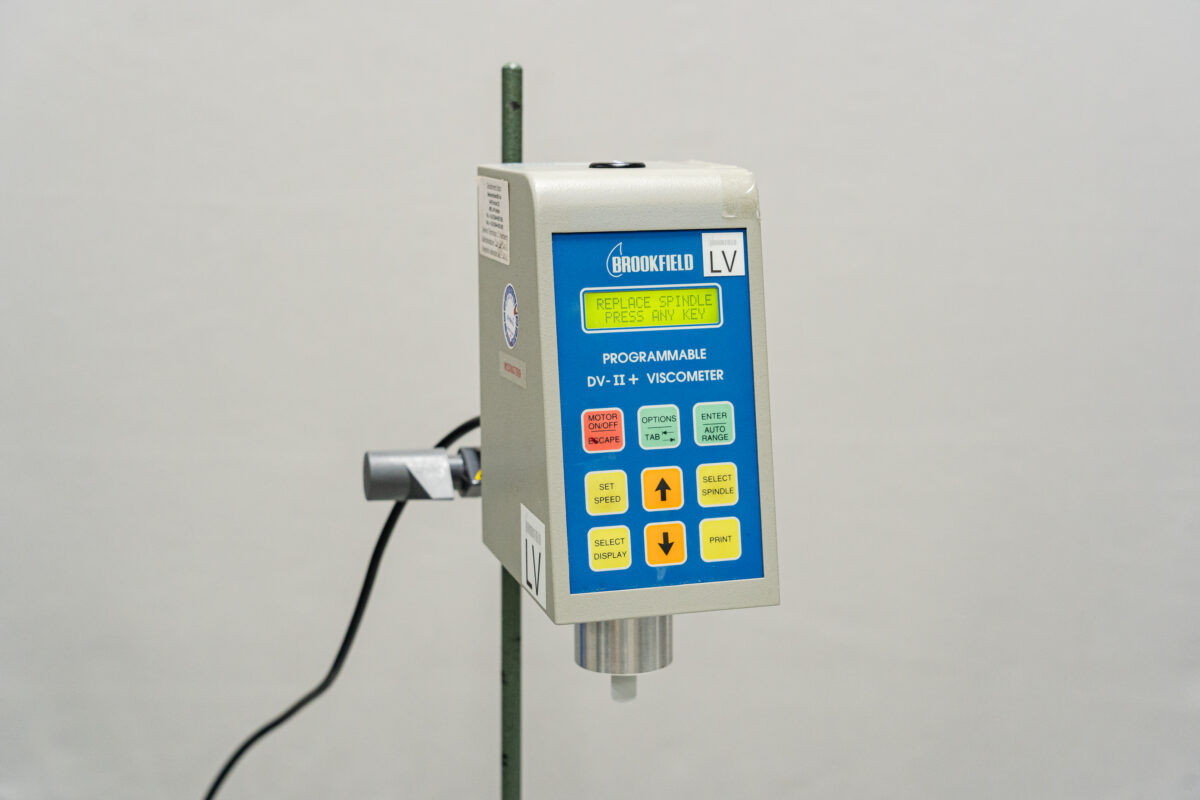

The Brookfield LVDV II+ viscometer measures the viscosity of liquids at specified shear rates.

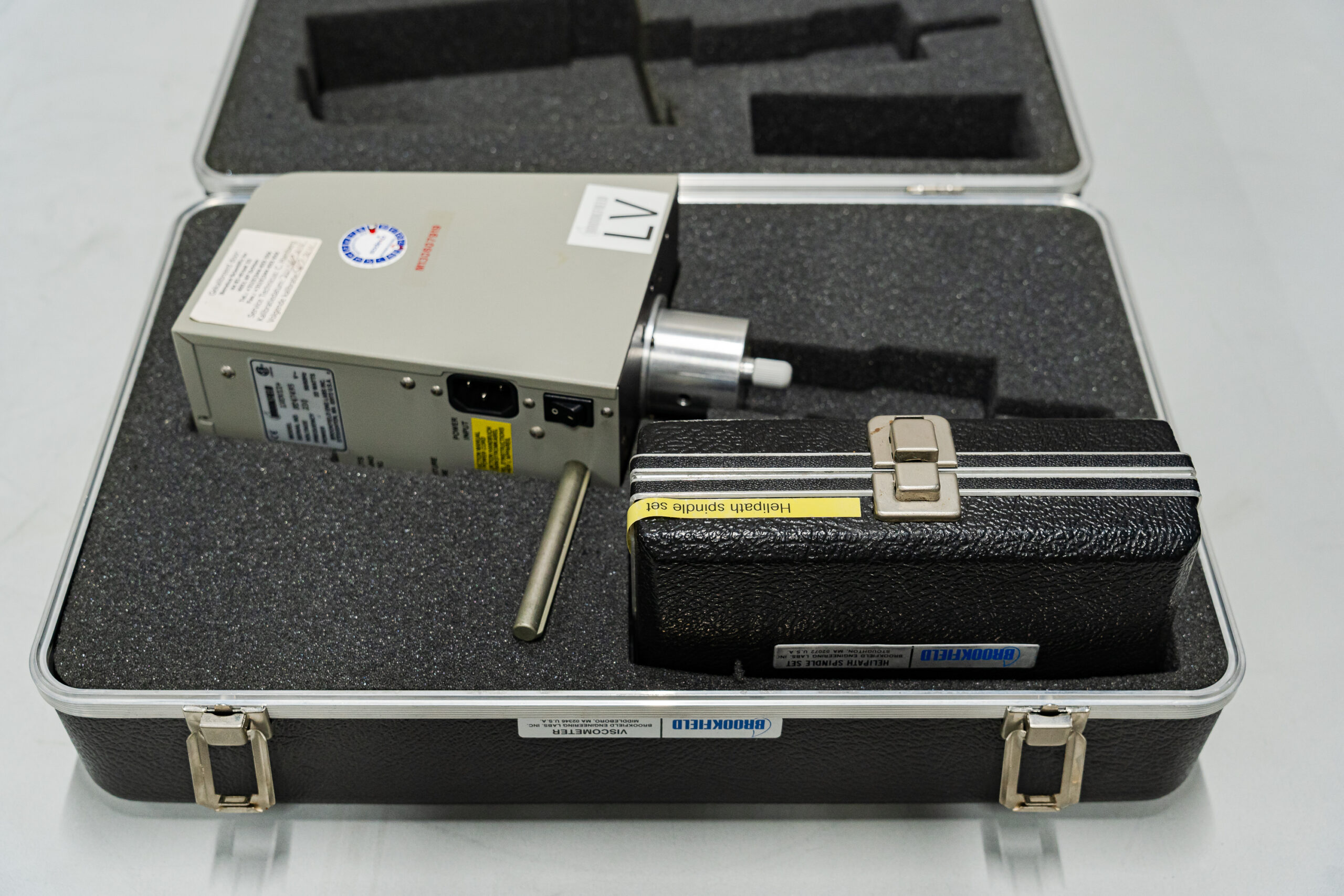

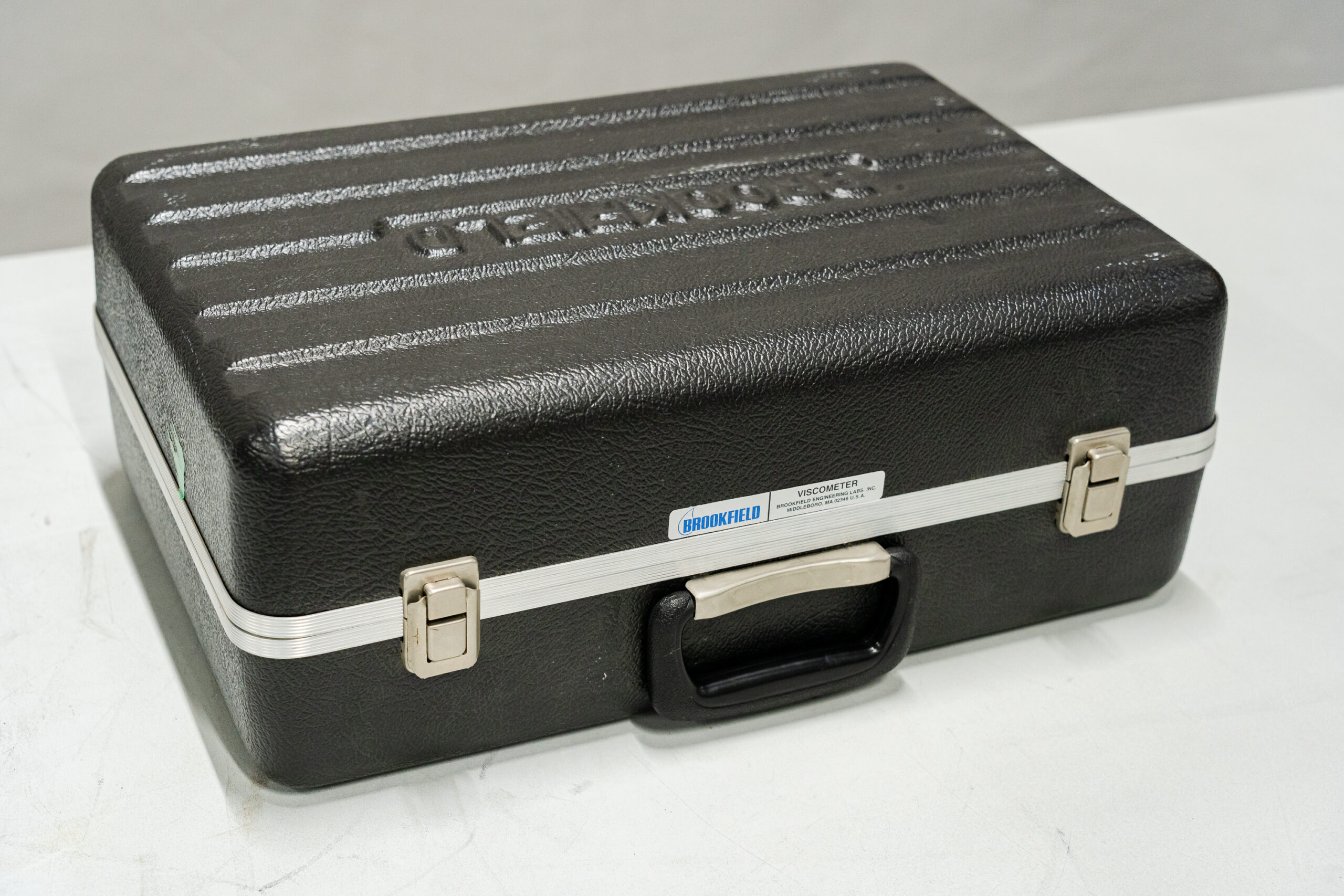

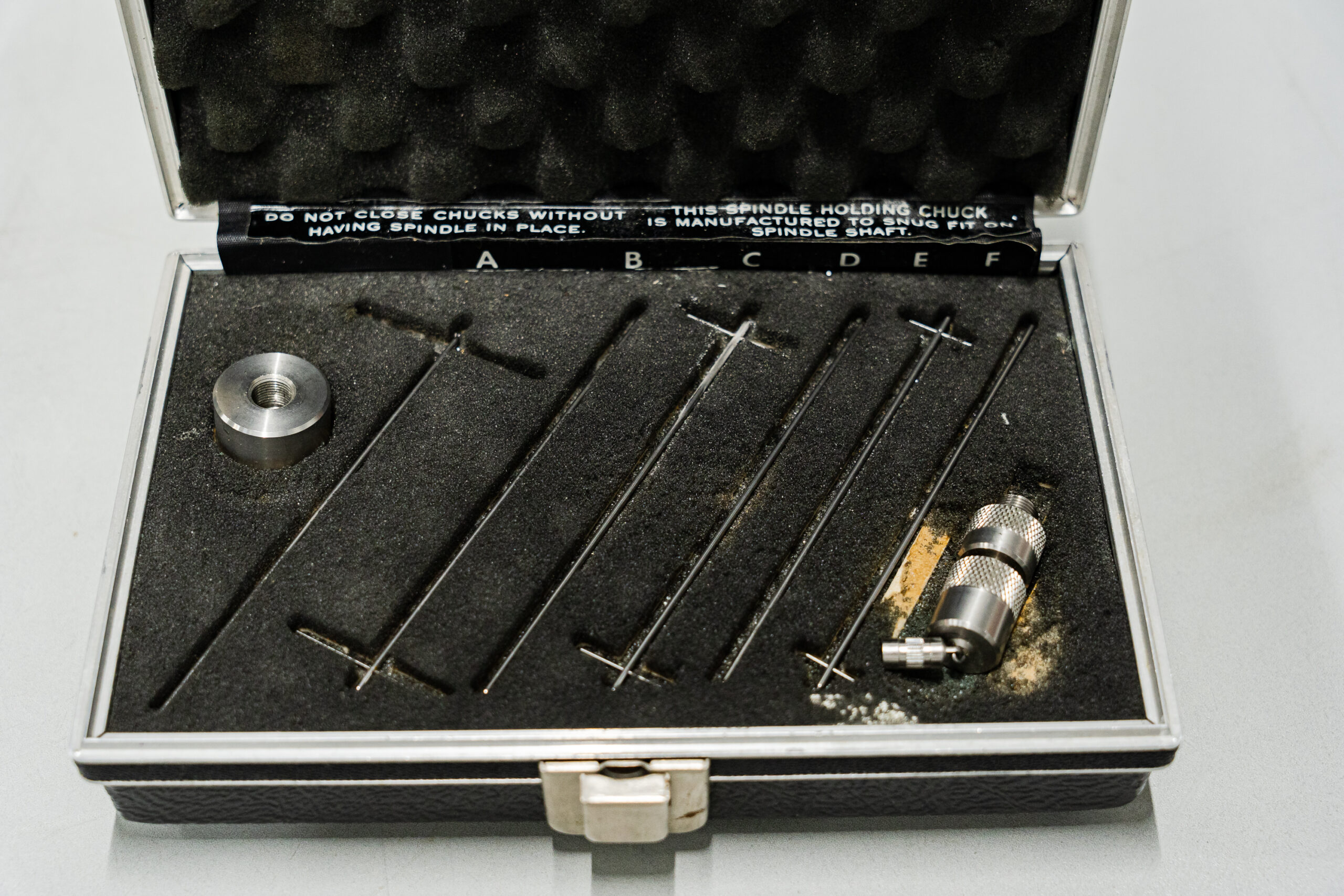

Works stand alone and with helipath spindles. Case included.
Technical specifications:
Voltage: 230 V
Power: 22 W
Temperature detection range: -100ËšC to 300ËšC
Analog torque output: 0 – 1 volt DC
Analog temperature output: 0 – 375 volt DC (-100°C to +275°C)

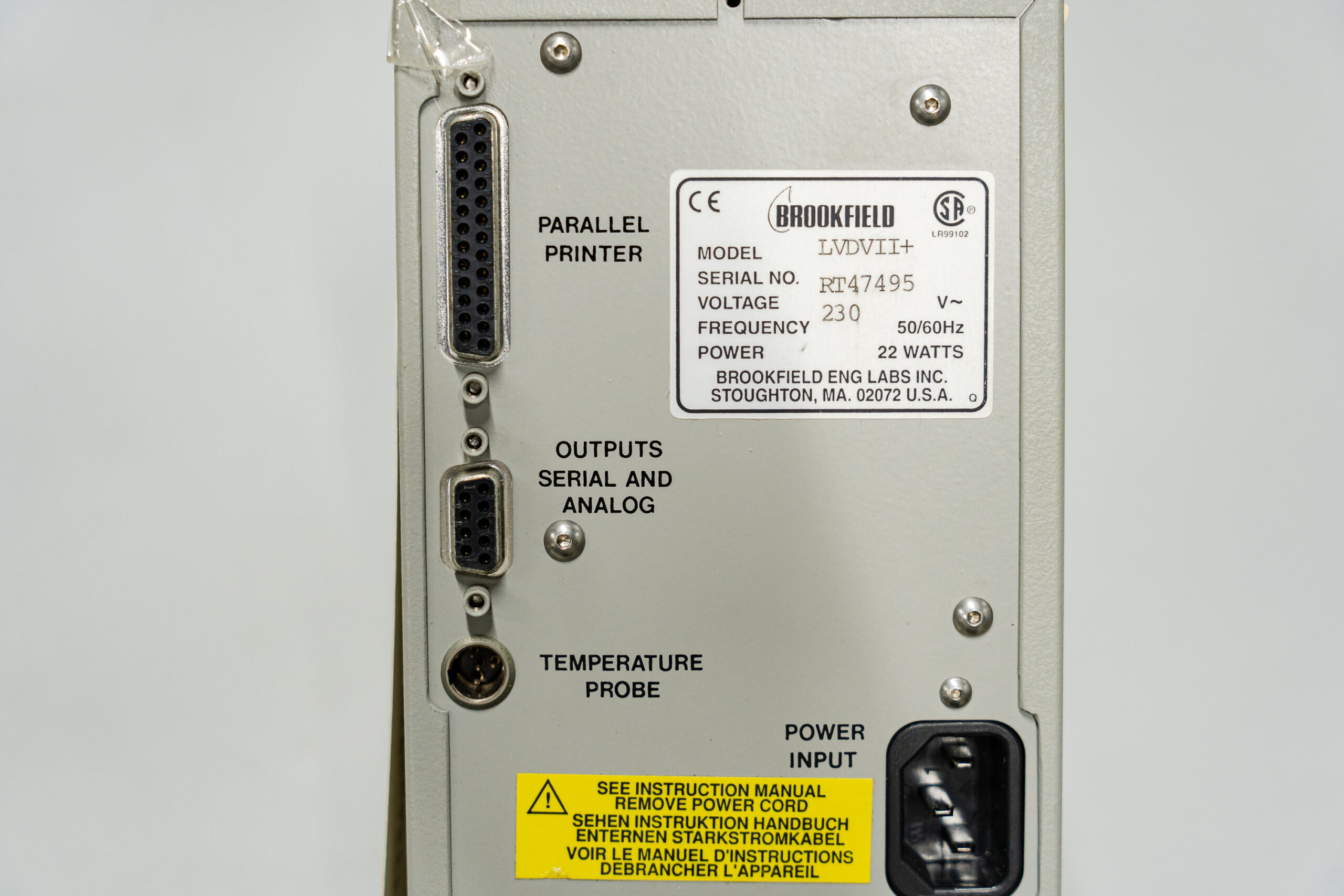

RS232 compatible serial port for use with a connected printer or PC.
Viscosity accuracy: ±1.0% of full scale range
Viscosity repeatability: ±0.2%
Temperature accuracy: ±1°C: -100°C to +149°C
±2°C: +150°C to +300°C
Operating environment: Temperature range 0°C to 40°C
External dimensions (W) x (D) x (H): 420 x 330 x 160 mm
Internal dimensions (W) x (D) x (H): 90 x 150 x 260 mm
Weight: 10 kg
