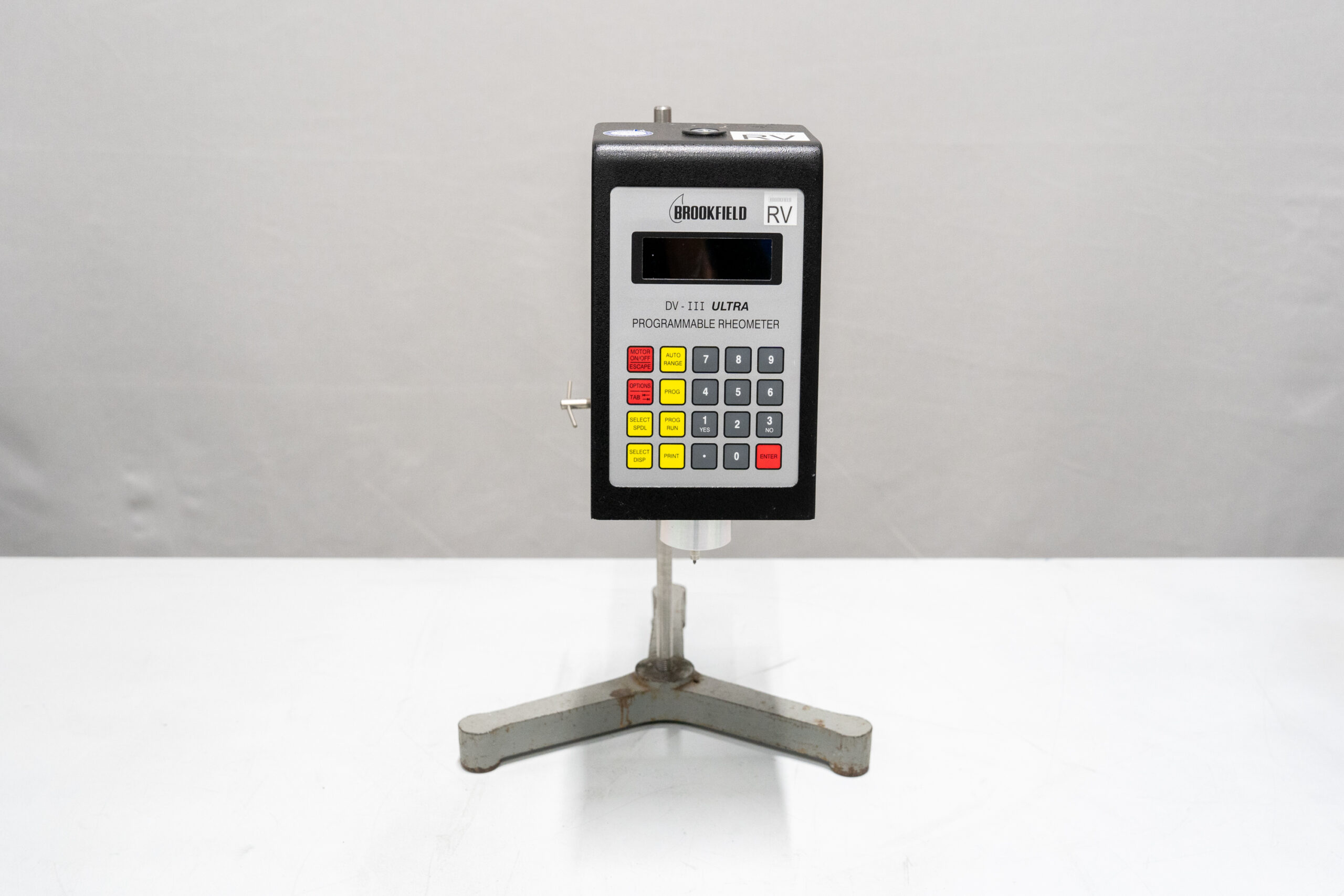

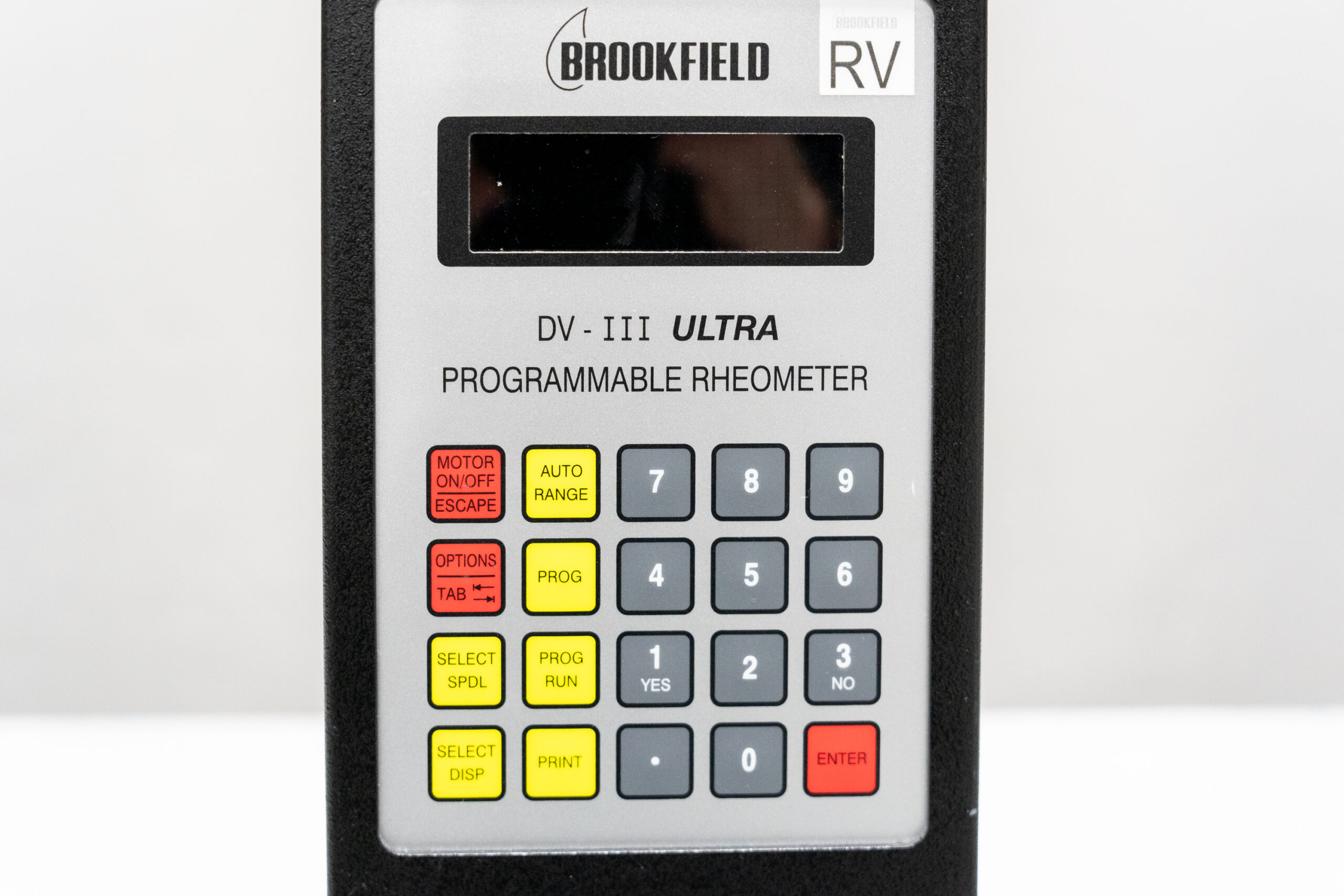

The base unit is missing from this Brookfield Rheometer RVDV-111 U. It can be used stand alone with a self-build power supply. The Brookfield DV-III programmable rheometer measures fluid parameters of shear stress and viscosity at given shear rates.
Technical specifications:
Voltage: 230 V
Power: 220VA
Speed ​​range: 0-250 RPM
Viscosity accuracy: ± 1.0% of full scale range for a specific spindle running at a
specific speed. Temperature Detection Range: – 100°C to 300°C
Temperature Accuracy: ± 1.0°C from -100°C to 150°C
Analog Torque Output: 0 – 1 Volt DC (0 – 100% torque)
Analog Temperature Output: 0 – 4 Volt DC (10mv / °C)
Weight: 14 kg
