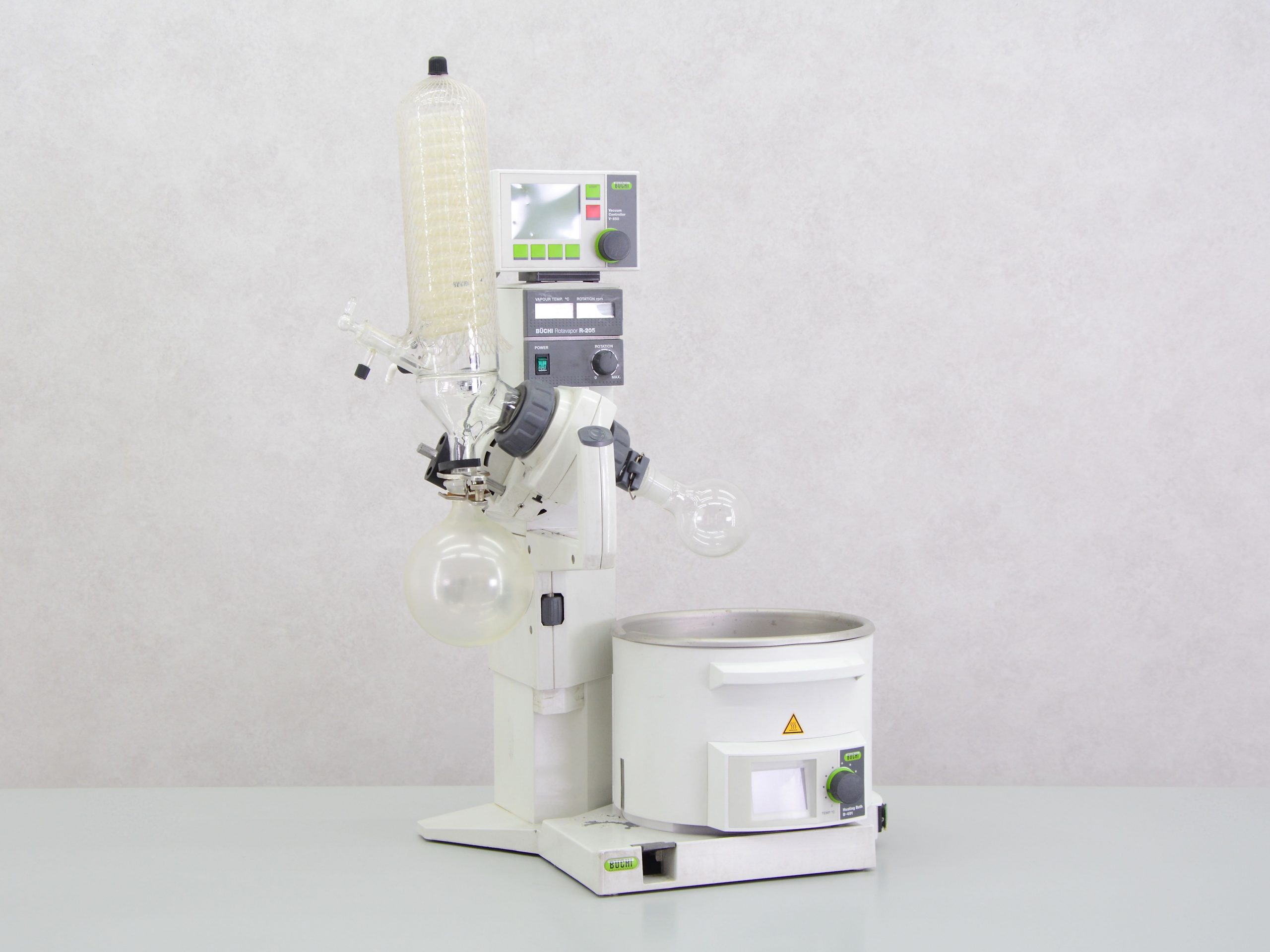

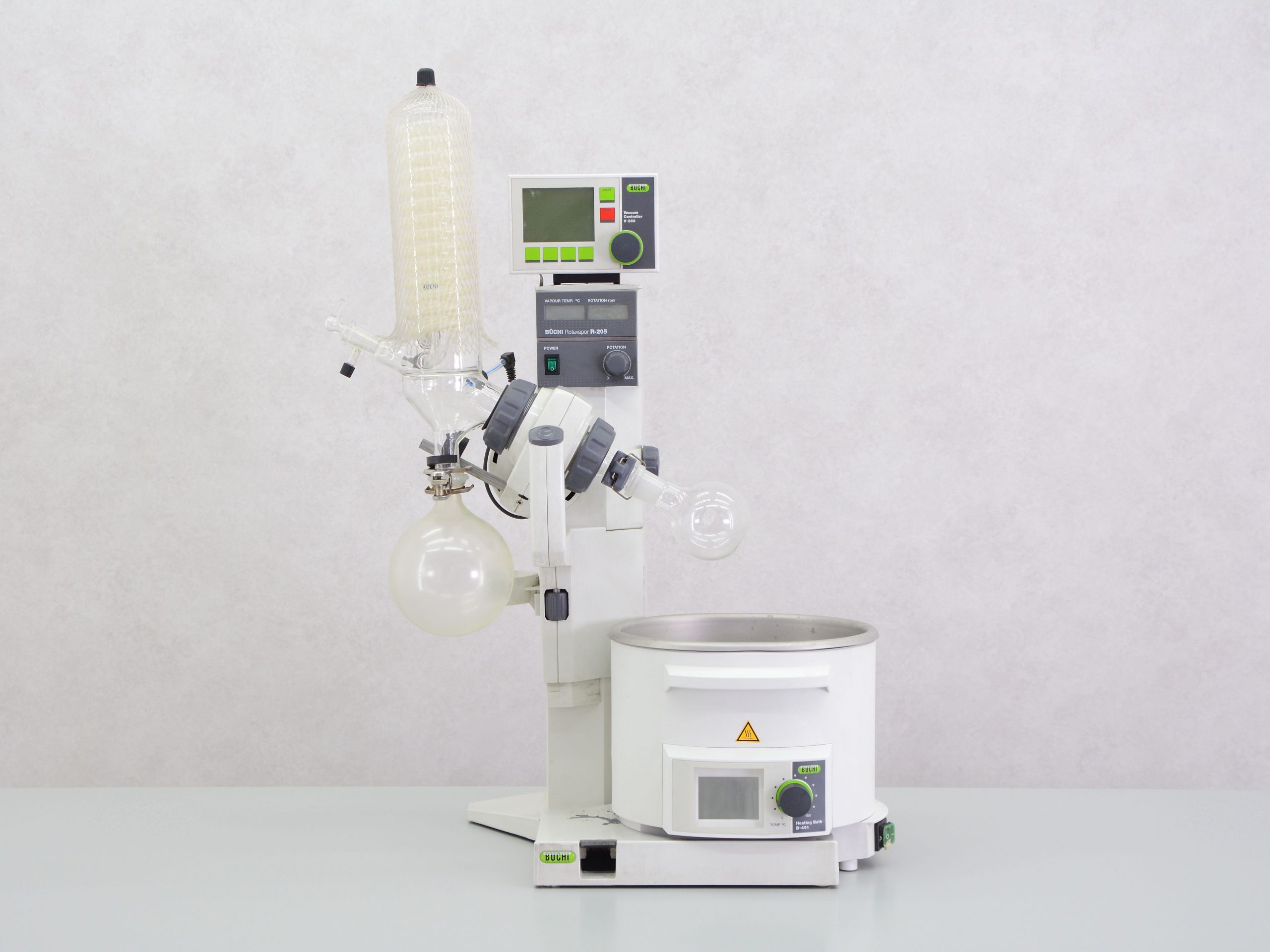

The rotavapor from the brand Buchi type R-205 is designed for various applications, including for the distillation of solvents, the evaporation of solvents and suspensions and for the (re) crystallisation of liquids in the rotating evaporation flask. The distillations can be carried out under vacuum and atmospheric pressure.
Furthermore, this rotavapor is supplied with the digital Buchi B-491 water bath that can accommodate a 4000 mL flask. In addition, the Buchi V850 vacuum controller is also included. This controller is ideal for external vacuum systems. This vacuum controller is equipped with a large graphic display with menu control and six selectable language options. The controller has a solvent database, a timer function for process termination and a LabVac function for controlling laboratory vacuum systems. In addition, this controller is equipped with a USB port and RS-232 / RS-485 interfaces.
Technical specifications
Voltage: 230V, 50/60Hz
Power: 120W
Speed: 0-280 rpm
External dimensions (W) x (D) x (H): 60 x 34 x 84 cm

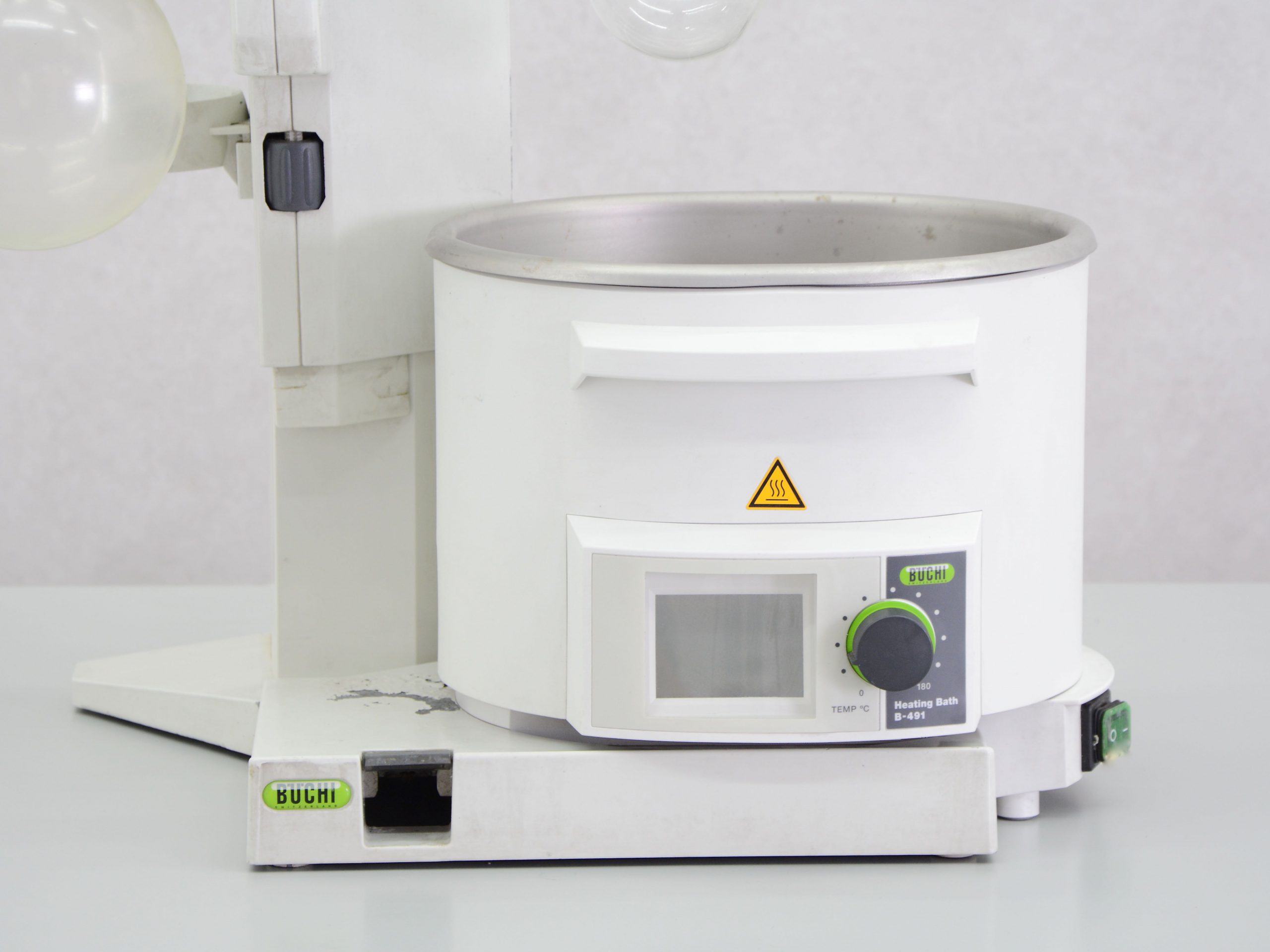

Technical specifications Buchi B491 water bath
Voltage: 220-240VAC, 50 / 60Hz
Power: 1700W
Temperature range: 20 °C to 180 °C
External dimensions (W) x (D) x (H): 28.5 x 30 x 21 cm
Internal dimensions (W) x (D) x (H): 26 x 23 x 12 cm

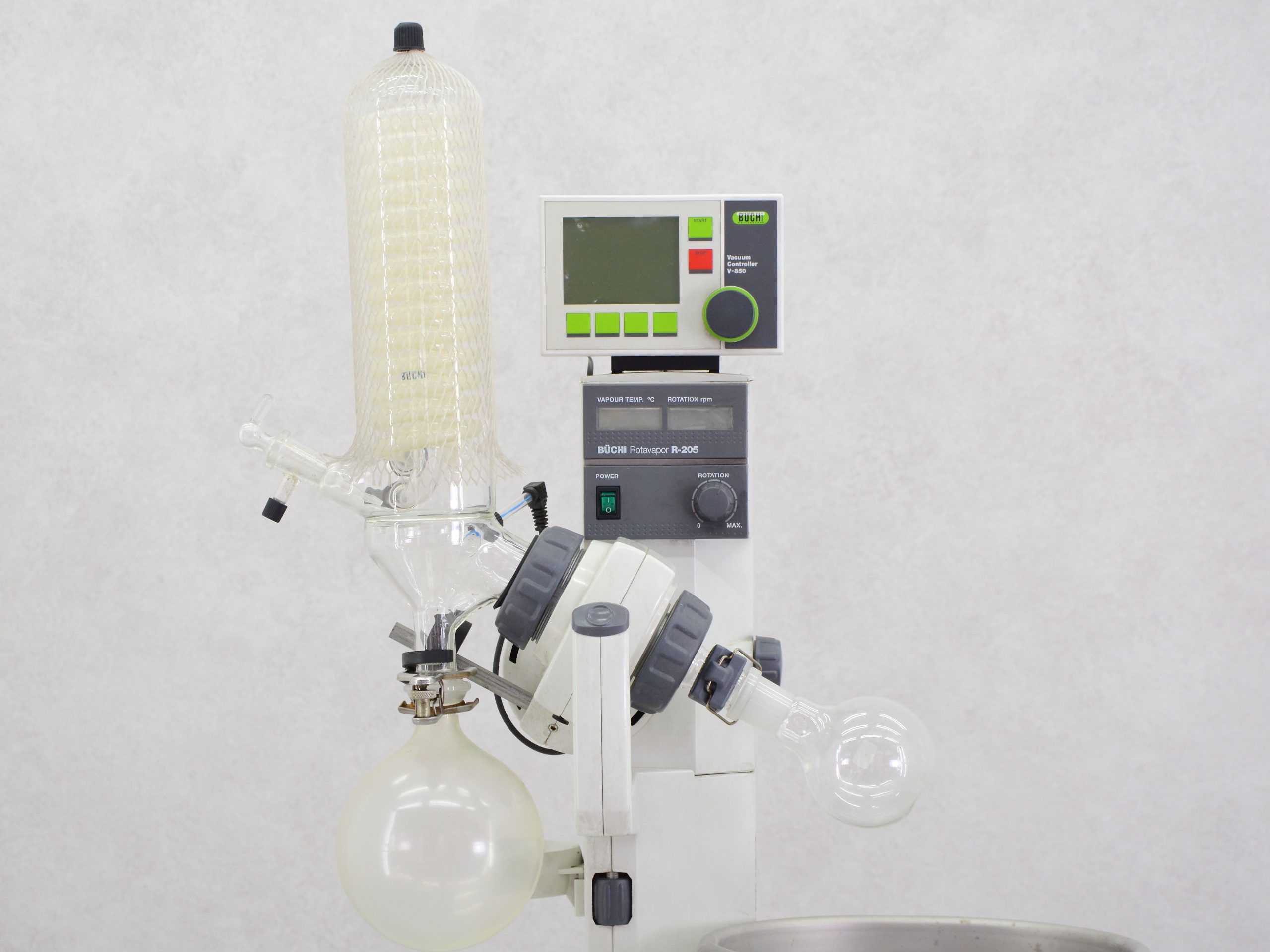

Technical specifications Buchi V850 vacuum controller
Voltage: 30VDC
Power: 10W
