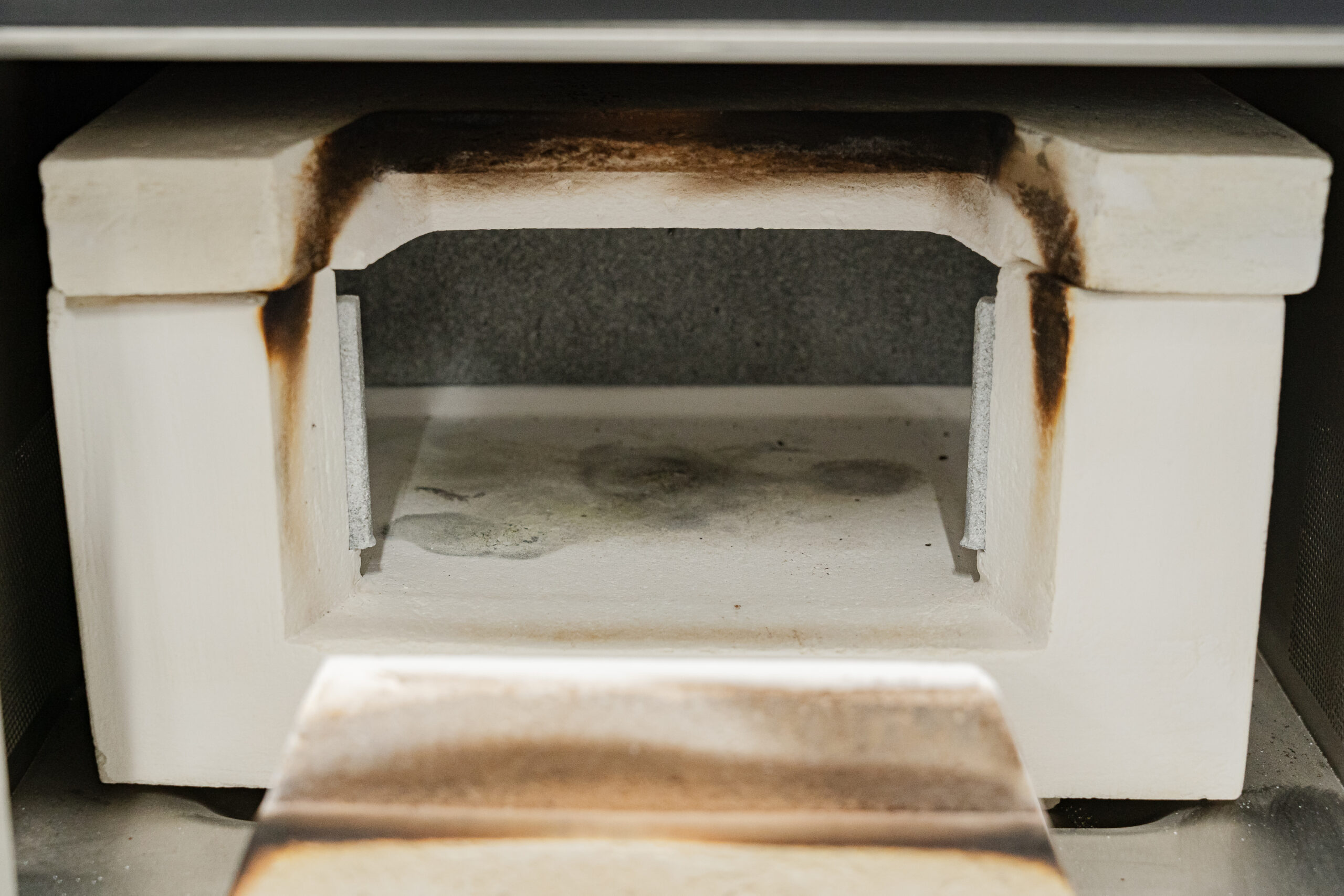

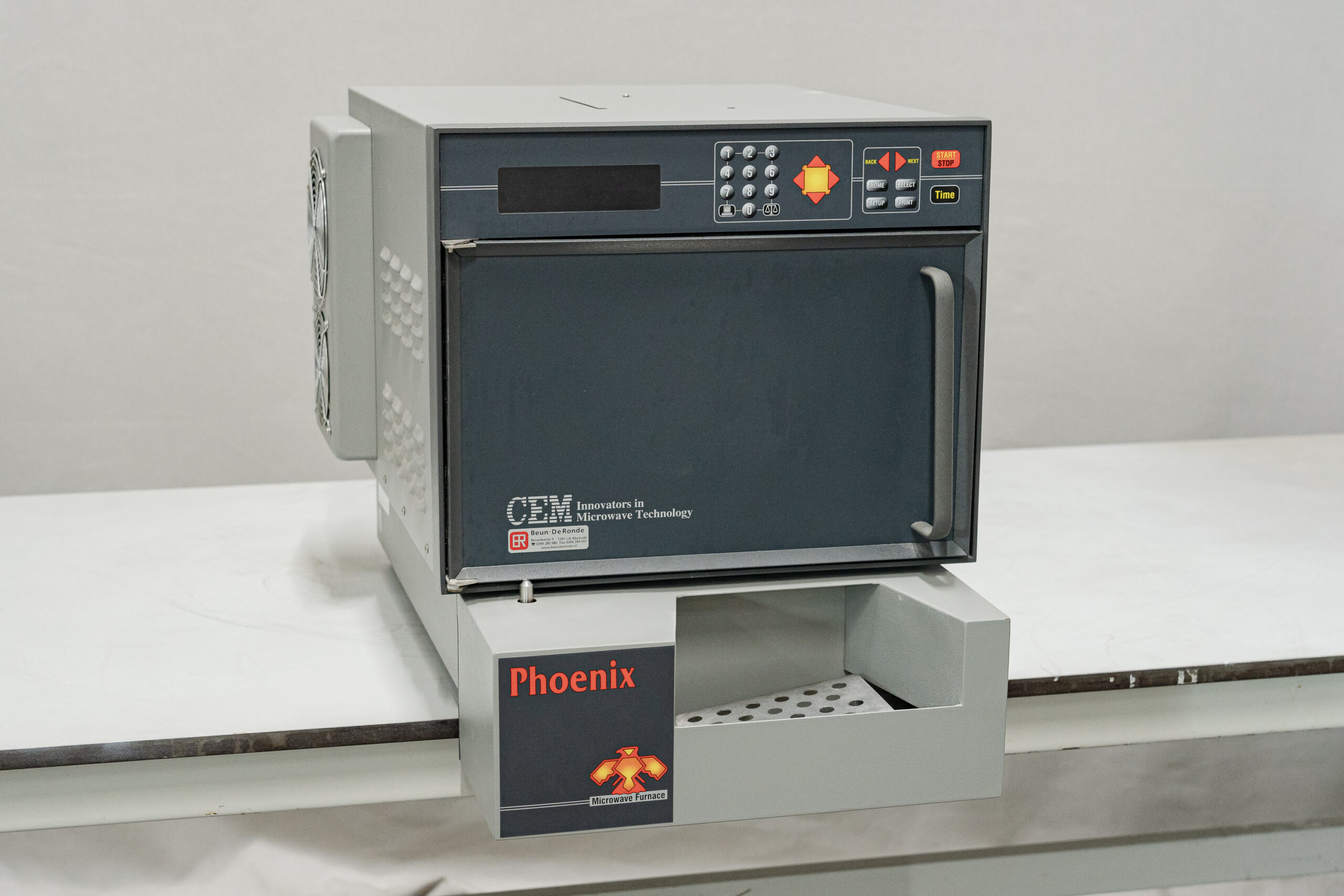

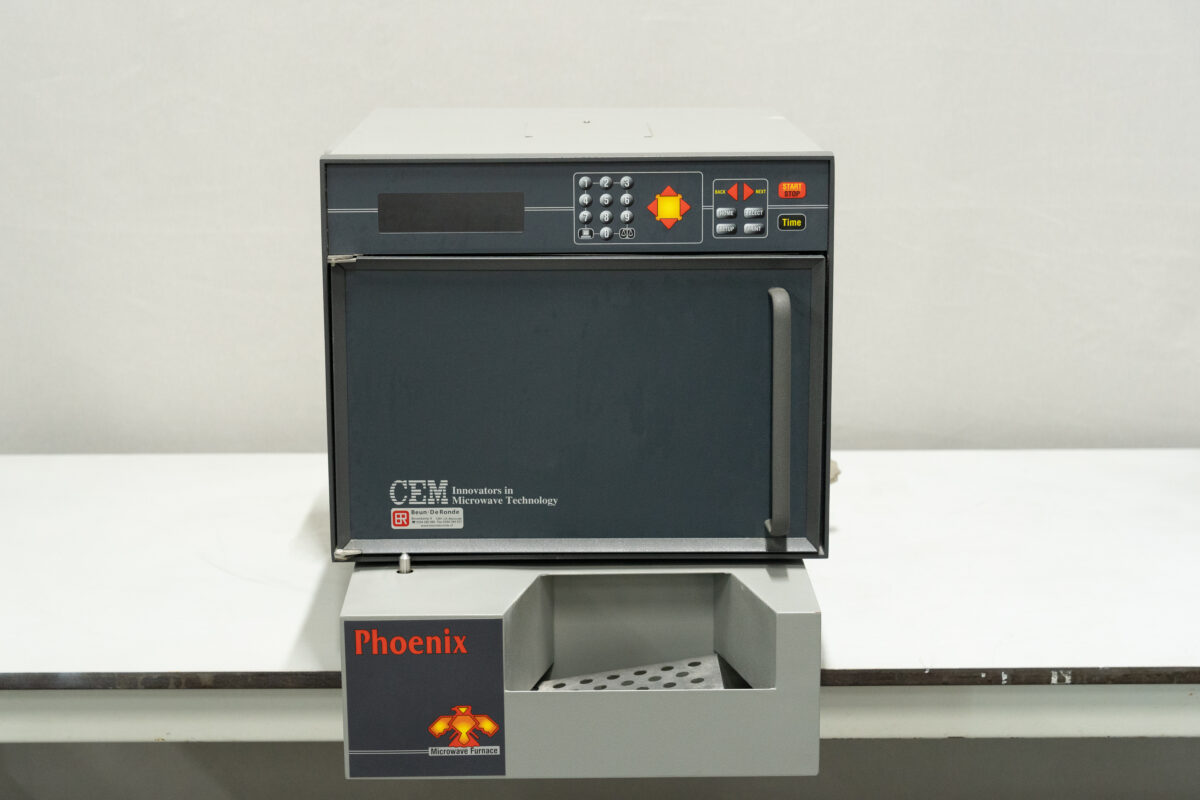

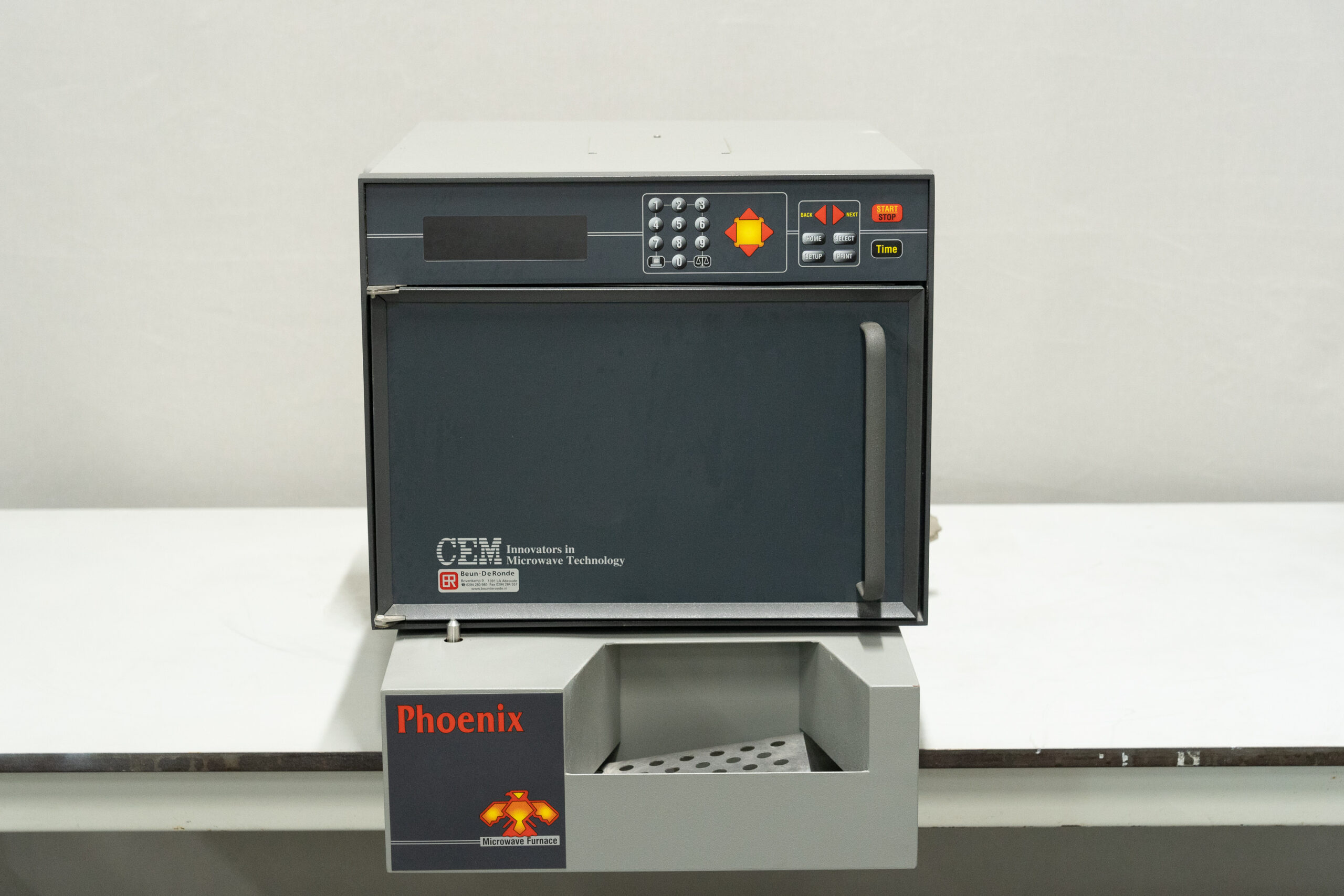

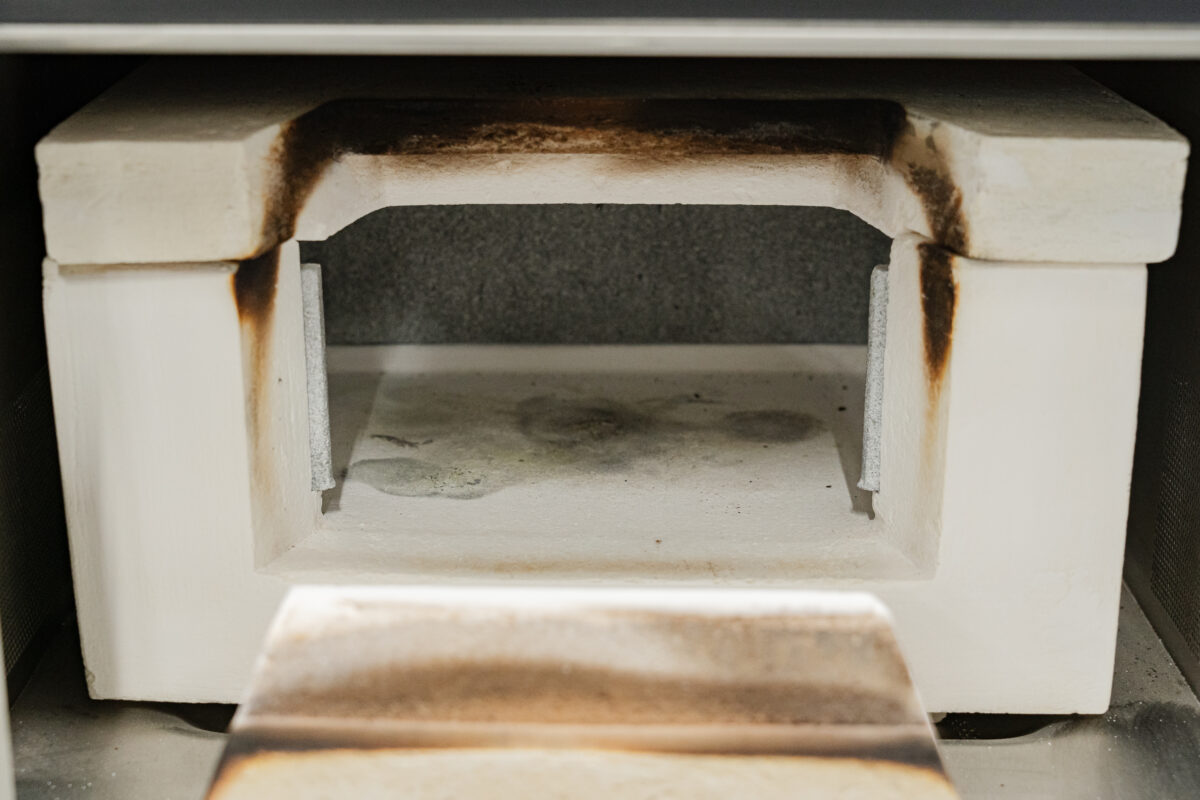

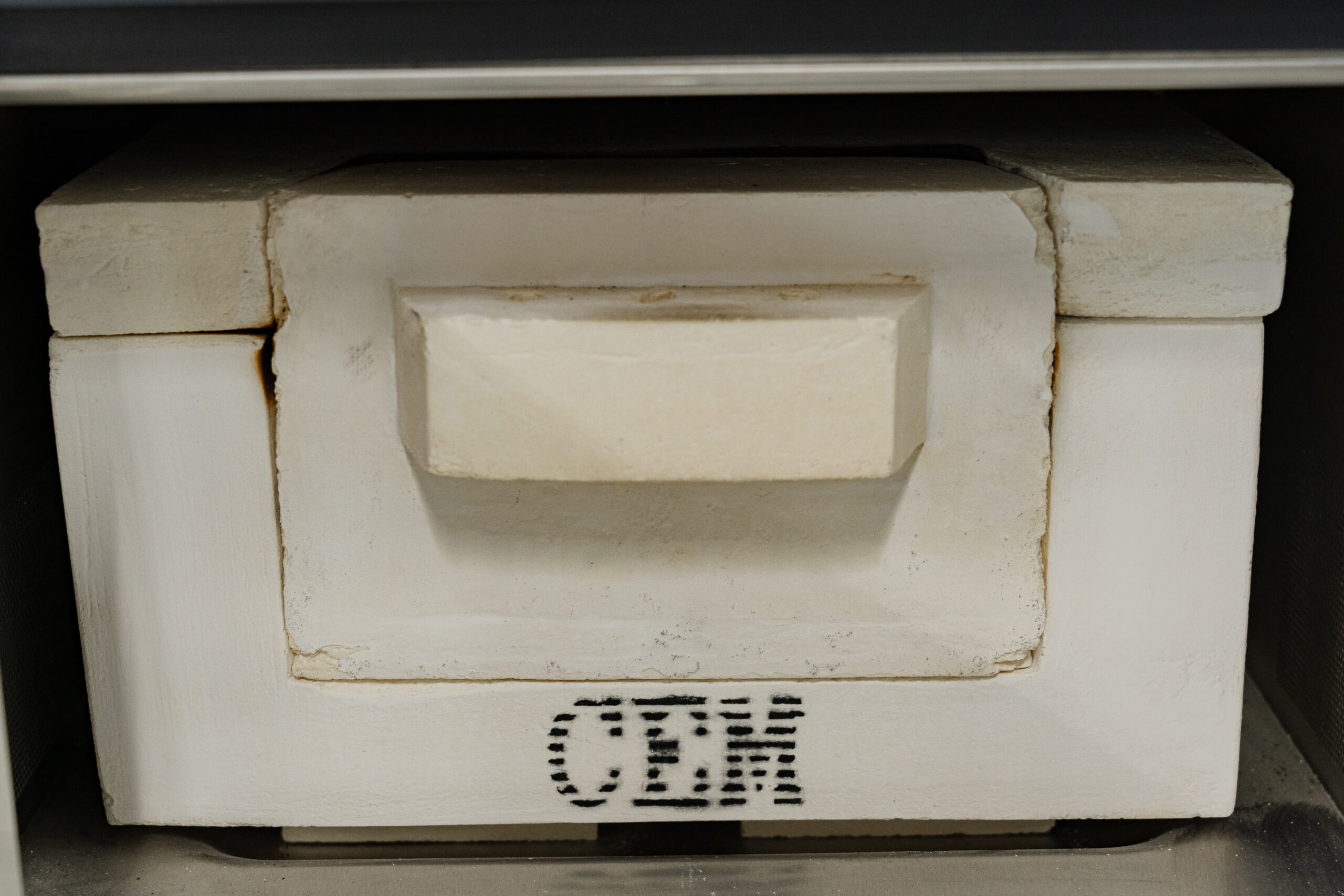

The CEM Phoenix Microwave Furnace/ ashing system offers unmatched versatility and speed in a robust and easy-to-use system. The high-temperature ovens reach temperatures of 1,200°C and can process up to eight 25ml crucibles.
Technical Specifications:
Voltage: 230V
Current: 15A
Power: 1400W
Temperature Capabilities: 1000°C (Standard Oven) and 1200°C (High Temperature Furnace)
Microwave Frequency: 2450MHz
Exhaust Capabilities: 100 CFM
Printer Port: 25-Pin Parallel
Computer Interface: RS-232 Serial Interface
Oven Chamber Volume: 5.0 Liters (Standard Oven) and 1.8 Liters (High Temperature Furnace)
High Temperature Oven: 20.96 x 11.56 x 7.62 cm (WxDxH)
External Dimensions (W) x (D) x (H): 46.15 x 65.40 x 49.78 cm
Internal Dimensions (W) x (D) x (H): 24.6 x 16.7 x 10.1 cm
Weight: 44 kg
