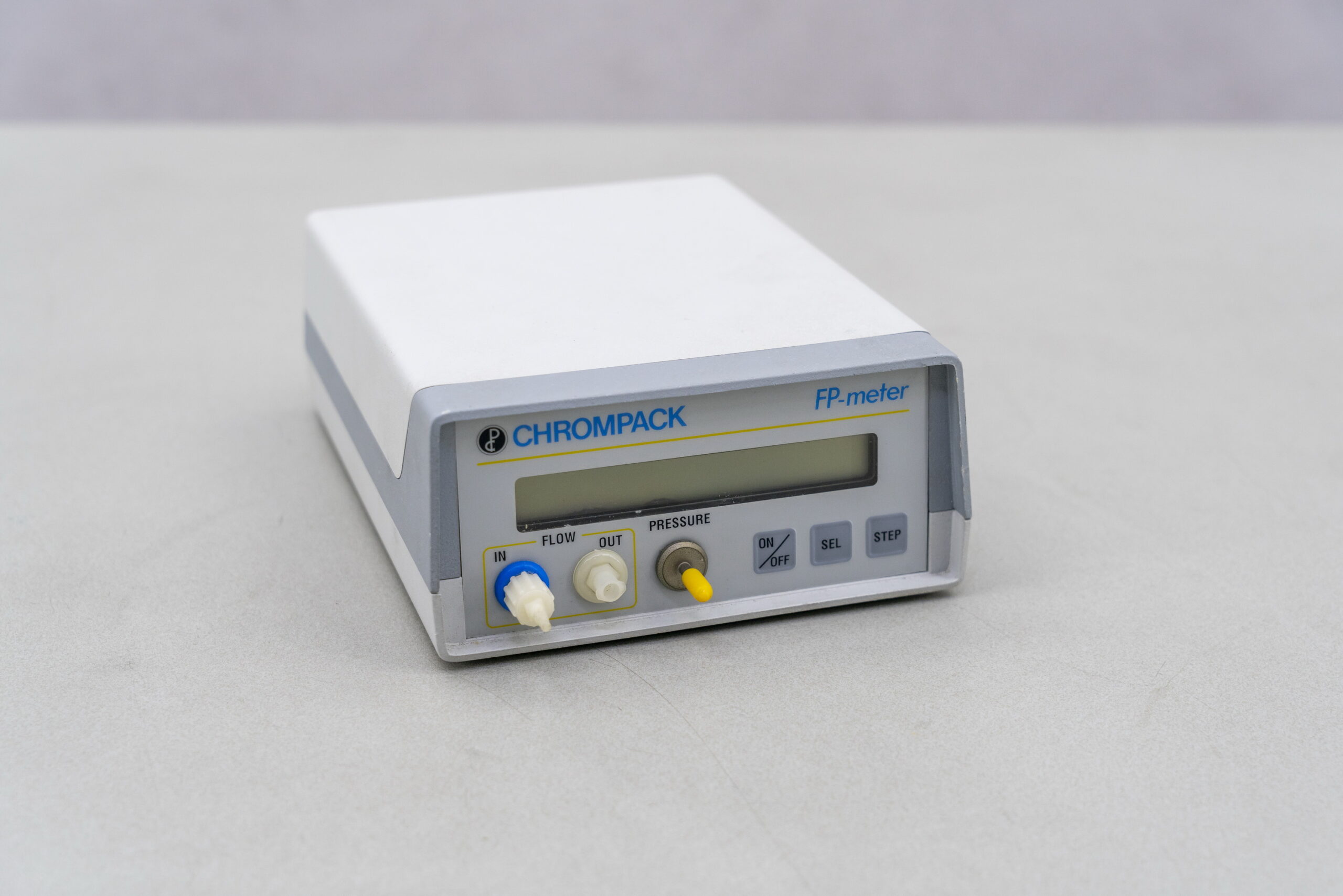

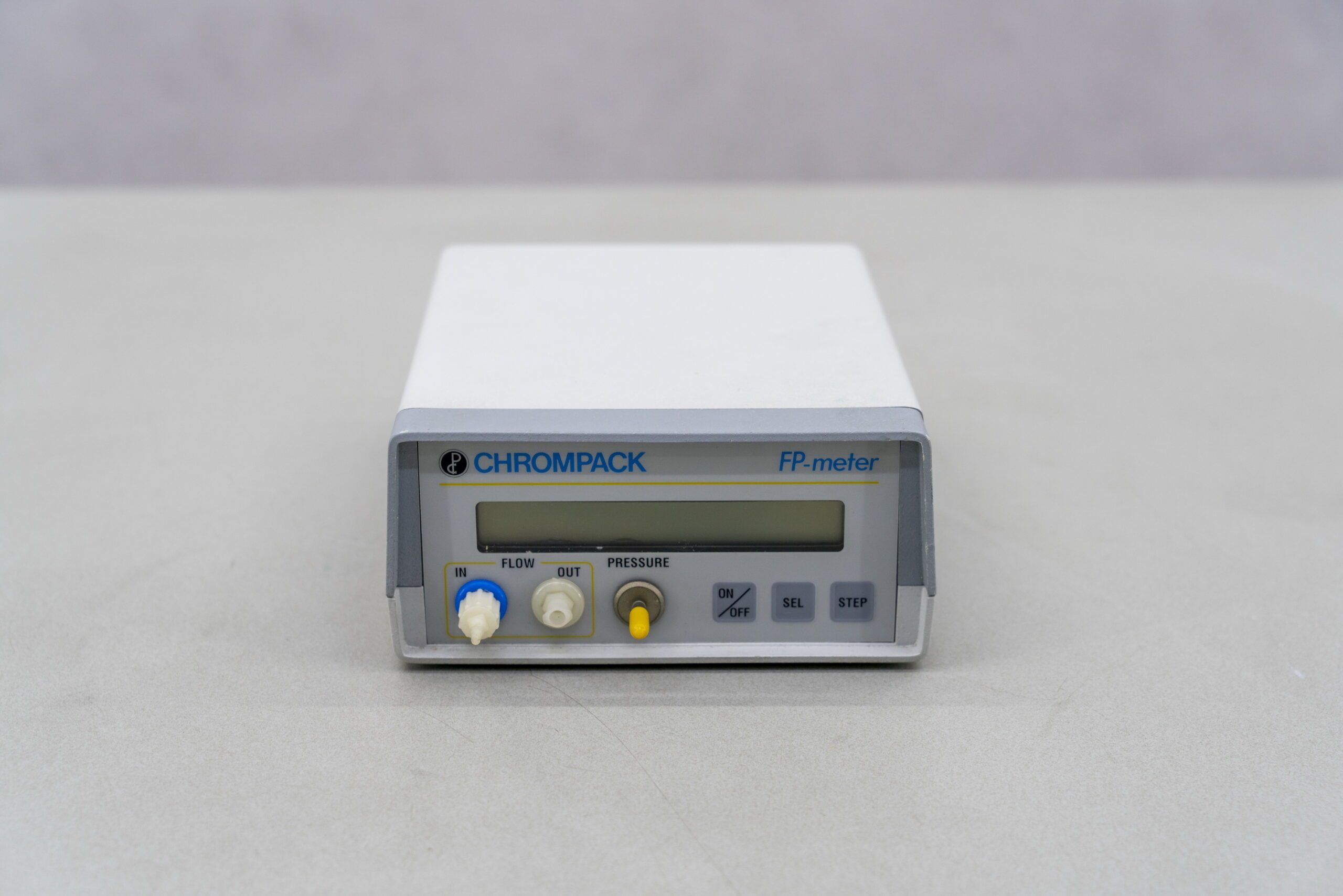

This FP-Meter combines two instruments in one: A flowmeter and a pressure meter. It uses silicon micro-machined sensors in combination with an embedded microcontroller. This combination offers two operating modes: manual mode and a powerful automatic mode.
The automatic mode detects the kind of gas flowing through the flowmeter automatically and selects the proper gas accordingly. If the gas in the flow sensor differs from the selected gas, or if it is a mixture, the erroneous flow value is blocked and the user is informed. Additionally, it is possible to activate a gas quality test to even further assist the operator in getting the proper reading.
Specifications flow meter:
Calibrated for 5 standard gases : Air, N2, He, H2 and Ar
Ranges: 400 ml/min (normalized ml/min)
Resolution: 0,1 ml/min
Accuracy: ±3% of value, ± 0,2% of full-scale
Gas type selection: Automatic or manual
Maximum operating pressure: 25 kPa gauge
Specifications pressure meter:
Range: 700 kPa gauge
Resolutions: 0,1 kPa or 0.01 psii
Accuracy: 1%
Max pressure: 1,000 kPa gauge
