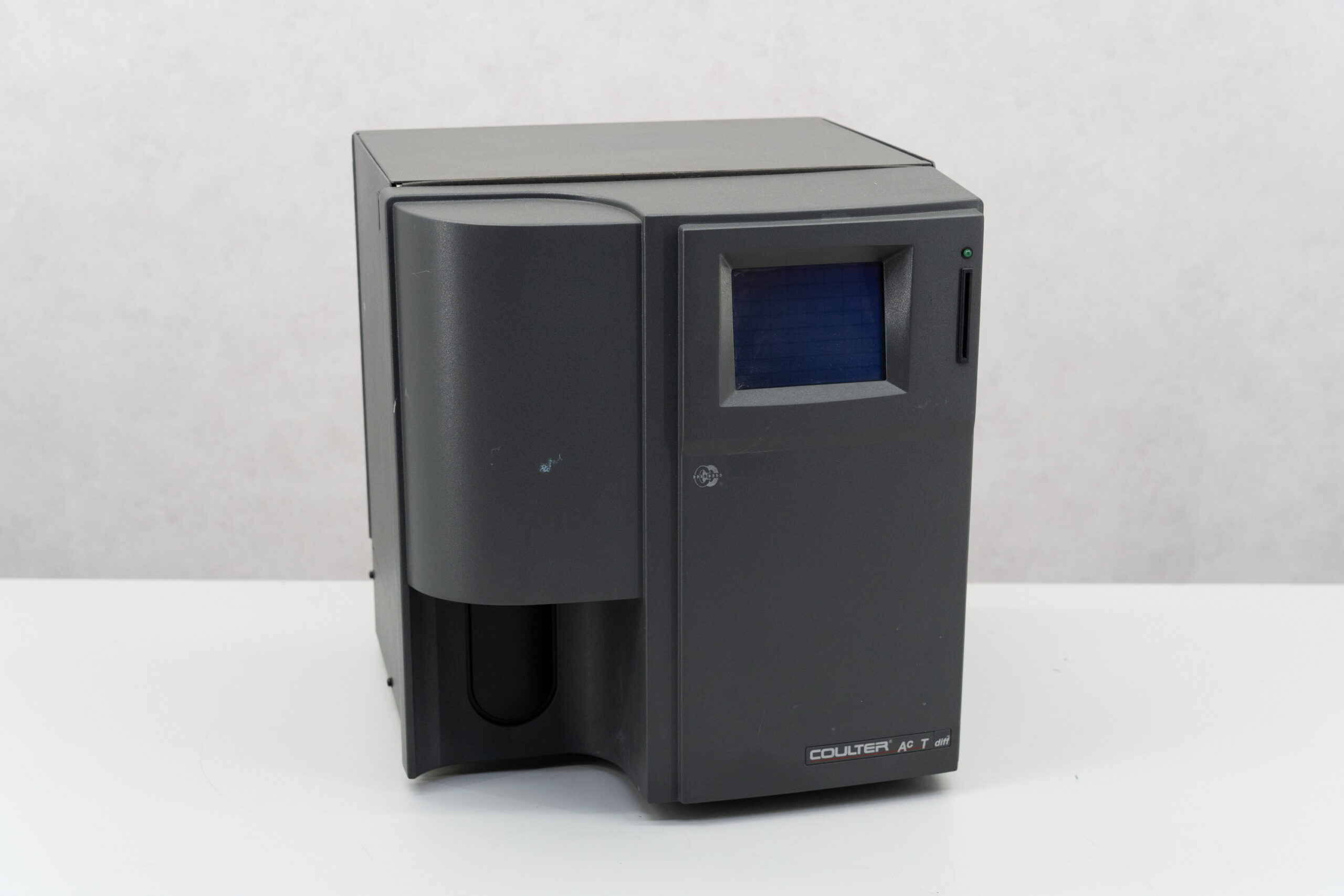

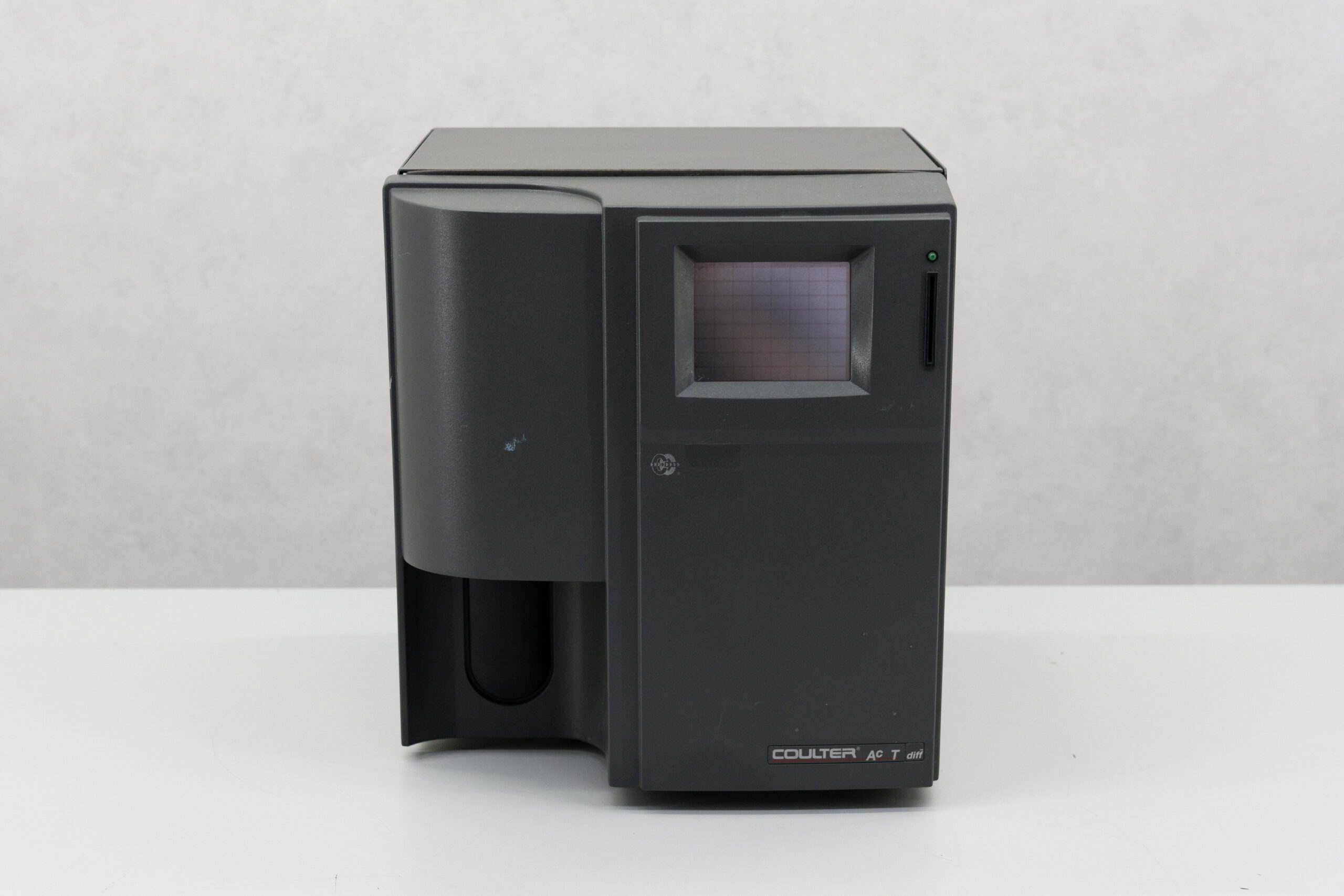

The Coulter Ac.T diff Hematology Analyzer is a hematology analyzer system for performing diagnostic tests in small laboratories, hospitals and doctors’ laboratories.
Functions:

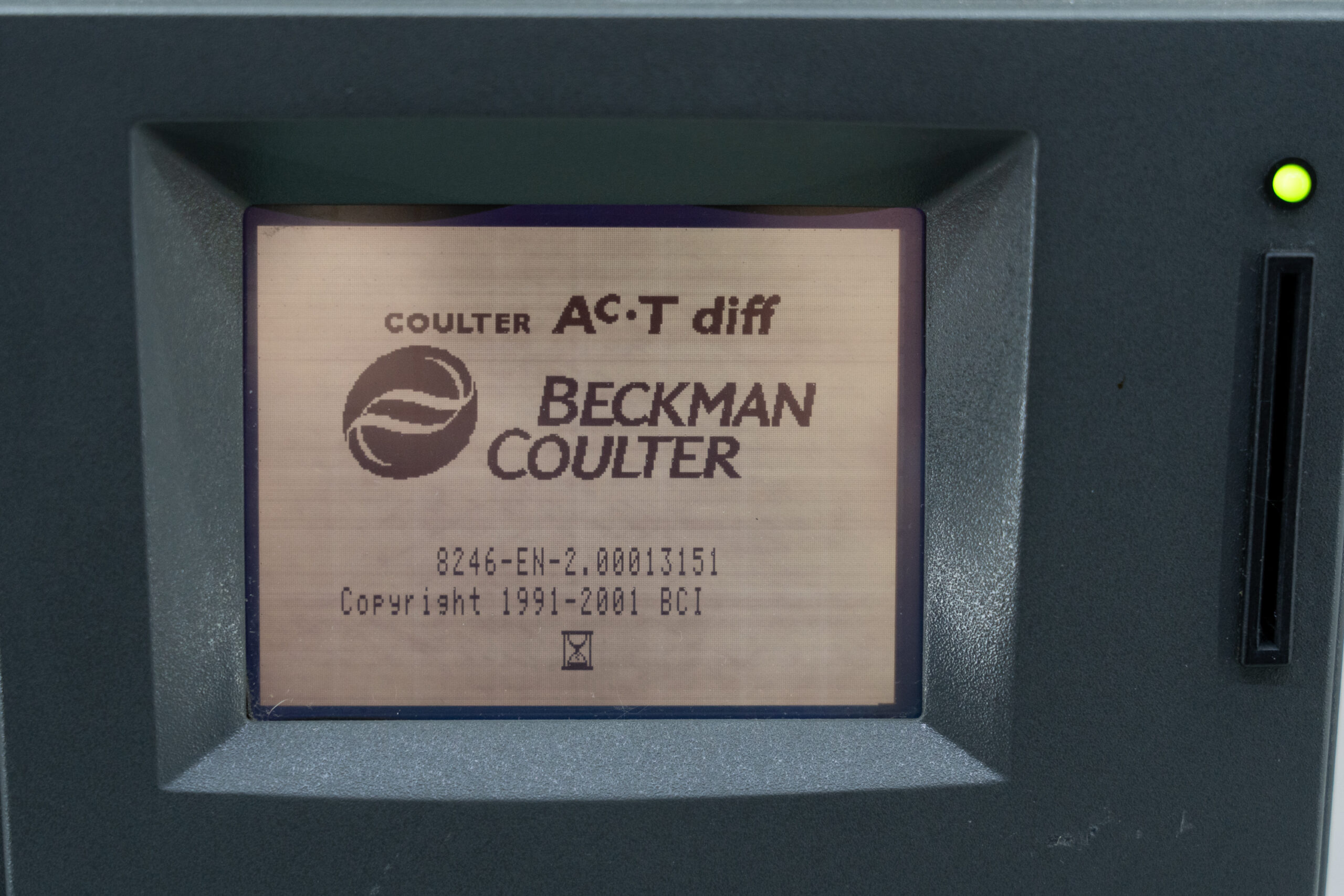

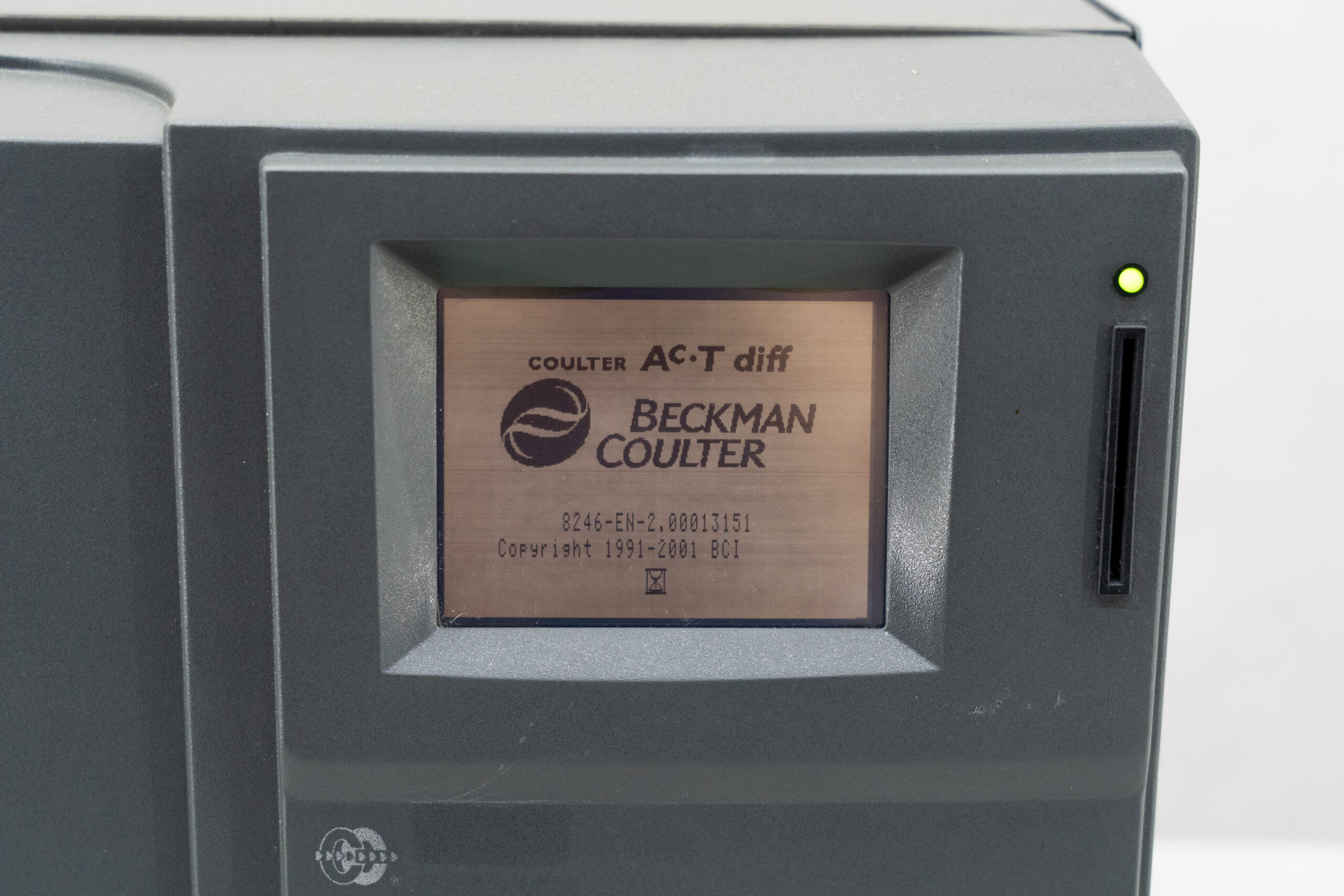

One-step sample processing with touch screen user interface
Automated probe wiping safely cleans the probe
Small sample size of 12 µL allows whole blood analysis of both venous and capillary collections
Thanks to the compact design you can place the Ac·T diff anywhere
Results available in less than 60 seconds
Efficient data management with patient and control storage
Technical specifications:
Voltage: 220-240 V
Power: 120W
Database: RS232C with ASTM standards
Throughput: 50 samples/hour (min)
Sample volume: 18 µl whole blood, 20 µl pre-dilution
Data storage: 250 patient results
Detection principles: triple counting, extended platelet counting, cyanmethemoglobin
Thoroughbred Performance – Measuring Range
WBC: 6.0 – 15.0 x 103 cells/μl
RBC: 3.00 – 6.00 x 106 cells/μl
HGB: 12.0 – 18.0 g/dl
MCV: 80.0 – 100.0 fL
PLT: 200 – 500 x 103 cells/μl
External dimensions (W) x (D) x (H): 45 x 40 x 48 cm
Weight: 20 kg
