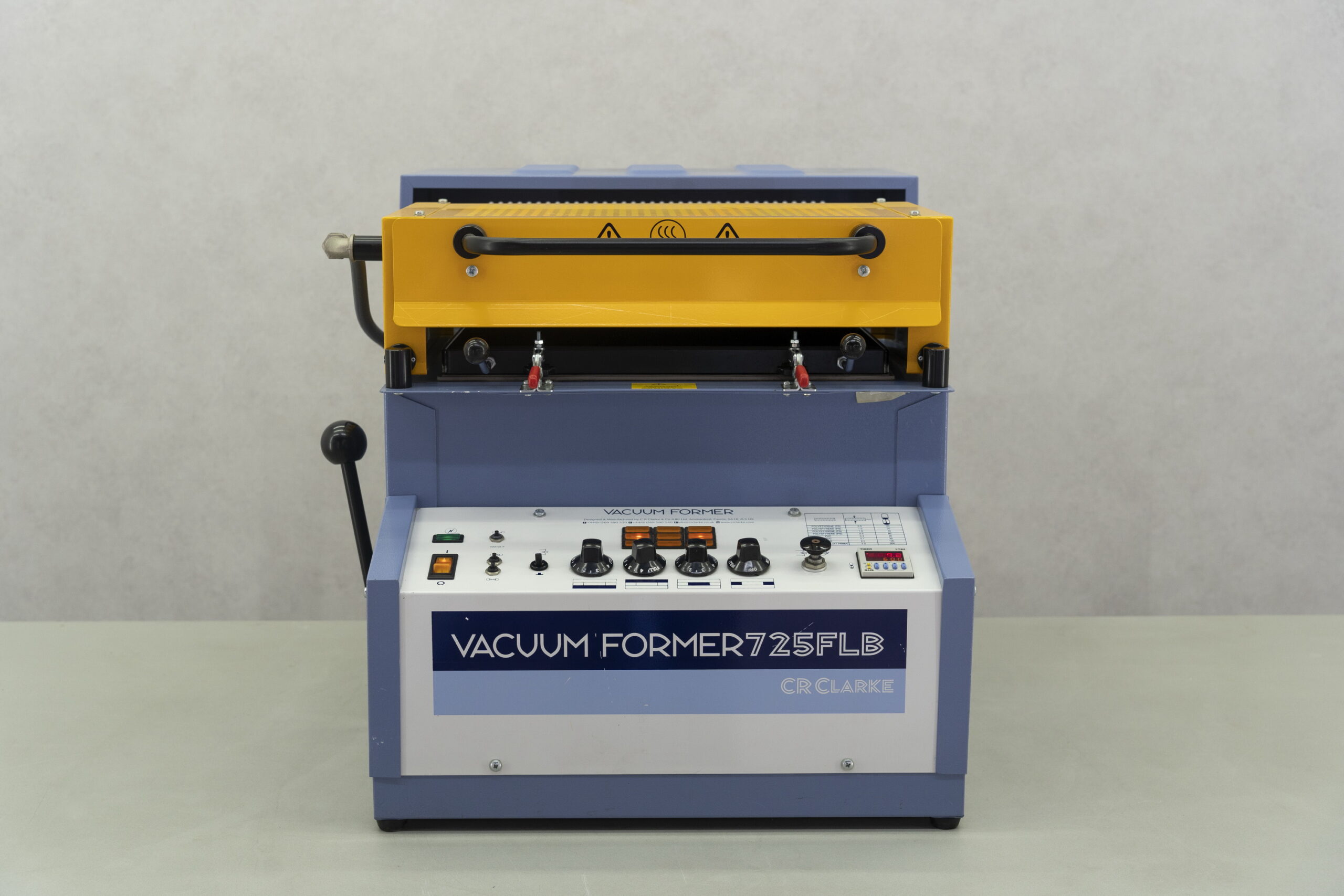

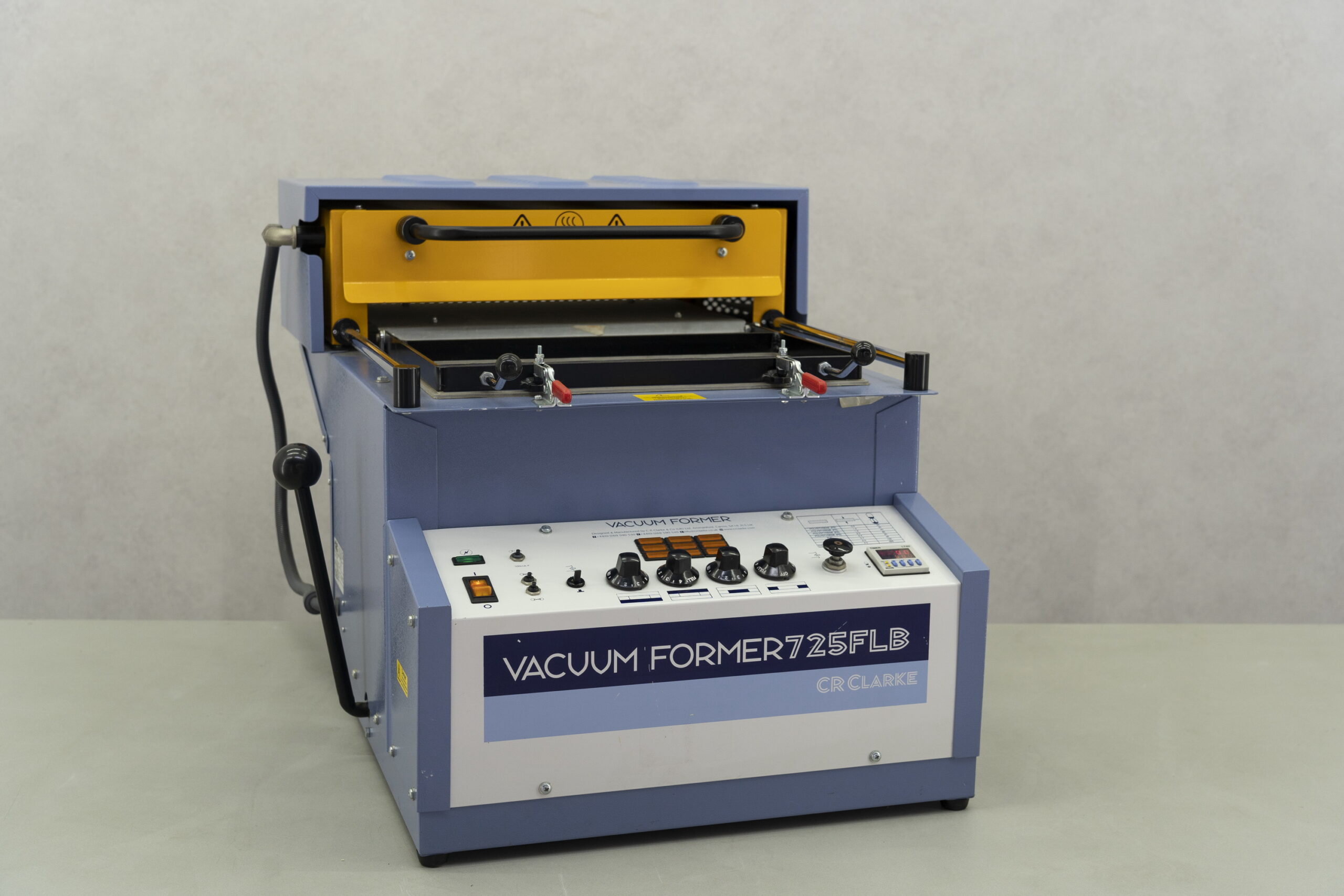

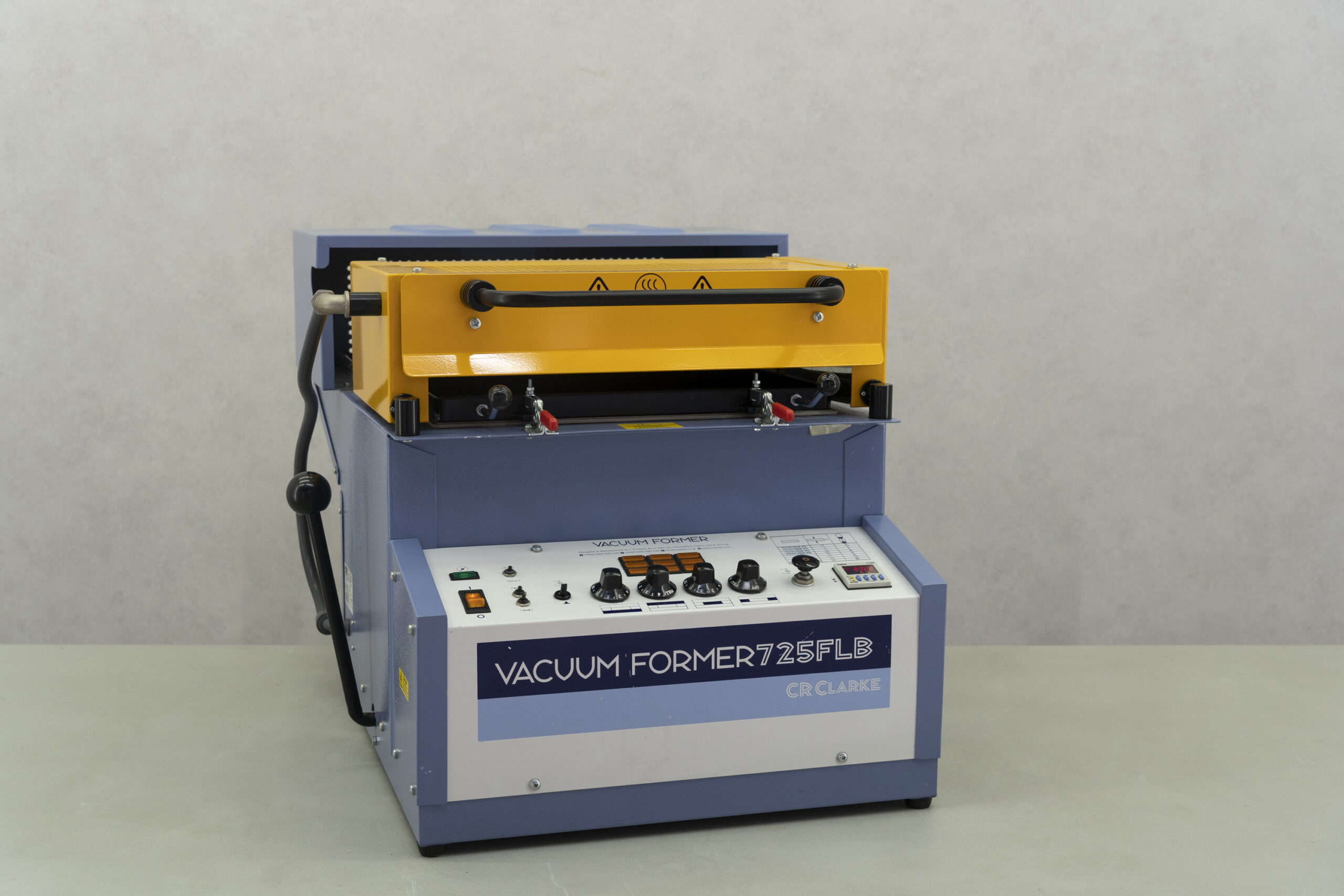

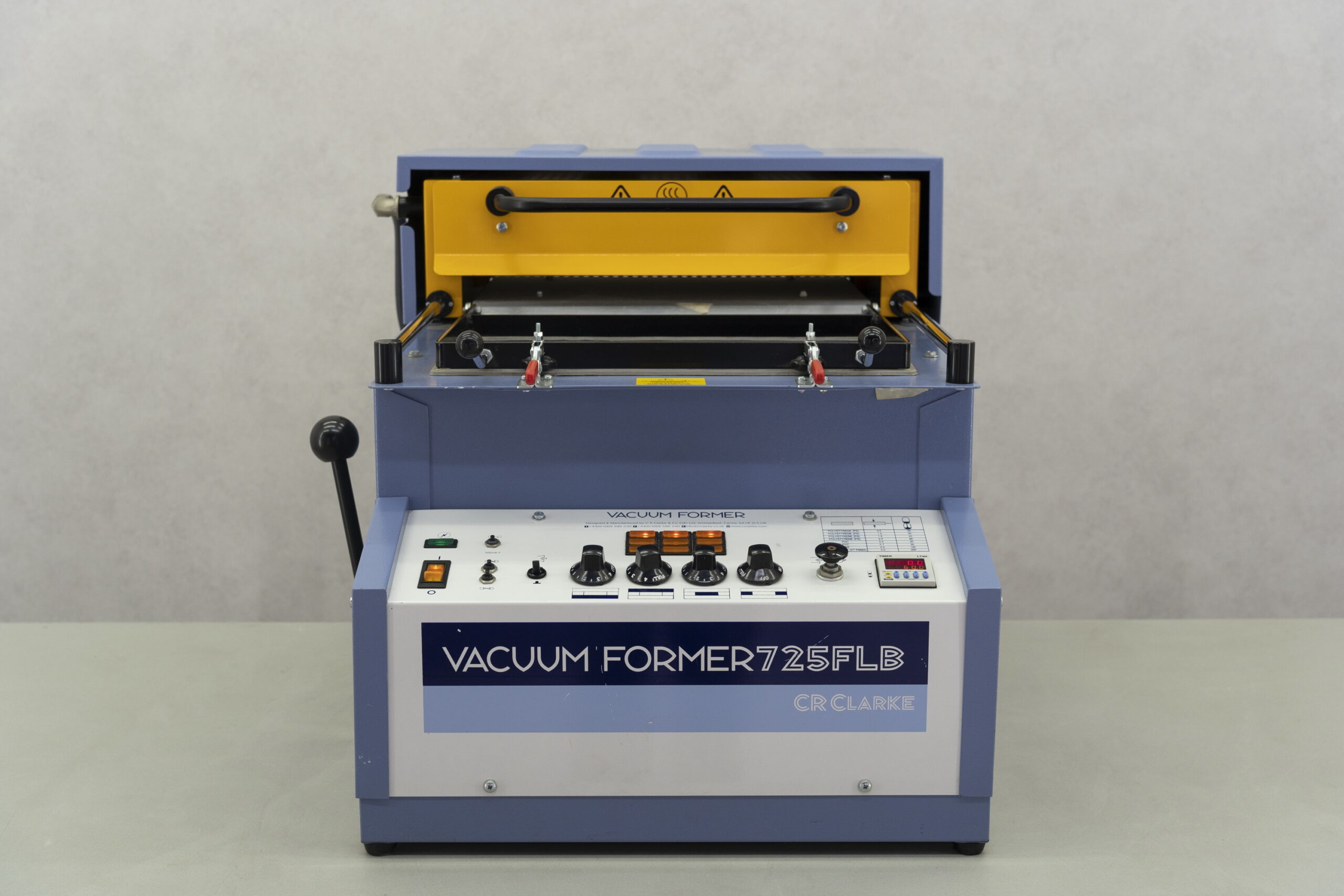

The C R Clarke 725FLB quickly, efficiently and consistently produces professional, high quality, high definition vacuum formings on a small to medium scale as required by model makers, development engineers and students.
The 725 FLB unit allows a sheet of plastic up to 6mm to be formed into a shape by heating the plastic until flexible, then elevating a mould to the softened material. The softened plastic then has a vacuum pump applied to remove the air, allowing atmospheric pressure to push the material tight over the mould.
Technical specifications:
Voltage: 230 V
Maximum current: 7.7 A
Power: 2,12 kW

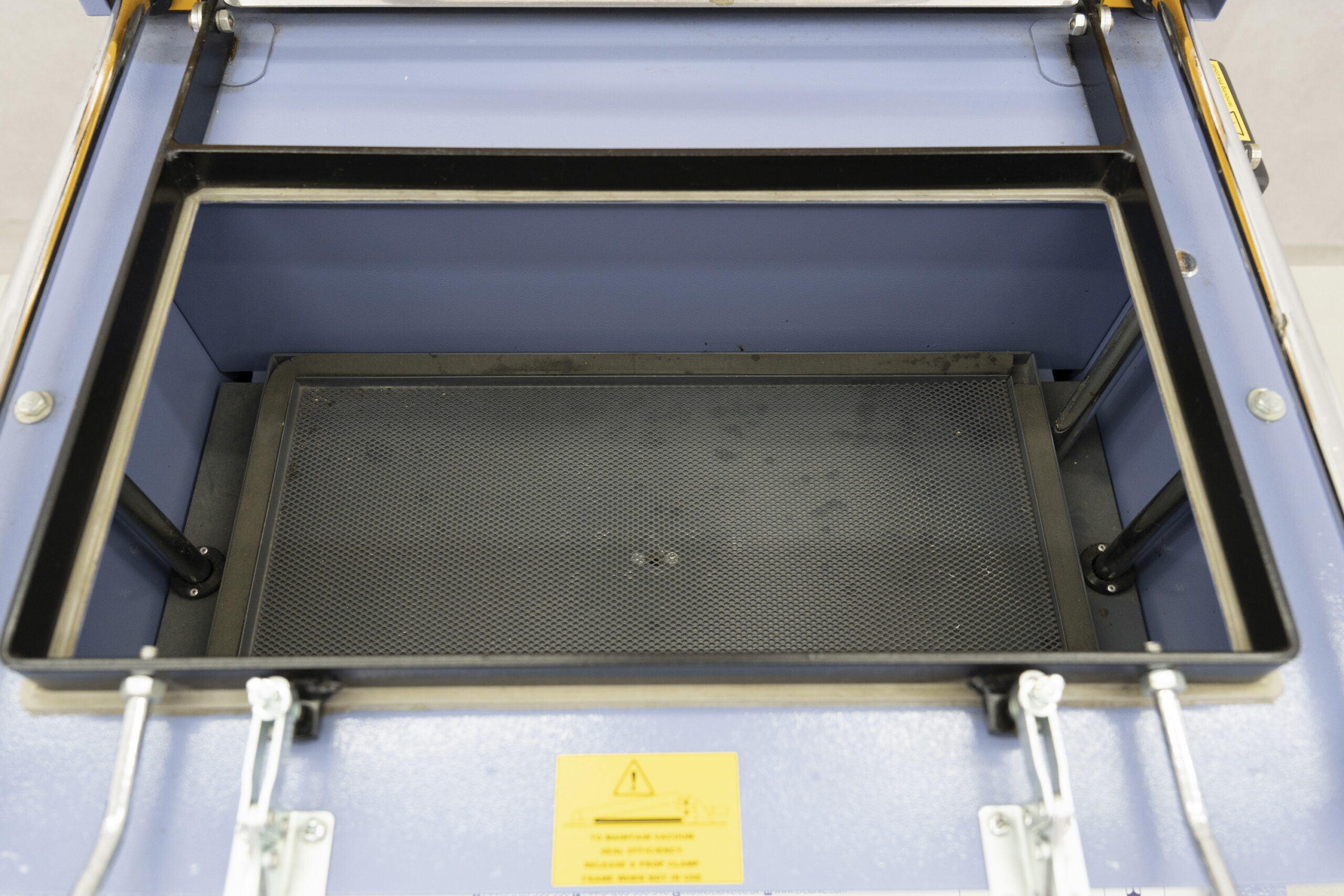

Size forming aperture (W) x (D): 432 x 228 mm
Max material thickness: 6 mm
Max mould height: 140 mm

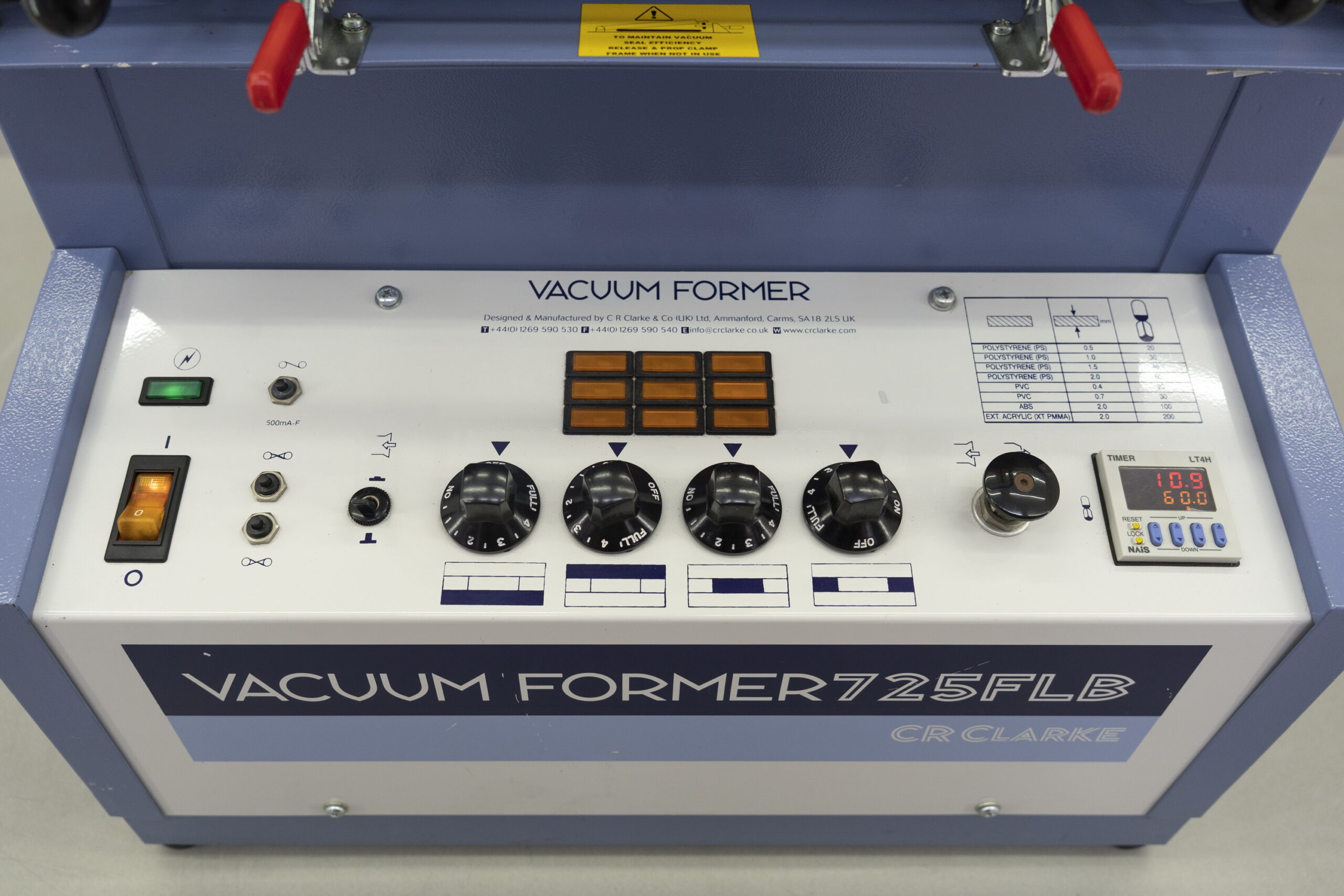

Timer: digital with alarm
Heater system: 4 zone, ceramic with heater mode display
Outer dimensions (W) x (D) x (H): 609 x 857 x 579 mm
Weight: 68 kg
