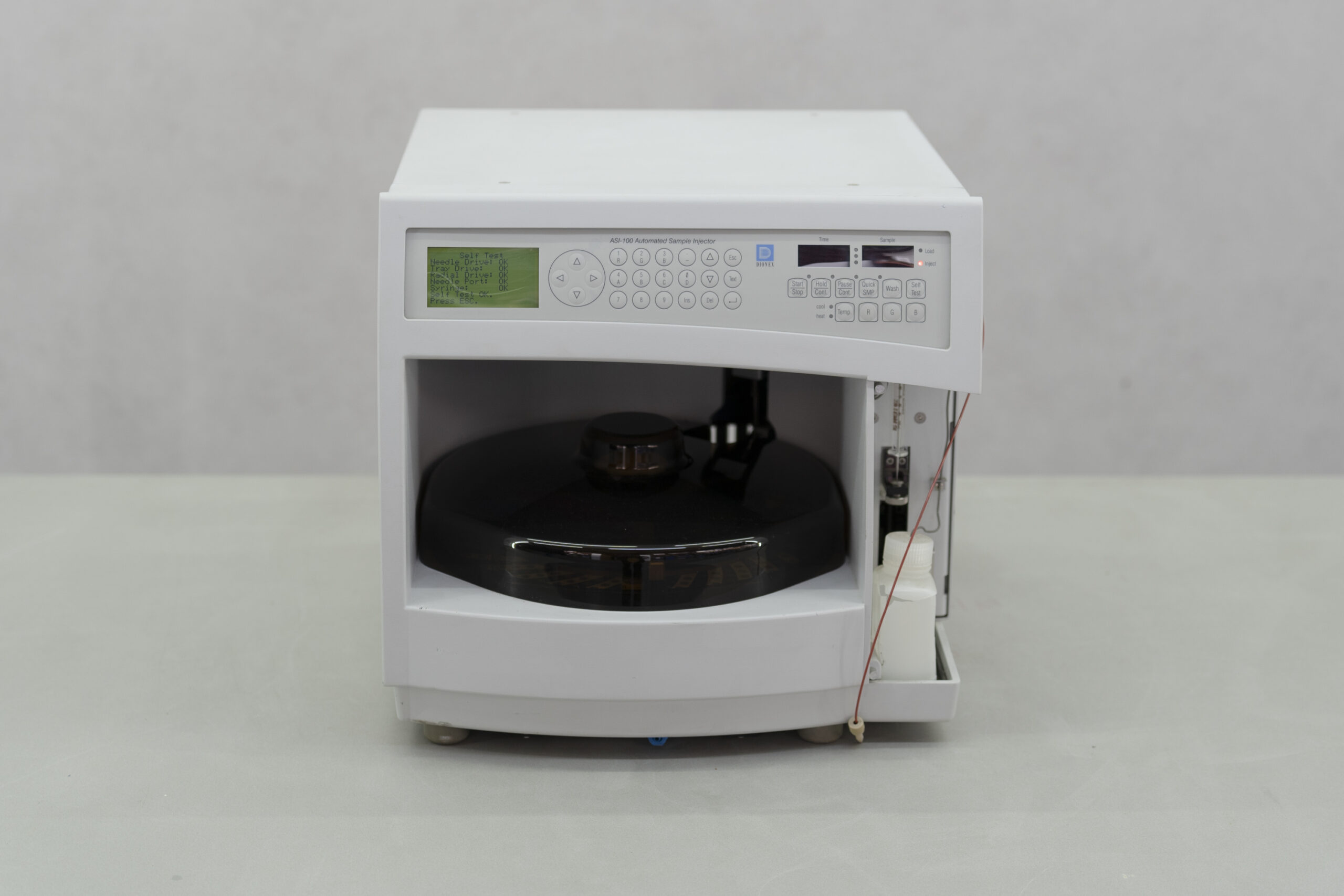

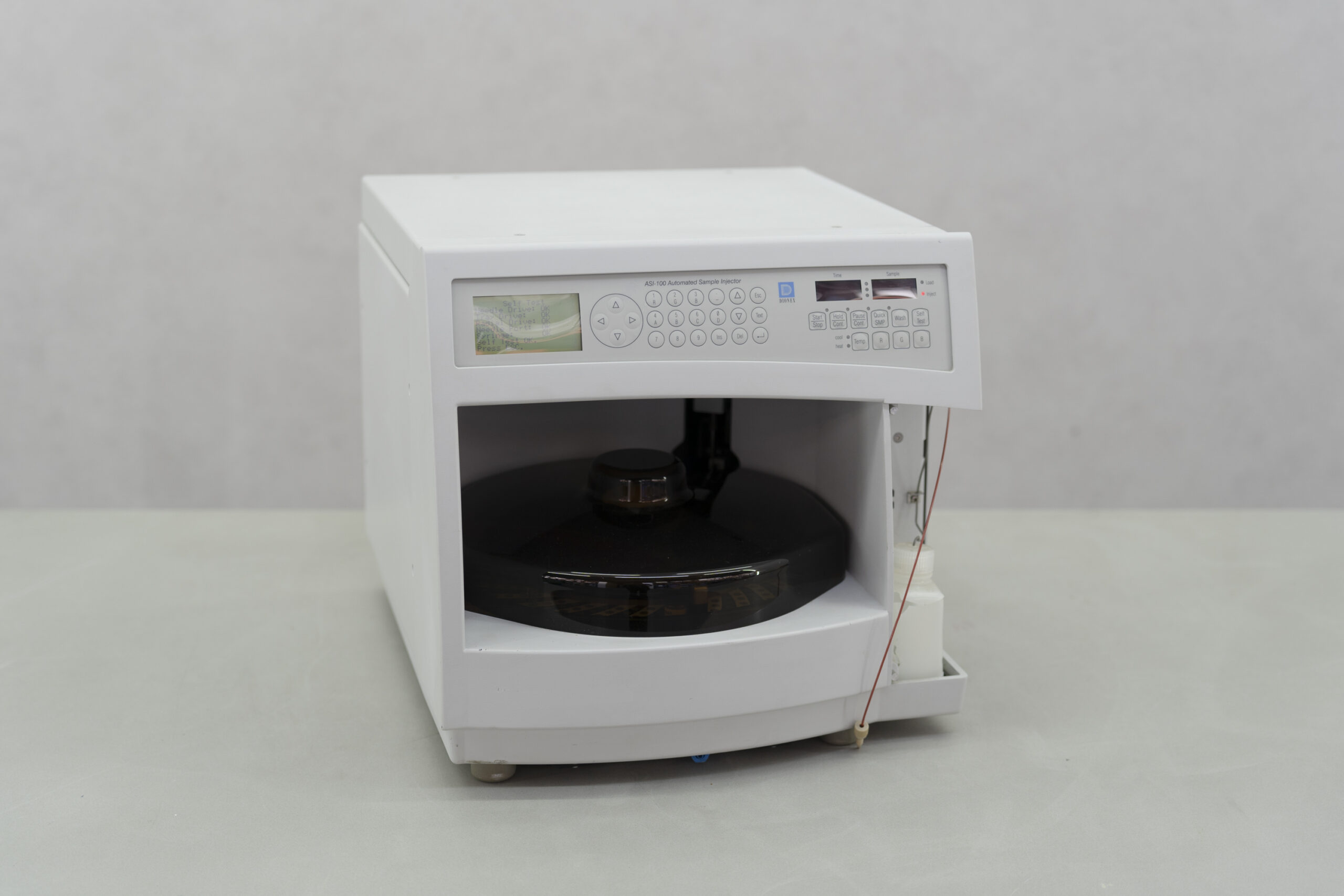

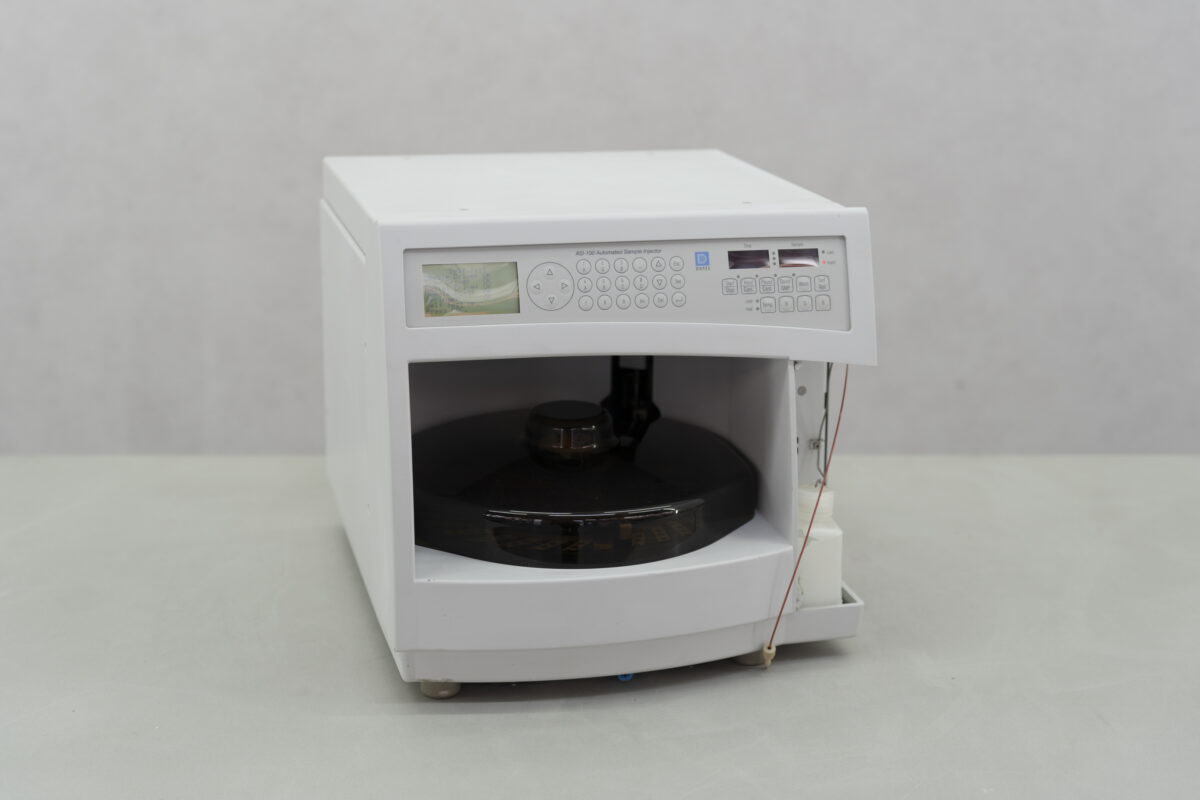

The Dionex ASI-100 Automated Sample Injectors are highly flexible autosamplers for automating high performance liquid chromatography (HPLC) methods.
Technical specifications:
Voltage: 115 /230 V
Current: 2A
Power: 126VA

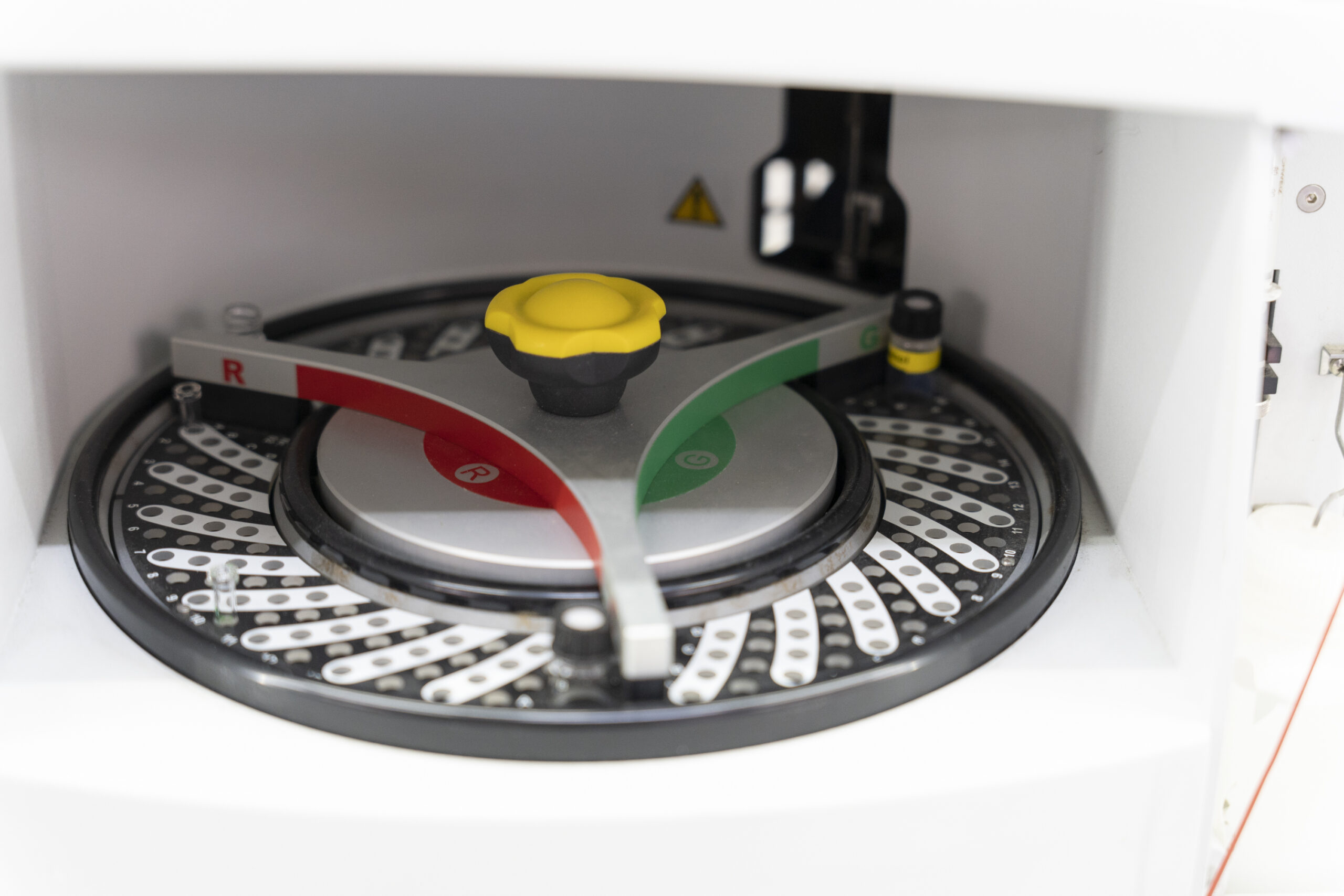

Sample capacity: Depending on sample carousel;
63 vials of 4 ml,
117 vials of 1.8 ml,
Or 192 vials of 1.2 ml
Injection volume: 1–250 µL with standard syringe
Minimum sample required: 5 µl
Operating pressure: Max. 340 bars
Operating conditions Temperature: 10–35 oC
Relative Humidity: 40–85%
External dimensions (W) x (D) x (H): 38 x 44 x 35cm
Weight: 17 kg
