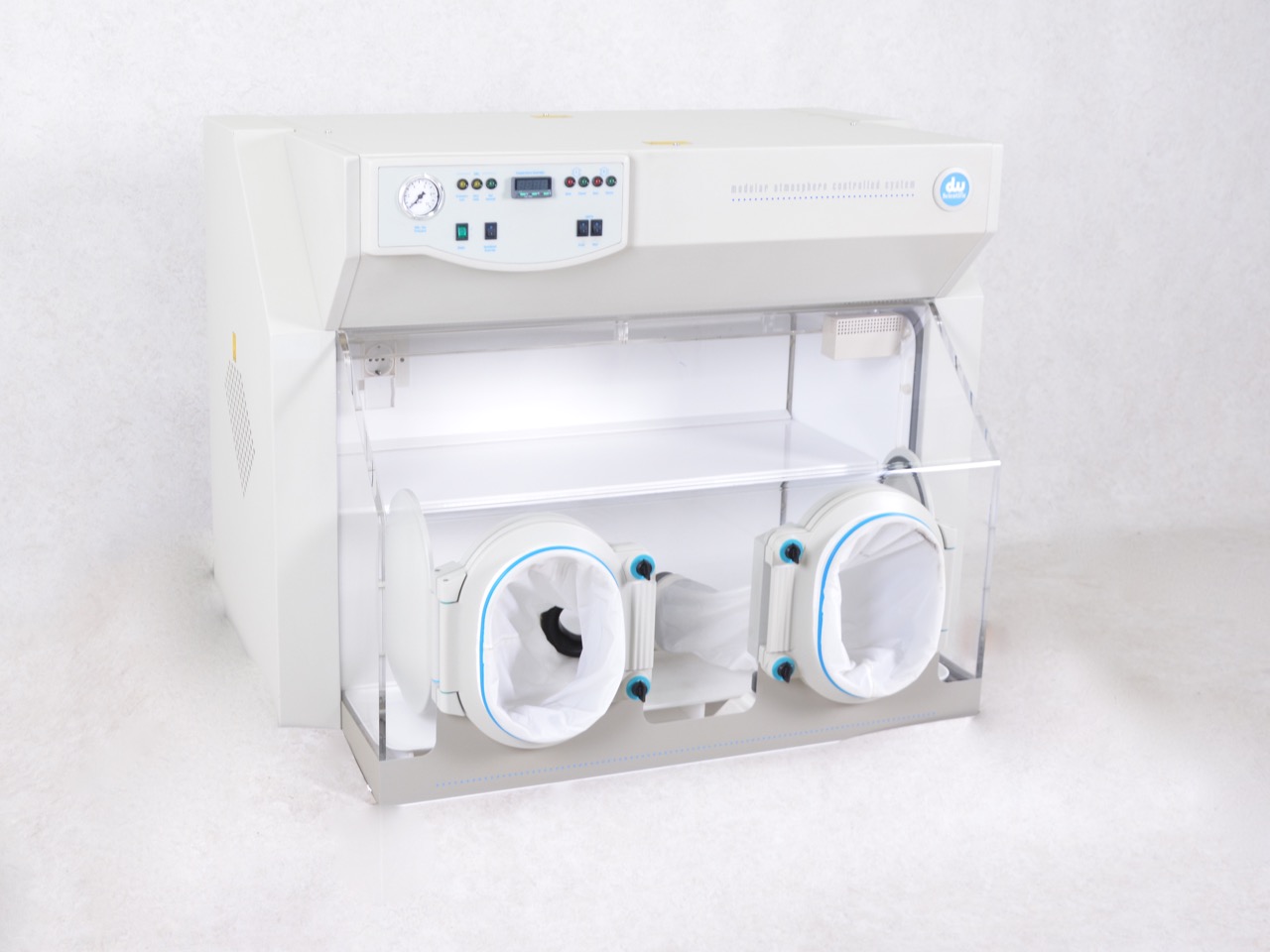

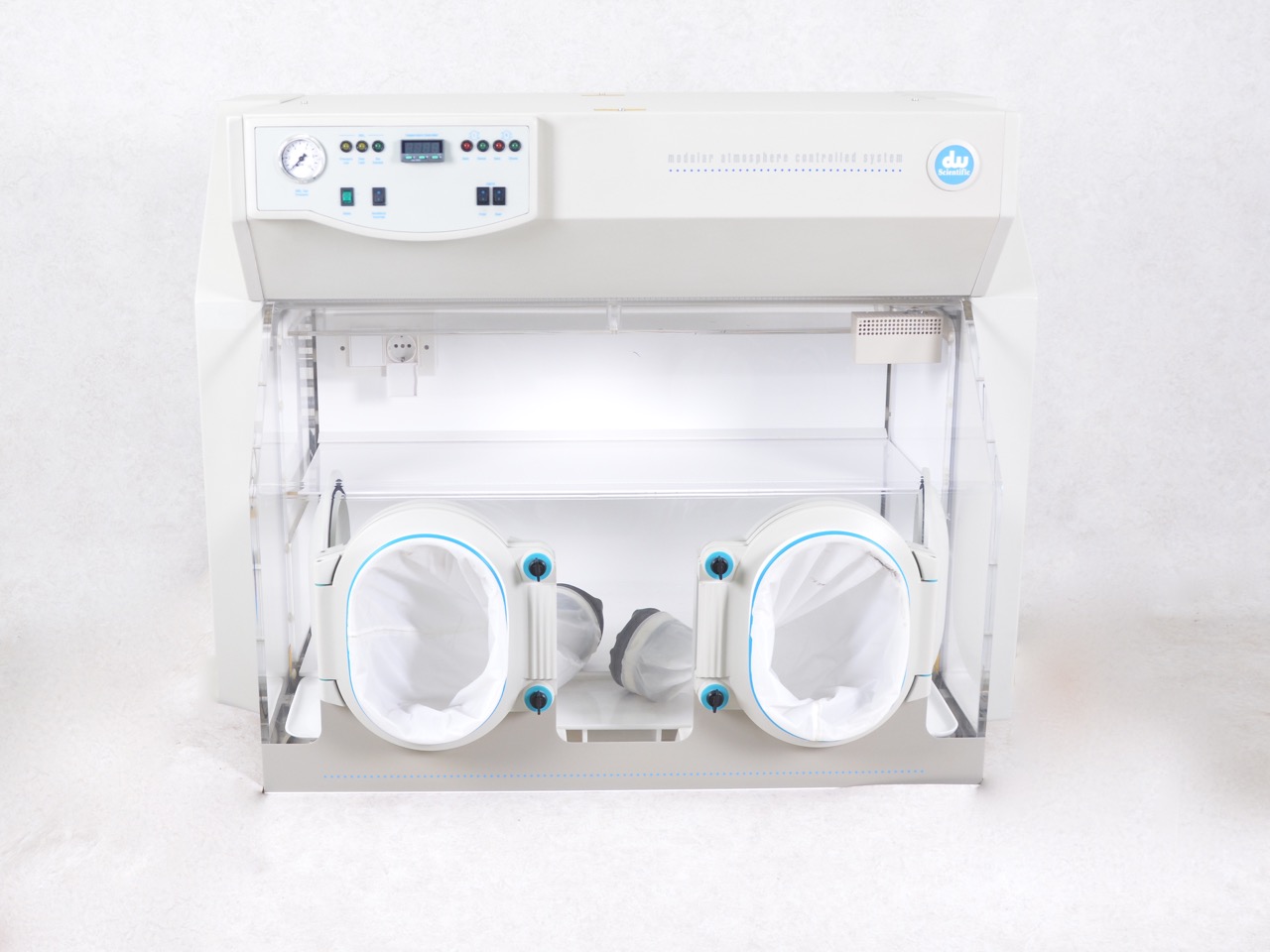

Workstation from Don Whitley Scientific, type VA500.
This anearobic workstation is used for research of oxygen sensitive samples.

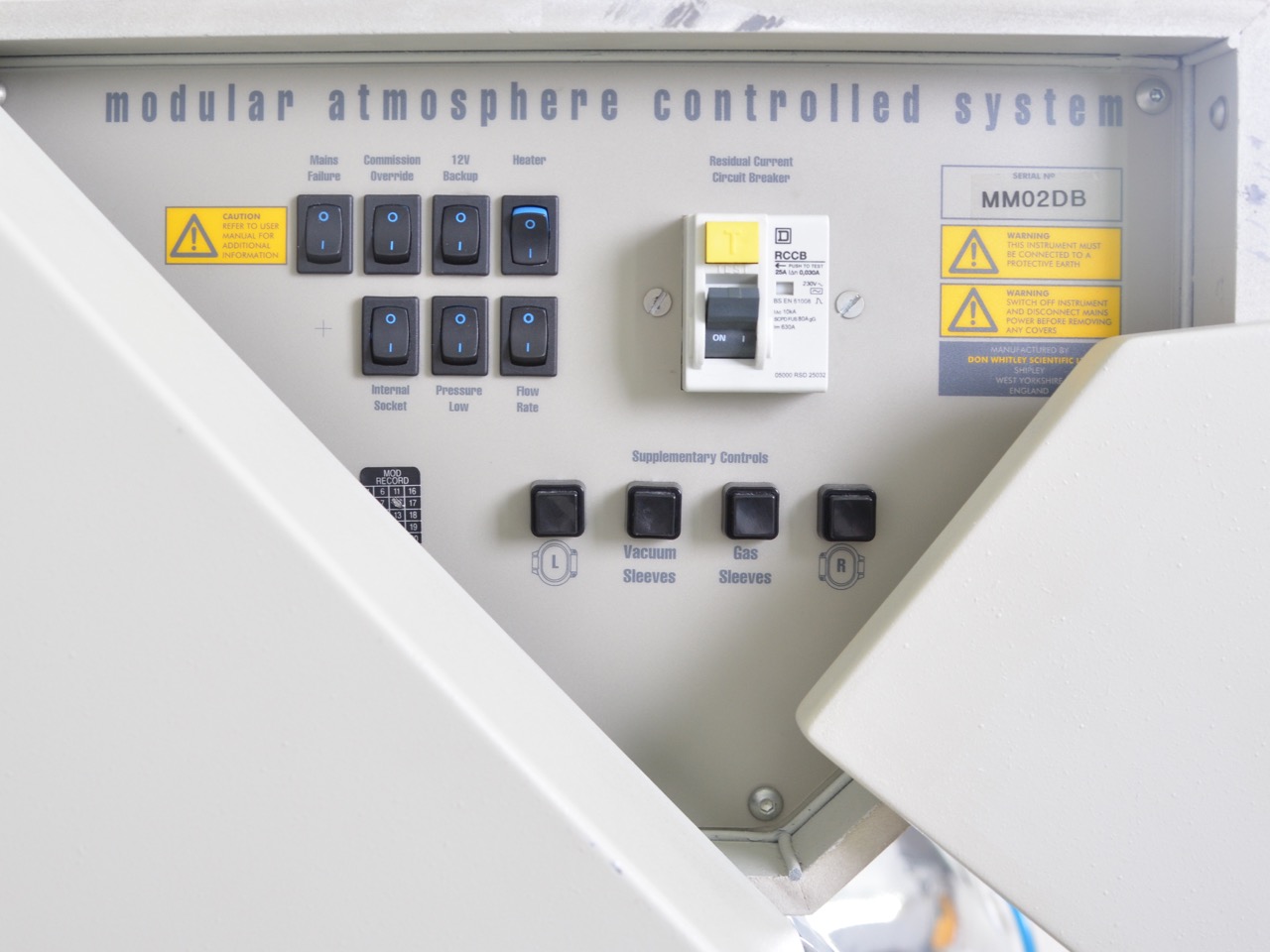

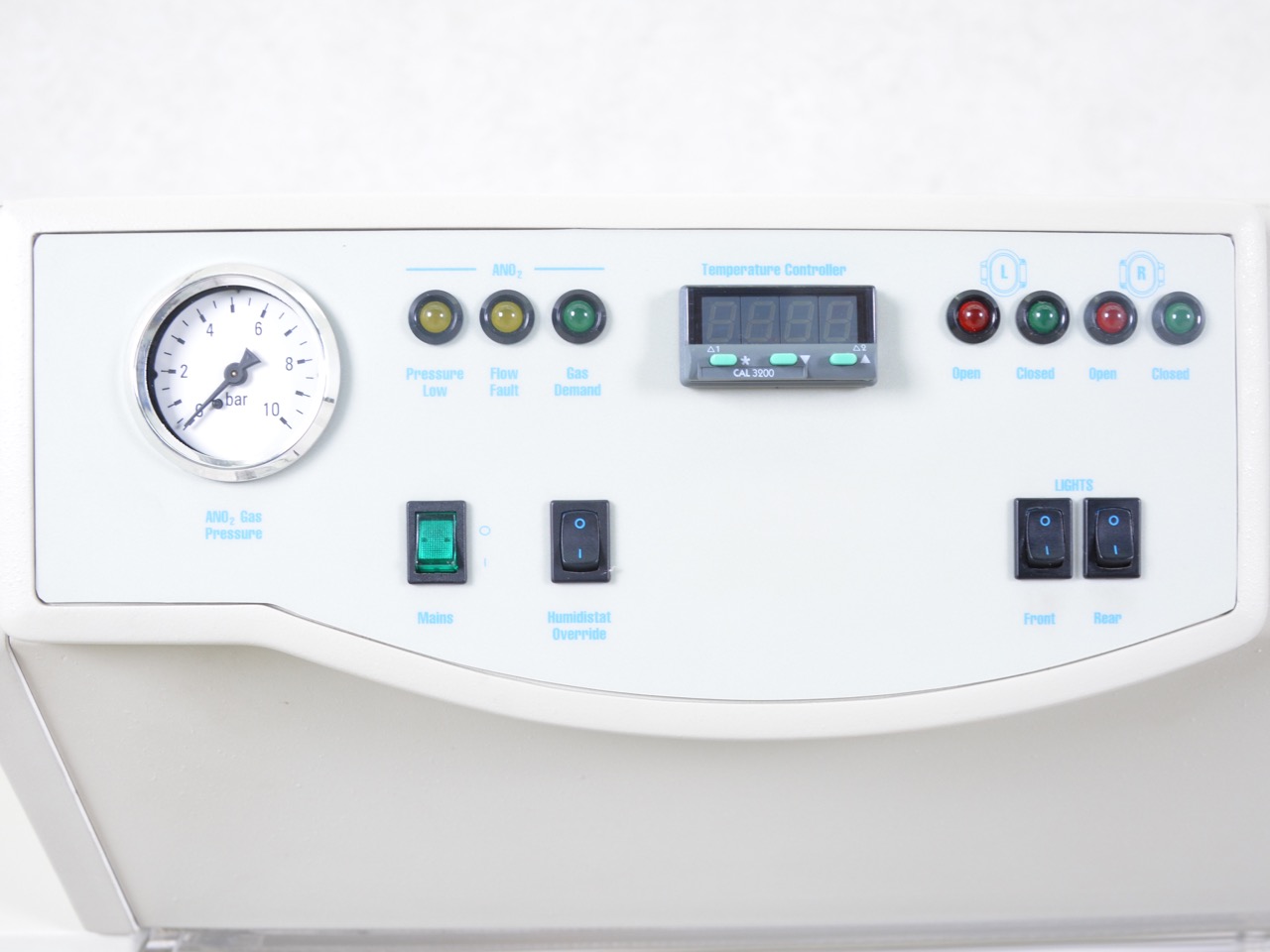

The atmosphere, humidity and temperature are controllable.

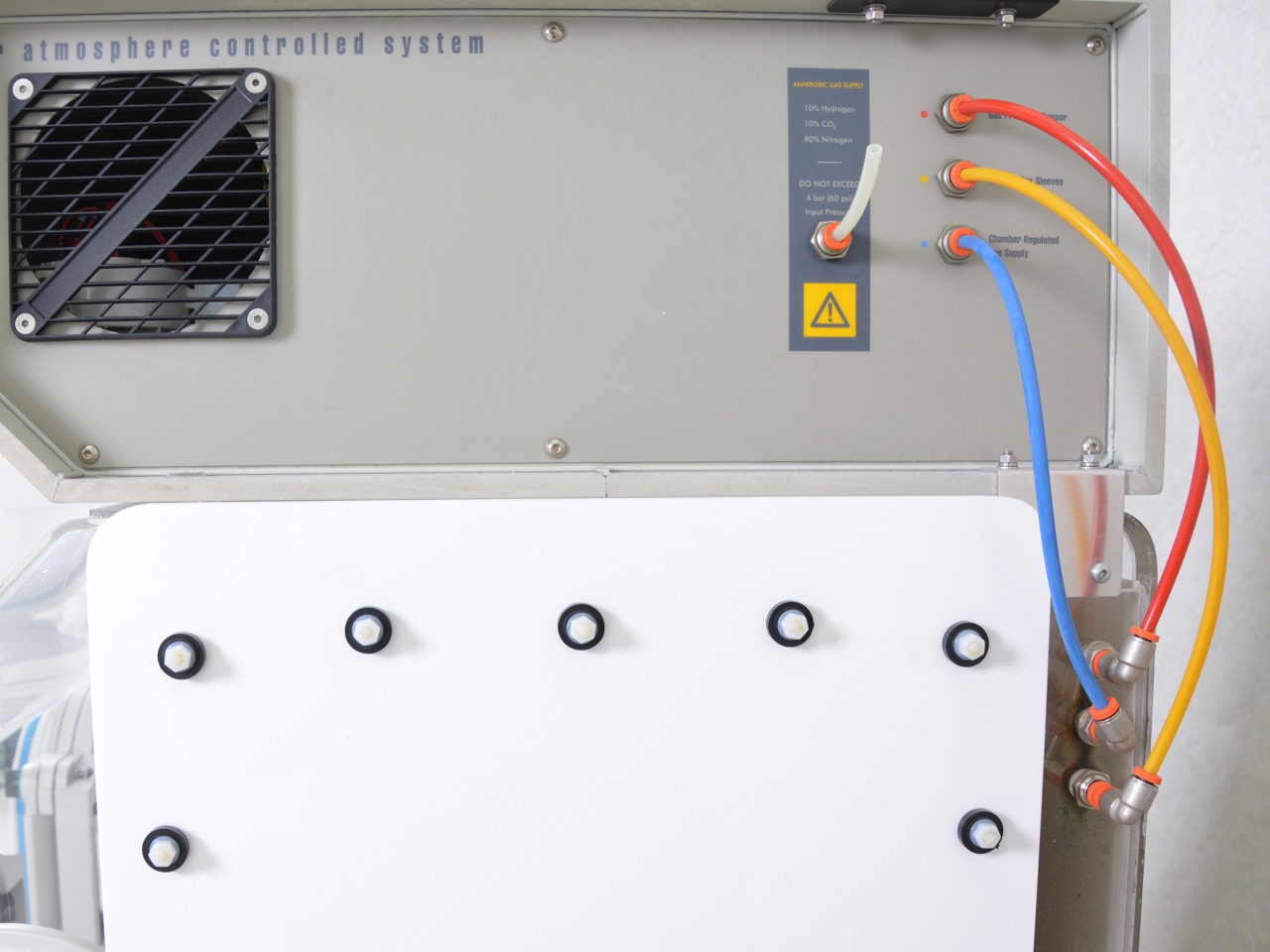

The mixable gasses are:
Mix of 10% hydrogen/90% nitrogen
Hydrogen (0% up to 9%)
Carbon dioxi(0% up to 20%)
Oxygen (0% up to 20%)
Â
Temperature range: +5ºC above ambient temperature up to +45ºC.
The VA500 accomodates 700 petri dishes with a diameter of 9 cm.
External dimensions (W) x (D) x (H): 104 x 64 x 80 cm
Internal dimensions (W) x (D) x (H): 83 x 50 x 50 cm
