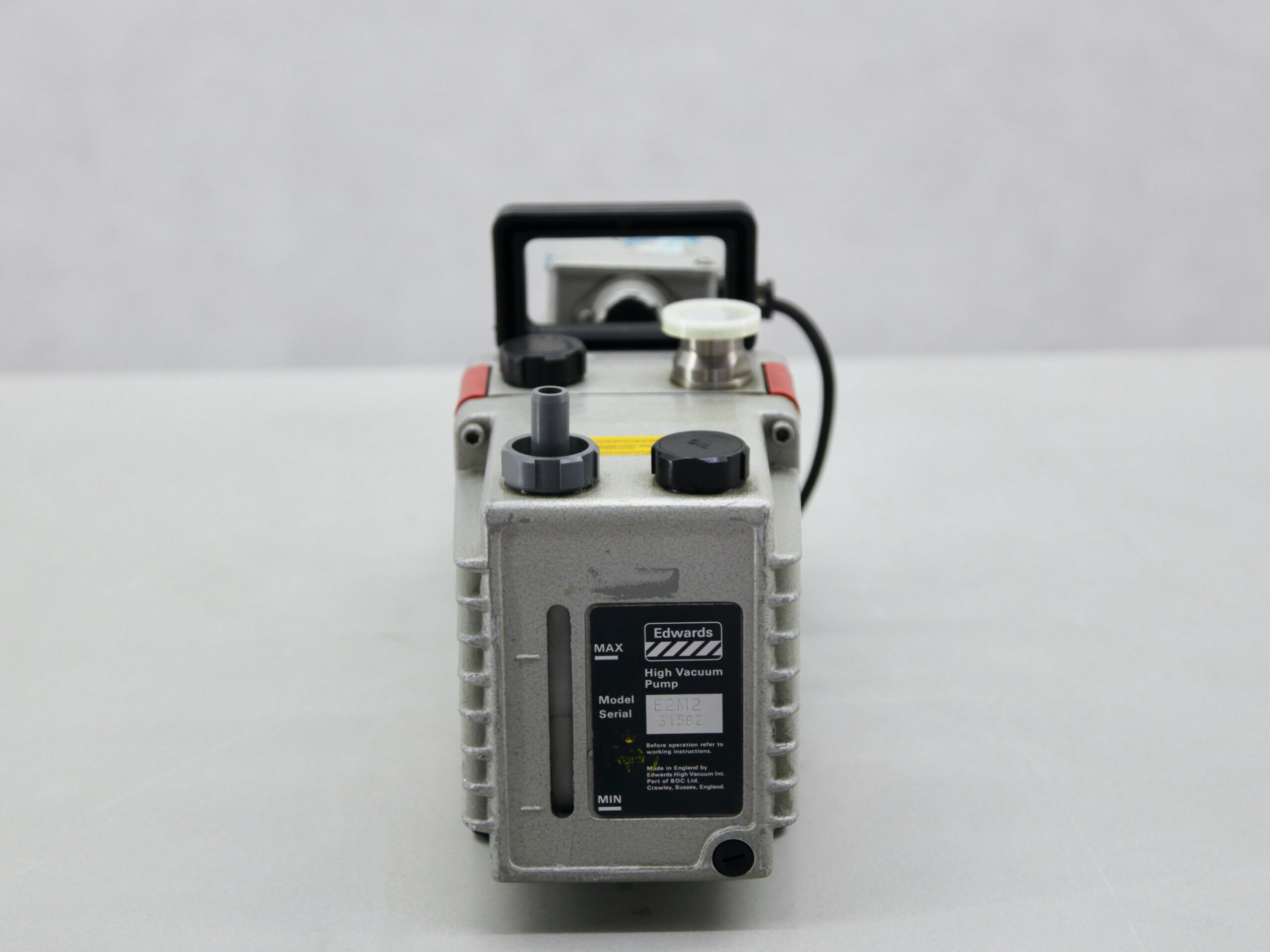

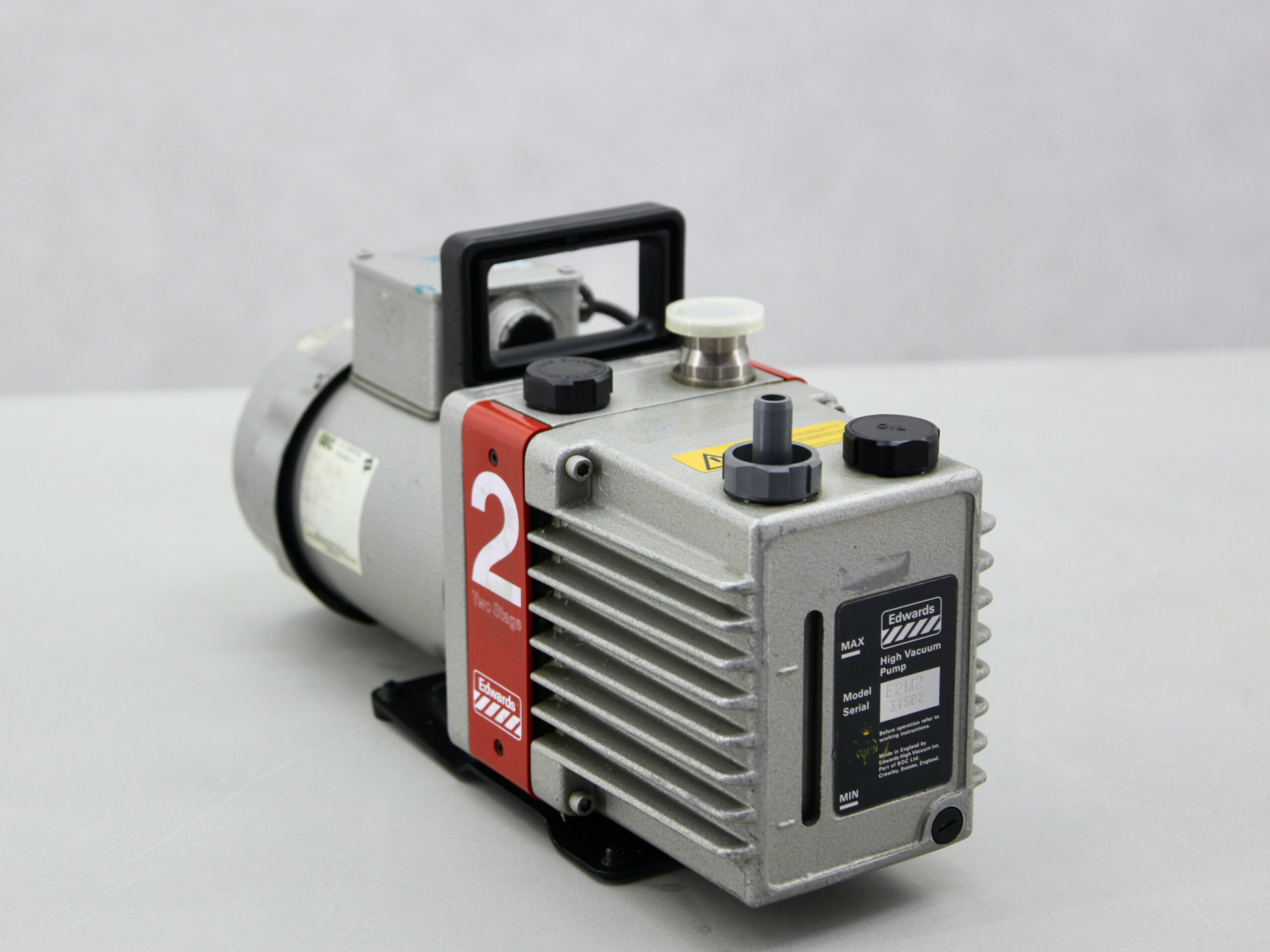

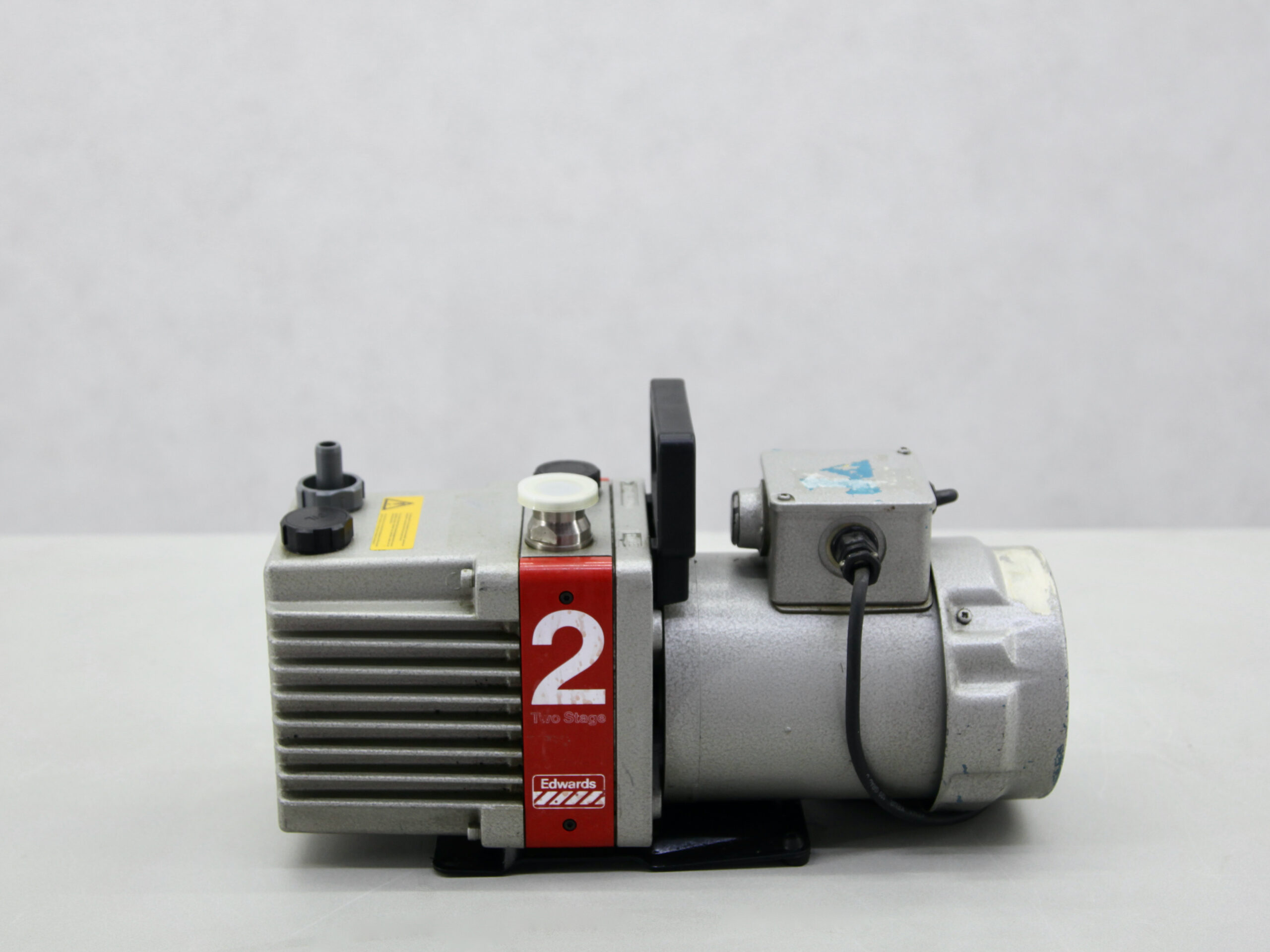

This Edwards vacuum pPump has a peak pumping velocity of 1.5 cfm and a final pressure of 1 x 10-3 Torr. It has been thoroughly examined and is ready for broad range of applications within the research and industrial industries.
The Edwards E2M2 pumps are oil-sealed and designed for reliable, long-term operation in both laboratory and industrial environments. The pumps are free-standing units. The drive is provided through a flexible coupling by a single-phase or three-phase motor.
The motors are totally enclosed and are cooled by the motor-cooling fan which directs air along the motor fins. Â The single-phase motors have either an automatic or manual reset thermal overload device. When the motor is too hot, the thermal overload device switches off the pump. If the thermal overload device has an automatic reset, when the pump cools down, the device resets and the pump will restart.
Edwards E2M2 Applications:
- Gas analysis
- Leak detection
- Mass spectrometers
- Electron microscopes
- Surface analysis
- CentrifugesSterilization
- DistillationMetallurgy
Technical specifications:
Voltage: 220-240 V
Current: 2.9 A
Power: 250 W
Pump speed: 42.5 litres/min
Max. vacuum: 1×10^-3 mbar
Inlet Flange: NW25
Outlet Flange: NW25
Outer dimensions (W) x (D) x (H):Â 15 x 42.5 x 25 cm
