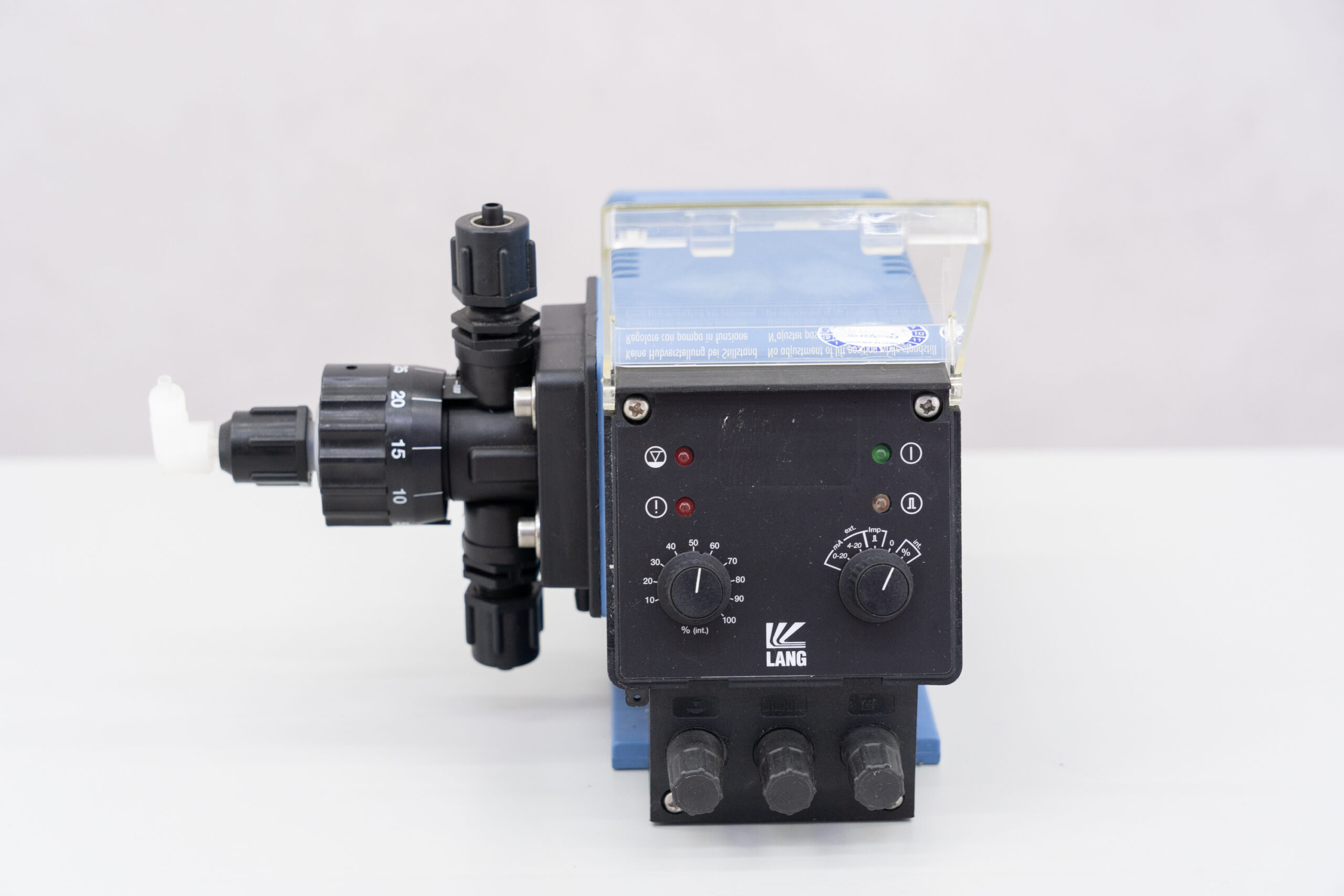

These dosing pumps of the ELADOS KKS Lang E30 series operate according to the piston-diaphragm principle. The diaphragm serves to feed the product while the piston takes care of the dosing.
Technical specifications:
Voltage: 230 V
Power: 18.7W
Safety class: IP65
Air Pressure: 10bar
Measuring frequency max: 122 1/min
Measurement accuracy: 2%
Ambient temperature max: 40° C
External dimensions (W) x (D) x (H): 22 x 23 x 15 cm
Weight: 2.4 kg
