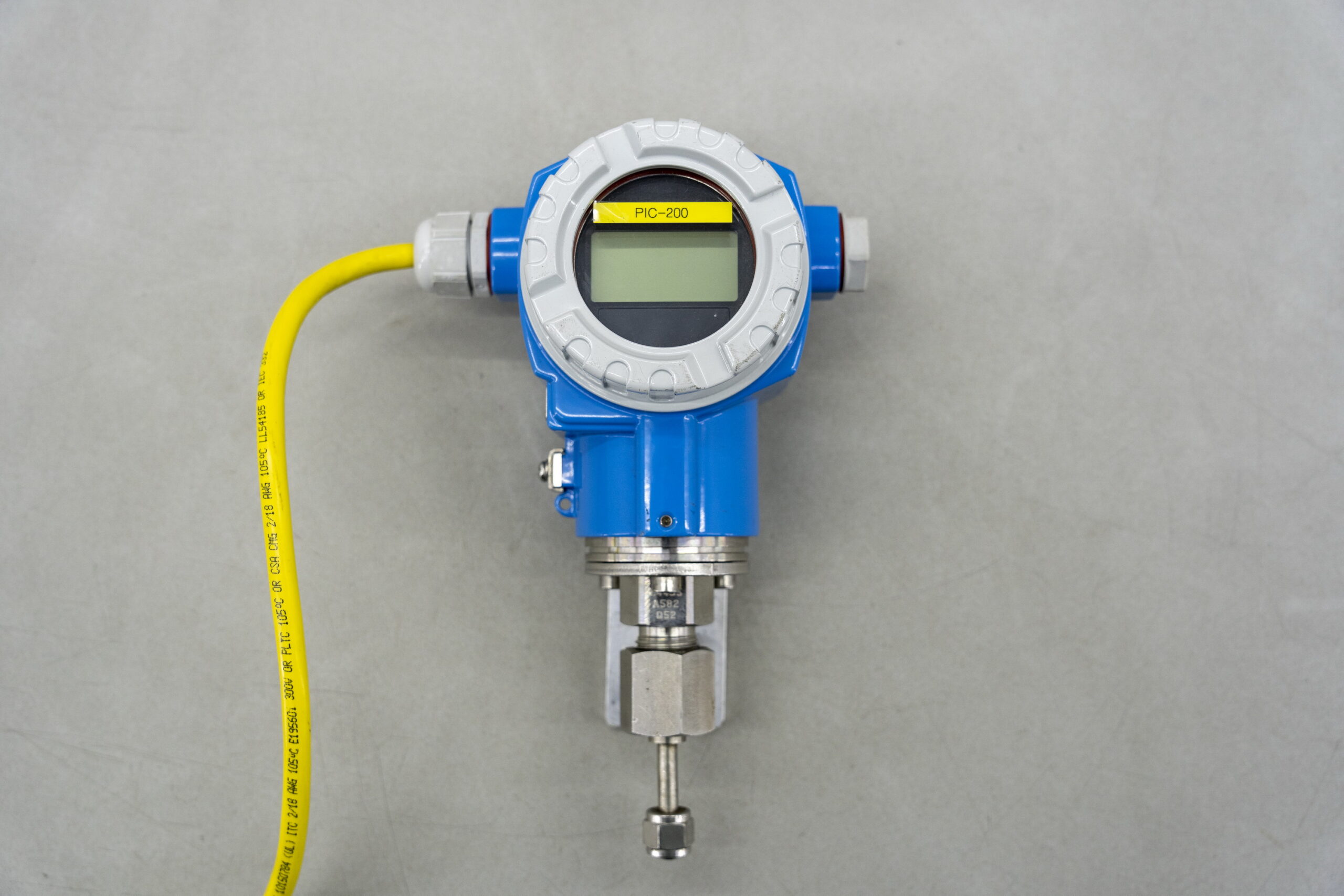

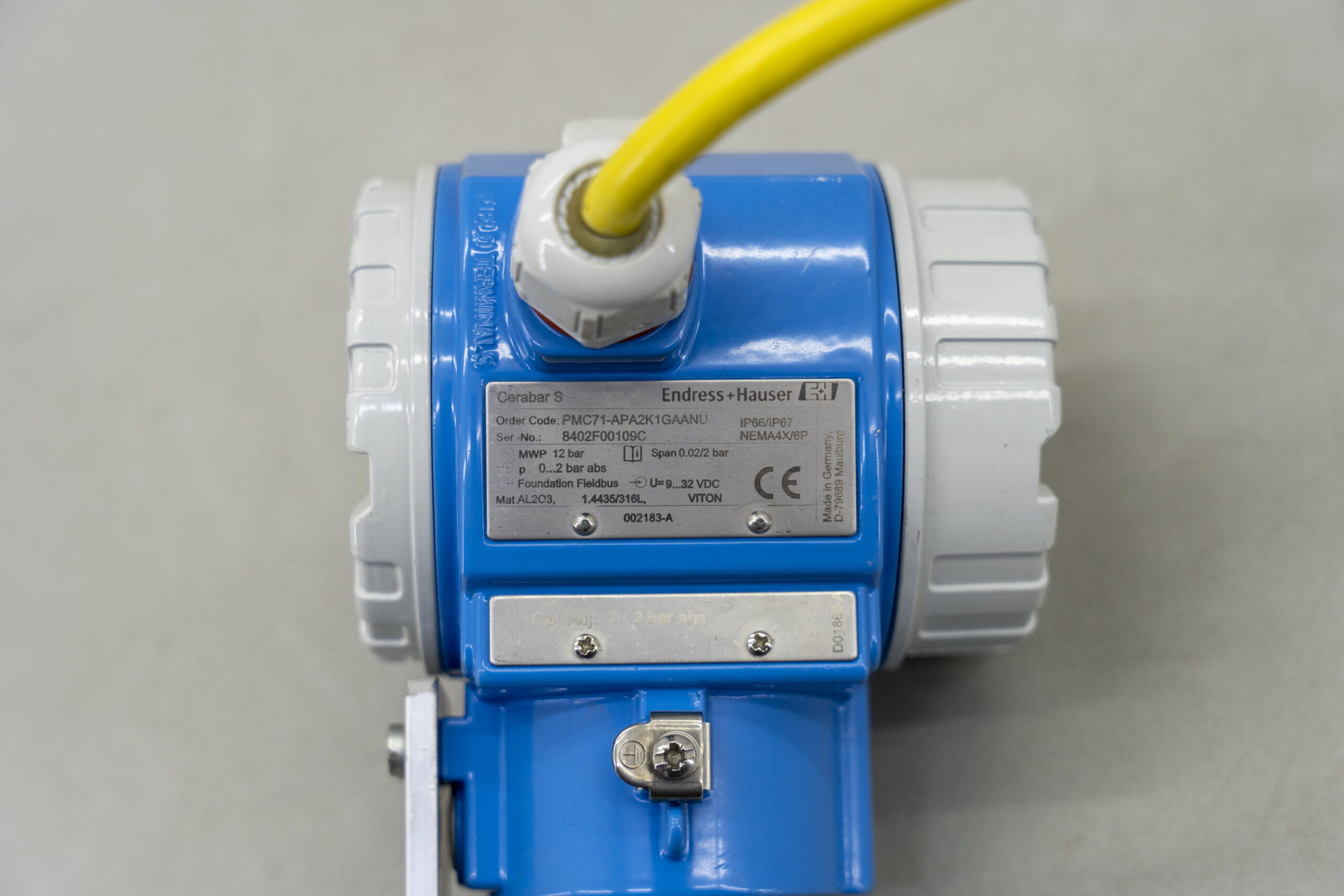

The Endress & Hauser Cerabar S Manometer is an intelligent pressure transmitter with a polysilicon measuring cell for measuring relative or absolute process pressures up to 2000 mbar.
The device is used for the following measuring tasks:
- Absolute pressure and gauge pressure measurement in gases, steam or liquids
all areas of process engineering and process measurement technology
- Level, volume or mass measurements in liquids
- High process temperatures
– up to 150 °C without diaphragm seal
– up to 400 °C with typical diaphragm seals
- High pressures up to 2000 mbar
Technical specifications:
Voltage: 220-240 V : 9 to 32 V DC
Current: <0.1A
Temperature range: 100 0C
Accuracy: 1mbar
Measuring range: 0 – 2000 mbar
External dimensions (W) x (D) x (H): 25 x 12 x 15 cm
