The peristaltic pump of the brand Gilson type MiniPuls 3 is designed for pumping corrosive, abrasive and viscous liquids without damaging the pump.
Technical specifications
Voltage: 100-120V/220-240V, 50/60Hz
Power: 45VA
Speed: 0-48 rpm
Standard flow rate (1, 2, 4, or 8 channels): 0.3 µL/min – 30 mL/min at a maximum pressure of 0.5 MPa
High flow rate (2 or 4 channels): 1 mL/min – 220 mL/min at a maximum pressure of 0.3 MPa
Pump head speed: adjustable from 0 to 48 rpm with steps from 0.01 rpm to 9.99 rpm and with steps from 0.1 rpm above 10 rpm
Diameter hose standard model: 0.25–4 mm (ID)
Diameter hose high-Flow model: 2–8 mm (ID)
External dimensions (W) x (D) x (H): 15 x 17.5 x 29.5 cm
Sold out

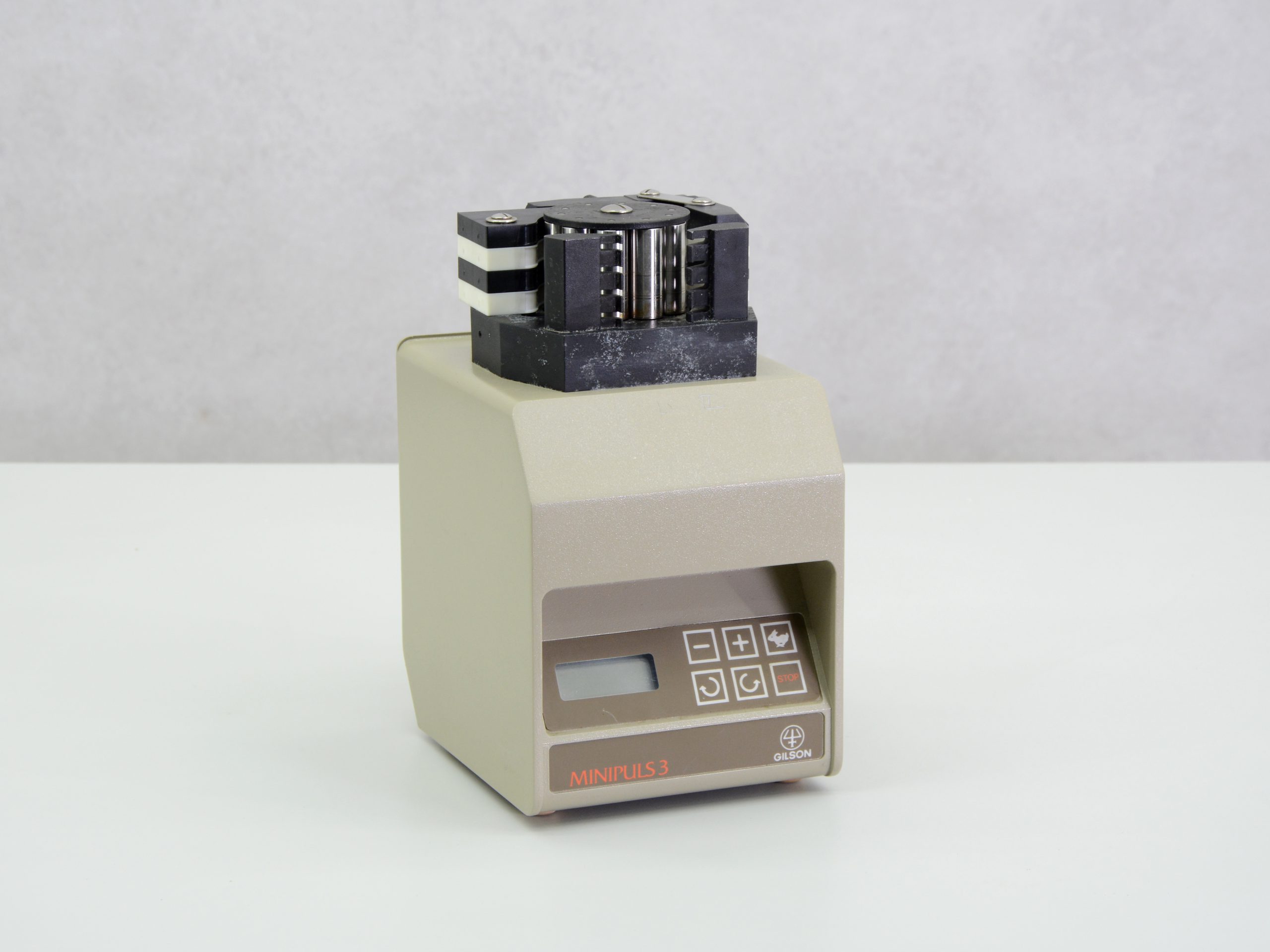

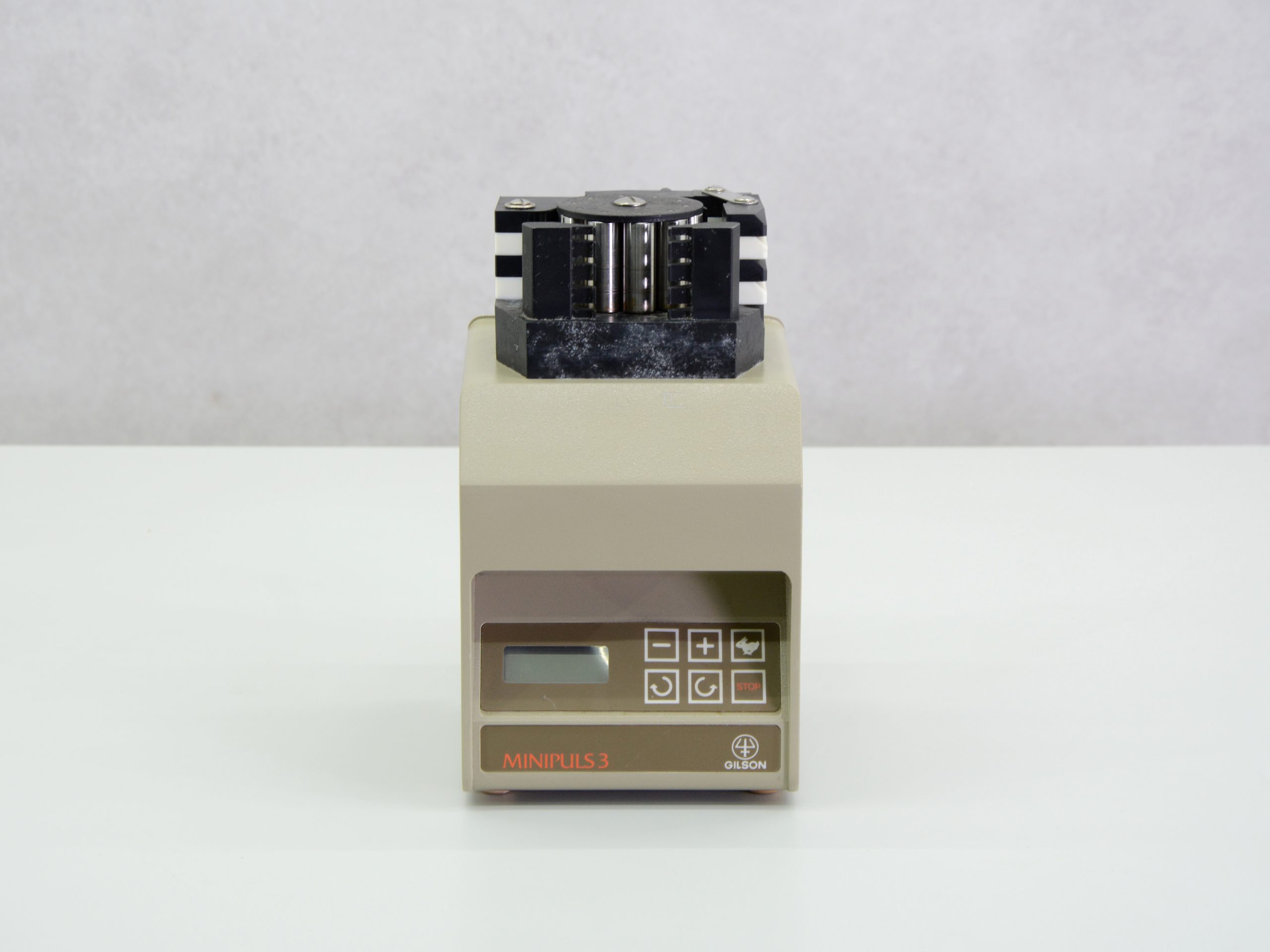

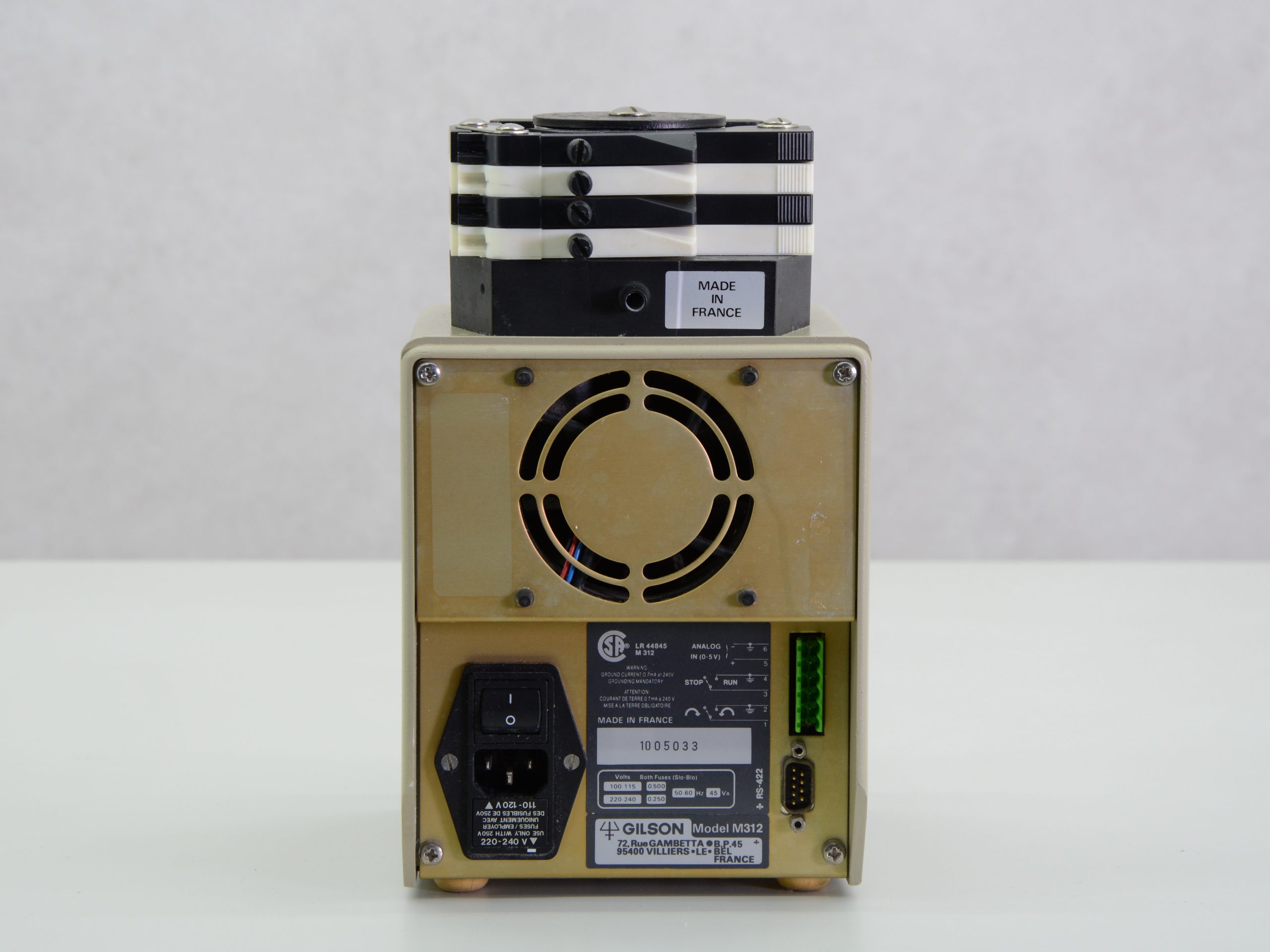

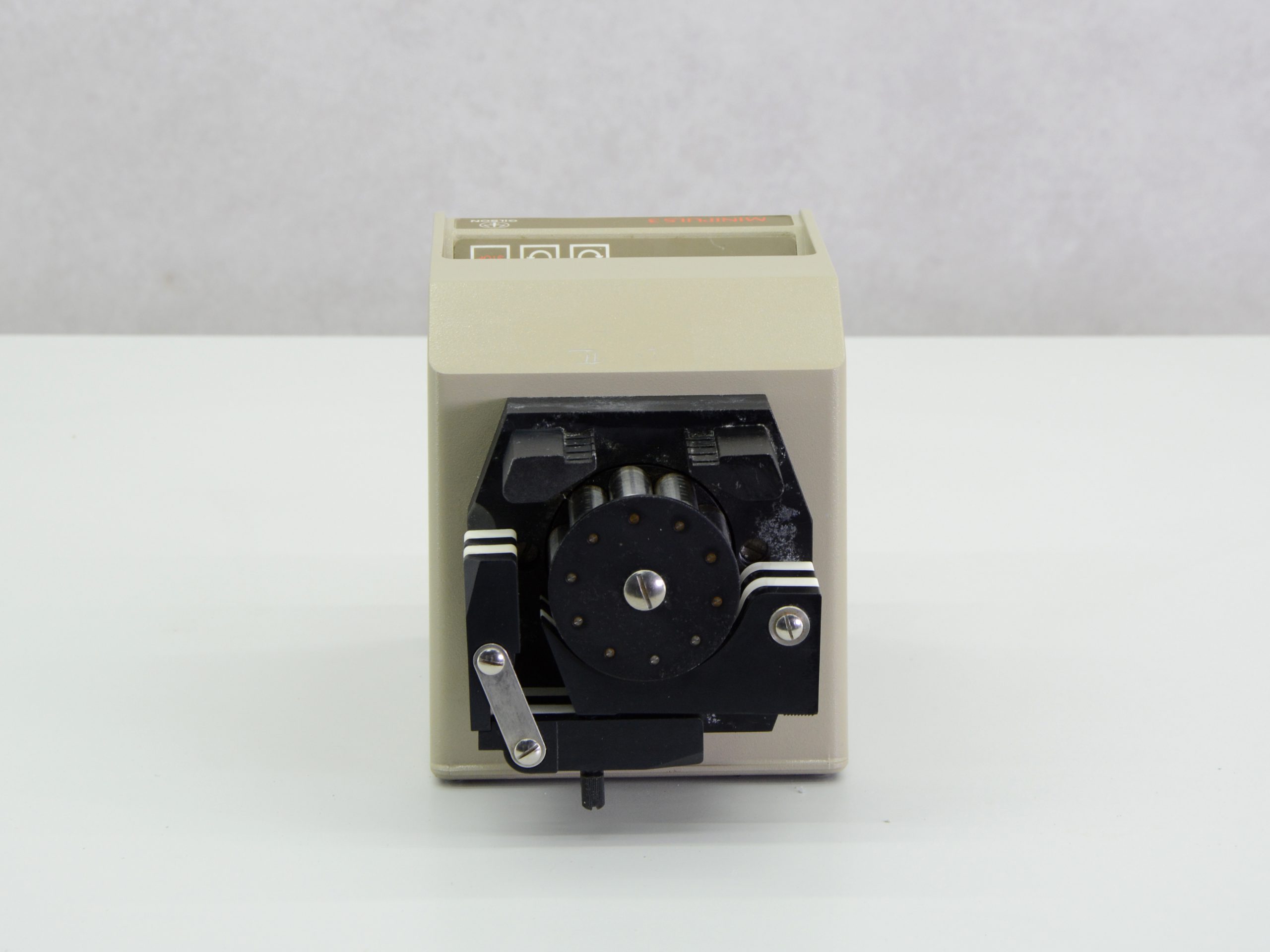

Gilson MiniPuls 3 Peristaltic pump
Sold out
Click for price
Location: NN1-4Status: UsedWarranty: 1 month
