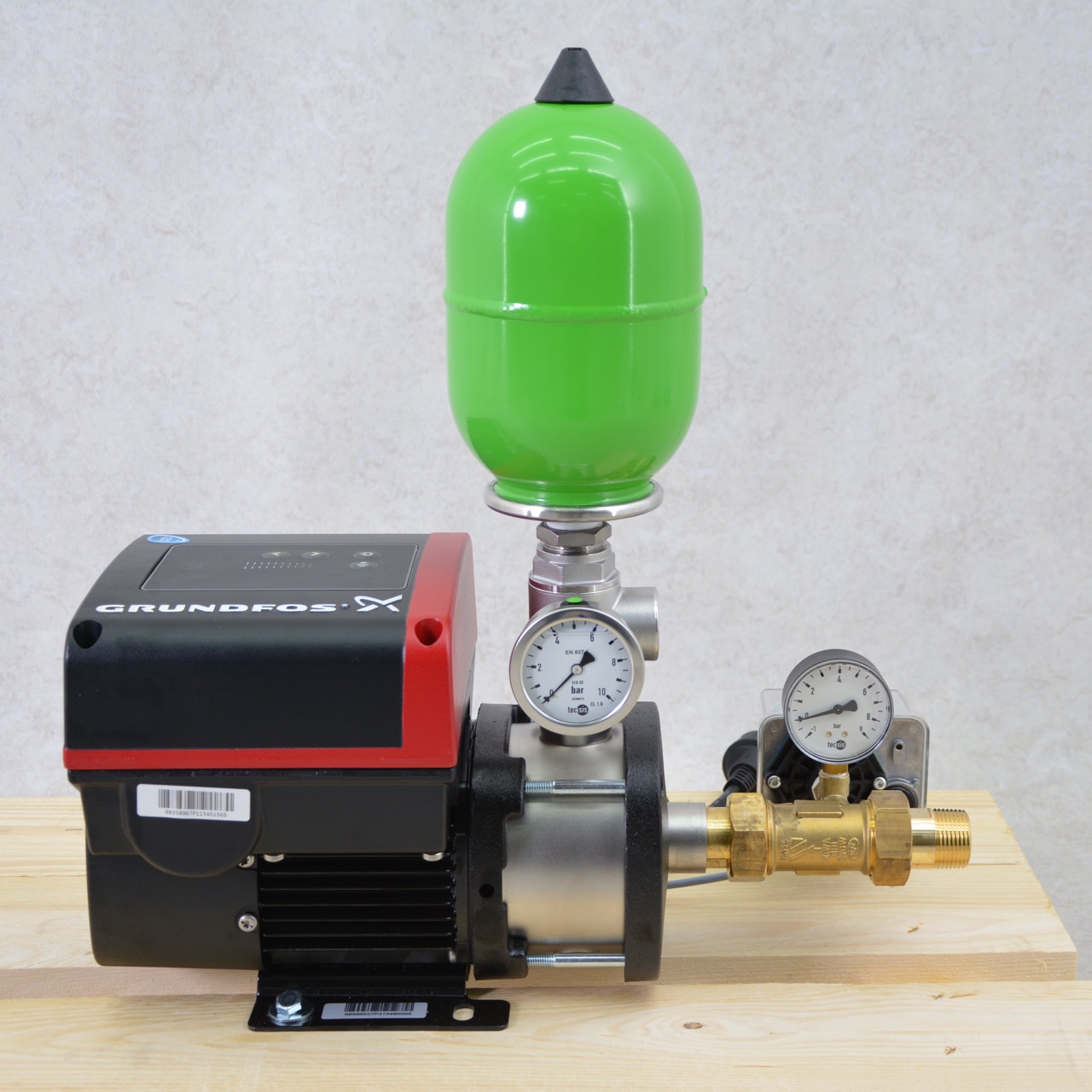

Pressure boosting system from Grundfos type CMBE 1-44.
The main purpose of this is Grundfos is to pressurize water from a water pipe up to max. 4 bar above the water pressure insithe pipe.
This pump is frequency controlled dependent on the pressure.
Technical specifications:
Voltage: 220-240V, 50/60Hz
Current: 3,45A
Power: 685W
Suited for 6 to 10 tap points
Pressure increase: 0,5 bar up to 4 bar
Flow rate: 11 m3/h
