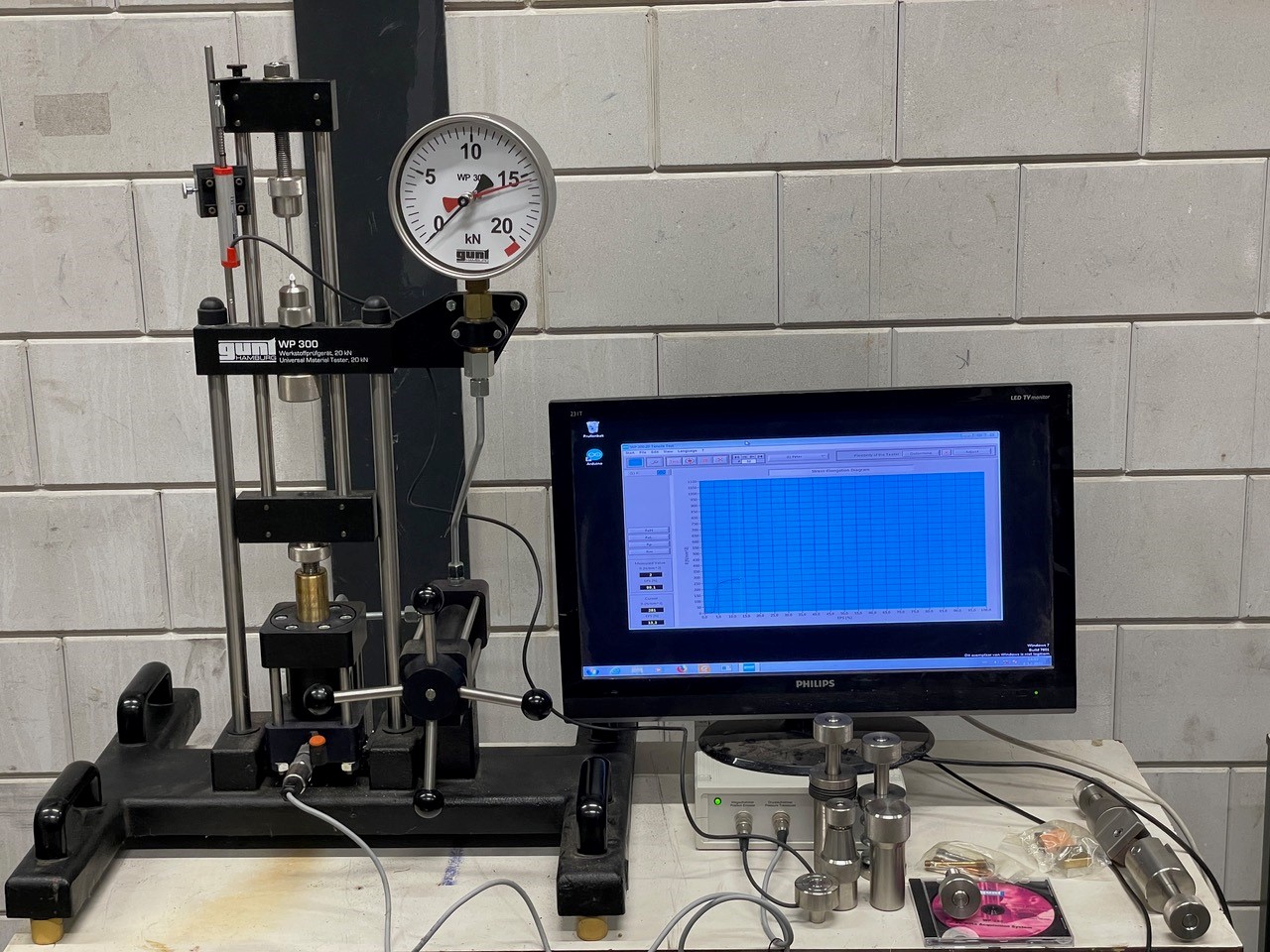

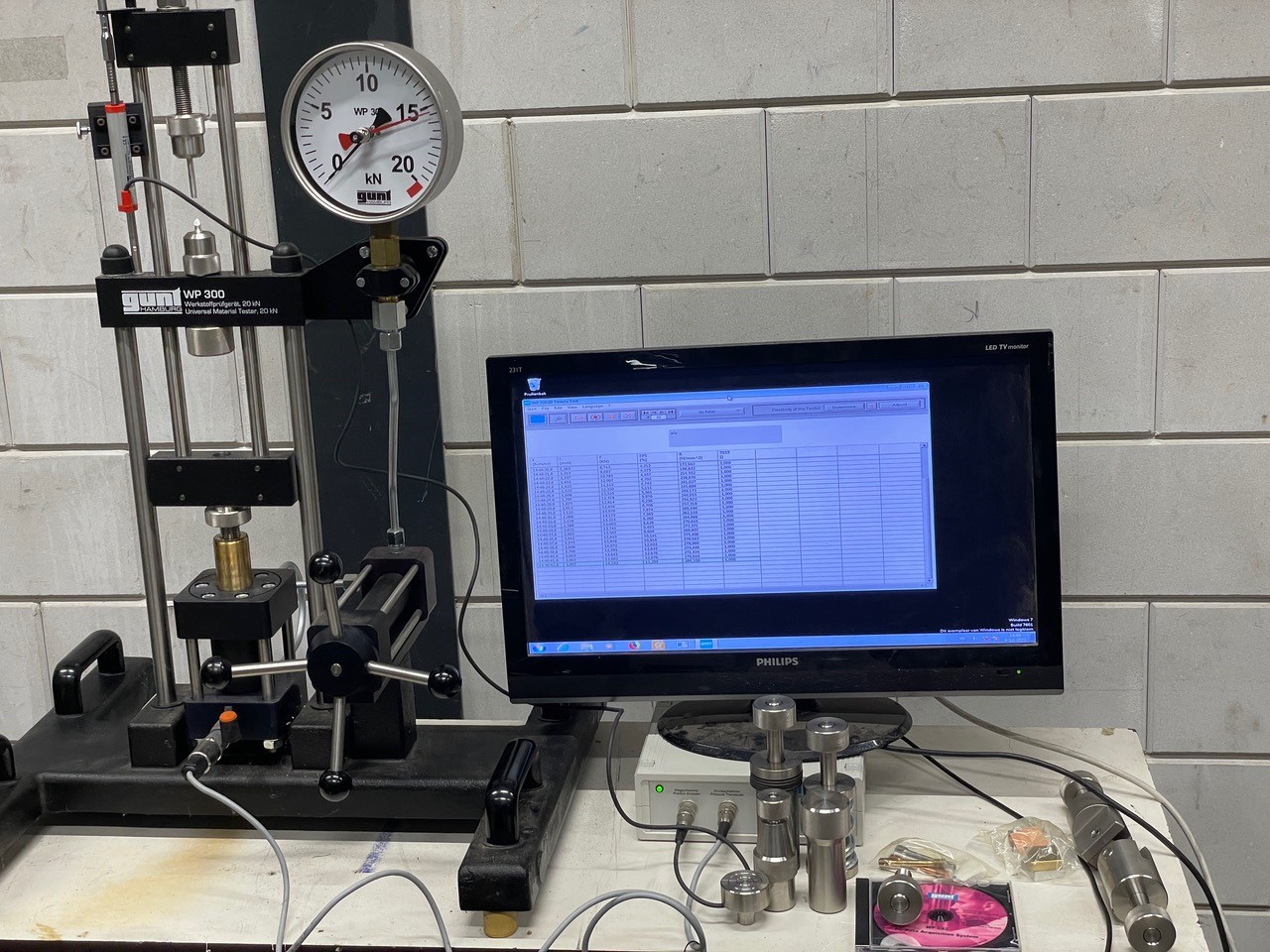

This versatile material tester can be used for a wide range of tests. Next to classic experiments such as destructive materials testing, the Gunt WP 300 can be used for tensile, compression and Brinell hardness tests.

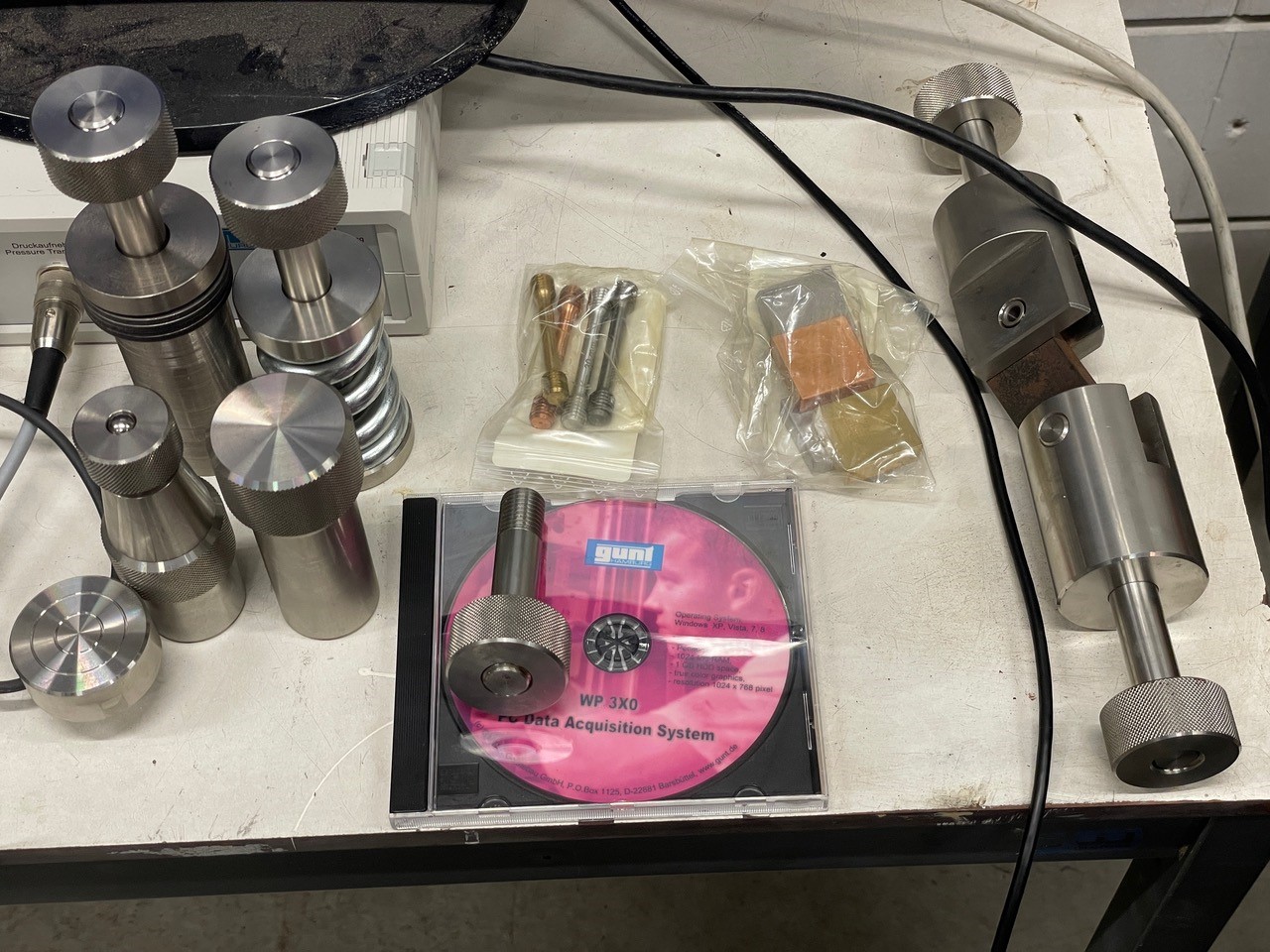

The tester includes a tensiometer, computer-interface software and several adaptors on behalf specimen tests (see photo).
Features:
– Adaptors for tensile tests included (M10)
– Plot stress–strain diagrams
– Compression tests
– Brinell hardness test adaptors included
– Additional accessories as pictured
Technical specifications:
Test force: max. 20 kN
Stroke: max. 44 mm
Measuring range force: 0…20 kN, graduation: 0,5 kN
Measuring range travel: 0…20 mm, graduation: 0,01 mm
Outer dimensions (W) x (D) x (H): 500 x 610 x 860 mm
Weight: 48 kg
