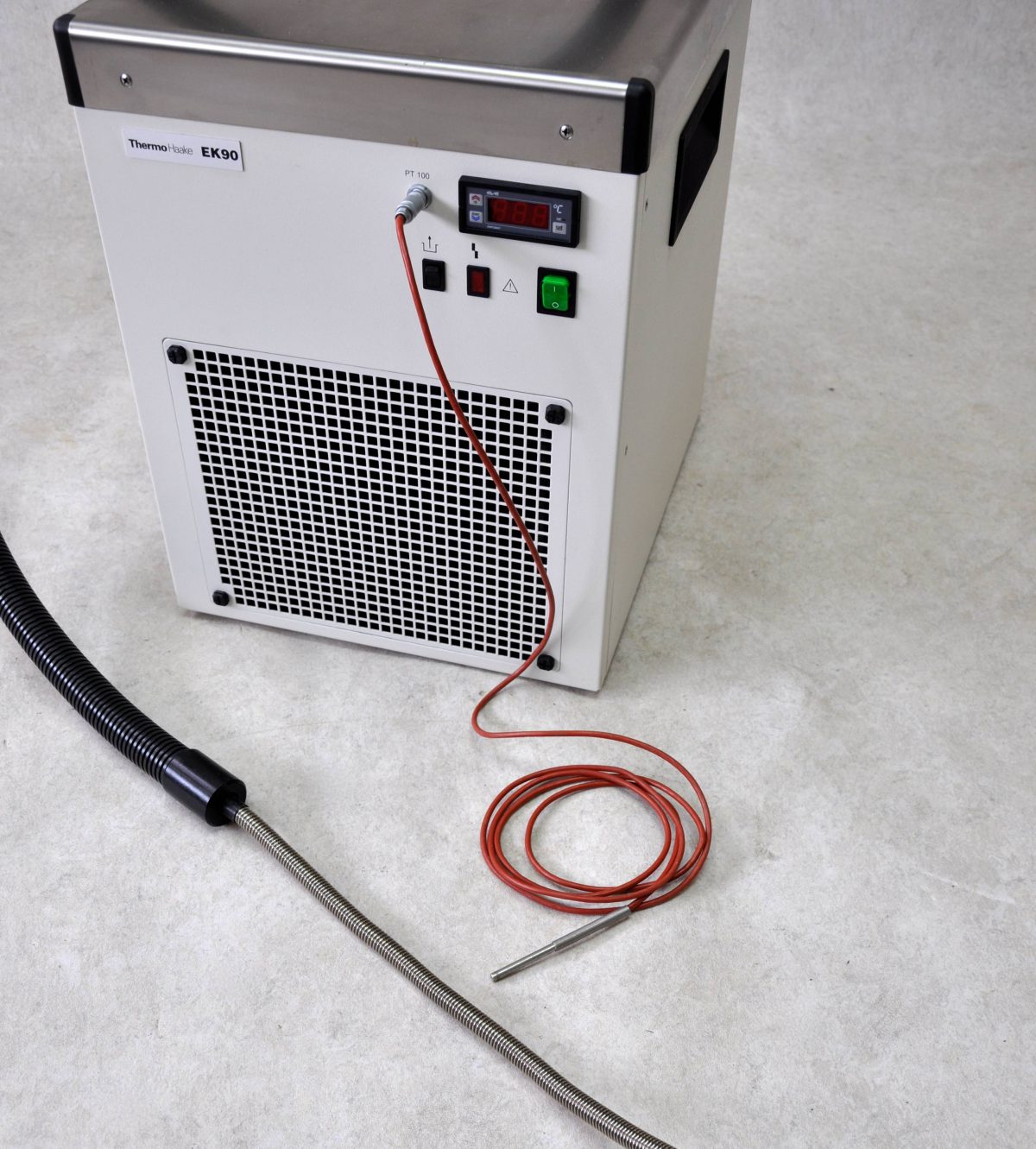

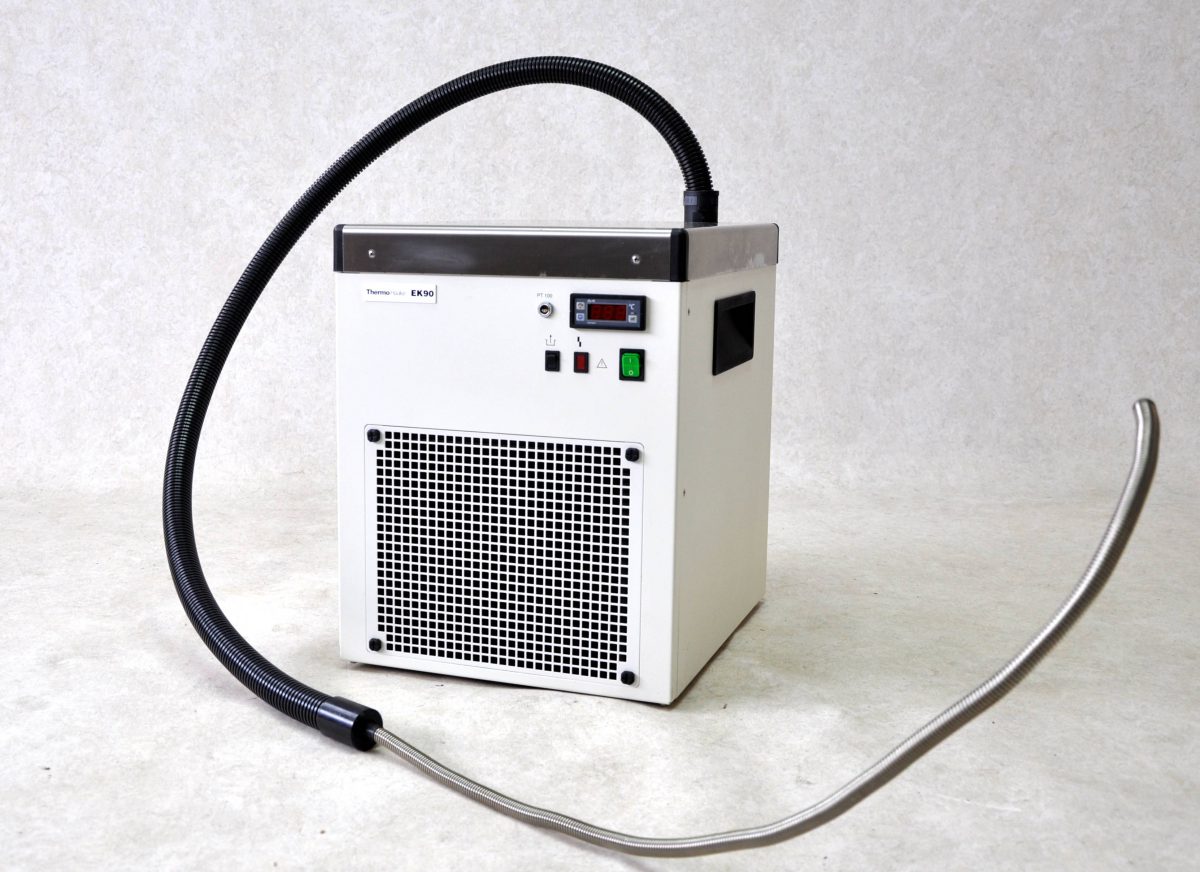

Used immersion cooler of Thermo-Haake, type EK90.
Similar to the EK45, however with a two-stage refrigeration
circuit with which a maximum low temperature of -90°C can
be reached.
Cooling requires the removal of heat. This is carried out for
these units by heat exchangers, which draw off and expel the
heat. The cooling capacity for air-cooled units (heat exchanger = liquefier) depends to a great extent on the free
flow of cooling air through the two ventilation grids. These
grids (one at the front and one at the rear side) must therefore be kept free of all obstacles at all times!
Note: The cooling capacity is reduced at ambient temperatures of 30°C
Technical specifications:

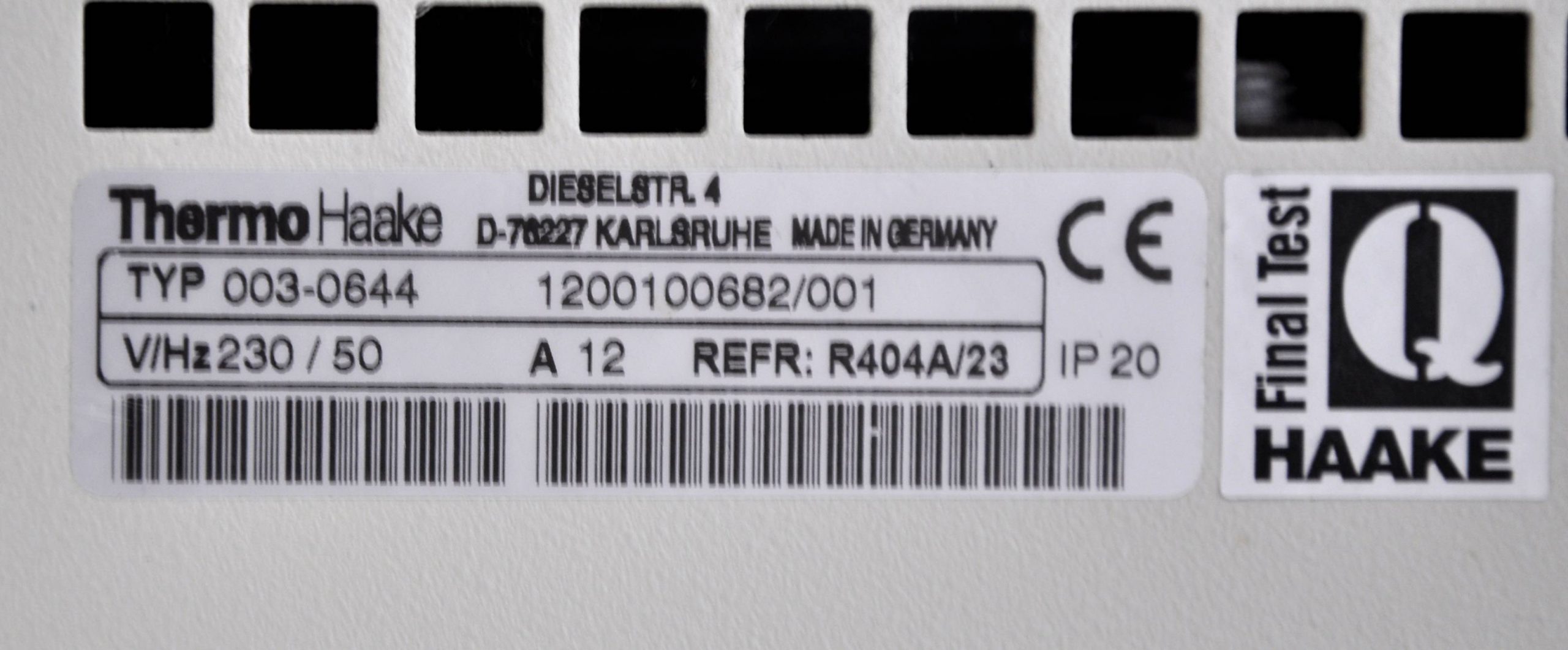

Voltage: 220V
Temperature range: -90°C – +40°C
Length cooling element (immersion cooler) = 1 meter

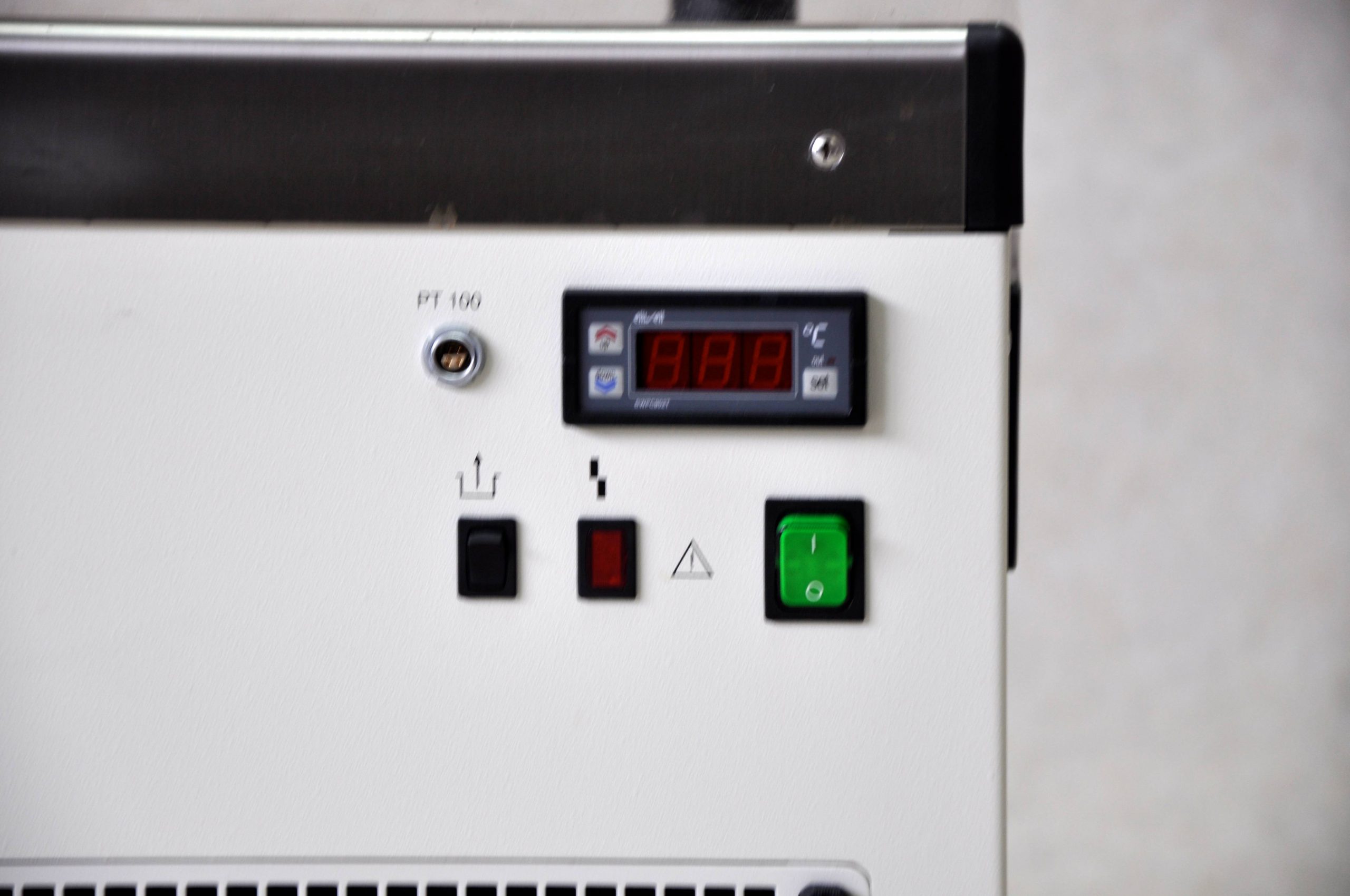

Incl. temperature sensor
Weight: 60 kg
Dimensions (W) x (D) x (H): 38 x 46 x 49 cm
