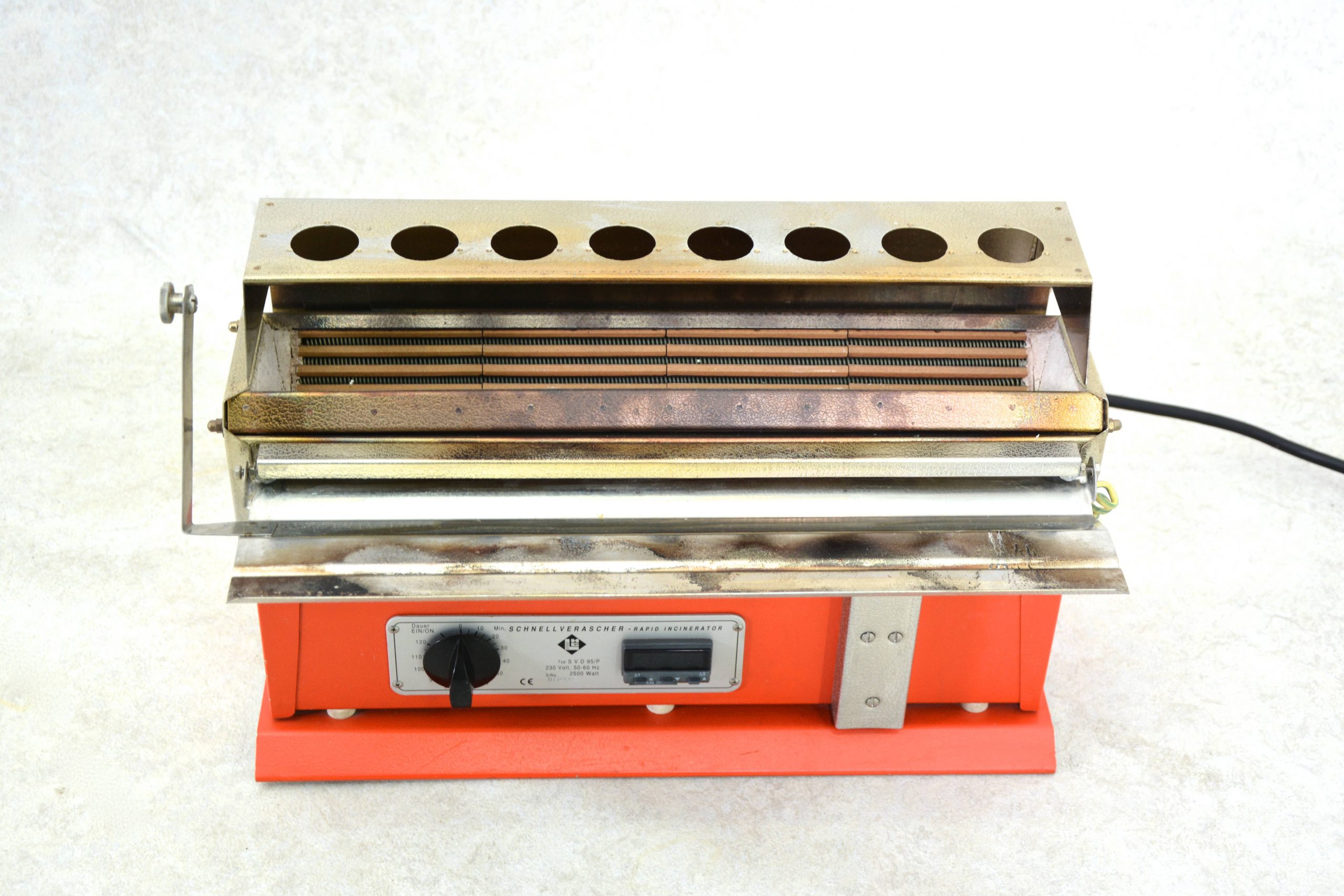

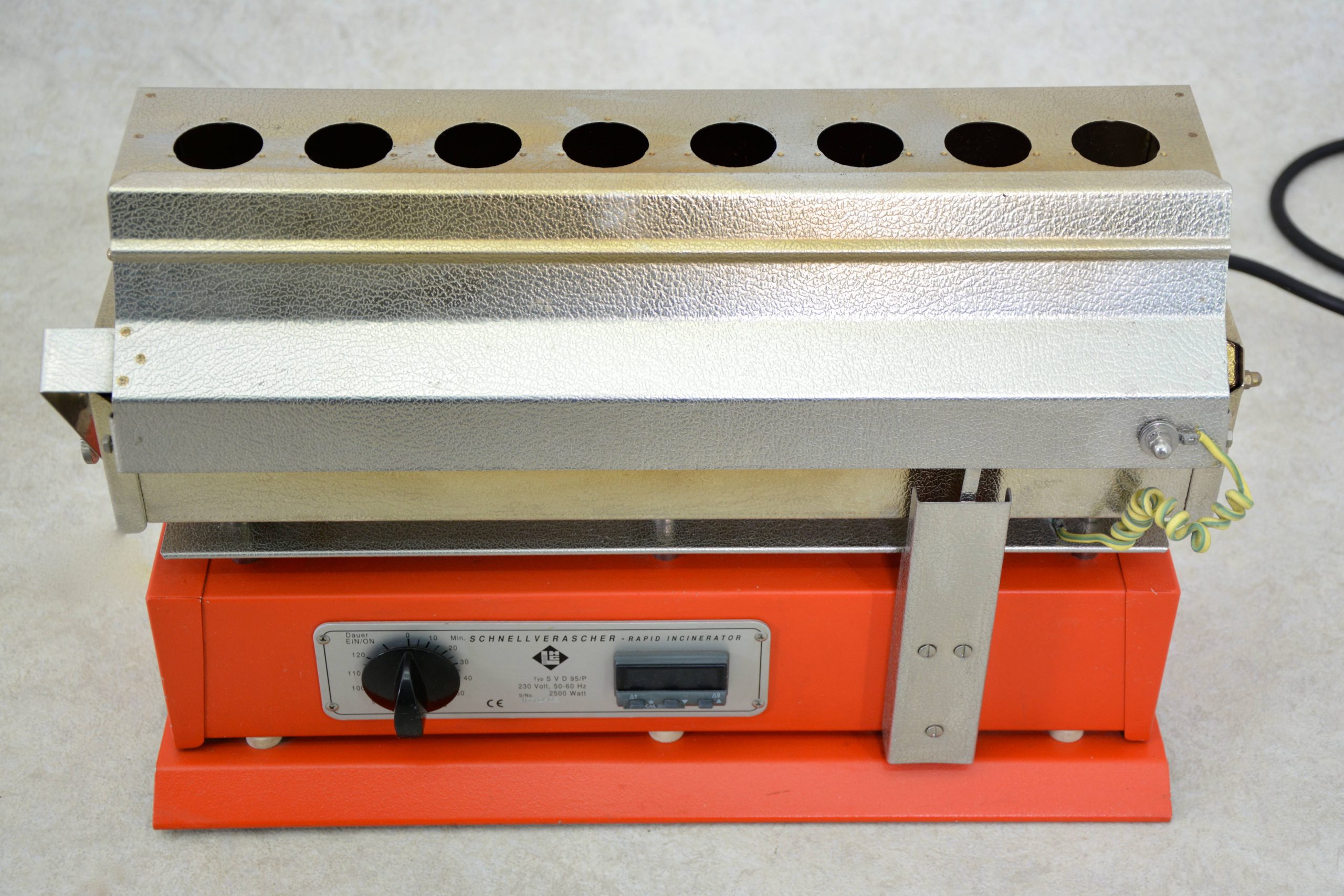

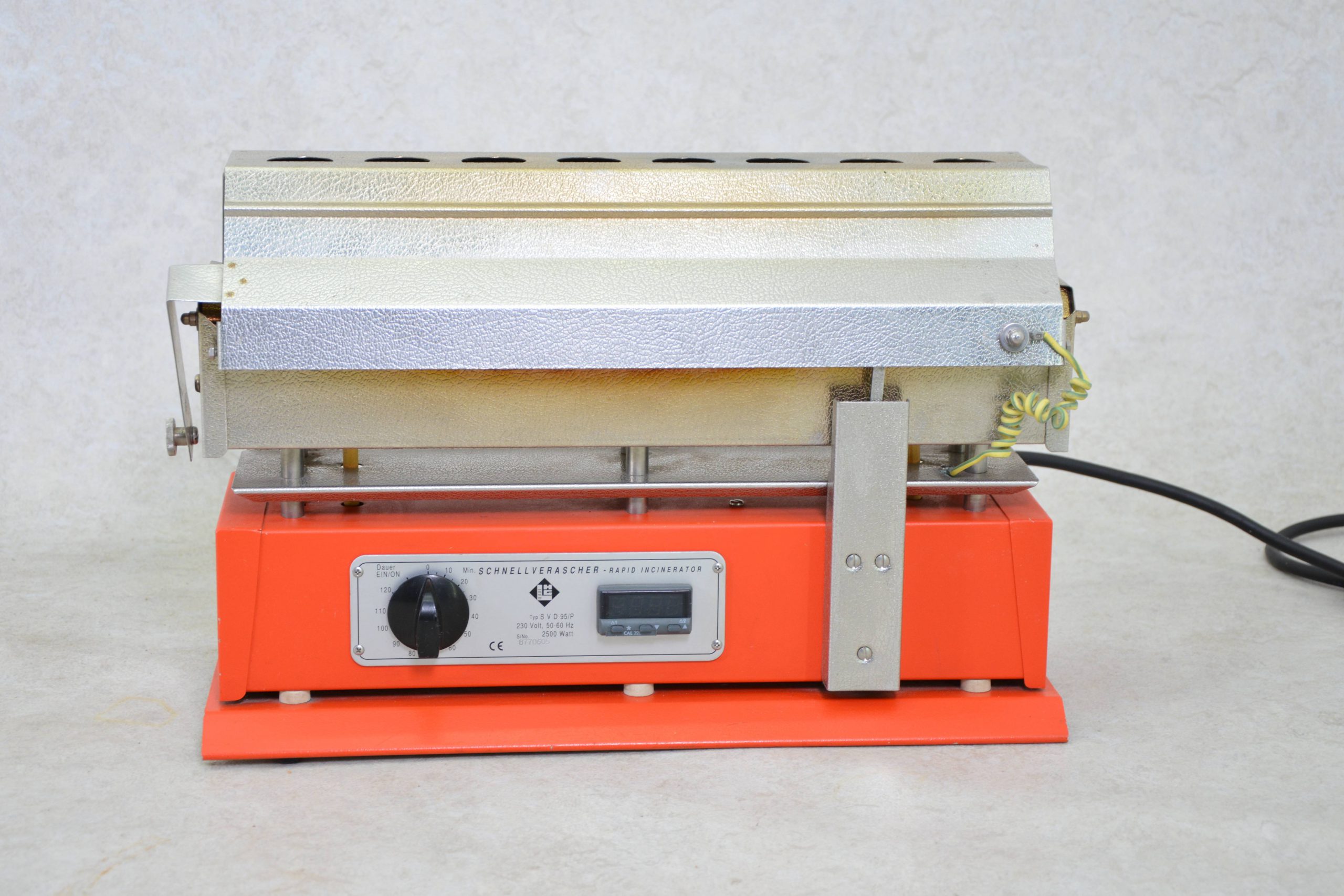

Used rapid incinerator from Harry Gestigkeit (LHG), type SVD 95/P.
The operating temperature of 950°C is attained within a few minutes.
The upper level can take 8 porcelain crucibles of up to 50 mm diameter for drying, pre-heating and fuming-off.
You can also reduce fluid substances to ashes. The uninhibited exposure to oxygen speeds up the incineration process.
The tilted position of the crucibles in the lower incineration bed (which has a length of 400 mm) allows excellent observation and access to the contents during operation.
Technical specifications:
Voltage: 230 Volt – 50/60 Hz
Power: 2300 W

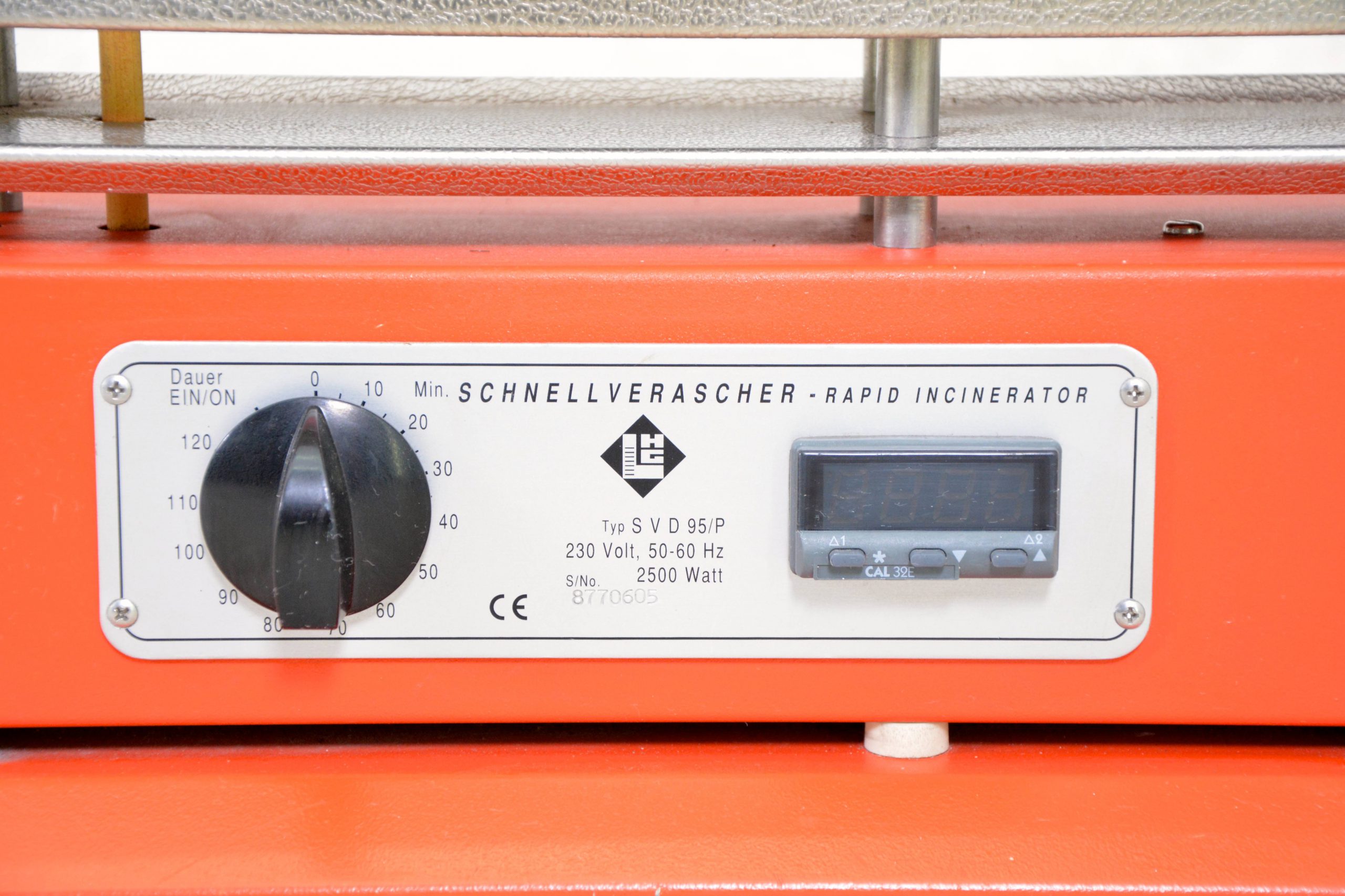

Timer is adjustable up to 120 minutes and in continuous mode
Temperature: 950°C
Diameter hole for crucible: Ø 3.4 cm
Dimensions (W) x (D) x (H): 45 x 18,5 x 30 cm
