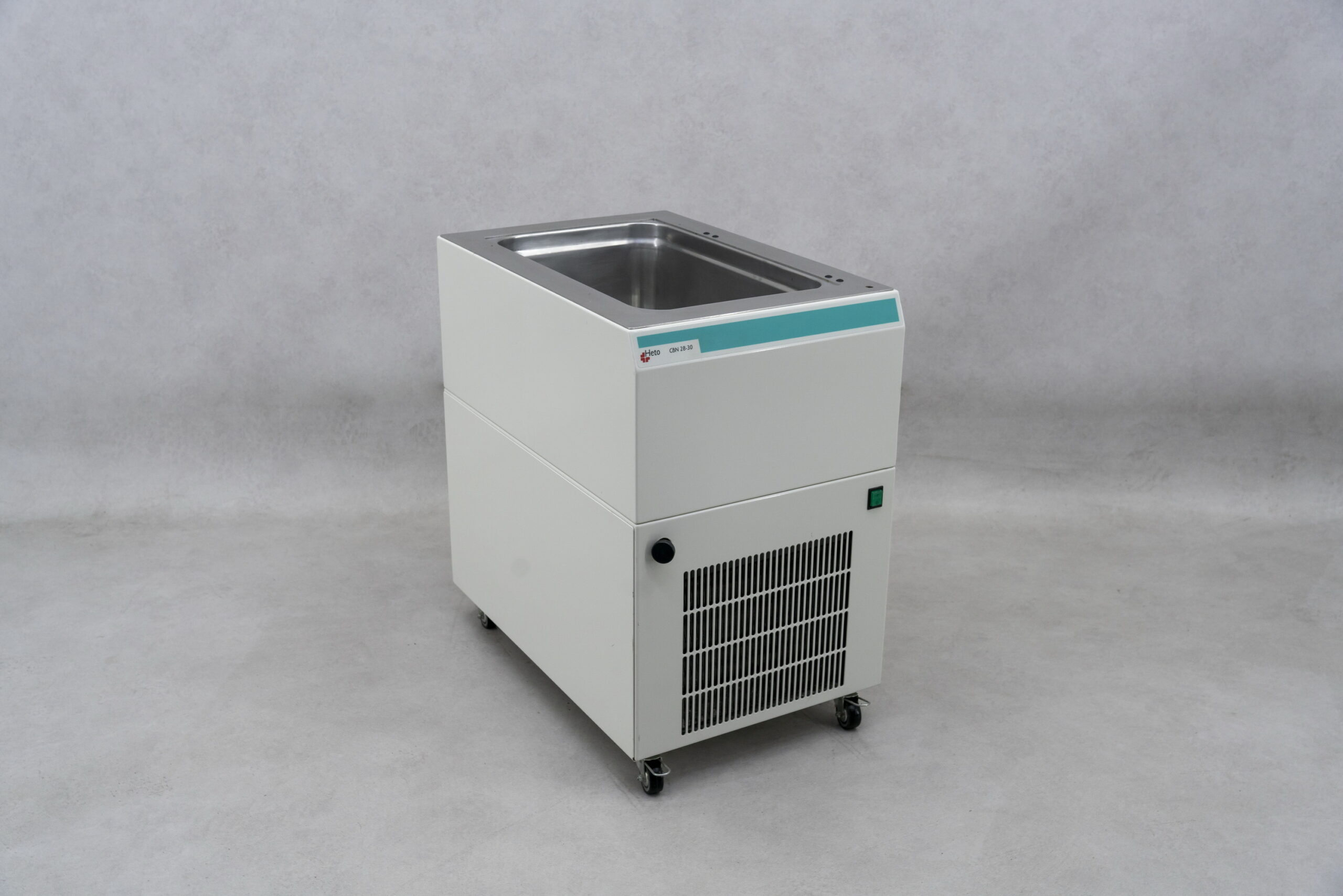

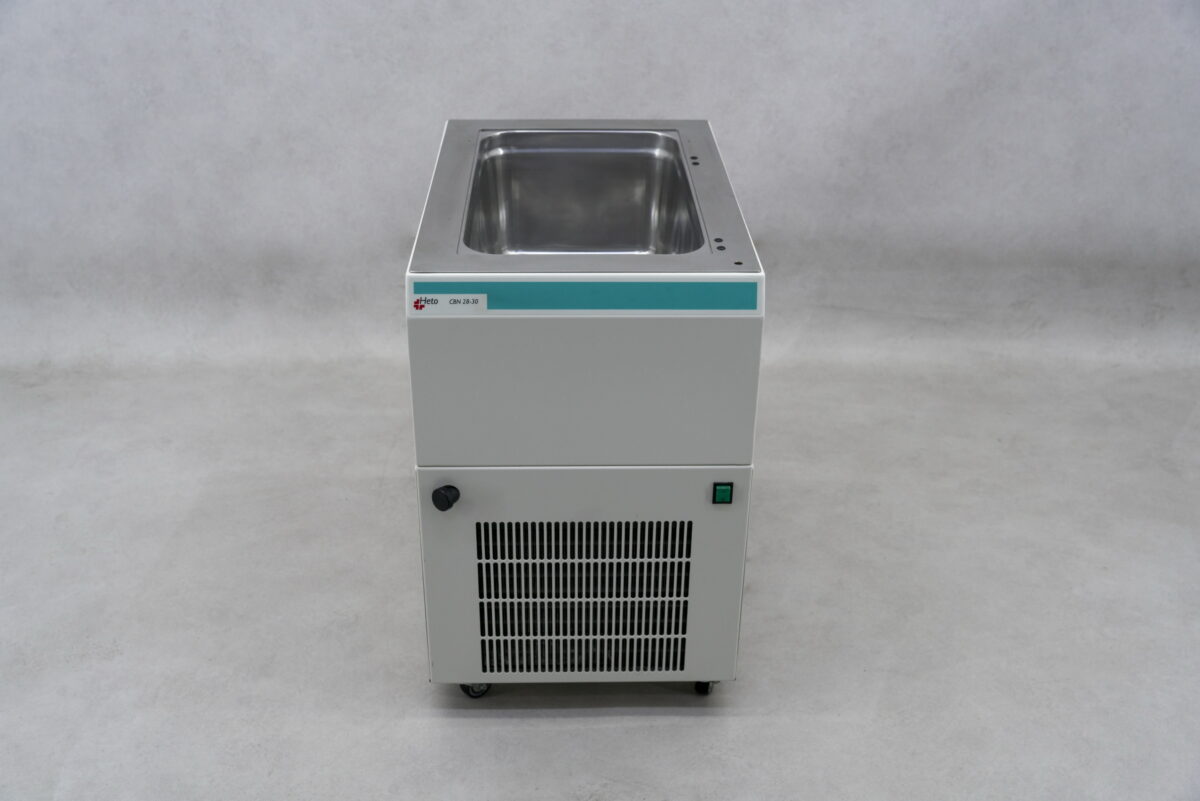

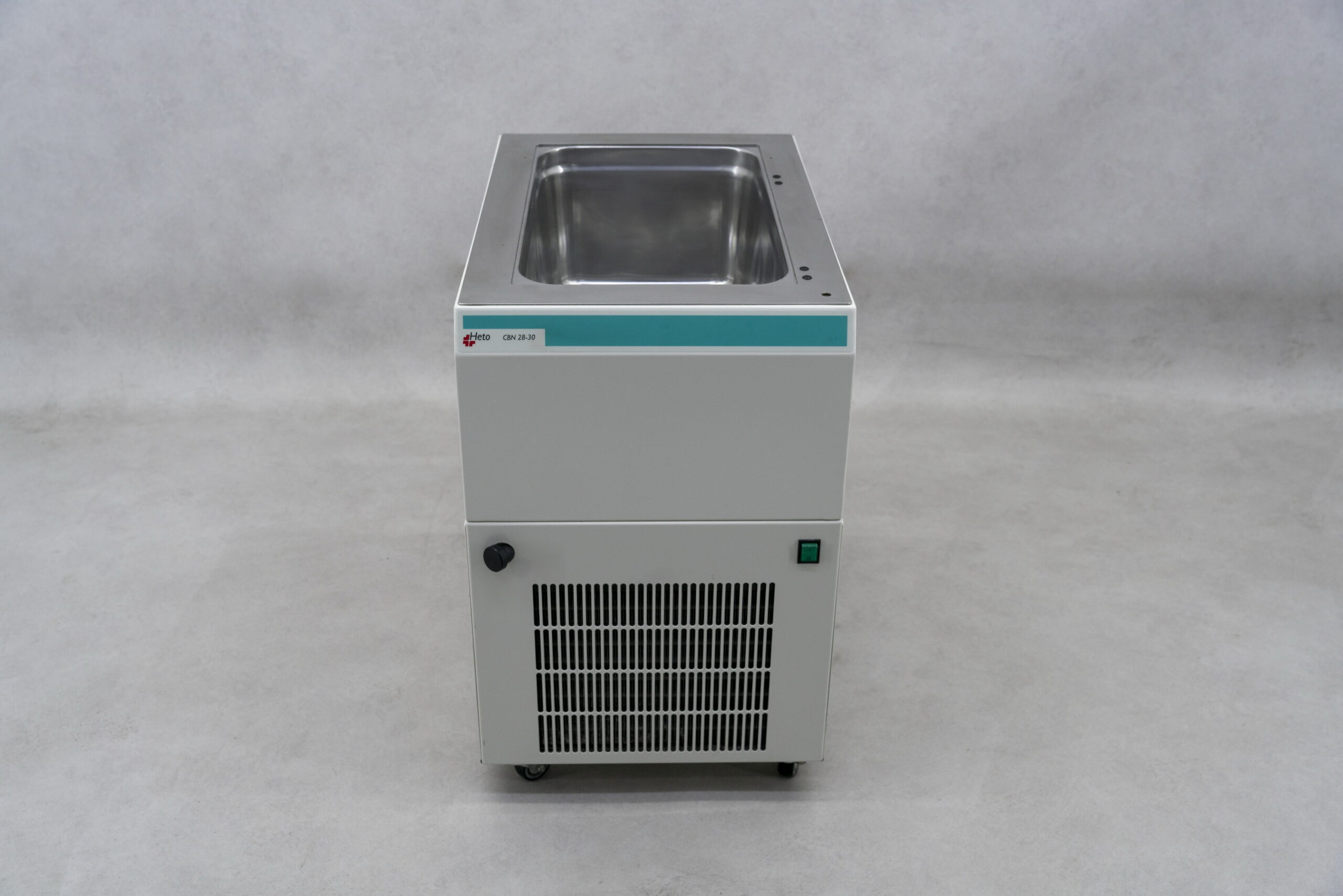

This cooling water bath has an operating range from -30 to +100 °C continuously and up to +120 °C for shorter periods, using appropriate liquids to maintain temperature stability. The cooling water bath’s sole function is the cooling system, however, the thermostat regulates the bath by applying heat to the bath.

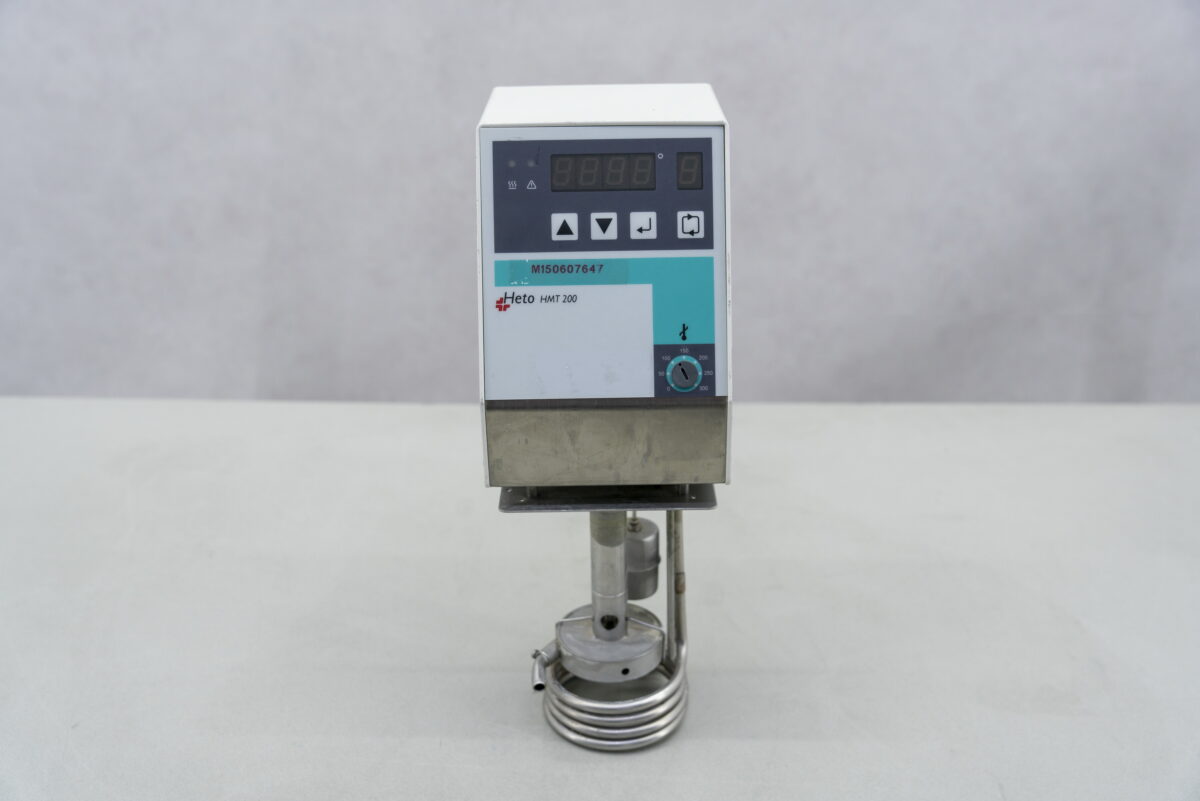

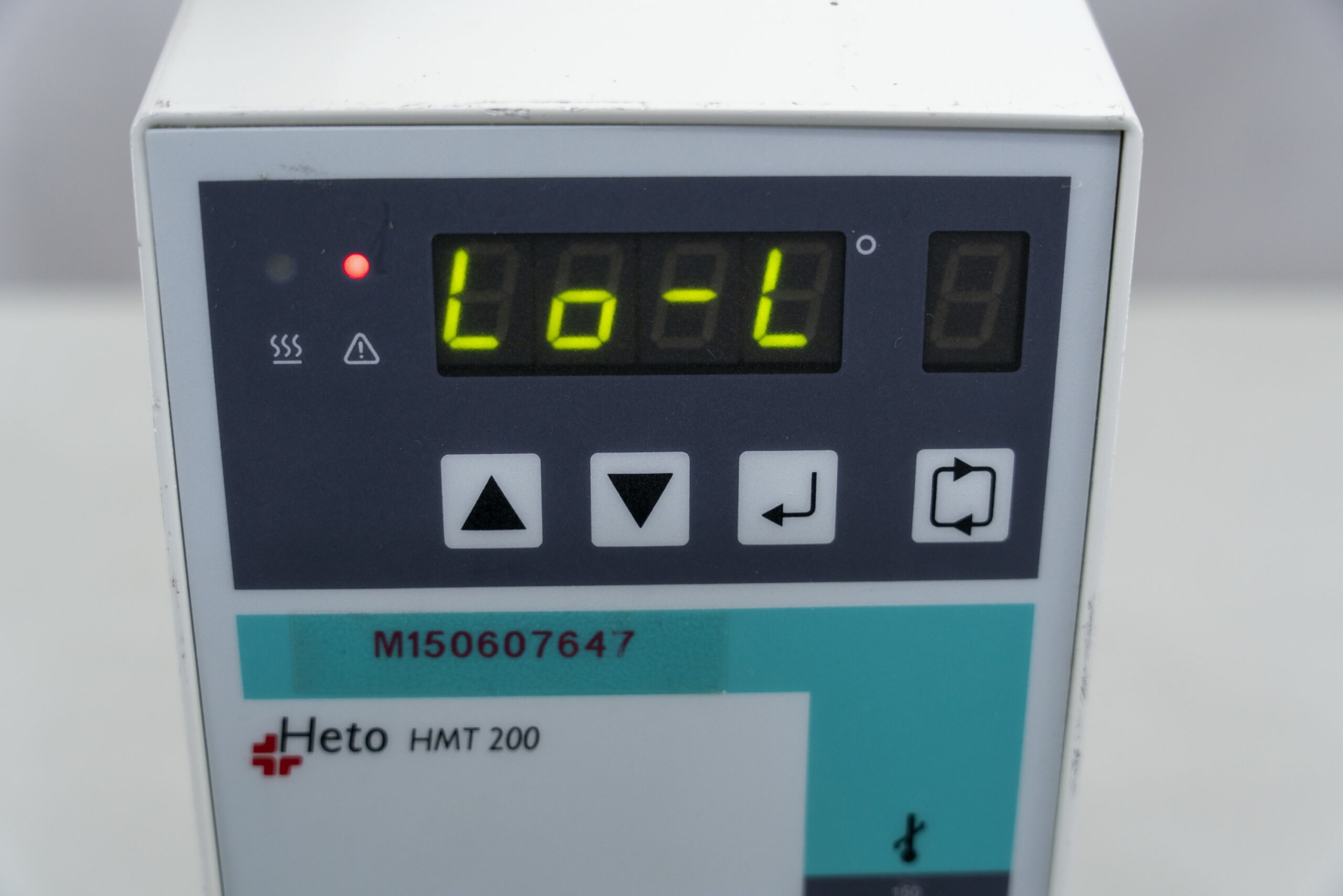

Heto CBN -30 series cooling baths are high performance units. They combine the demand for high cooling power with low ultimate temperatures. The cooling baths have been specially designed to work together with the HETO HMT series thermostats, but can also be used together with other thermostats.
Technical specifications:
Voltage: 220-240 V
Maximum power consumption: W
Insulation rate: 50 mm
Working temperature range: -30 … 120 °C
Liquid volume: 28 liter
Cooling capacity at +20 °C: 900 W
Outer dimensions water bath (W) x (D) x (H): 423 x 644 x 672 mm
Weight: 55 kg
