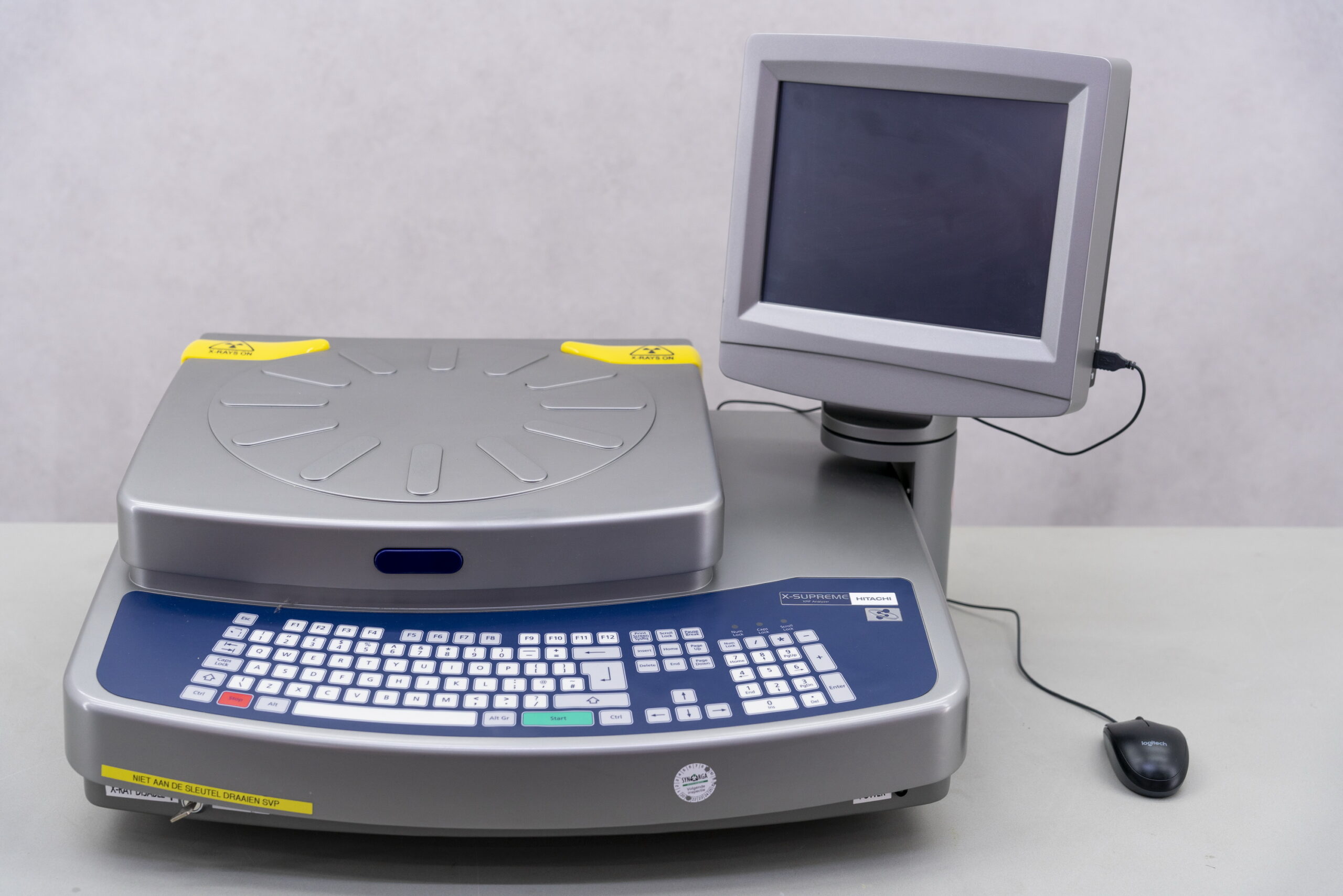

XRF analysis (X-ray fluorescence) can be conducted with the highly flexible and powerful energy-dispersive X-ray fluorescence (EDXRF) spectrometer X-Supreme8000 for quality assurance and process control requirements across a diverse range of applications; e.g. Petroleum & oil, wood treatment, minerals, mining, cosmetics, Cement, paper.
Features and benefits:
Unattended operation to save you time and costs

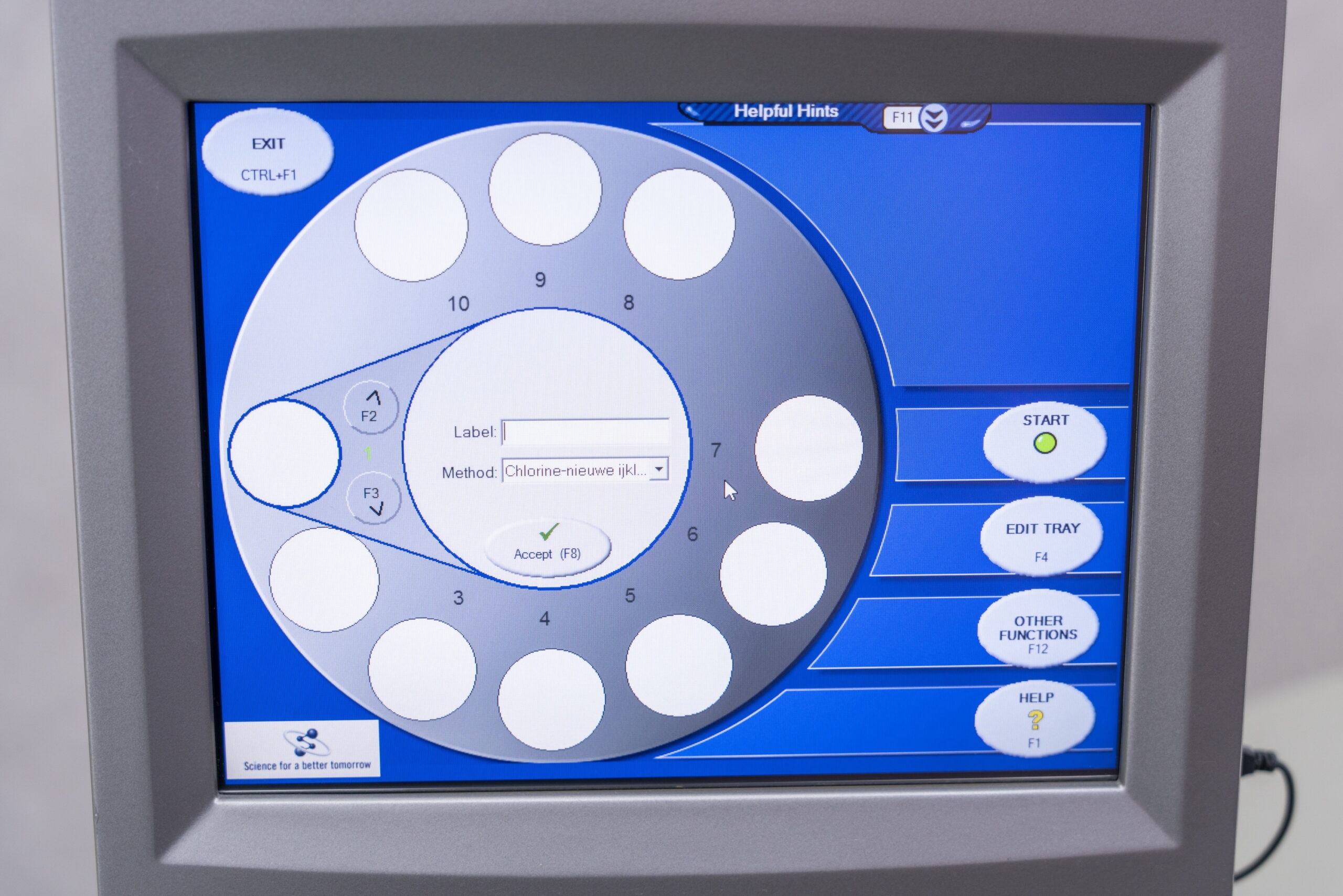

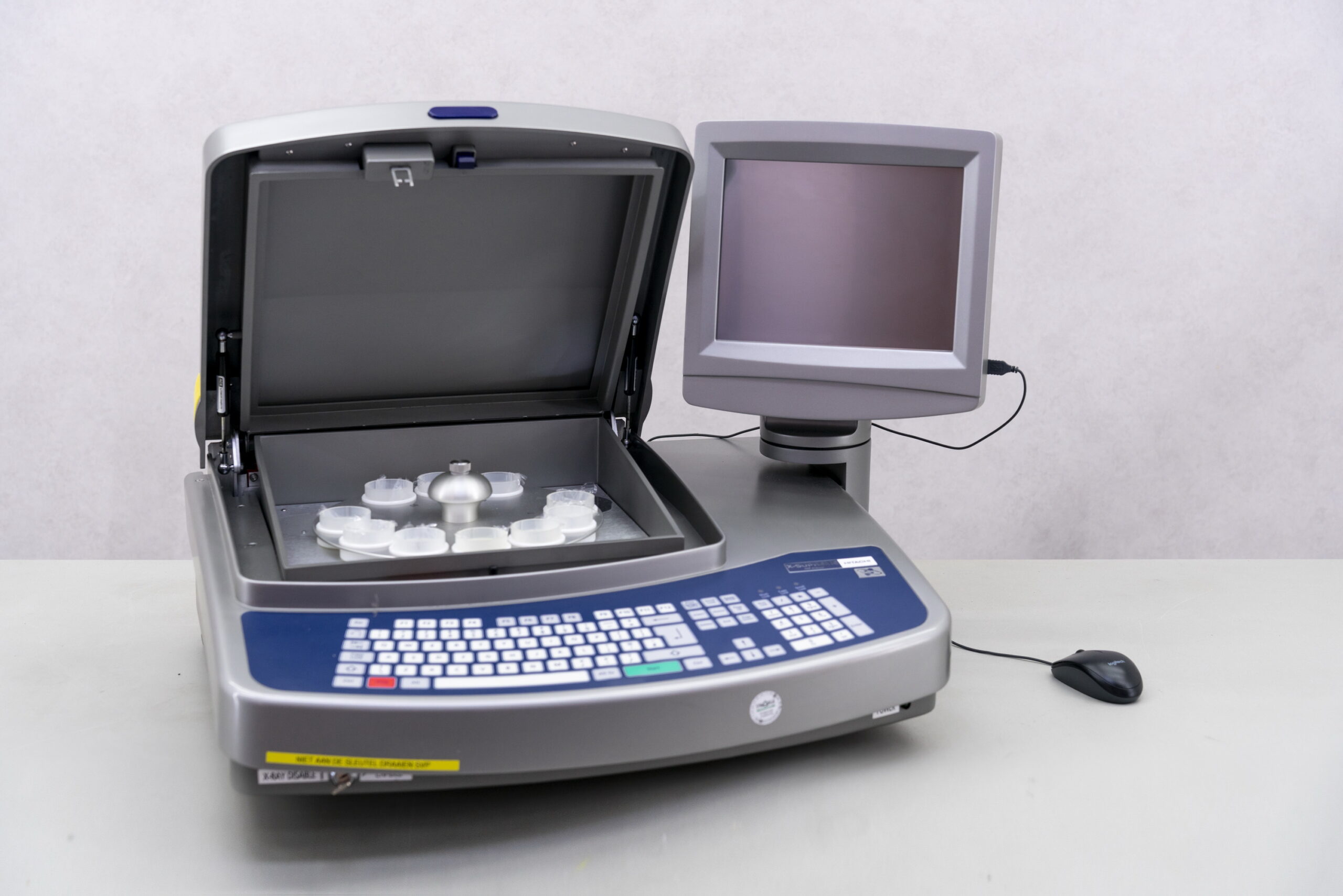

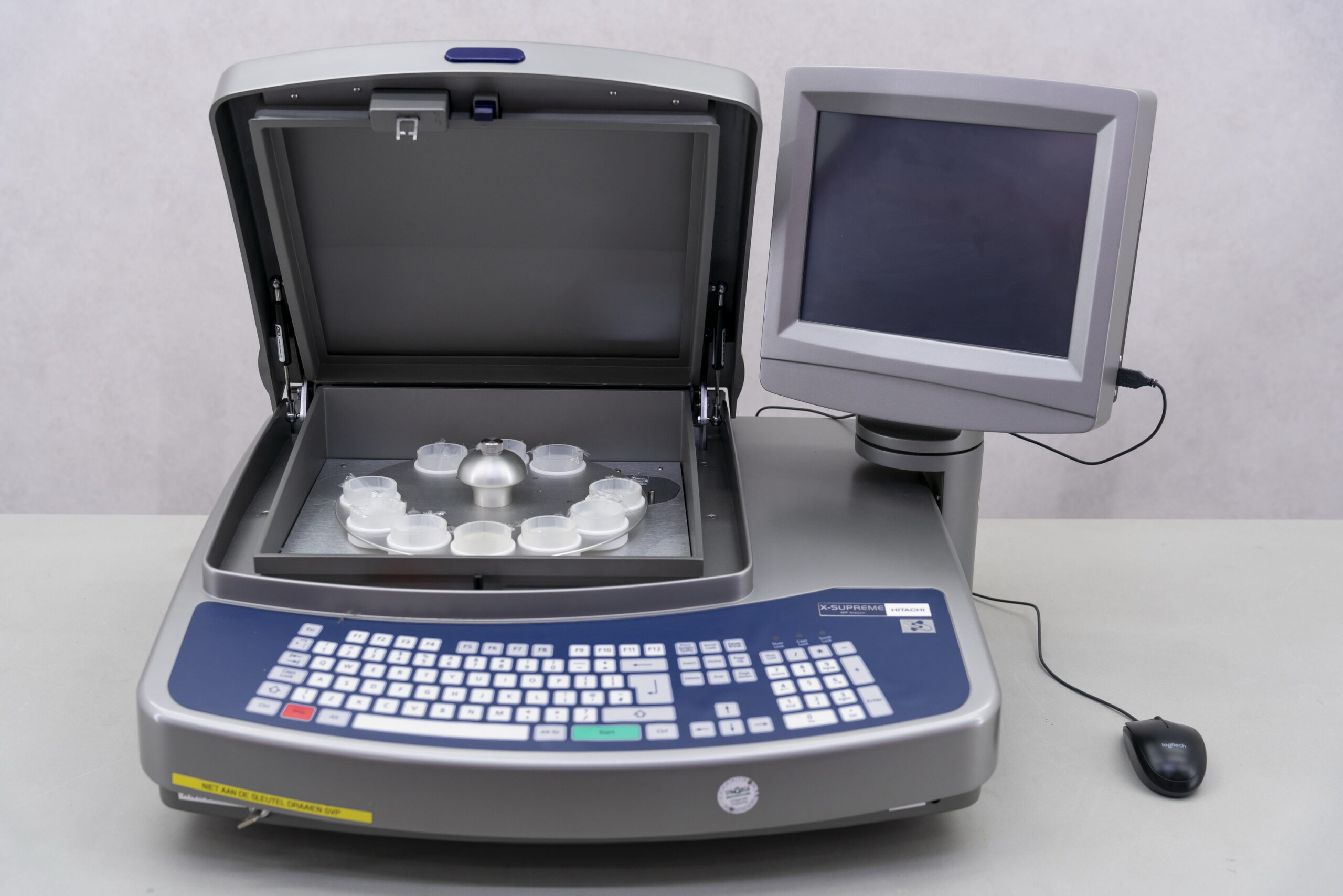

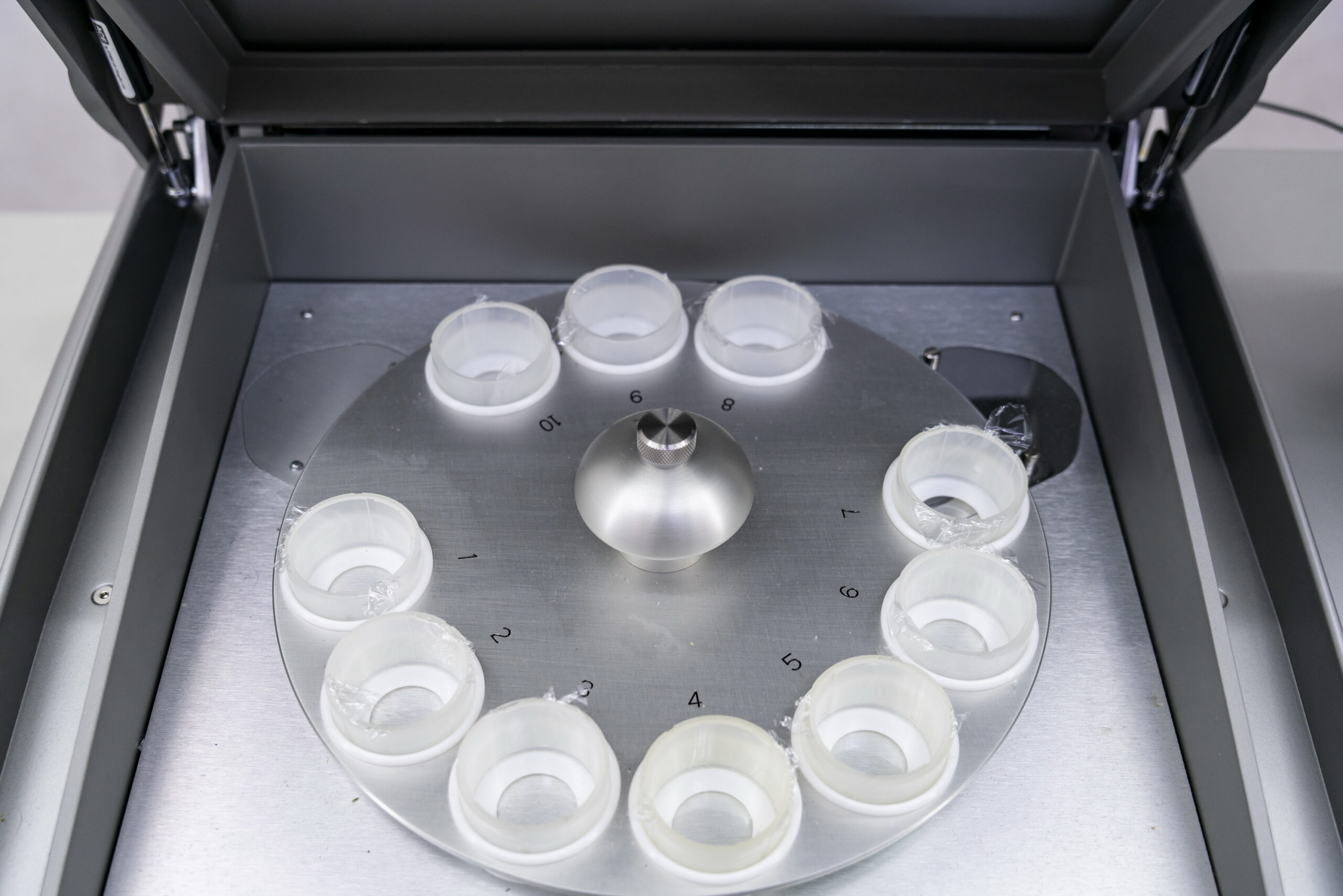

- 10 position sample carousel for unattended operation
- Optional large trays for holding 51.5mm diameter steel ring for cement application, or 47mm diameter filter samples
Minimum bench space

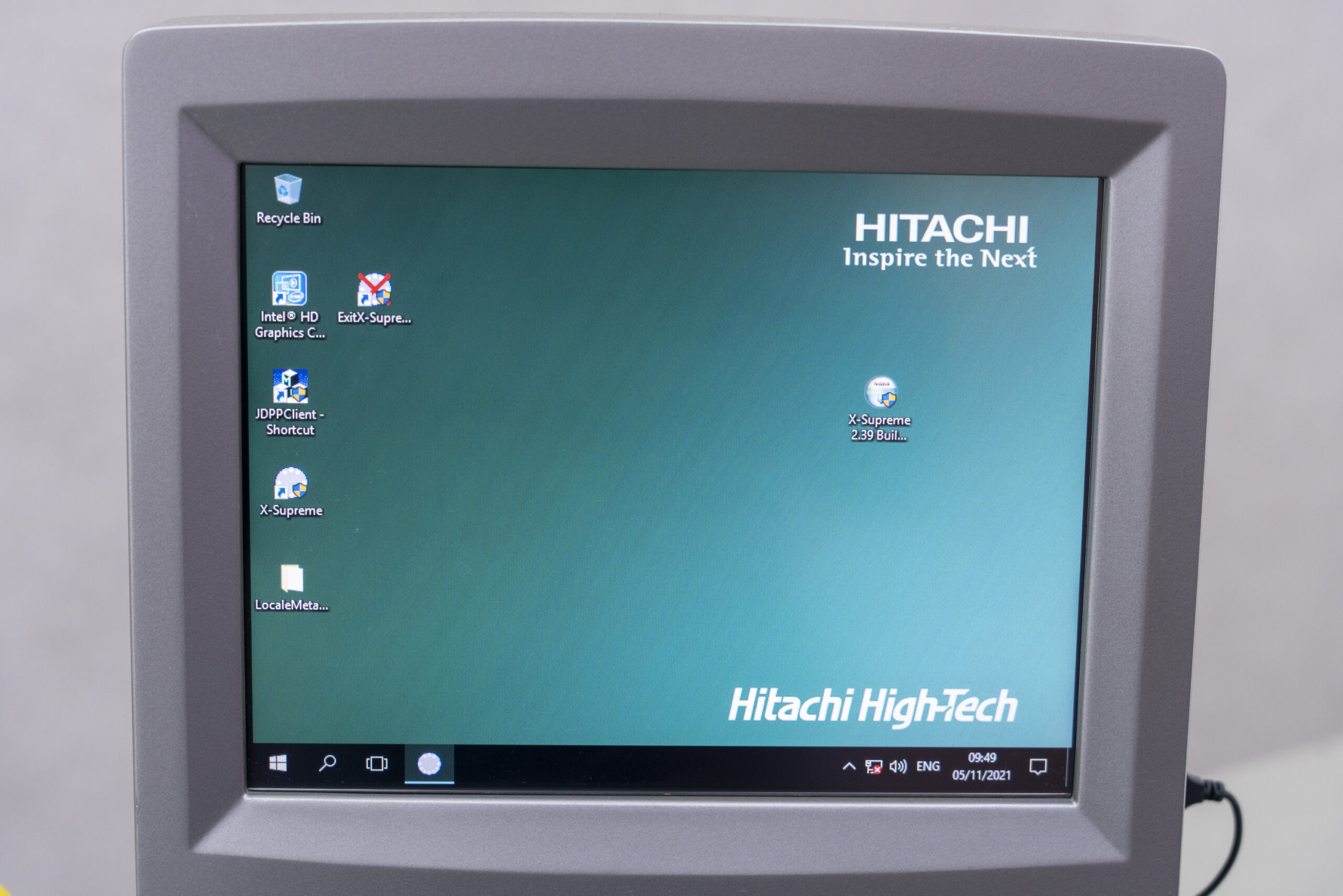

- Integrated PC – compact
- Large, easy to read colour graphics for clarity and ease of use
- Touch screen display (optional) for simple and rapid data input
Rugged and robust design for harsh environments
- Sealed membrane keypad resistant to dust, oils, solvents etc.
- Secondary easy-to-change safety window for liquids/power analysis protects the instrument in the event of sample leakage
X-Supreme method Wizard
- Simple step-by-step setup
- Straightforward editing (click the image on the right to expand)
- Preloaded and customisable methods
Routine analysis (for production staff)
- Helpful hints on-screen for advice on good practice
- SMARTCHECK software allowing operation ‘by anyone’ (click the image on the right to expand)
- Easy to use software for production staff and powerful features for advanced operators
- Data can be automatically displayed, printed, stored locally or on a network drive
Technical specifications:
Voltage: 220-240 V
Power: 120 W
Element range : Na-U
Sample tray capacity : 10
Membrane keypad with two-row display : MS Windows, optional touch screen
Atmospheric compensation : No
High-resolution detector : Yes
Helium purge for improved analysis of Na – CI : Yes
One touch to start measurement : No
Automatic data storage : Yes
Cloud-based data backup with LiveConnect : No
Factory-loaded calibrations for selected applications : Yes
Outer dimensions (W) x (D) x (H): 85 x 60 x 58 mm
