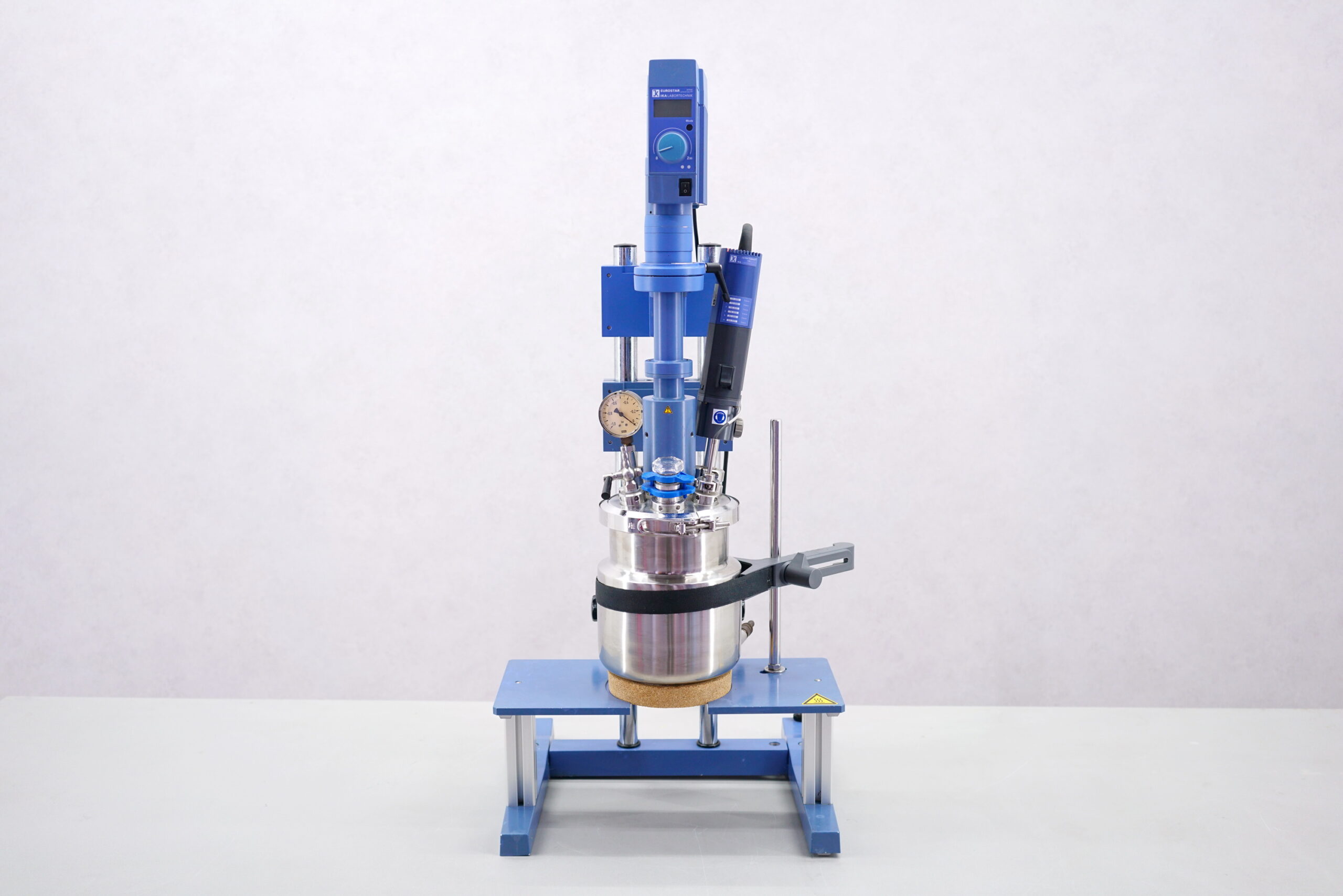

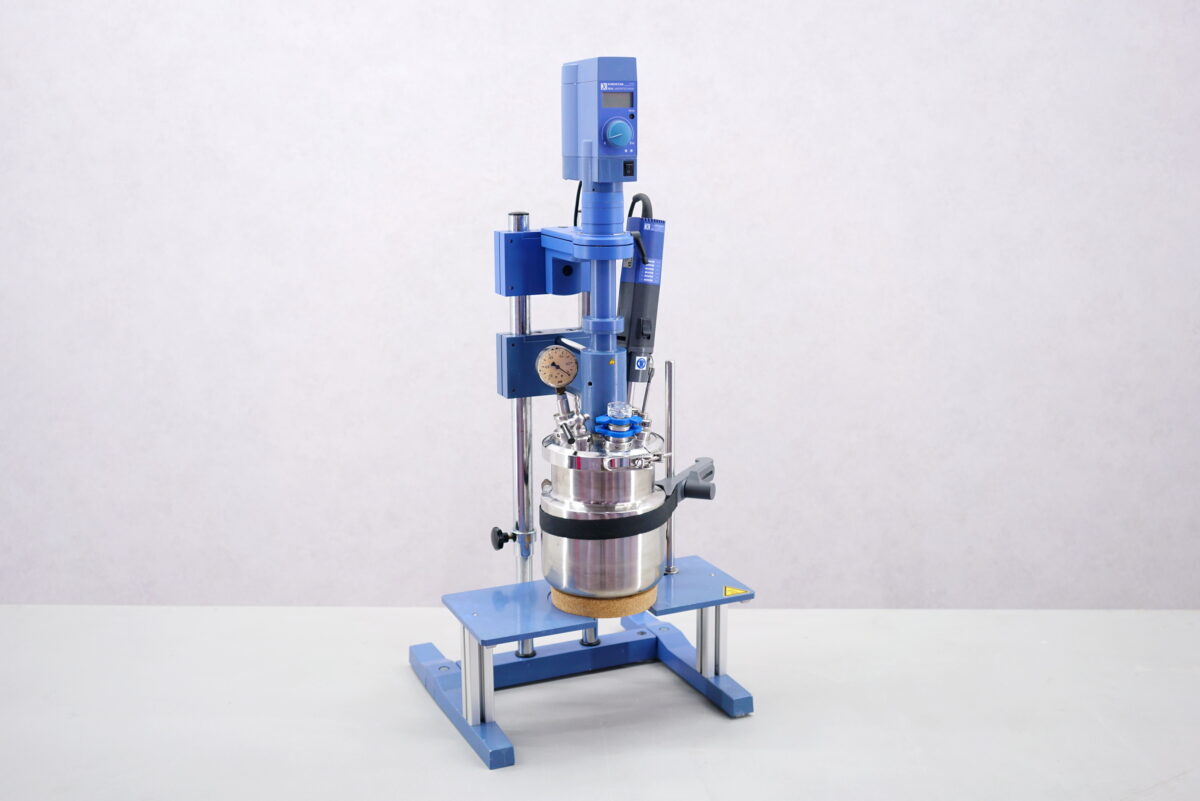

IKA LR-2.ST high viscosity reactor system

This LR-2.ST is a modularly configured laboratory reactor for the optimization and reproduction of various chemical reactions, mixing and homogenization processes on a lab scale.

The reactor system consists of:

• IKA LR-2.ST Stand system
• IKA Control-Visc P7 stirrer
• IKA T-25 Ultra-Turrax disperser incl. shaft
• IKA LR 2000.3 dubbel walled reactor vessel

Technical specifications LR-2.ST stand

Useable volume: 500 – 2000 ml

Working temperature: room temperature: onto 230 °C

Permissible ambient temperature: 5 – 40 °C

Permissible relative humidity: 80 %

Dimensions (W x D x H): 460 x 430 x 1240 mm

Weight: 25 kg

Technical specifications Control-Visc P7 stirrer

Voltage: 220-240 V

Power: 130 W

Stirring quantity max.: 40 H2O l

Motor rating input: 130 W

Motor rating output: 110 W

Speed display: LCD

Speed range: 8 – 290 1/min

Viscosity max.: 150000  mPas

Output max. at stirring shaft: 95 W

Permissible ON time: 100 %

Torque max. at stirring shaft: 380 Ncm

Speed control: stepless

Torque display: yes

Nominal torque: 3.8 Nm

Torque measurement: trend

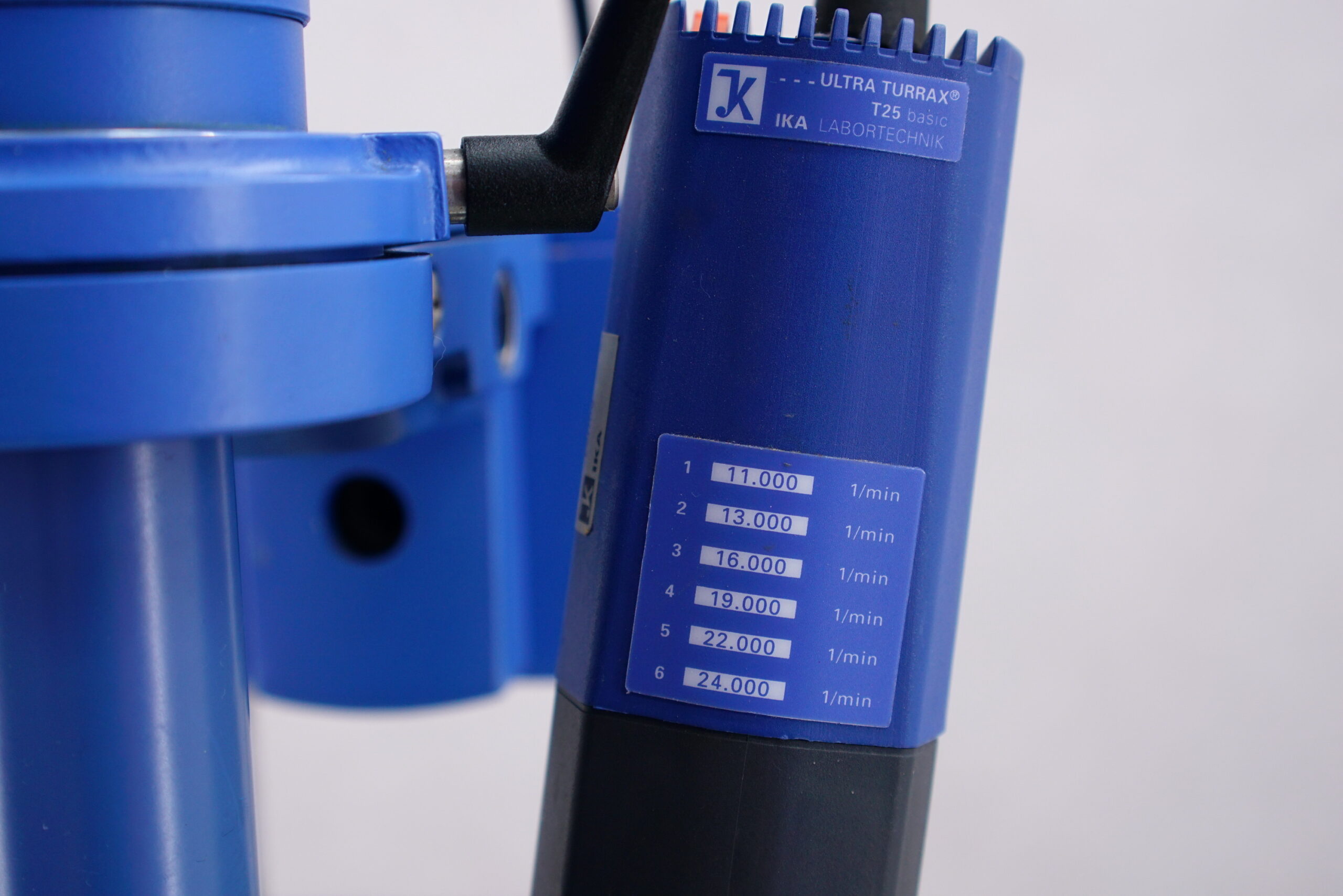

Technical specifications IKA T-25 Ultra-Turrax disperser

Voltage: 230V, 50-60Hz

Power: 500W

Including shaft: yes

Suitable for dispersing: 1 – 2000ml (water)

Speed range: 11,000 – 24,000 rpm

Dimensions (W) x (D) x (H): 6.5 x 8 x 24 cm

Technical specifications LR 2000.3 dubbel walled reactor vessel

PS (design pressure): 6 bar

PT (test pressure): 8.5 bar

TS (design temperature): 230 °C

Volume: 2 liter

Weight: 3.3 kg
