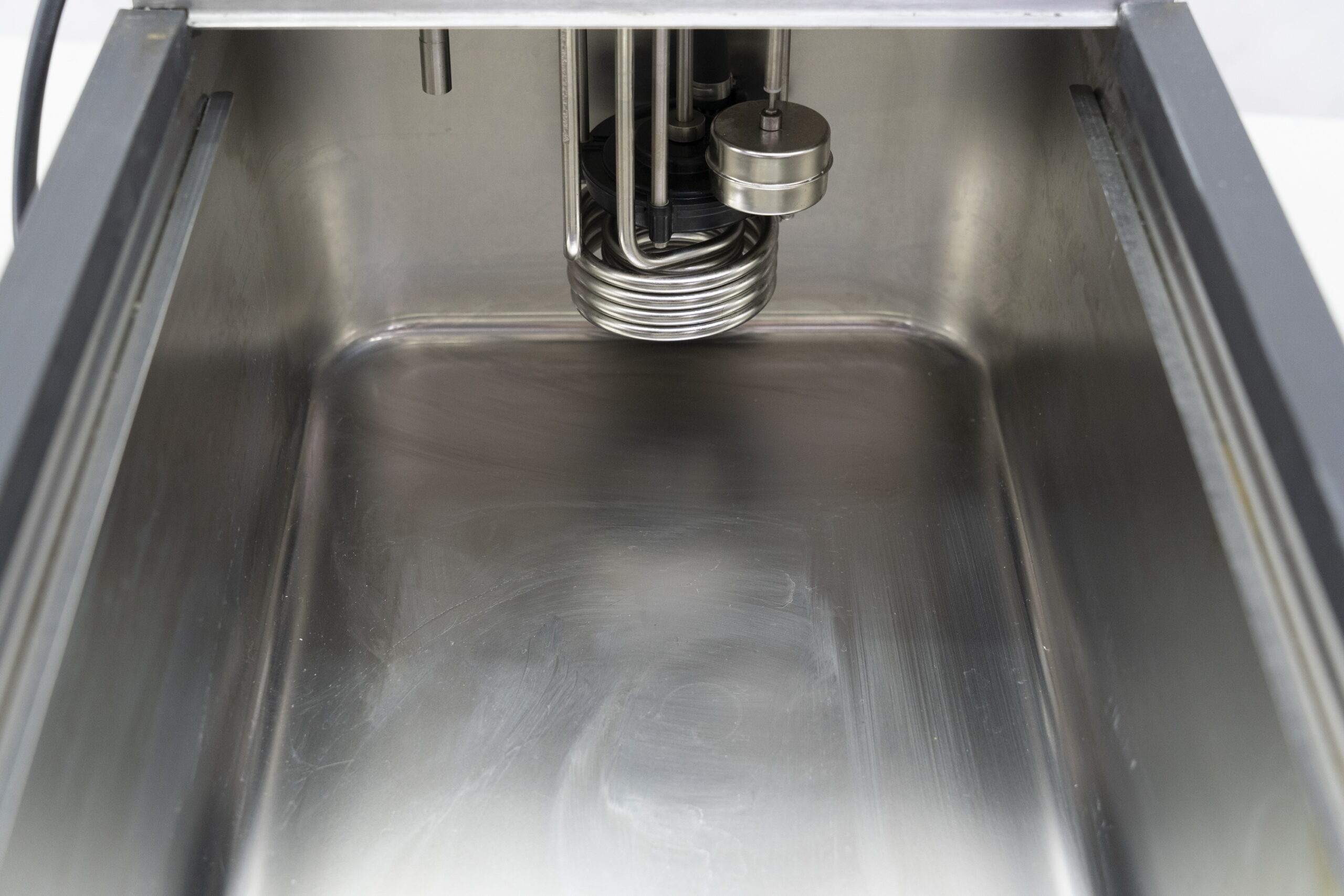

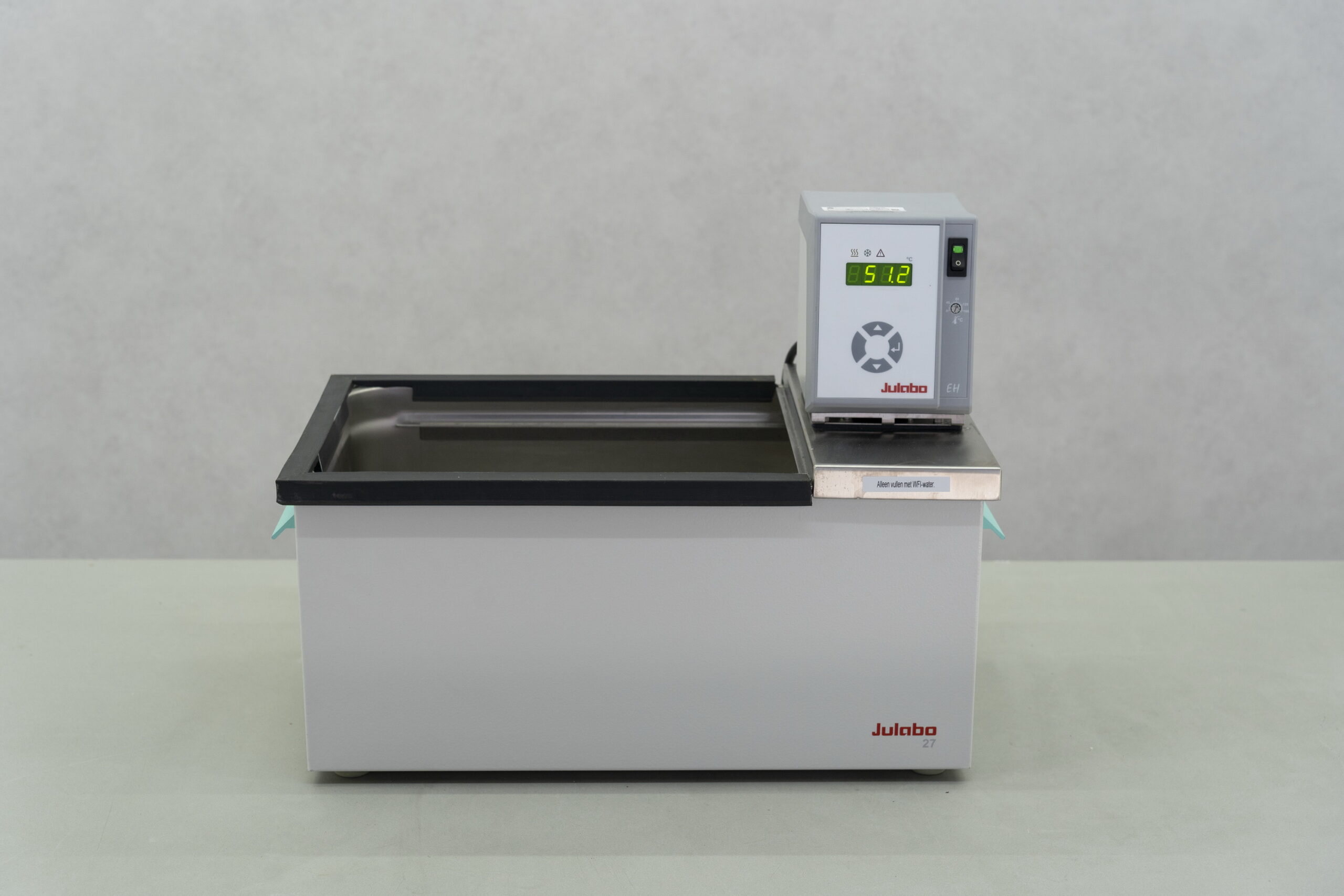

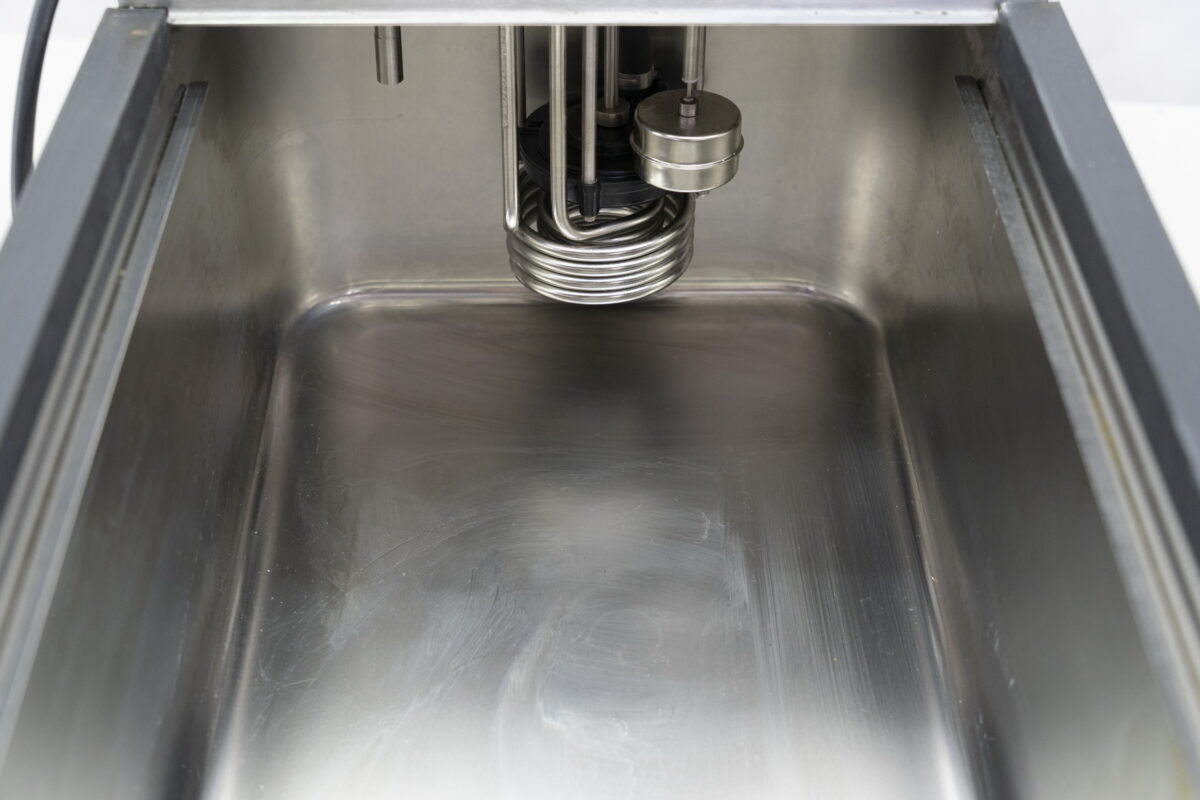

This Julabo water bath with heating thermostat includes an EH type circulating heating thermostat. The water bath has a volume of 27 liter.

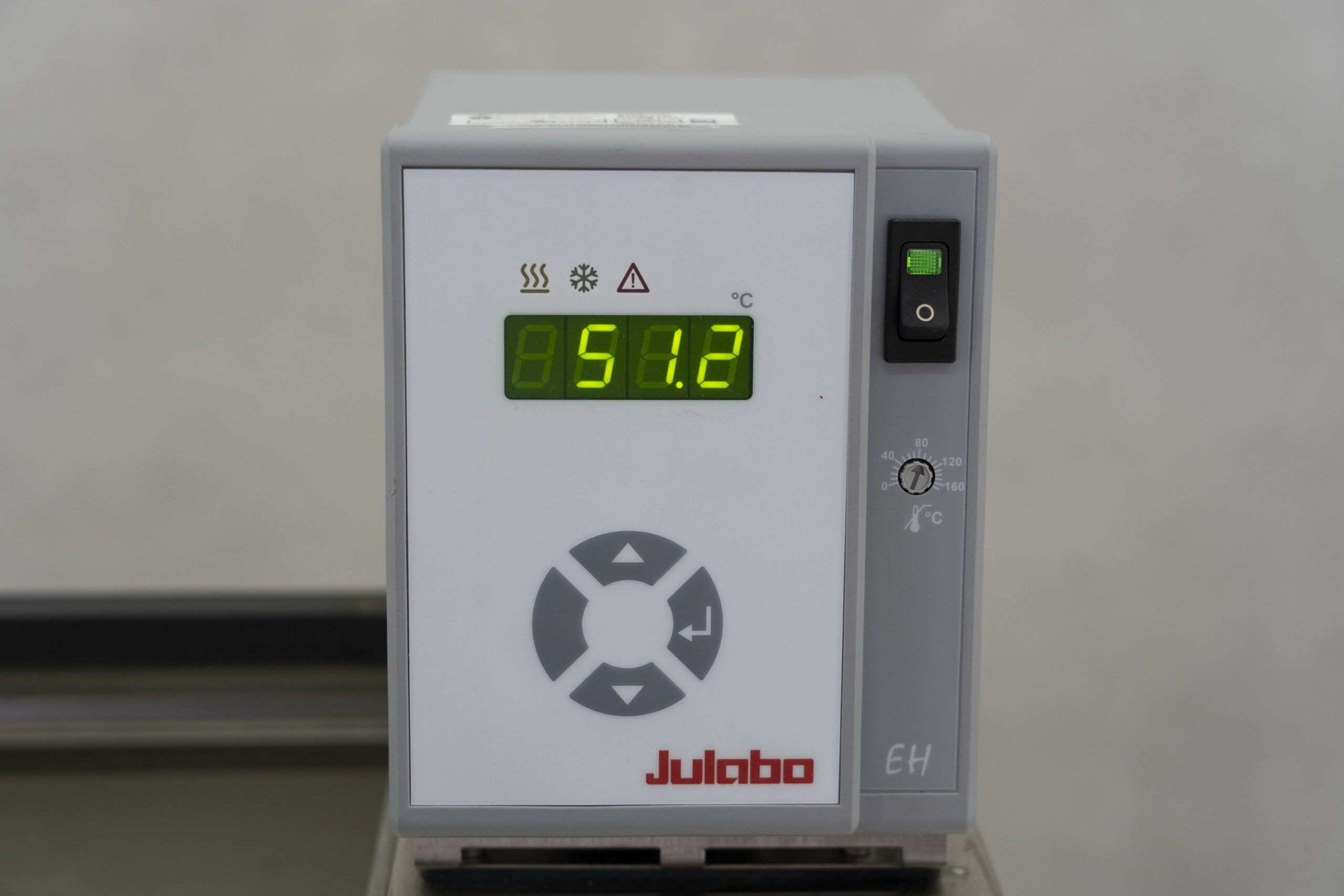

Julabo EH heating thermostat is a model series Economy, a basic model for routine and standard applications 20°C…150°C and can be used for any bath tanks up to 50 liters.
Features of the thermostat are:
– Precise temperature control with set of parameters
– High measuring accuracy
– Warning & safety functions
– Easy to read display
– Clear and simple operation
Thermostat technical specifications:
Voltage: 230 V
Current: 9 A
Working temperature range: +20 … +150 °C
Temperature stability: ±0.03 °C
Setting / display resolution: 0.1 °C
Temperature Display: LED
Heating capacity: 2 kW
Pump capacity flow rate: 15 l/min
Pump capacity flow pressure: 0.35 bar
Ambient temperature: 5…40 °C
Classification according to DIN12876-1: Classification III (FL)
Usable immersion depth: 8-14.5 cm
Outer dimensions water bath (W) x (D) x (H): 550 x 350 x 250 mm
Outer dimensions thermostat (W) x (D) x (H): 130 x 150 x 330 mm
