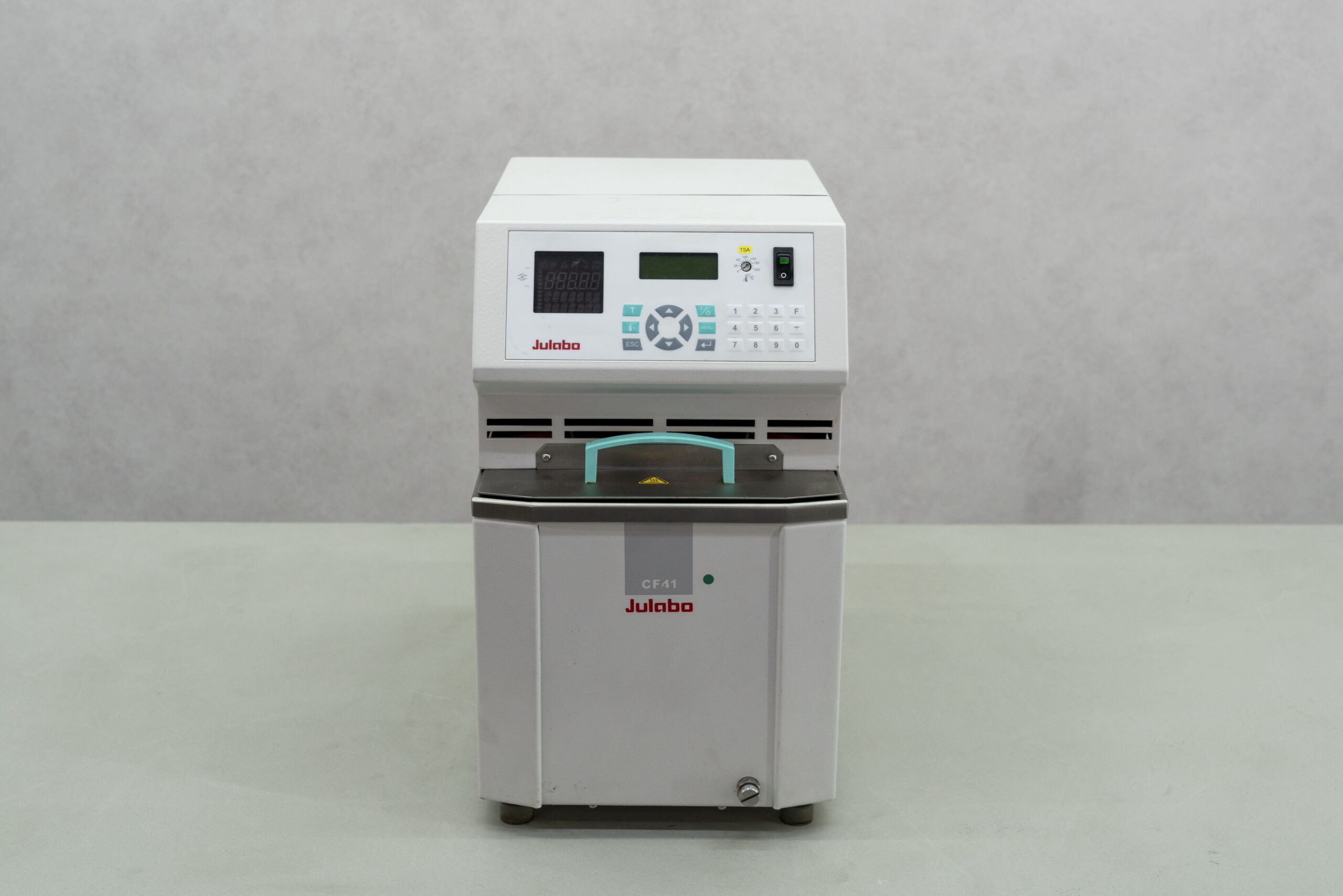

This CF circulator provides powerful cooling and heating capabilities in a space-saving, compact design and is suitable for internal and external temperature applications.
With small overall dimensions, the unit can be placed on a very small surface or within a complex installation. The circulator offers a heating capacity of 2 kW and classification 3 according to DIN12876-1. The maximum ambient temperature of +40°C and ventilation air cooling allow installing several units very closely side by side with other units or directly under a fume hood.
The CF41 features pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic.
Advantages:
- Ergonomic design and easy operation
- Small overall dimensions for lowest space requirement
- Splash-proof keypad

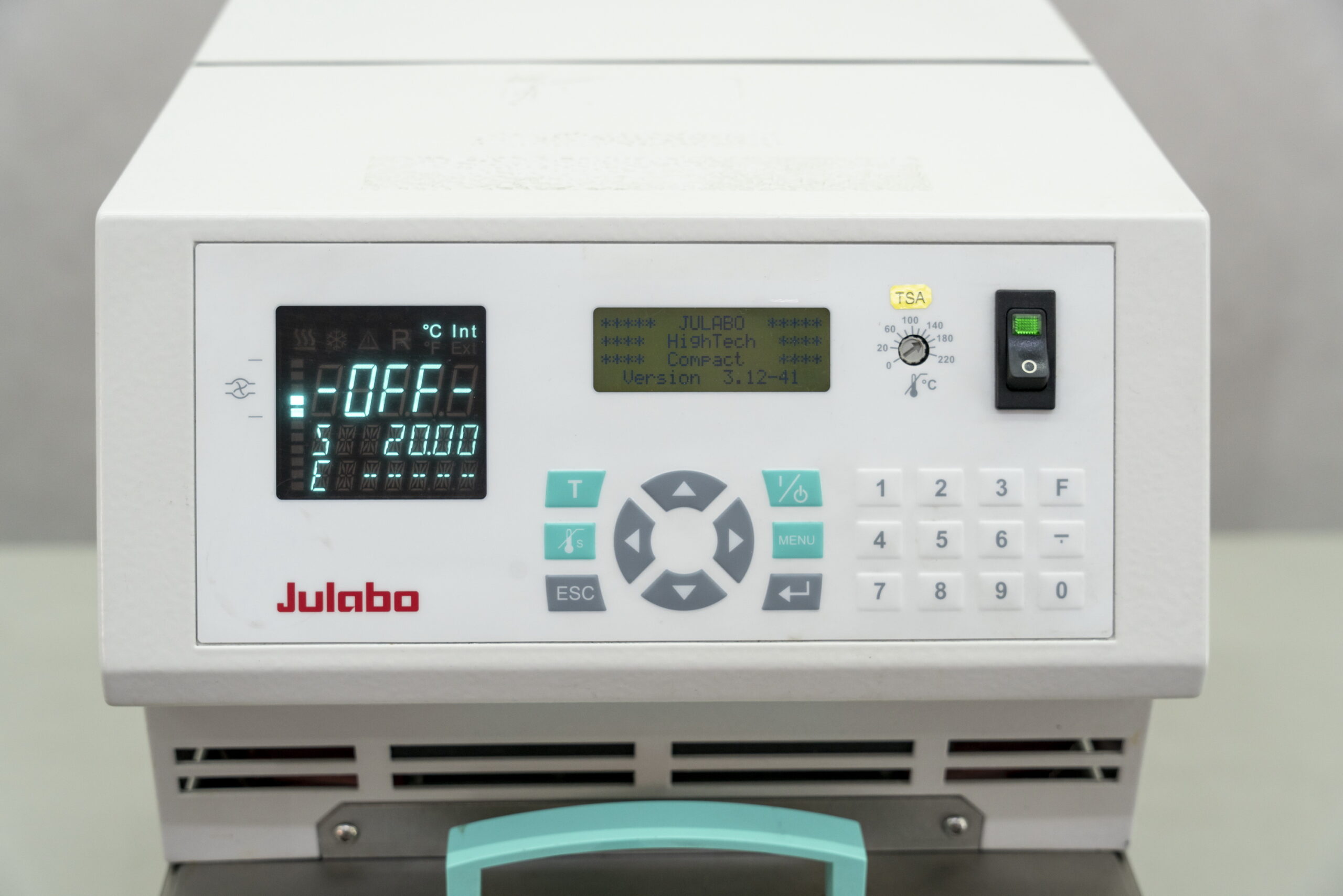

- Bright VFD display and interactive LCD dialog display
- Highly precise ICC cascade temperature control

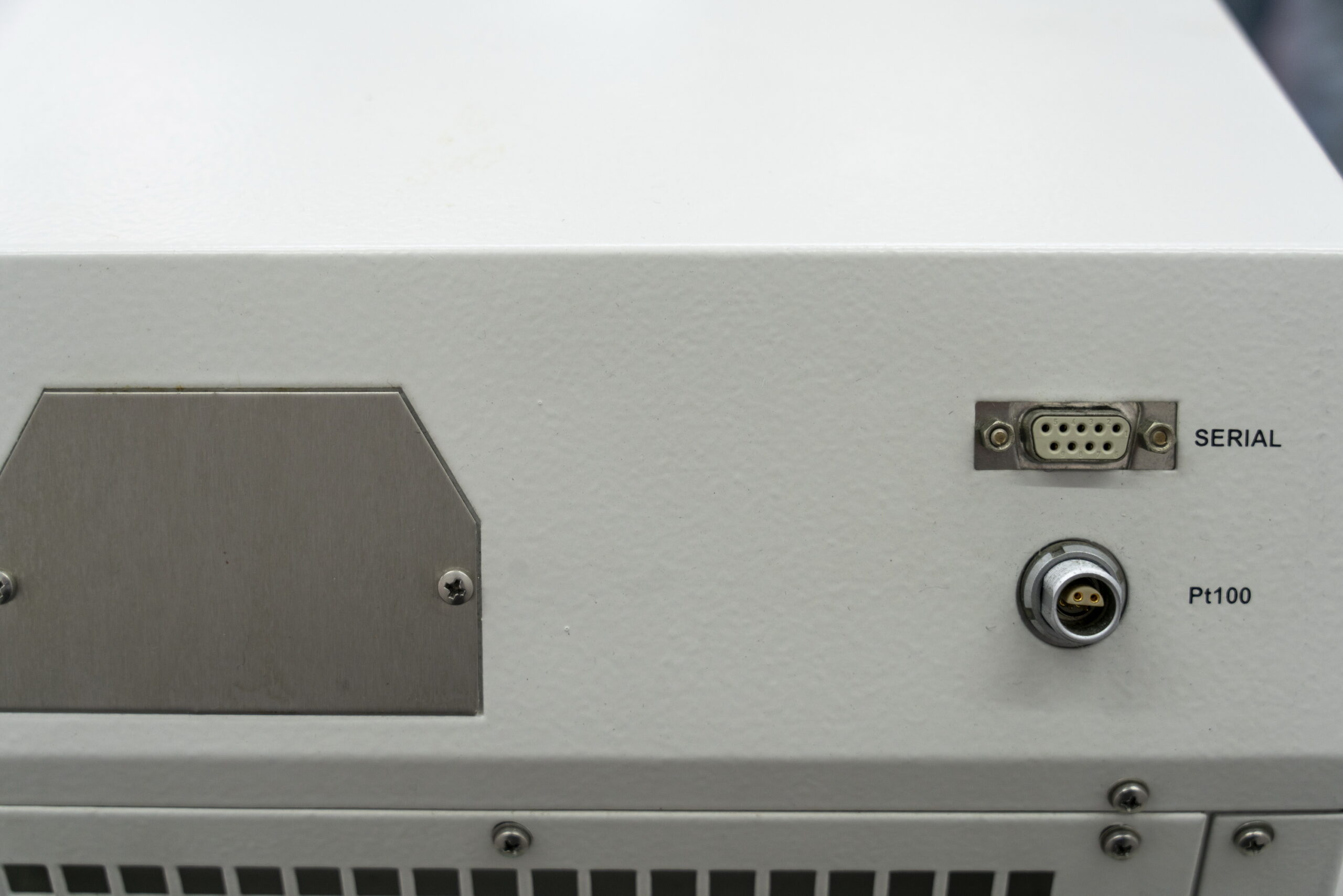

- RS232/RS485 interface for PC connection
- Electronically adjustable pump stages
- External Pt100 sensor connection
- Integrated programmer with 6×60 program steps
- Early warning system for low liquid level
- 3-point calibration
- TCF Temperature Control Features
- Adjustable high temperature cut-off
- Classification 3 according to DIN12876-1
- Pump connections for external temperature applications
- Bath opening for temperature control of small objects in the bath
- Front drain
Technical specifications:
Voltage: 220-240 V
Working temperature range: -40 … +200 °C
Temperature stability: ±0.02 °C
Setting / display resolution: 0.01 °C
Integrated programmer: 6×60 steps
Temperature display: VFD, LCD
Heating capacity: 1 kW
Cooling capacity (medium ethanol): 0.47 kW at 20 °C, 0.4 kW at 0 °C, 0.28 kW at -20 °C
Pump capacity flow rate: 22-26 L/min
Filling volume: 5.5 L
Outer dimensions (W) x (D) x (H): 280 x 460 x 460 mm
Bath dimensions (W) x (D) x (H): 190 x 30 x 190 mm
Weight: 41 kg
