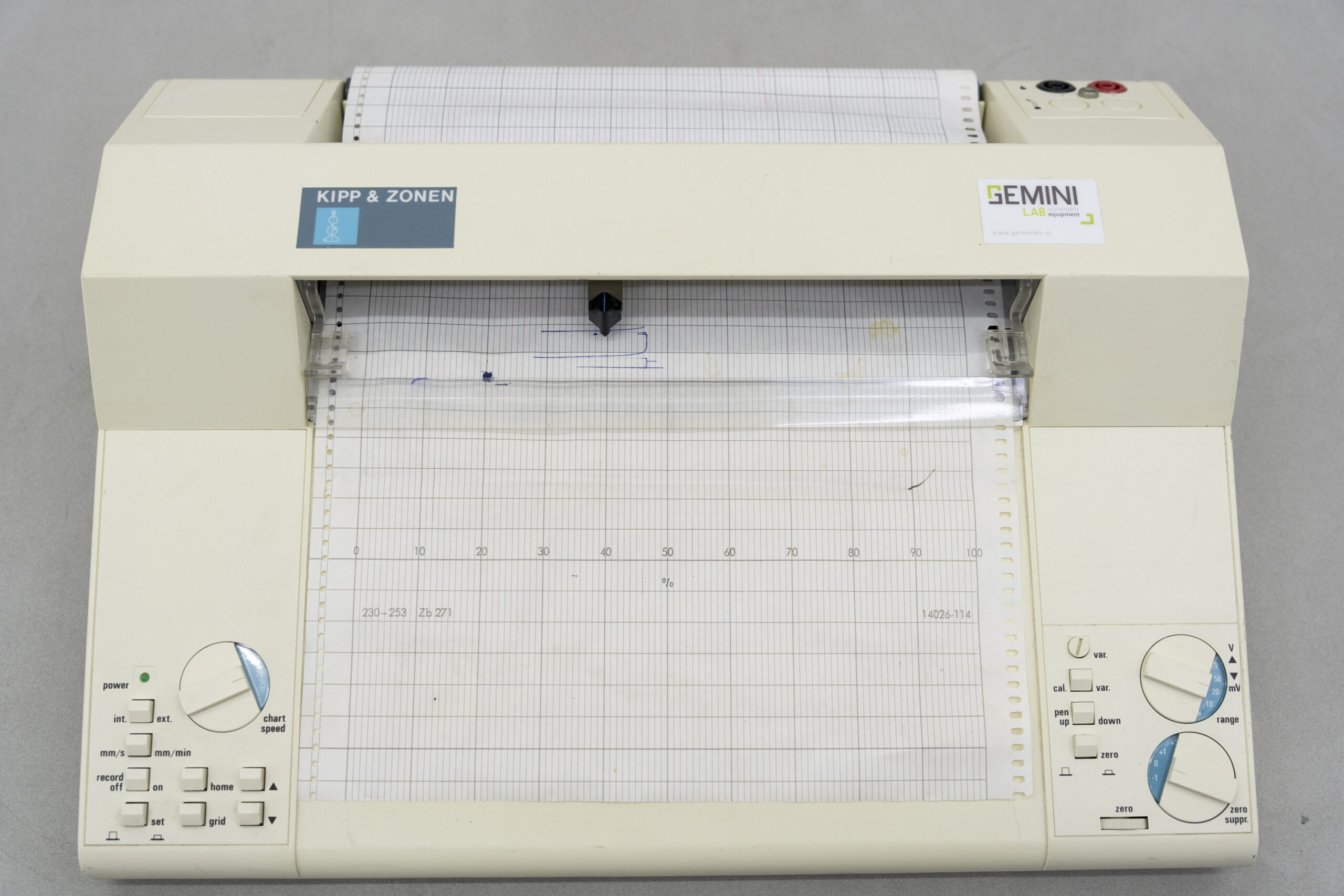

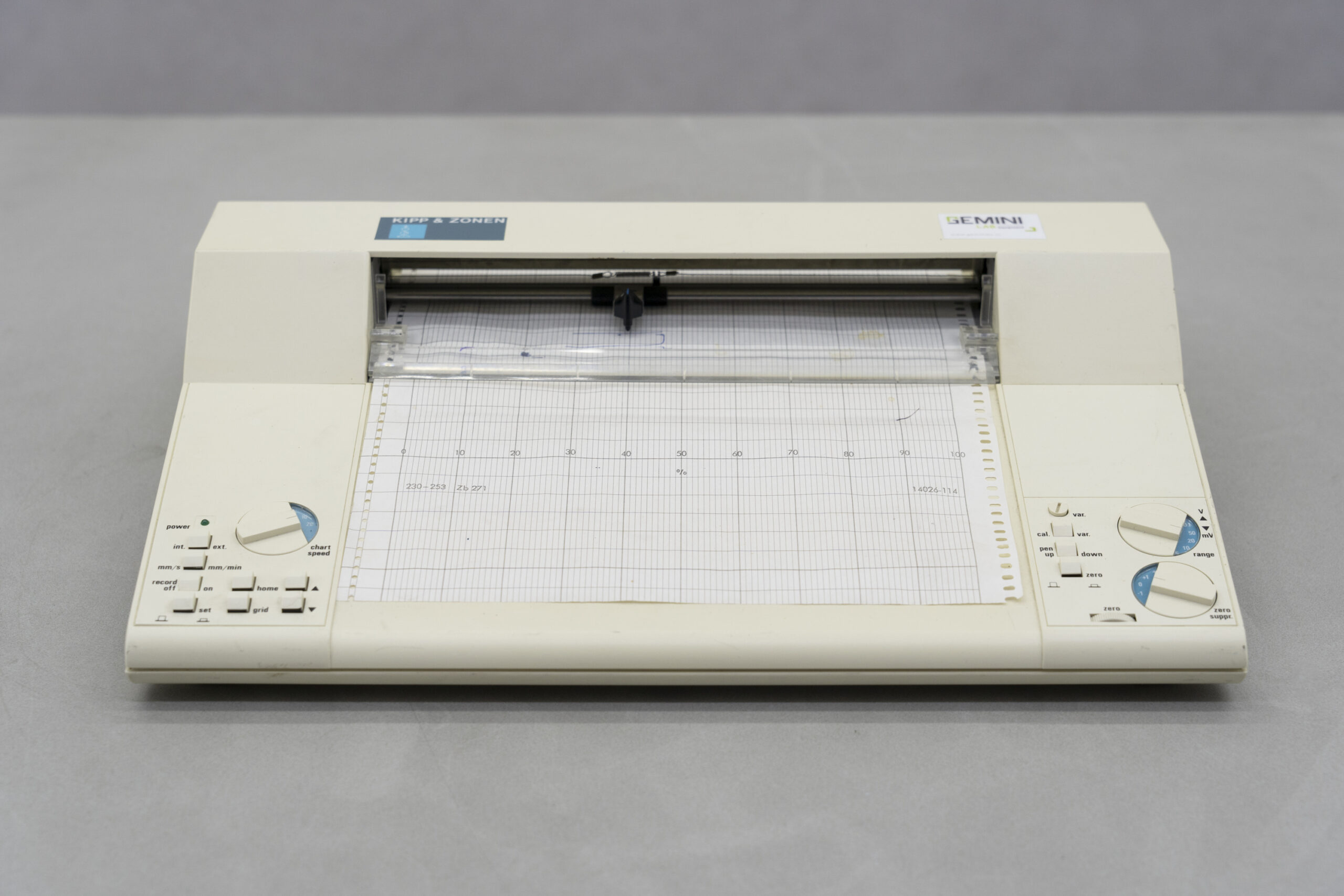

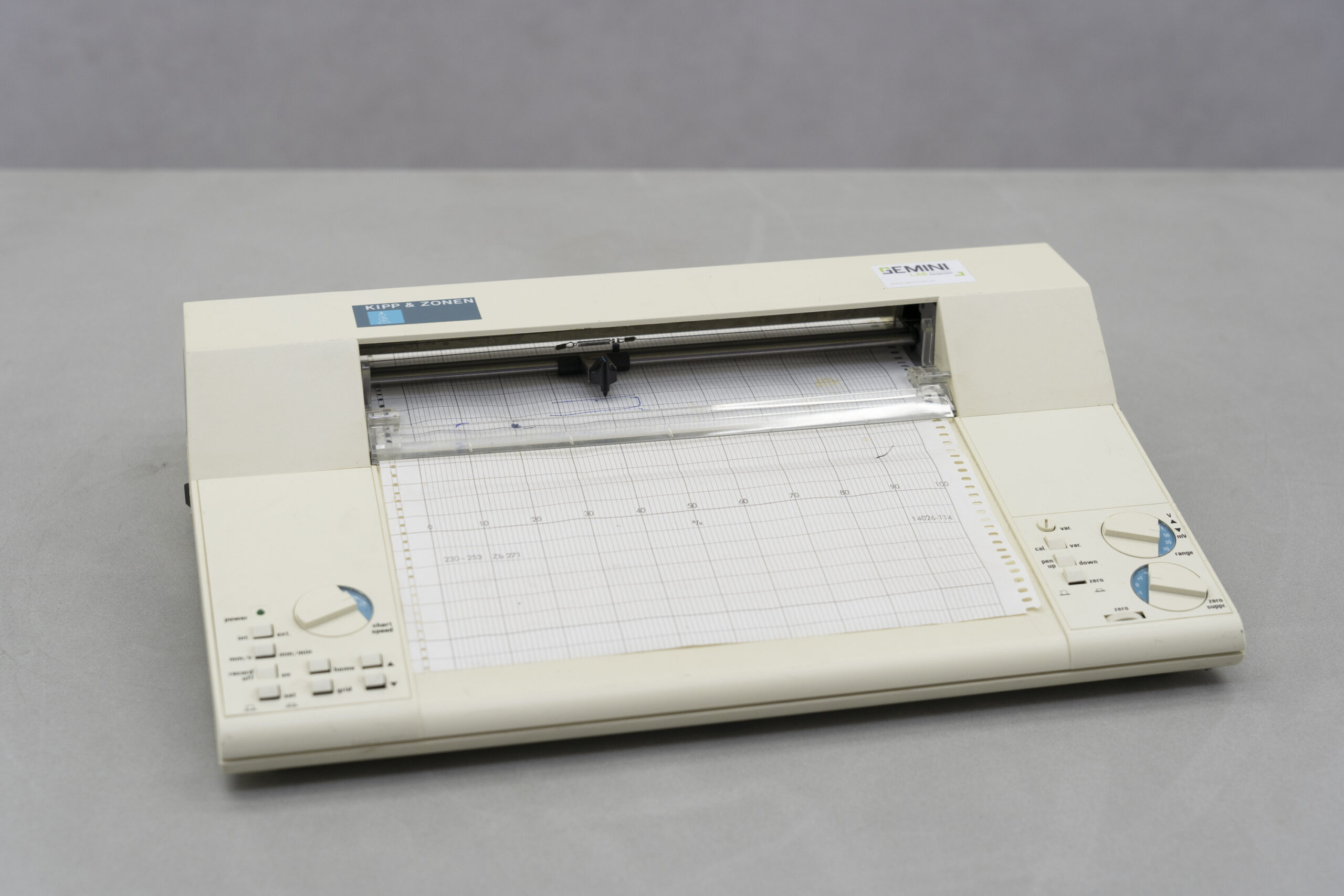

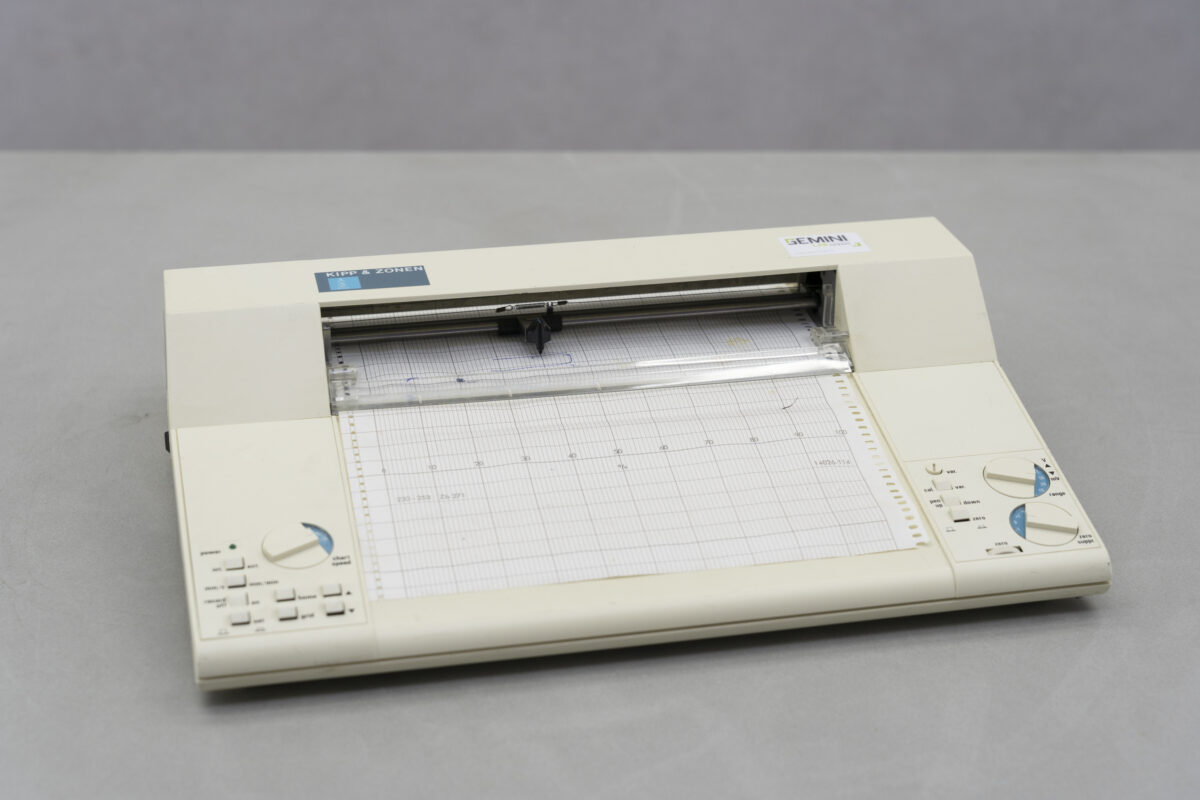

The Kipp & Zonen One Channel BD – 111 Flatbed Chart recorder is intended for use in research, development or production.
Technical specifications:
Voltage: 115/230 V
Power: 30 VA
Card speed range: 0.1, 0.2, 0.5, 1, 2, 5, 10, 20 mm/s or mm/min
Input ranges: 1, 2, 5, 10, 20, 50, 100, 200, 500 mV and 1, 2, 5, 10, 20 V
RS232 interface
Flatbed recorder with one channel
Pen: Disposable fibre tip cartridges
Ambient temperature range: -10 to 40 0C
Relative humidity during operation 20 – 85%
External dimensions (W) x (D) x (H): 38 x 29 x 9 cm
Weight: 3.5kg
