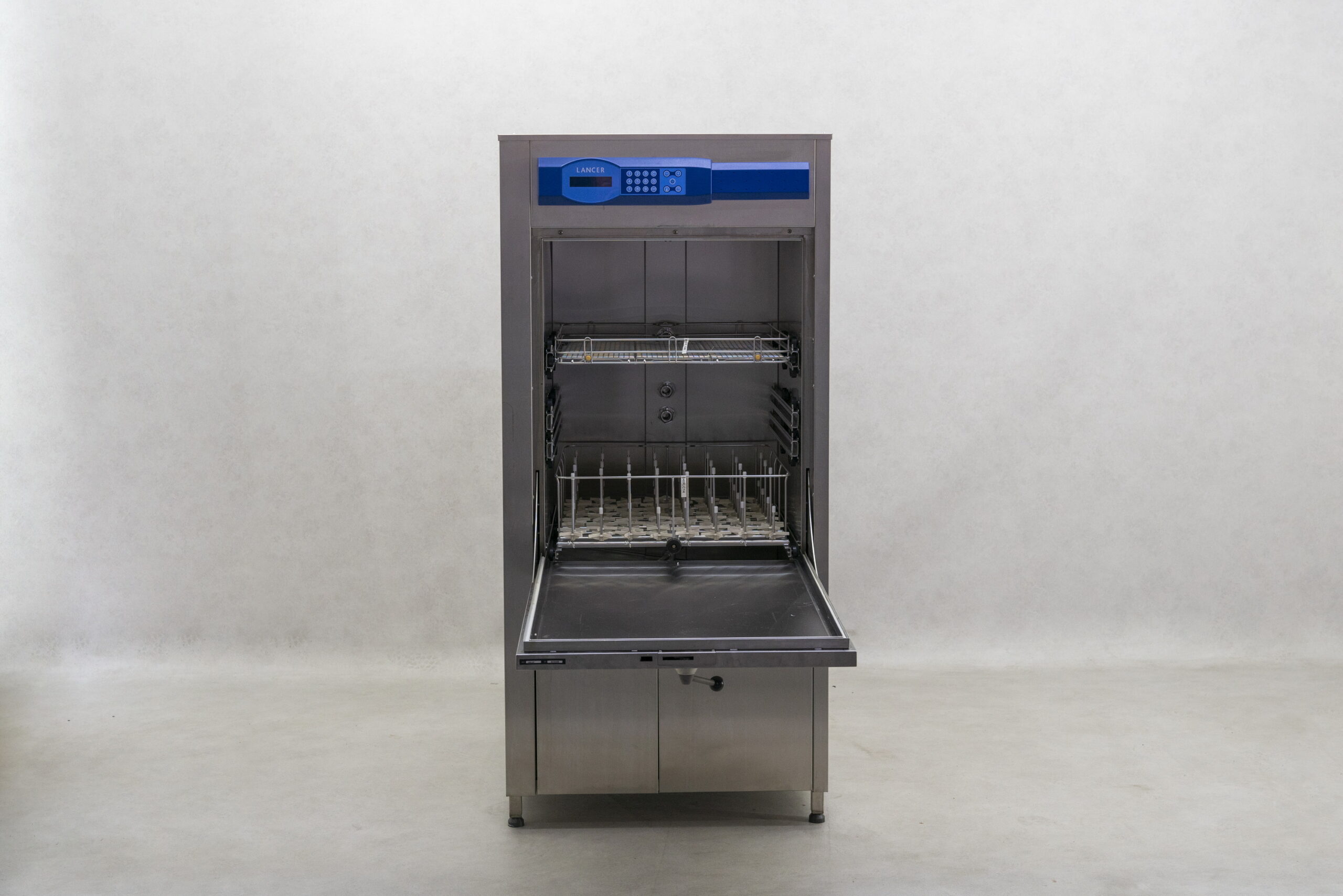

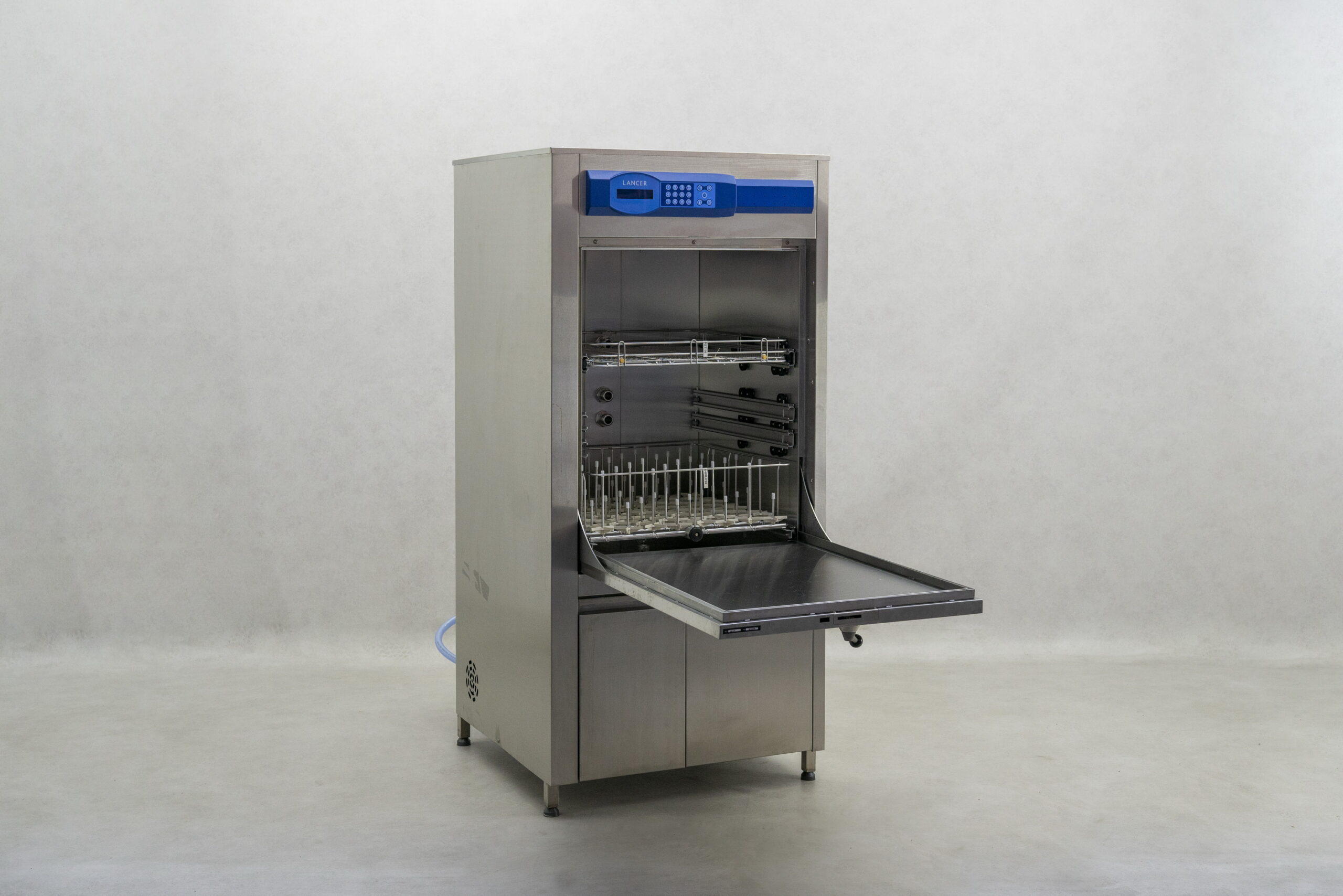

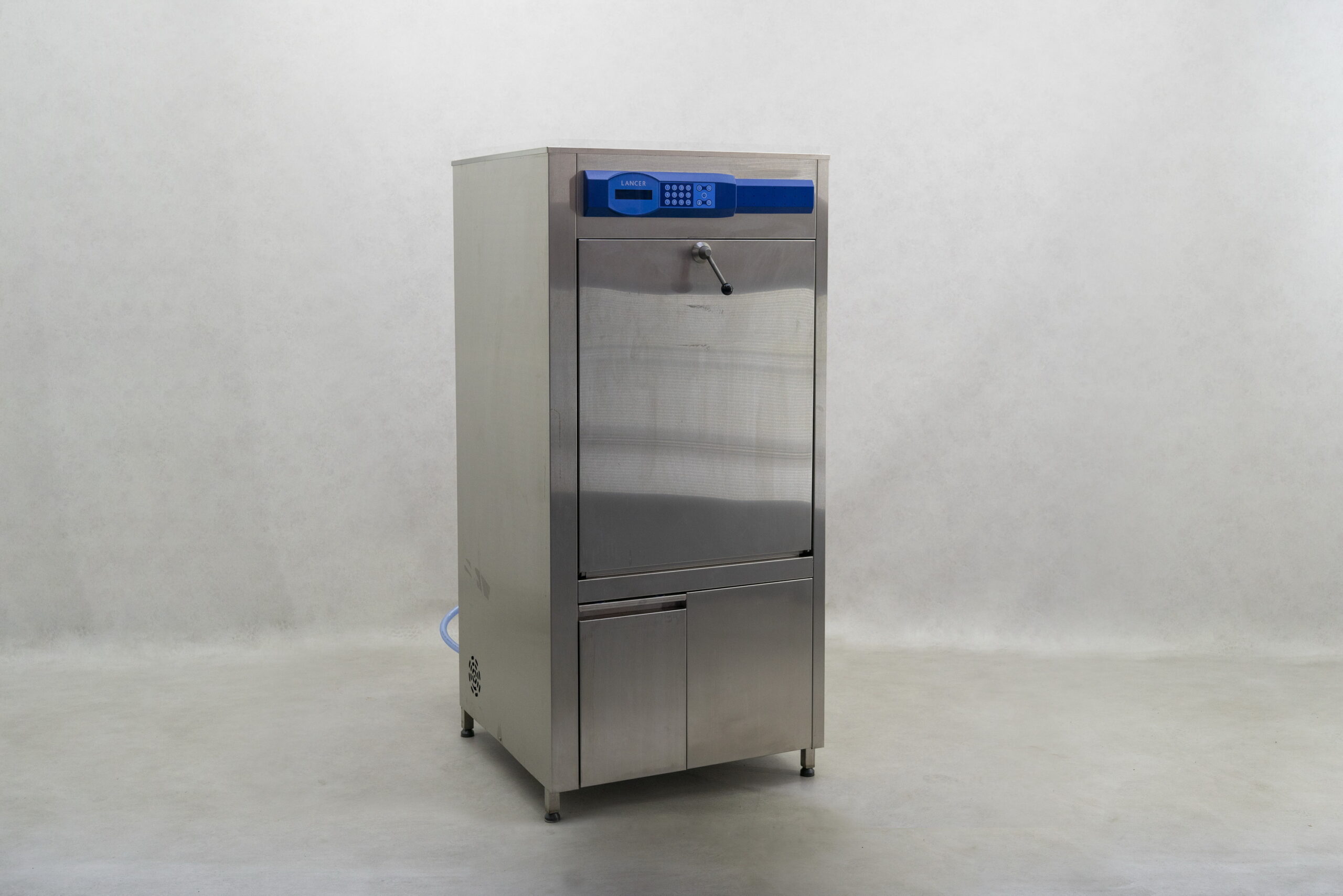

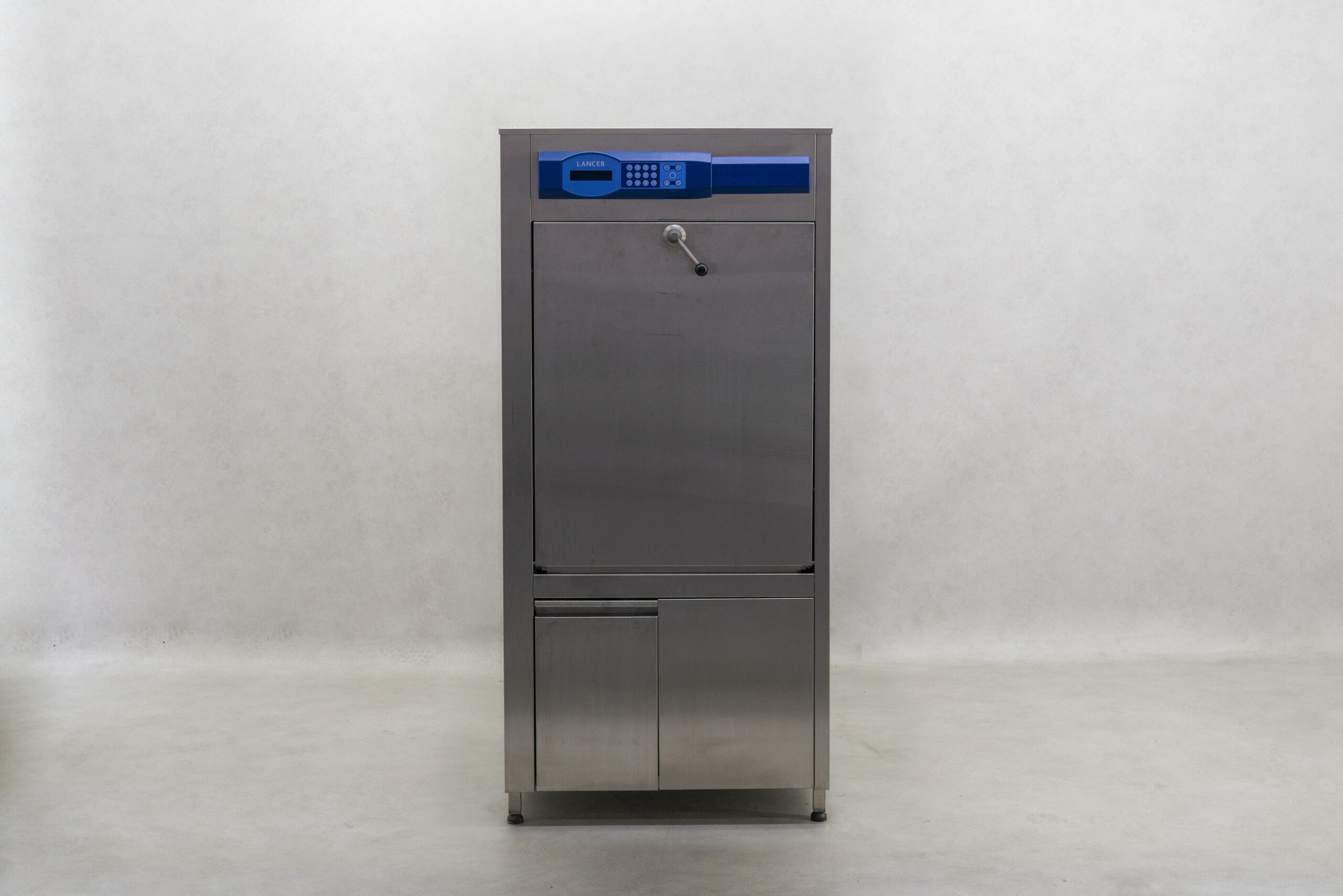

The 1400 LXP Washer-Dryer provides professional features and is constructed of stainless steel for maximum durability. Complete cleaning is obtained with water circulated in the chamber via spray arms as well as through injectors directly inside of glassware.
The 1400 LXP fully automatic washer/dryer has an electronic programmable microprocessor capable of storing up to 40 programs for pre-wash, wash, rinse, acid rinse, purified/DI rinse, HEPA filtered drying and cooling.
These units are capable of injection cleaning on 1 to 3 levels with 4 possible rack locations providing maximum capacity through multiple chamber configurations. Each level has telescopic, load bearing arms, eliminating the need to handle loaded racks. Chamber drying and direct injection drying is standard. Drop down door provides loading platform and eliminates the need for a loading trolley /cart. Washer has on-board chemical storage with liquid level sensors.
Some of the features are:
- Double wall insulation which provides thermal and sound protection.
- Telescopic rails are load bearing for easy loading and unloading.
- Detergent delivery system: liquid detergent automatically injected into wash chamber via peristaltic pump according to programmable parameters.
- Acid Neutralizer delivery system: liquid acid neutralizer automatically injected into wash chamber
- via peristaltic pump according to programmable parameters.
- Low level chemical alarms (visual and audible alerts) indicate when chemical levels are low.
- Three independent wash levels with four loading positions.

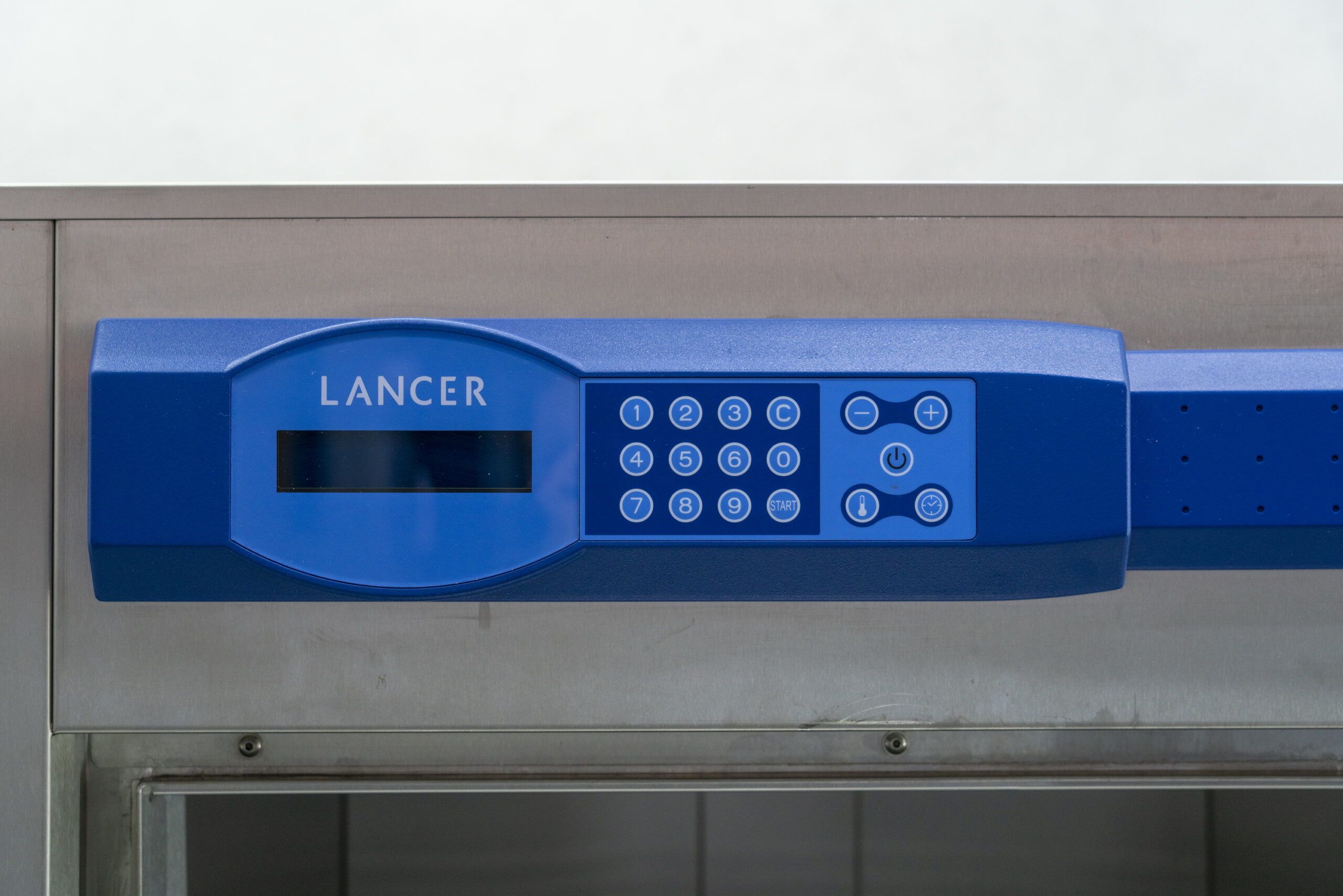

- Microprocessor control with 40 standard washing programs.
- Easily adjustable parameters.
- Self-diagnostic program.
Technical specifications:
Voltage: 400 V 3-phase
Maximum power: 13.5 kW
Water consumption: 20 – 25 liter / fill
Heat loss: 1,200 Kcal / hour
Sound level: < 63 dBa
Cycles: 4 pre-programmed, 36 user-defined
Injection Cleaning: 1 to 3 levels with 4 possible rack positions
Dosing: Automatic detergent and acid dosing via peristaltic pump

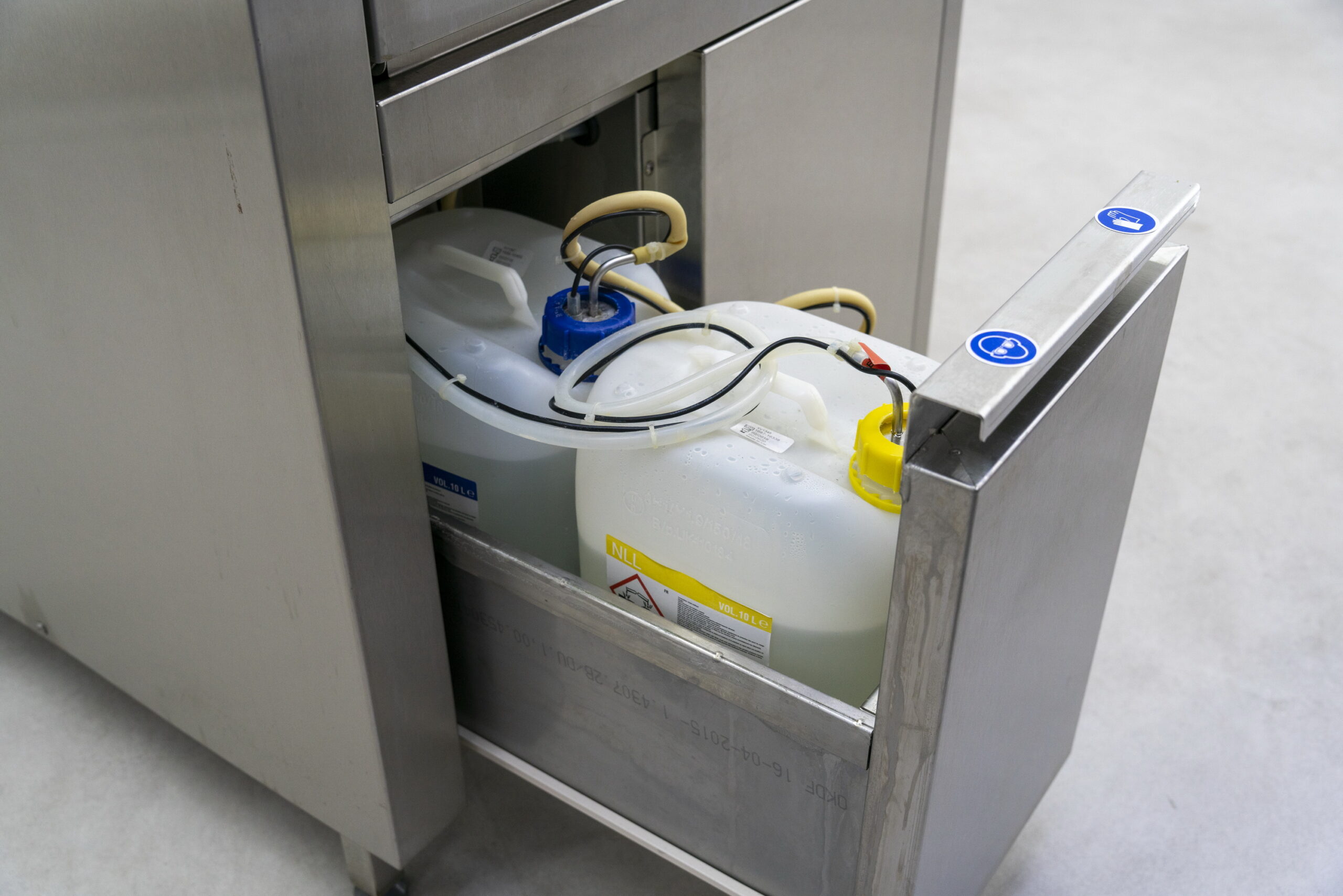

Chemical Storage: Front access drawer
Drying: HEPA filtered chamber and injector drying
Outer dimensions (W) x (D) x (H): 790 x 831 x 1728 mm
Inner dimensions (W) x (D) x (H): 620 x 620 x 770 mm
Loading height: 674 mm
