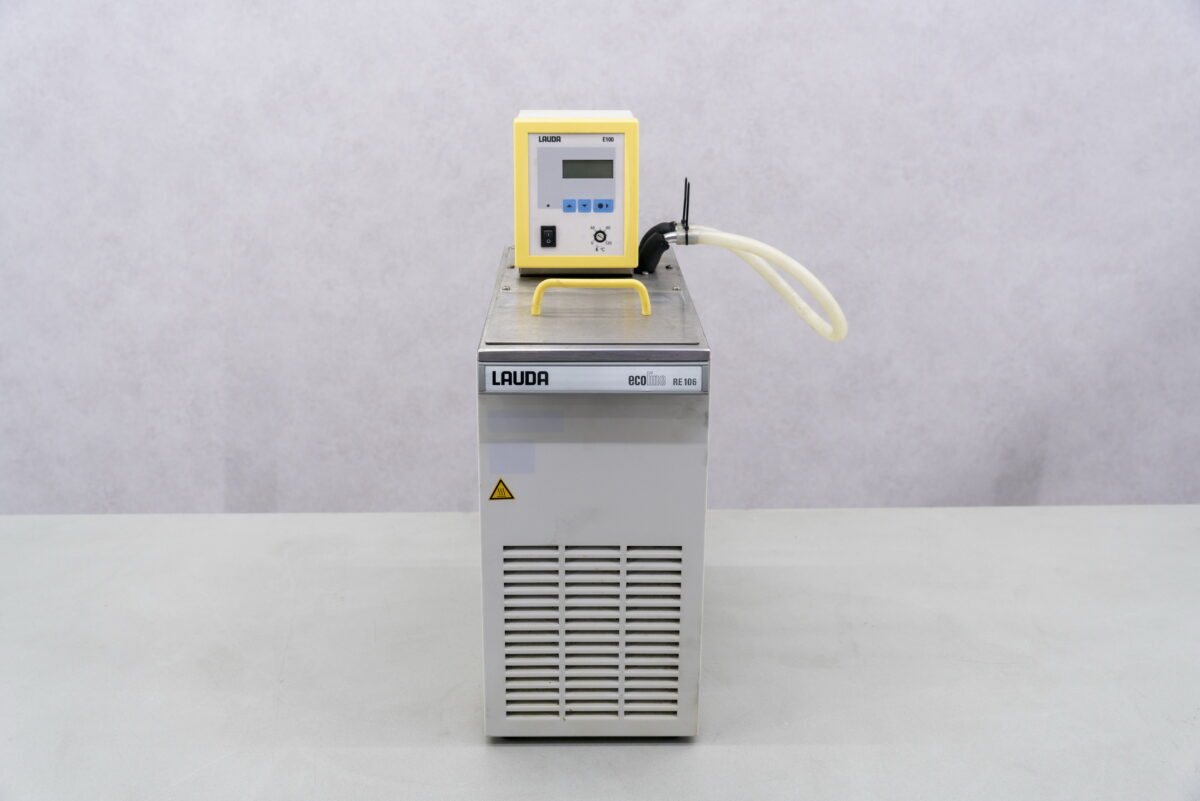

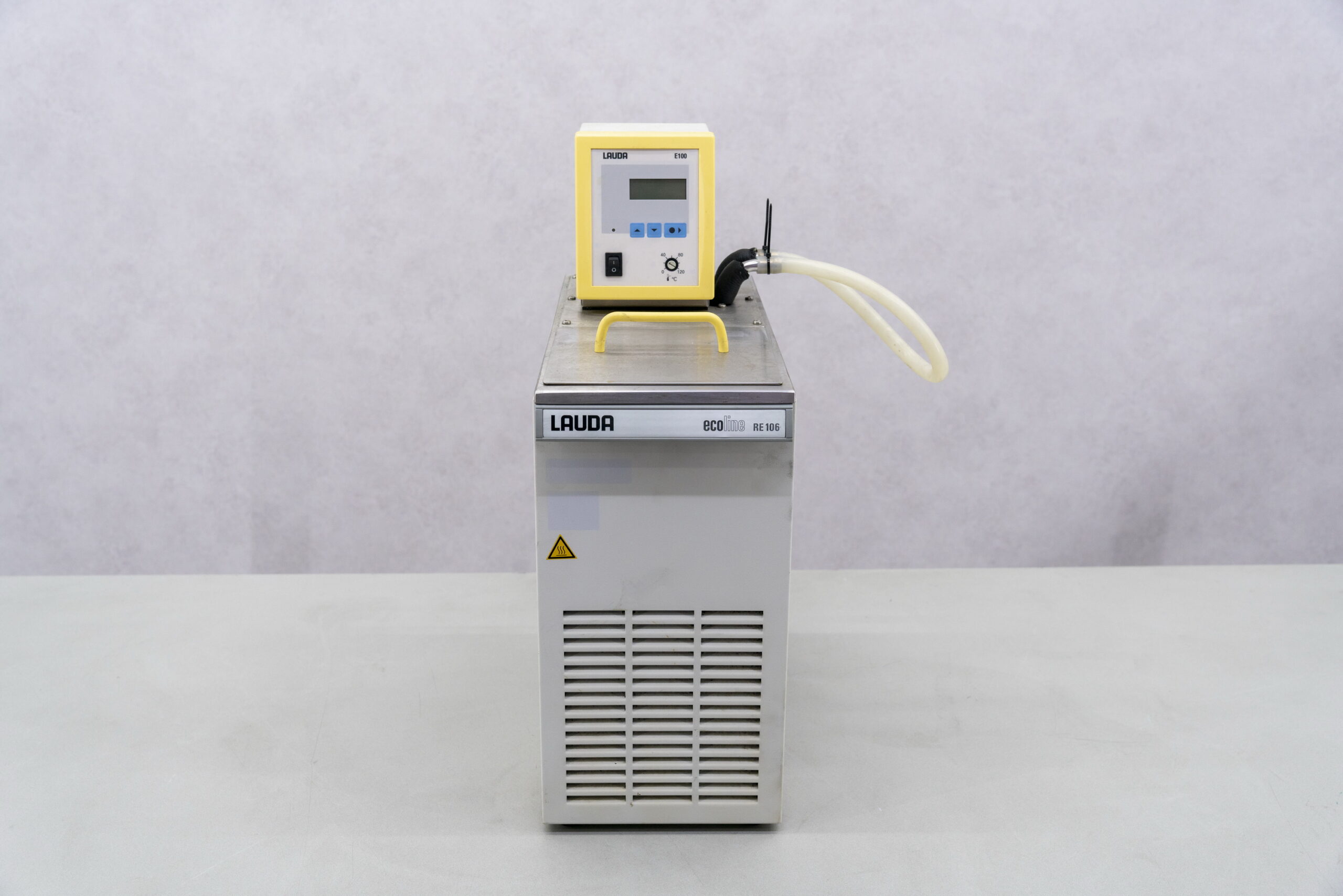

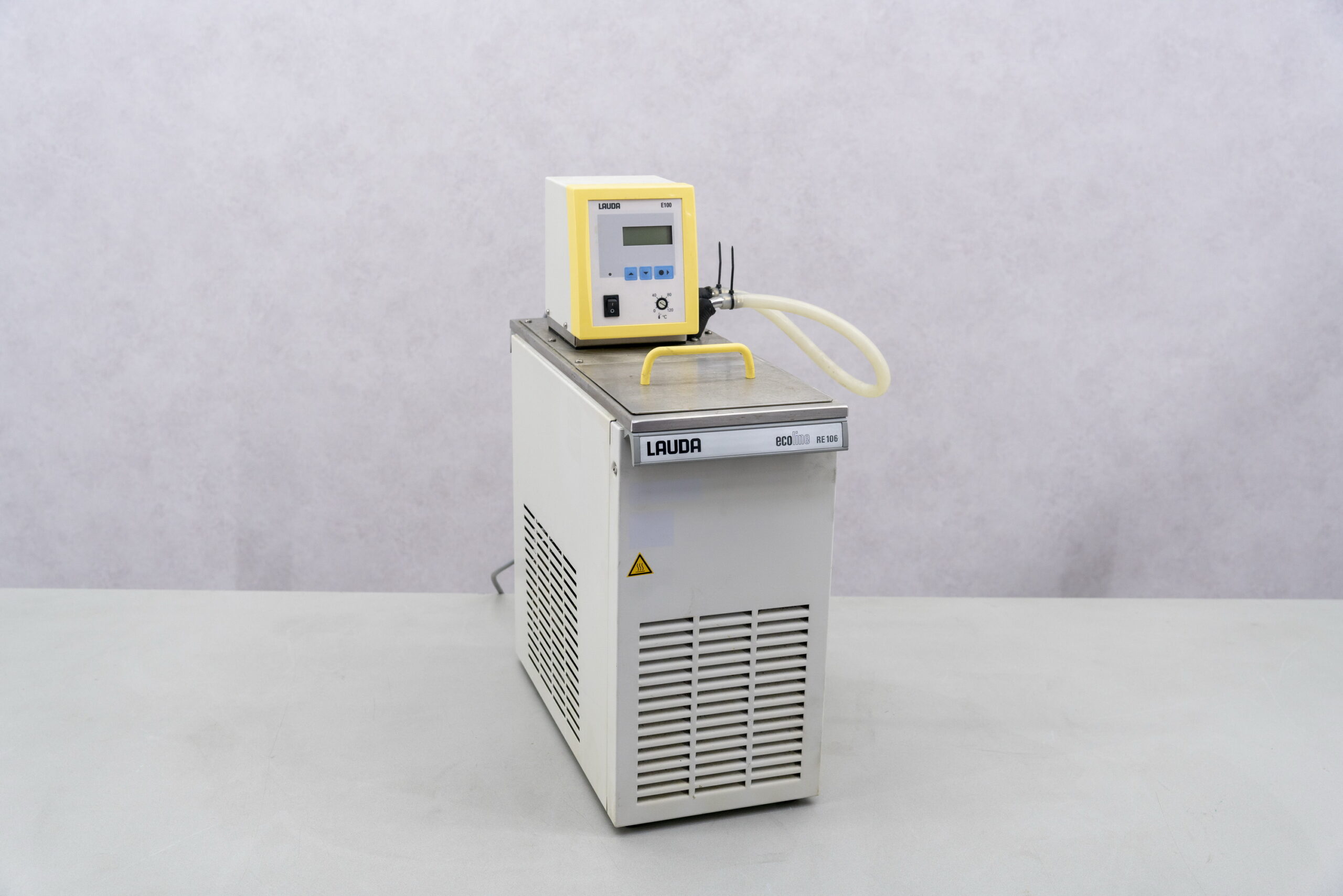

The RE106 is recirculating chiller with a low-temperature thermostat. It has an operating temperature range of -20 to 120 °C and has a bath volume of 4 to 6 liter.
Technical specifications:
Voltage: 220-240 V
Current: A
Power: 1.8 kW
Operating temperature range: -20 to 120 °C
Ambient temperature range: 5 to 40 °C
Setting resolution: 0.1 °C
Indication resolution 0.1 °C
Indication accuracy: ±0.4°C
Temperature control: ± 0.05 °C
Cooling capacity at 20 °C (with ethanol at 20 °C ambient temperature): 0.20 kW
Cooling capacity at 0 °C (with ethanol at 20 °C ambient temperature): 0.15 kW
Cooling capacity at -20 °C (with ethanol at 20 °C ambient temperature): 0.05 kW
Max. discharge pressure: 0.4 bar
Max. flow rate: 17 l/min
Outer dimensions (W) x (D) x (H): 200 x 400 x 550 mm
Bath opening (W) x (D): 150 x 130 mm
Bad depth: 160 mm
Usable depth: 140 mm
Weight: 24 kg
