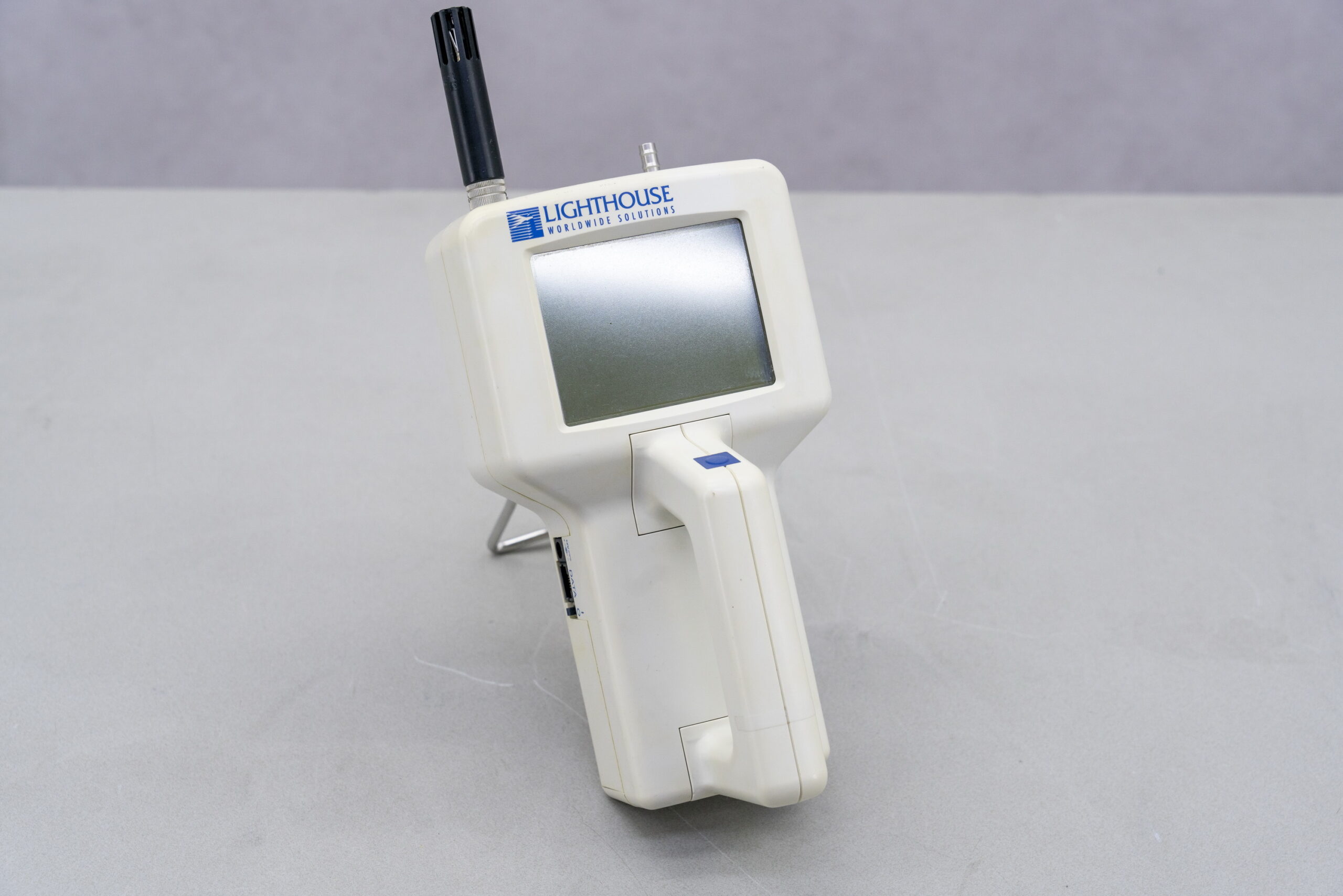

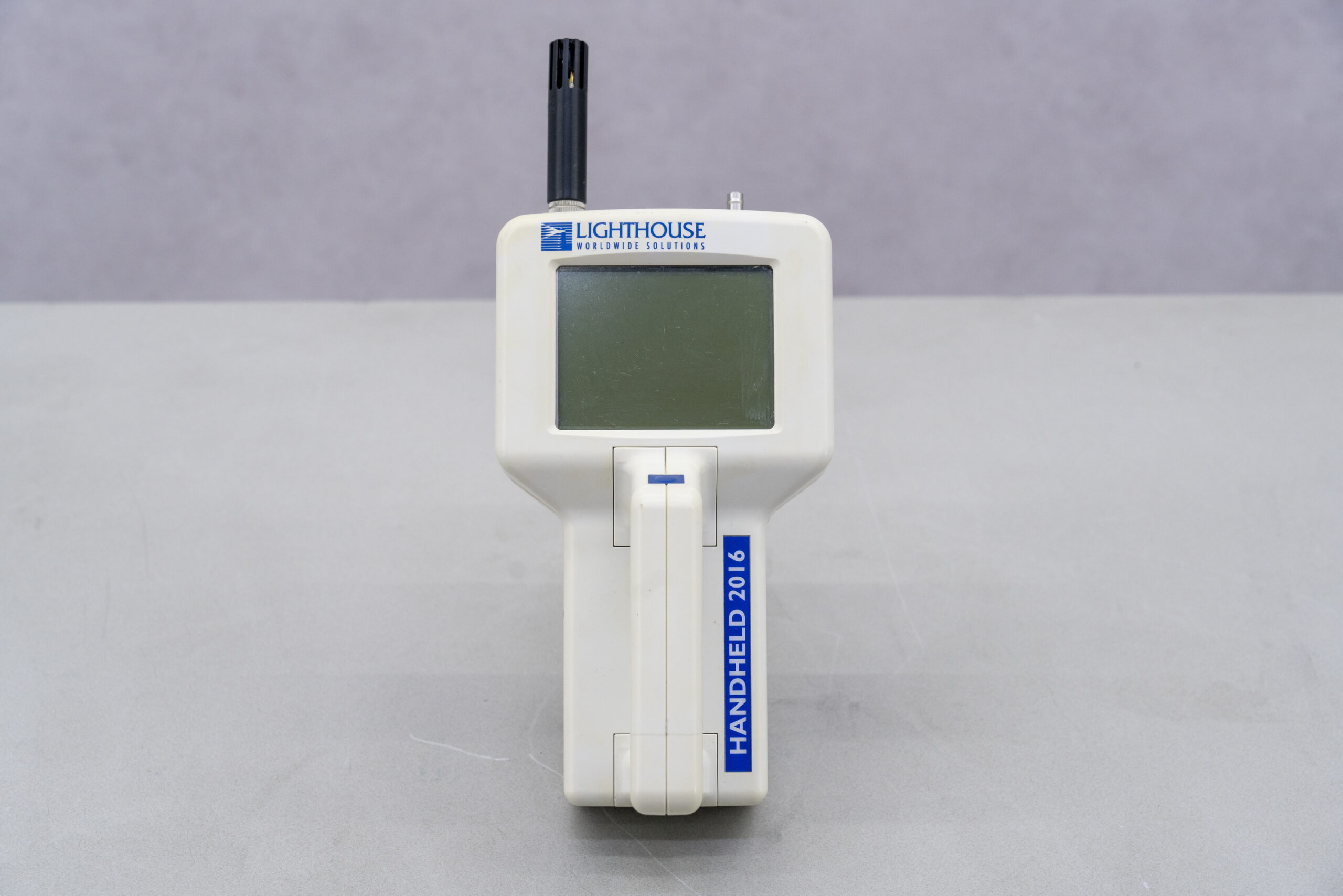

THE 2016 ergonomically designed and lightweight Lighthouse Handheld particle counter features 0.2 μm sensitivity and is one of the most advanced handheld particle counters on the market.

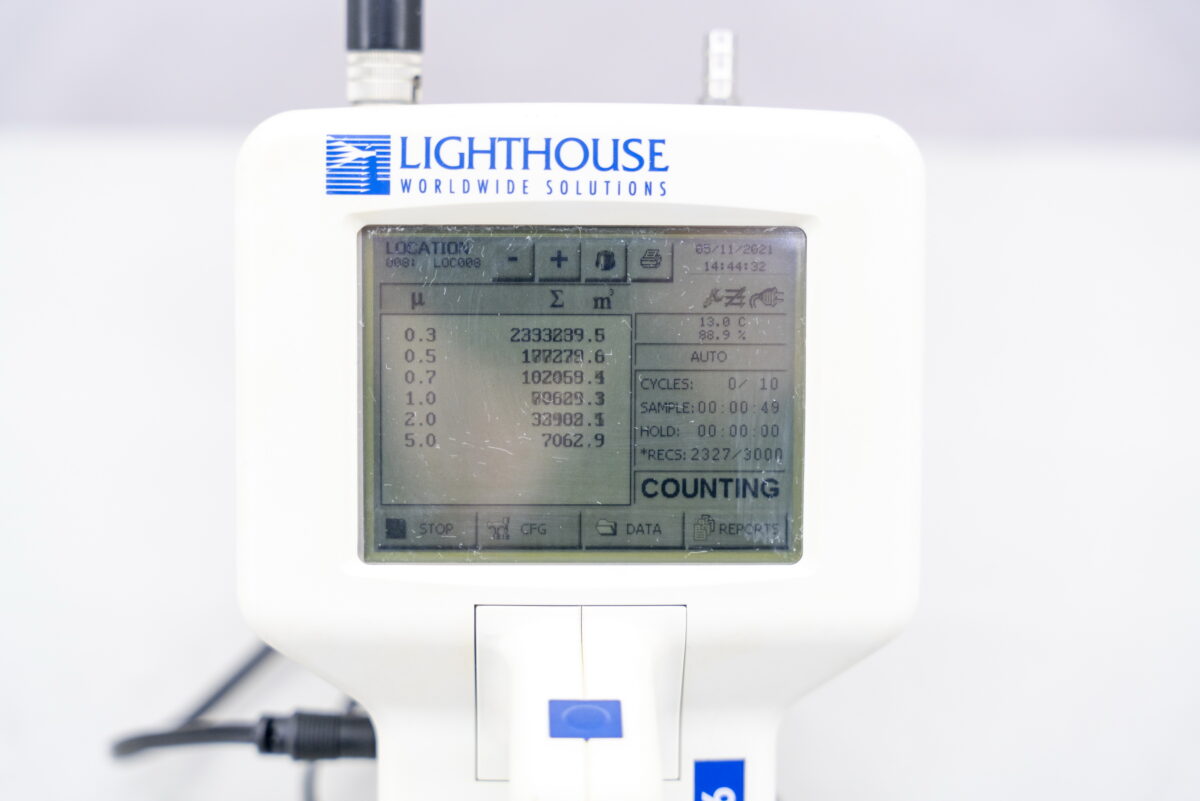

Lighthouse Handheld particle counters can display cumulative and differential particle count data as well as temperature/relative humidity data on the fast and easy to read colour touch screen. The counter can hold up to 3,000 records of particle data and store up to 50 recipes for sampling and reports. Removable batteries and an optional charger maximize uptime.
Features:
- Size range: 0.2- 2.0 μm
- Standard 6 channels: 0.2, 0.3, 0.5, 0.7, 1.0, 2.0 μm
- Counting efficiency: 50% @ 0.2μm; 100% for particles >0.3 μm (per ISO 21501-4)
- Flow rate: 0.1 CFM (2.83 LPM)
- Laser Source: Extreme Life Laser Diode with > 20 years MTTF
- Zero Count Level: < 1 count / 5 minutes (per ISO 21501-4)
- Concentration Limits: 8,000,000 particles /ft3 @ 10% coincidence loss
- Count Modes: Automatic, manual, beep, concentration, cumulative/differential
- Data Storage: 3,000 sample records, rotating buffer

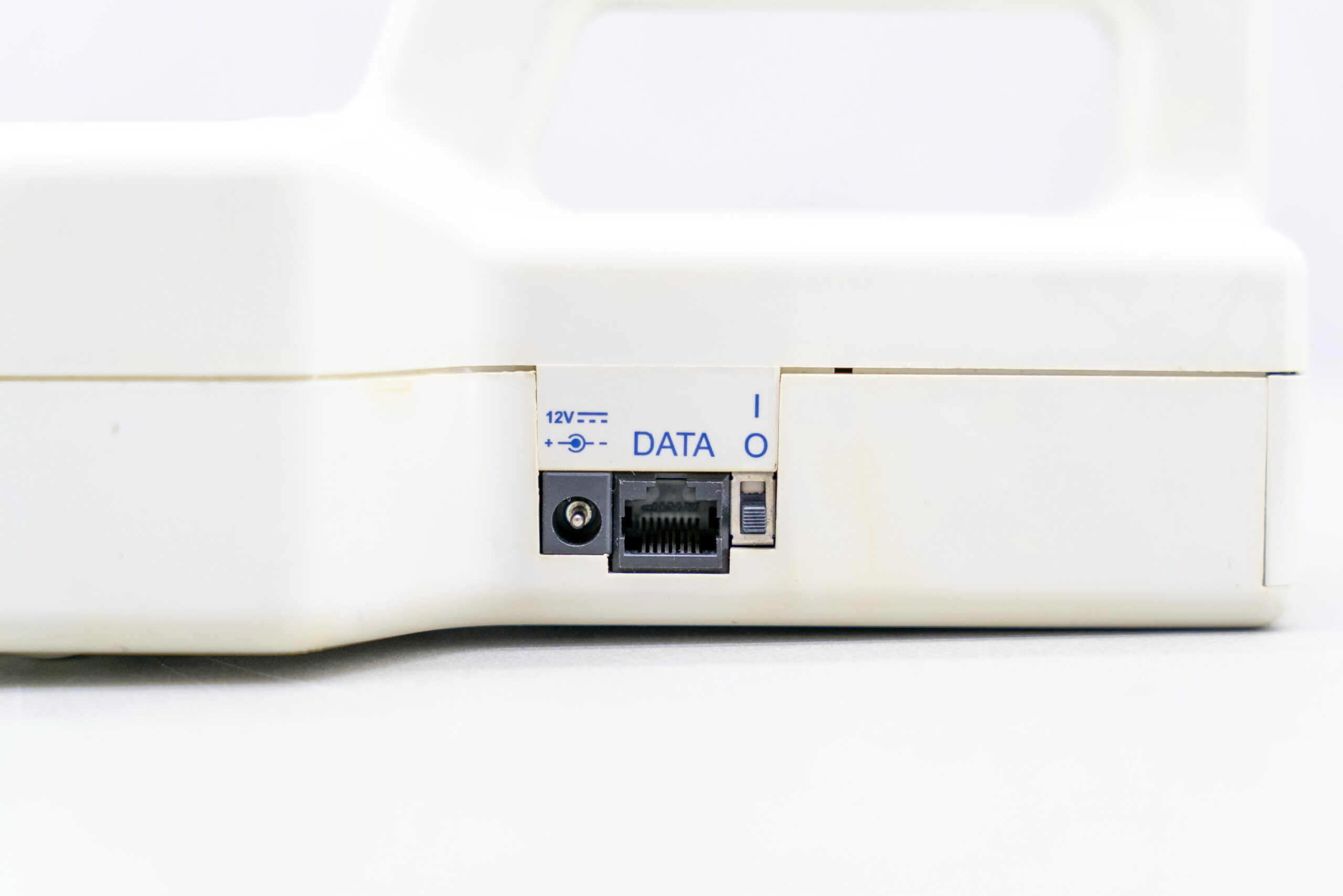

- Communication Modes: RS-232 via RJ-45 to PC or optional printer

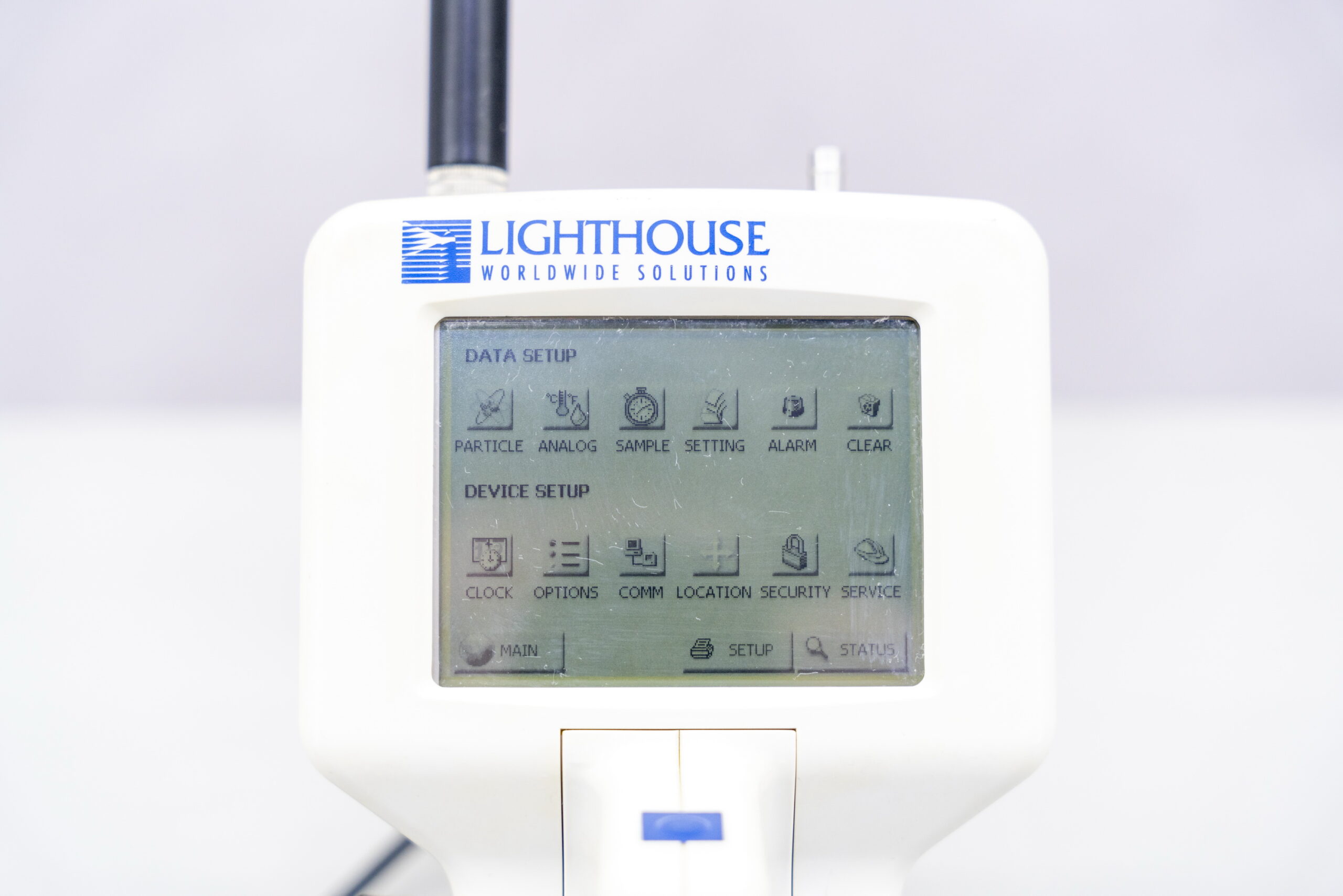

- Touch Screen Display: 3.5 inch (8.89 cm), color TFT display
- Reports: FS-209E, ISO-14644-1 (1999, 2015) & EU GMP (Model 3016-IAQ no report standards)
- Alarms: Internal, adjustable alarm on counts, low battery, sensor failure
- Sample Inlet: Isokinetic sampling probe
- Sample Output: Internally filtered to HEPA standards (>99.97% @ 0.3 μm)
- Vacuum Source: Internal pump, automatic flow control
- Enclosure: High impact injection moulded plastic
- Languages: 9 different languages
Technical specifications:
Voltage: 12 V DC
Current: 1,25 A
Battery: Li-Ion, removable and rechargeable
Outer dimensions (W) x (D) x (H): 127 x 222 x 635 mm
Touch Screen Display: 8.89 cm
Weight: 1 kg
