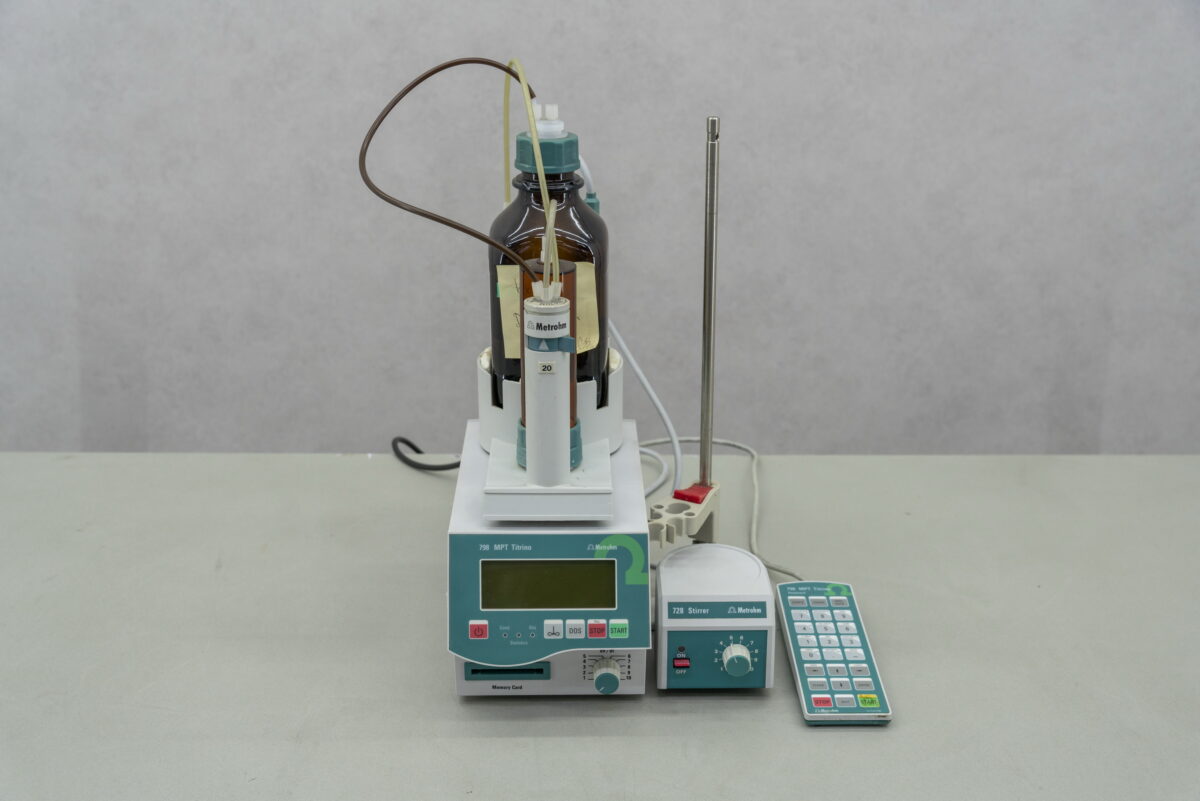

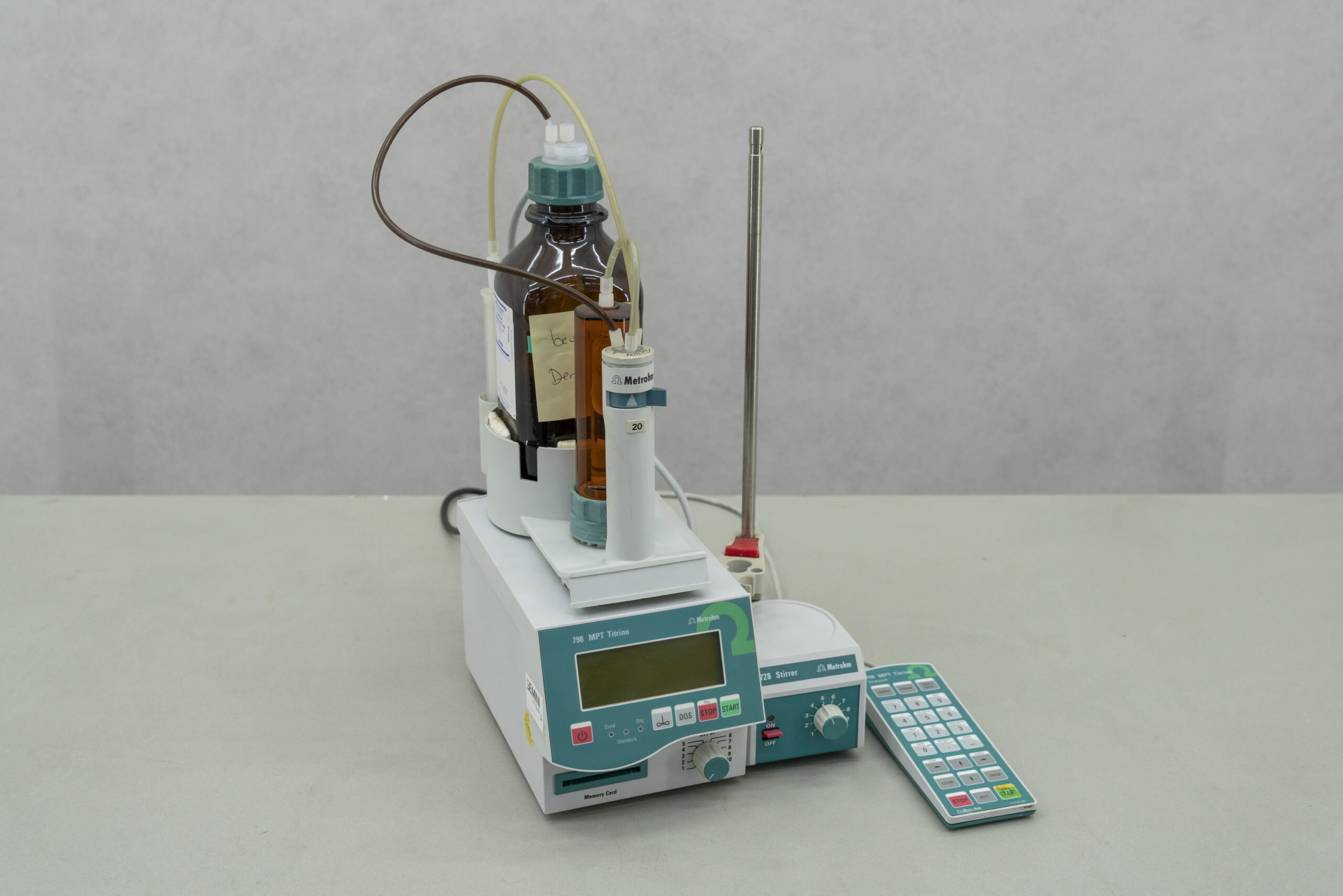

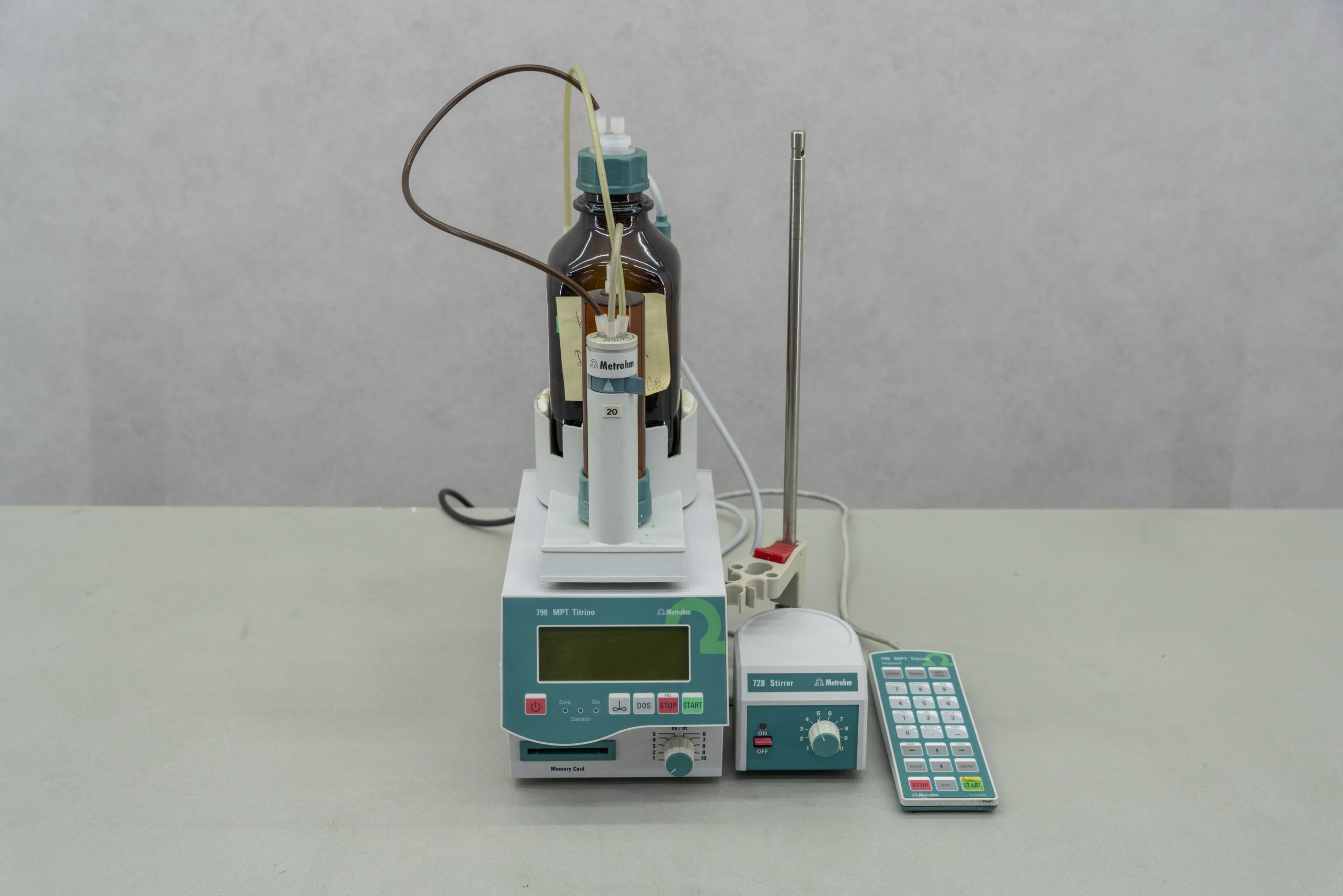

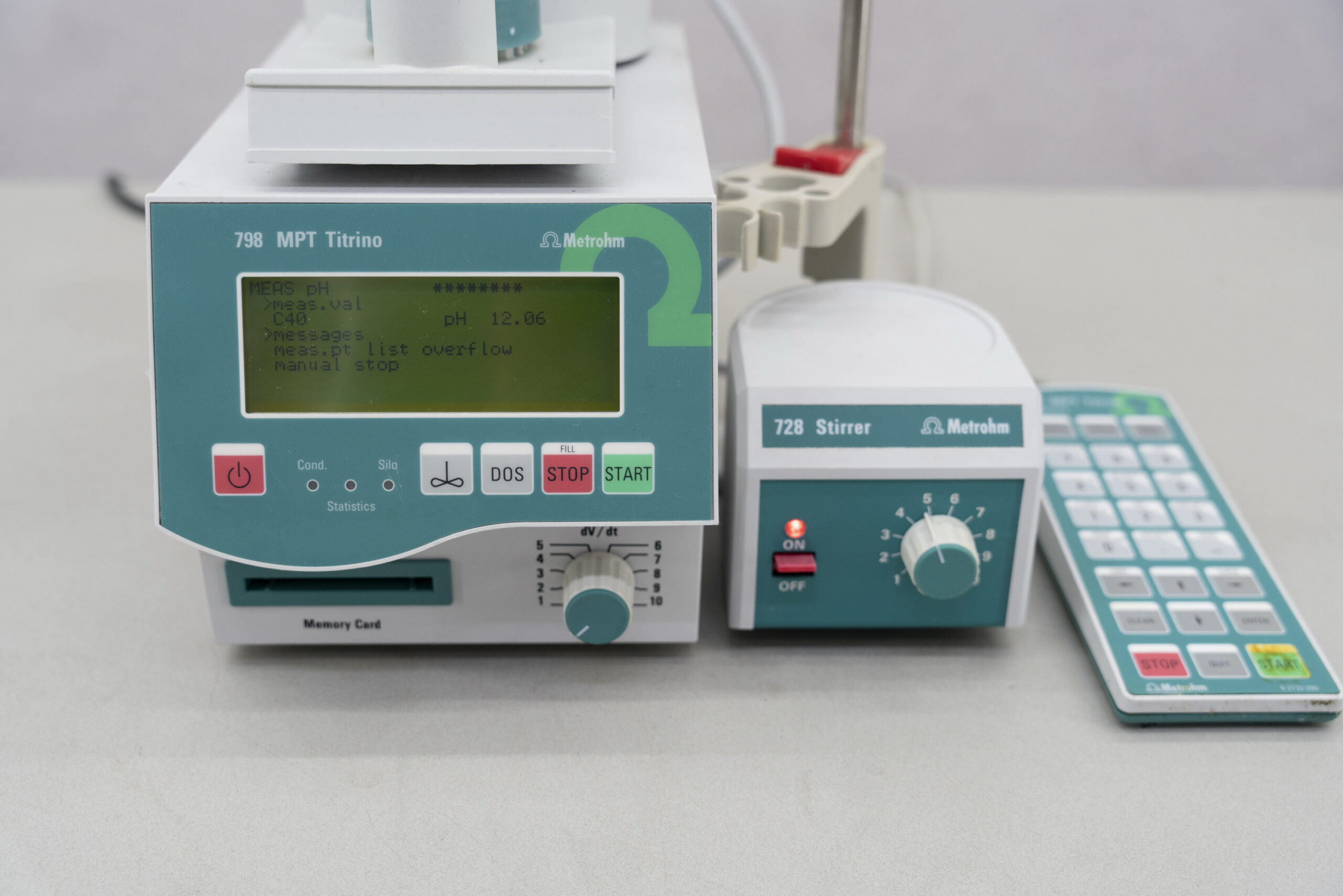

The 798 MPT Titrino is an all-purpose titrator with LCD graphical display. Titration curves can be observed in real-time. Titration modes of the 798 MPT Titrino are constant or – depending on the titration curve – variable dosing of the titration reagent and Endpoint-Titration. The operator is almost free to define his titrations.
All operating modes of the Titrino can be combined to perform extensive analytical sequences. The 798 MPT Titrino provides the opportunity to store, transfer and upload applications and results via memory card (not included).
This titrator comes with a keypad.
Technical specifications:
Voltage: 100-240 V
Power: 15 W
Modes:
- DET: Dynamic Equivalence Point Titration
- MET: Monotonic Equivalence Point Titration
- SET: Set End point Titration
- MEAS: Measurement
- CAL: pH calibration
- TIP: Links commands to titration procedure

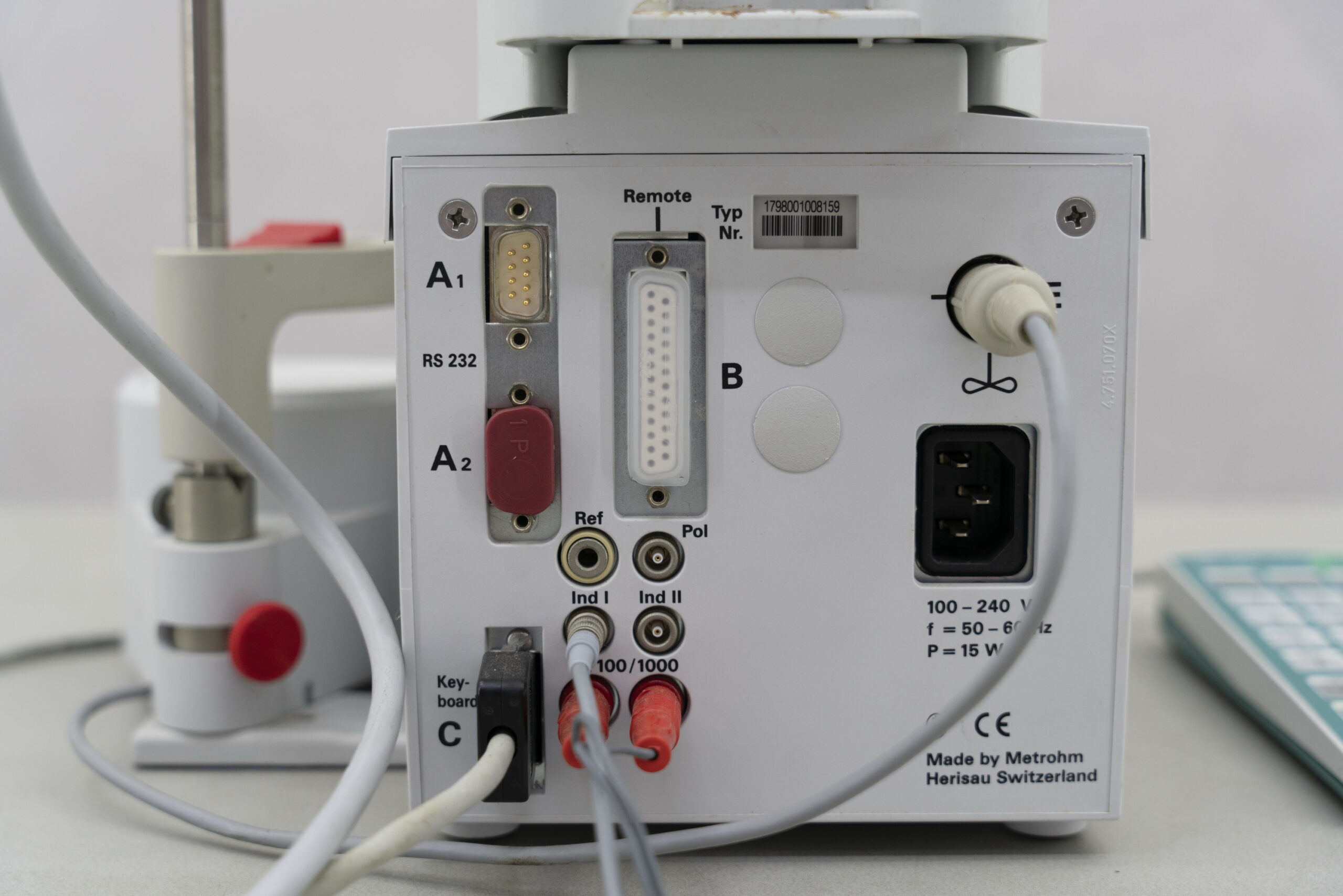

Measuring inputs:
- 2 high-impedance measuring inputs for pH, redox and ISE
- 1 reference input for a separate reference electrode. May
- also be used as a differential amplifier.
- 1 measuring input for polarized electrodes.
- 1 measuring input for temperature sensor Pt100 or Pt1000.
Measuring range:
- pH value: (pX) 0…±20.00, resolution 0.01
- Voltage: 0…±2000 mV, resolution 1 mV, error limit 0.1 % fullscale
- Current: 0…±200 μA, resolution 1 μA
- Temperature: –150.0…+450.0 °C, resolution 1 °C
- Polarizer Ipol: ..±127 μA, resolution 1 μA
- Polarizer Upol: 0…±1270 mV, in steps of 10 mV
Dosification:
- Volume of buret cylinder 1, (2), 5, 10, 20 or 50 mL
- Resolution 10 000 steps per buret cylinder
- Auxiliary burets 2 additional burets: 776 or 765 Dosimat
Internal memory:
- Method memory for up to 100 methods
- Silo memory for sample data and results
Ambient temperature:
- operation range 5 … 40 °C
- Storage – 20 … 60 °C
- Transport – 40 … 60 °C
Outer dimensions (W) x (D) x (H): 245 x 300 x 440 mm
Weight: 3.6 kg
