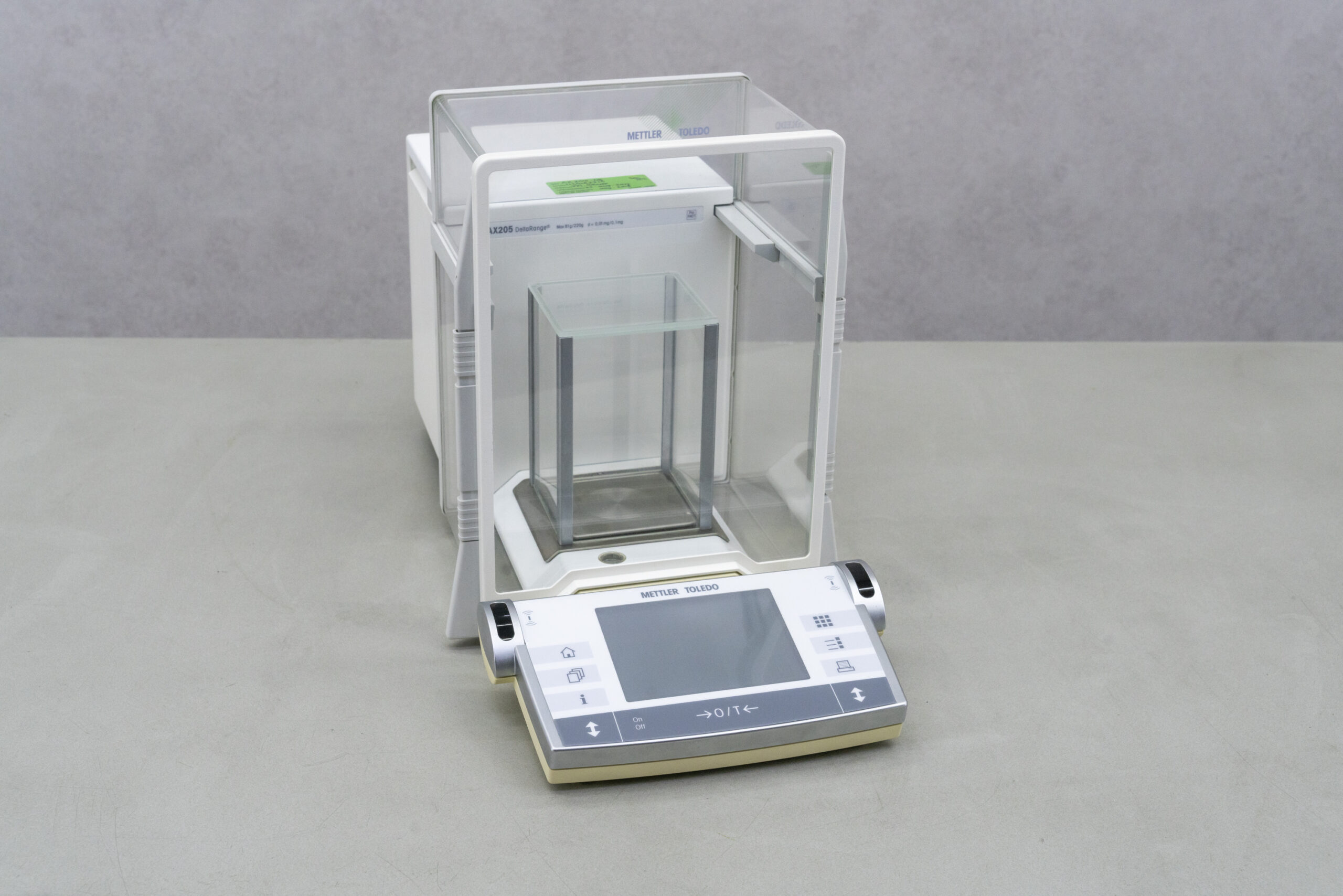

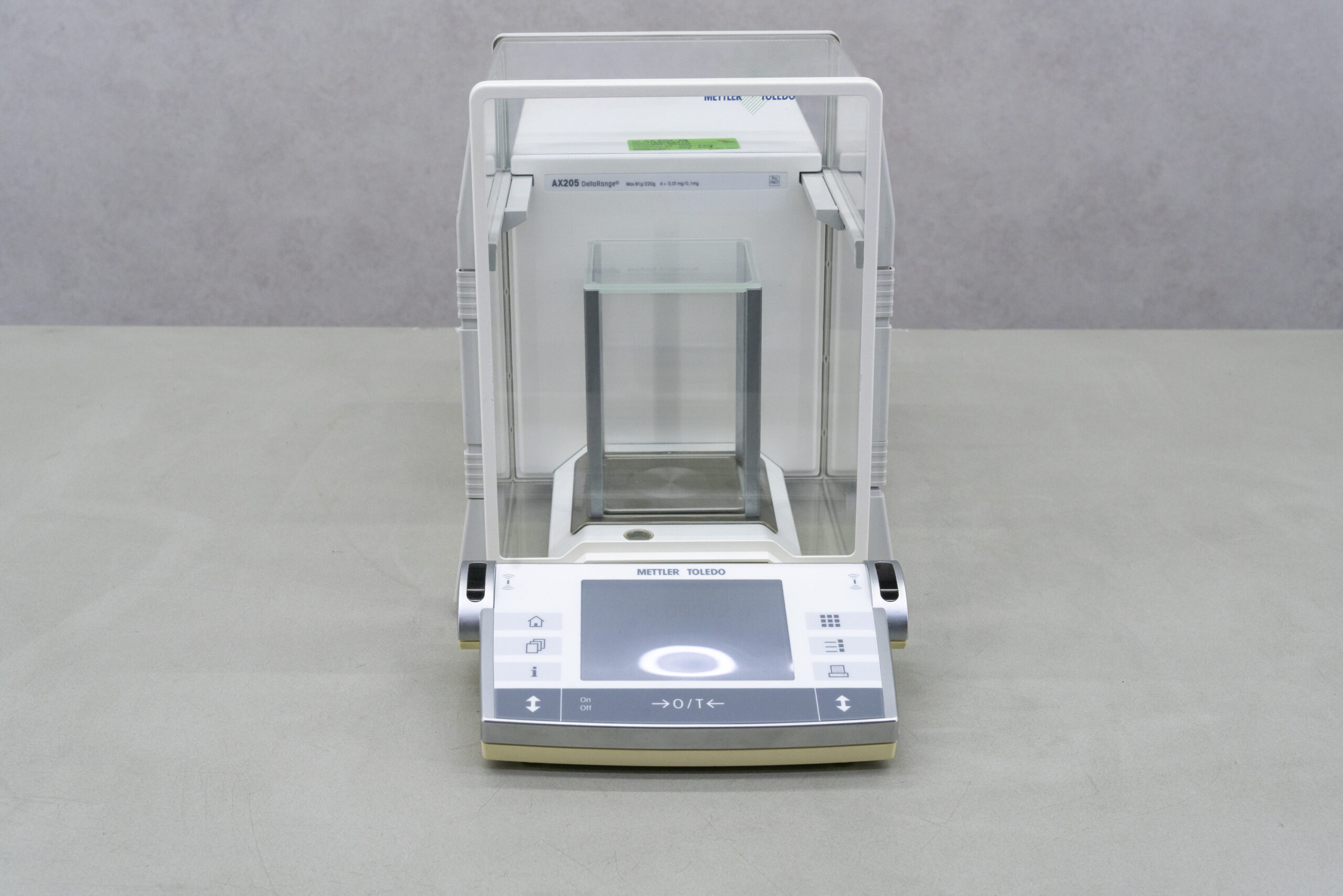

This AX205dr analytical balance has a large number of weighing and adjustment possibilities with exceptionally convenient operation. The AX205dr has a readability of 0.1 mg and can handle a maximum load of 220 g.
Technical specifications:
Voltage: 12 V DC
Current: 2,08 A
Power: 7 W
Maximum load: 220 g
Maximum load, fine range: 81 g
Readability: 0.1 mg
Readability, fine range: 0.01 mg
Repeatability (sd) at full load: 0.06 mg
Repeatability (sd) (at gross load): 0.015 mg (10 g)
Linearity: 0.15 mg
Eccentric load deviation at 1/2 maximum capacity: 0.25 mg
Sensitivity offset: 2.0 x 10-6
Sensitivity temperature drift: 0.0001%/°C
Sensitivity stability: 0.0001%/a
Weighing time typical: 12 s
Interface update rate: 7 /s
Outer dimensions (W) x (D) x (H): 41 x 505 x 293 mm
Weighing pan dimensions (W) x (D): 80 x 80 mm
Usable height of draft shield: 240 mm
