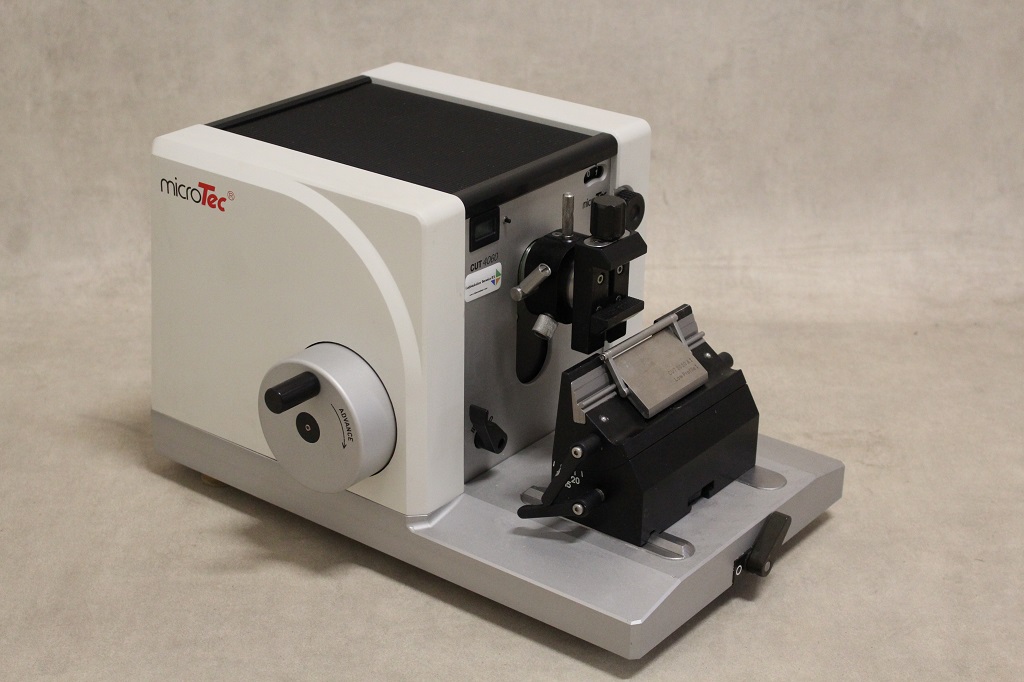

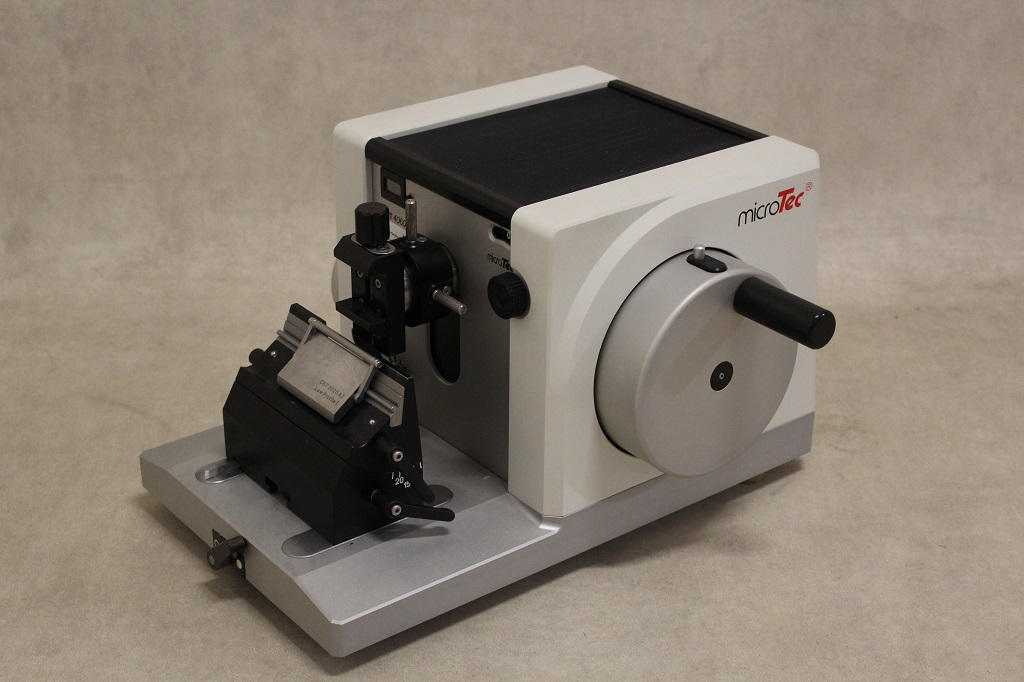

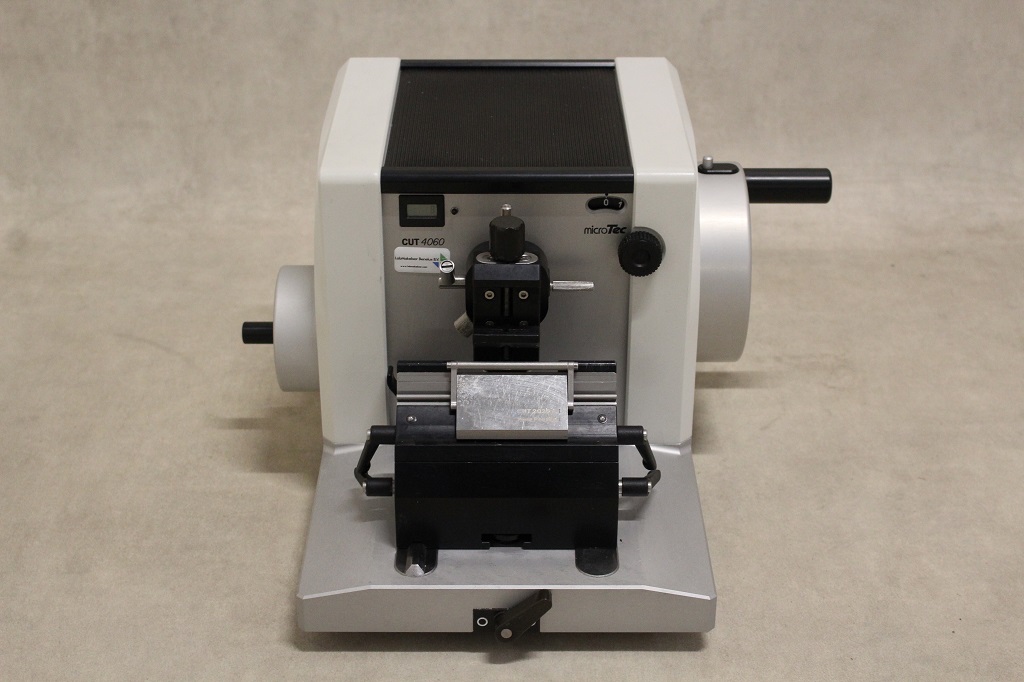

Micrometer and coarse mode system enclosed in a housing.
Coarse mode on the left, next to safety clutch. The microTec–principle reduces injury-dangers through a knife guard which locks when in position. Fine setting with collision guard.
Optimal object guiding by means of backlash-free and maintenance-free cross-roller guides.
Setting of cutting thickness from 0.5 µm to 60 µm in defined steps. Precise clamping for knife carrier with optimal shifting options. Security lock on hand dial.
Automatic object retraction.
Vertical stroke: 70 mm – Horizontal stroke: 40 mm
Object retraction of 80 µm in reverse
Manual 3-level trimming device: 10, 20, and 30 µm
Integrated section counter with LCD display and reset
