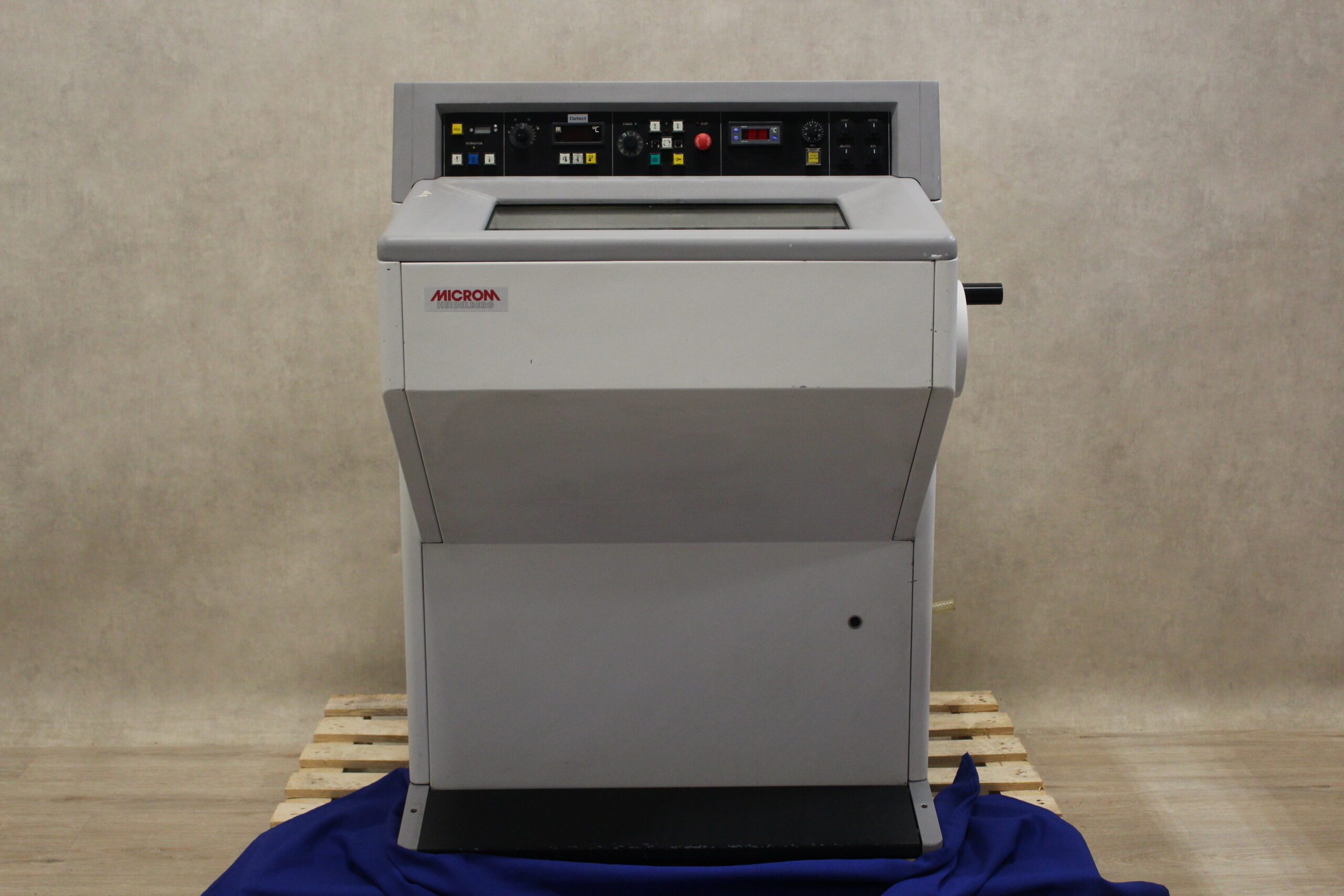

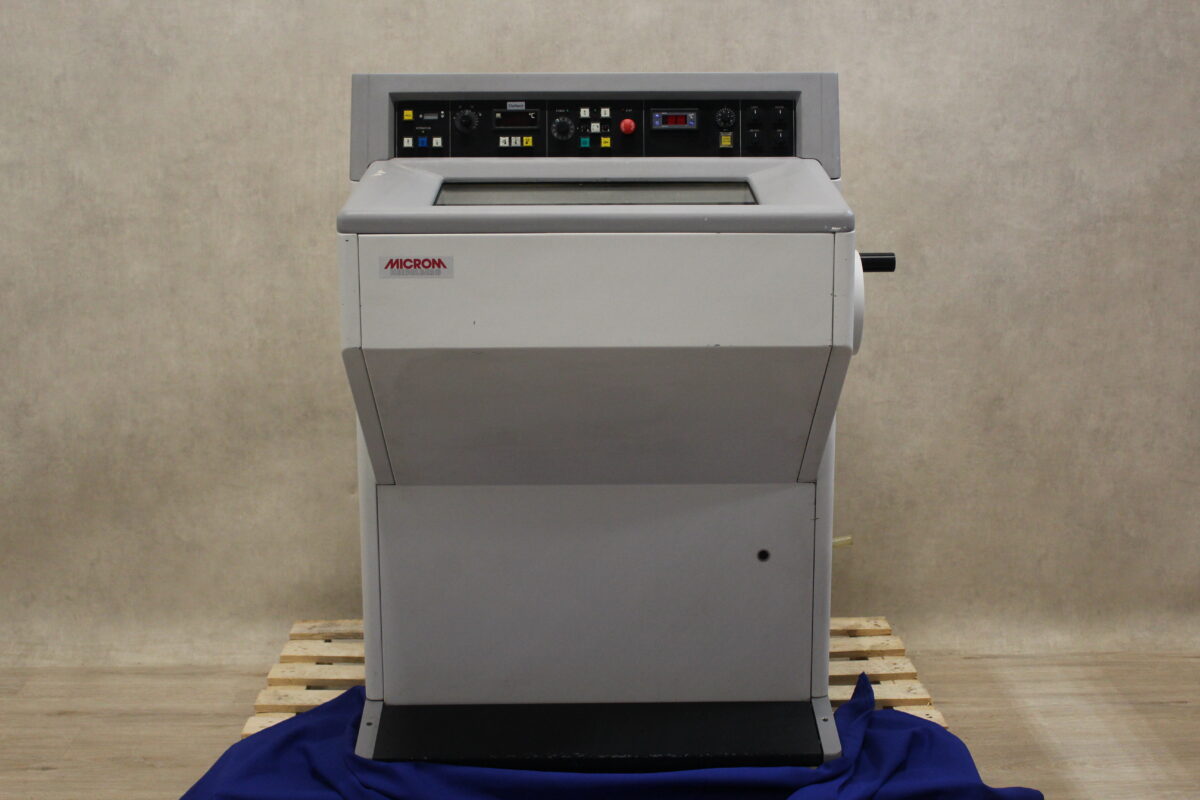

Microm 500 OM Cryostat Refrigerated Microtome

The Microm 500 OM Cryostat Refrigerated Microtome that can operate at temperatures as low as -40°C. It is designed to be used in an upright position and has an open-top working area, allowing for easy and comfortable operation while standing or sitting. The instrument has a cooling range from 20°C to -40°C and can achieve a section thickness range of 0.5 – 90 µm. The resolution varies depending on the thickness, ranging from 0.5 µm to 10 µm. For trimming, the cryostat 500 OM has a thickness range of 5 – 300 µm, with resolutions varying from 5 µm to 100 µm. The instrument also has a specimen retraction of 40 µm during return travel and offers a horizontal sample stroke of 28 mm and a vertical sample stroke of 64 mm. The cryostat 500 OM has a weight of 180 kg and dimensions of 840 x 1120 x 780 mm.
