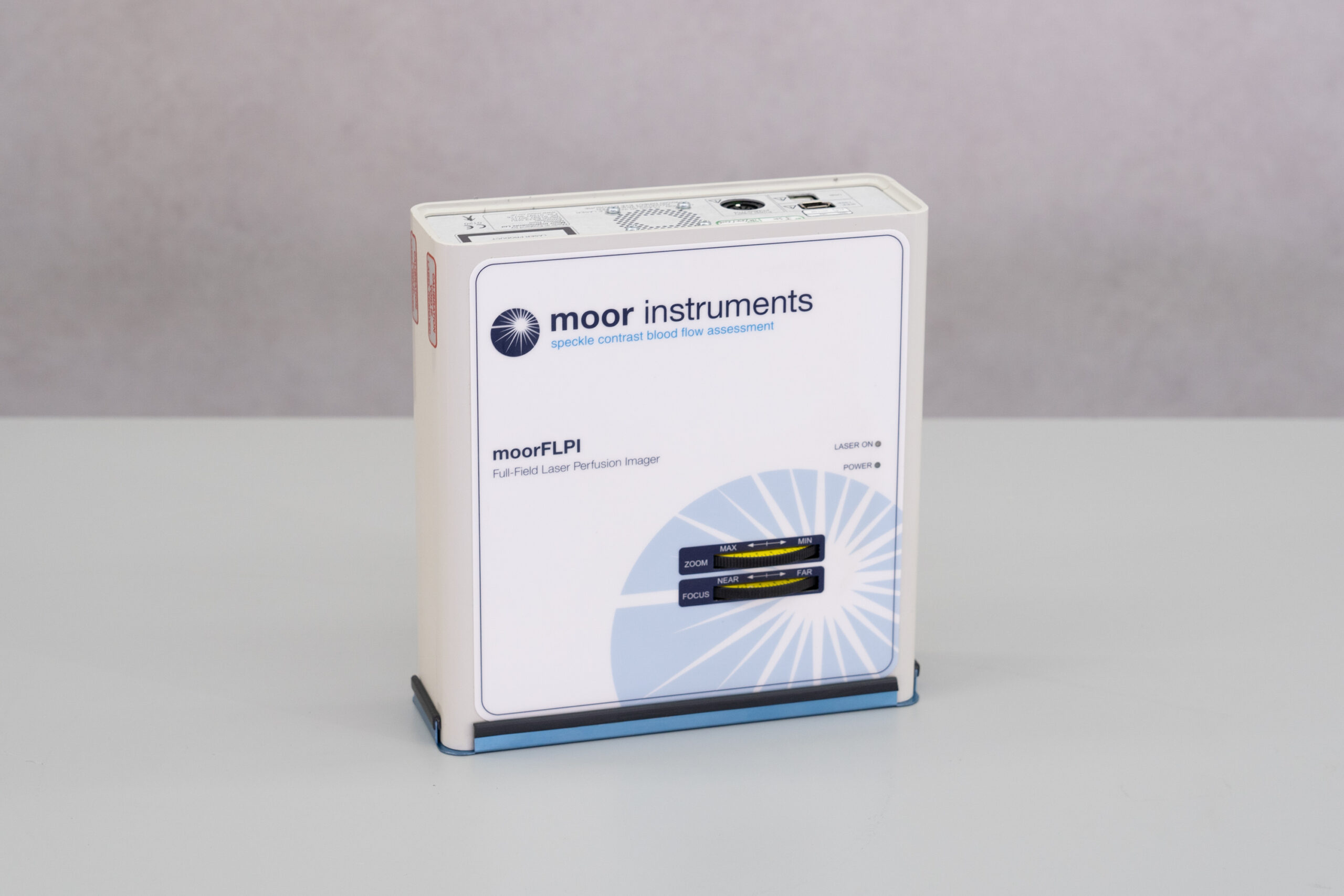

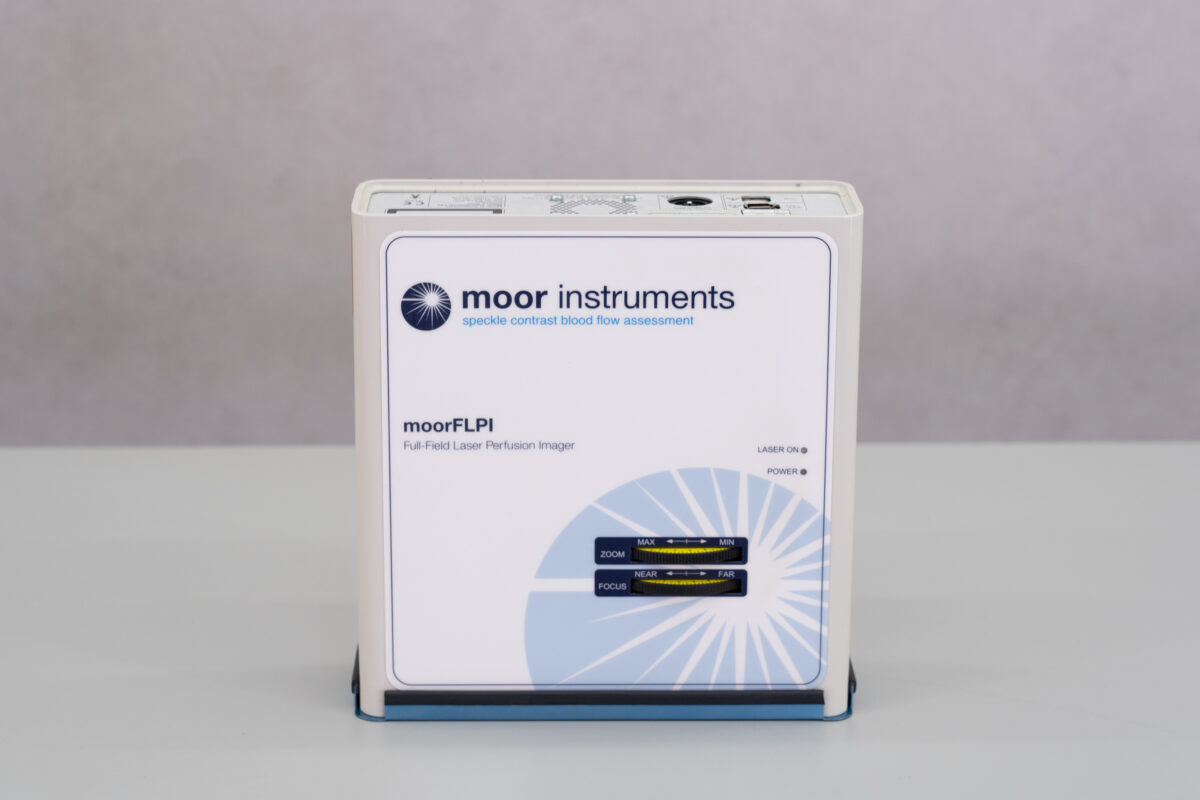

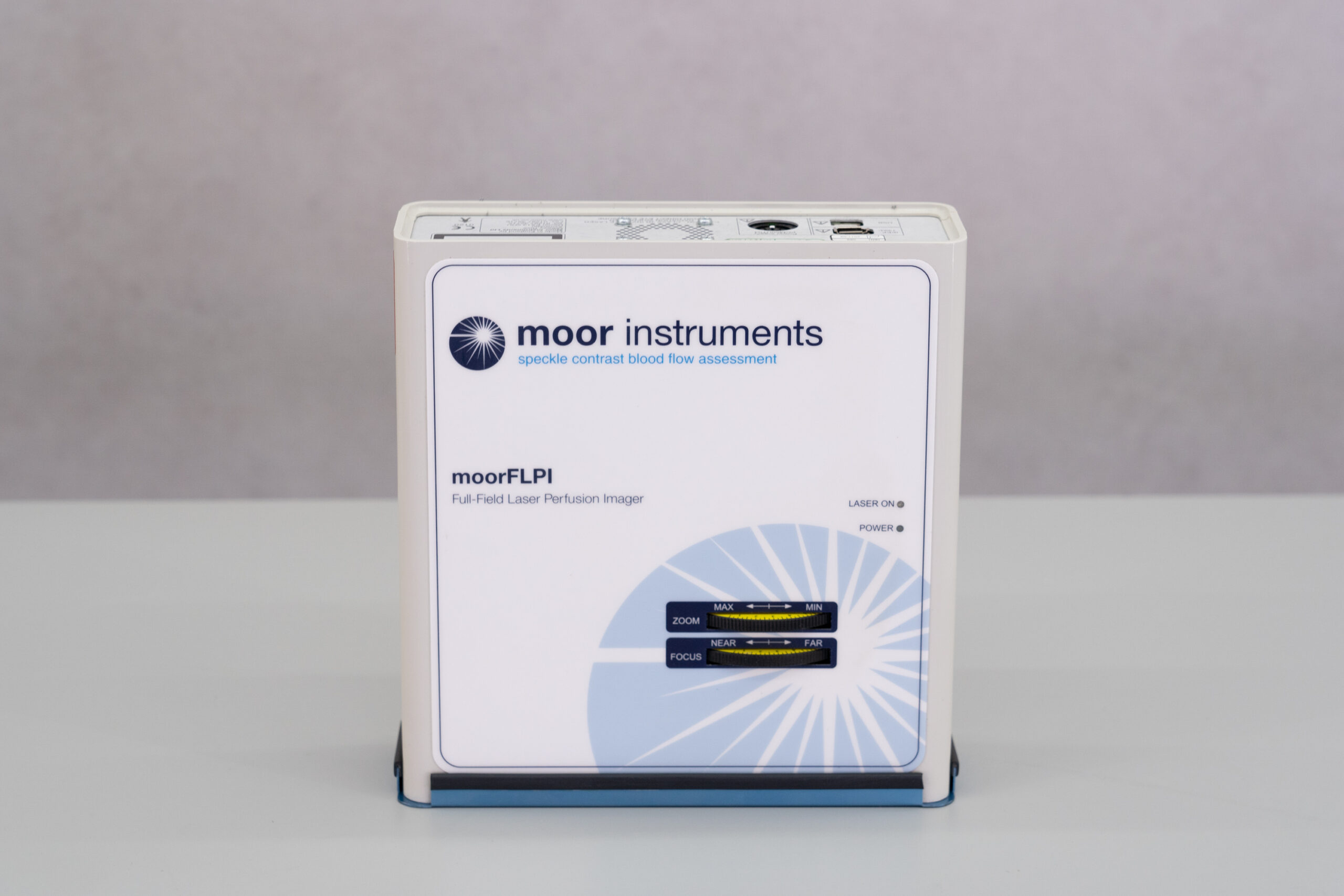

The moorFLPI blood flow imager uses the laser speckle contrast technique to provide high-resolution real-time blood flow images, delivering excellent performance in a wide range of preclinical and clinical research applications. Advanced analysis functions help to draw good conclusions from blood flow images.

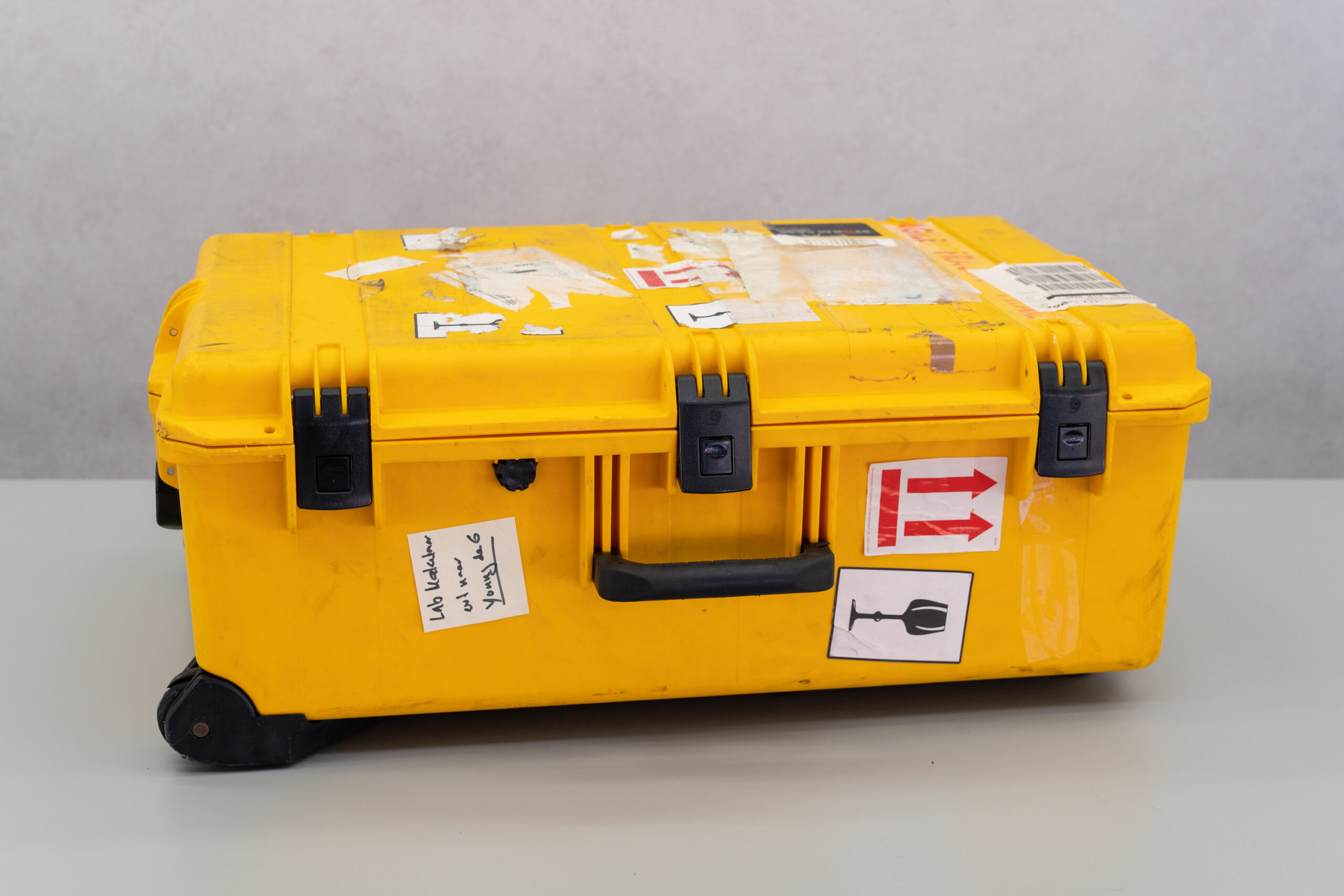

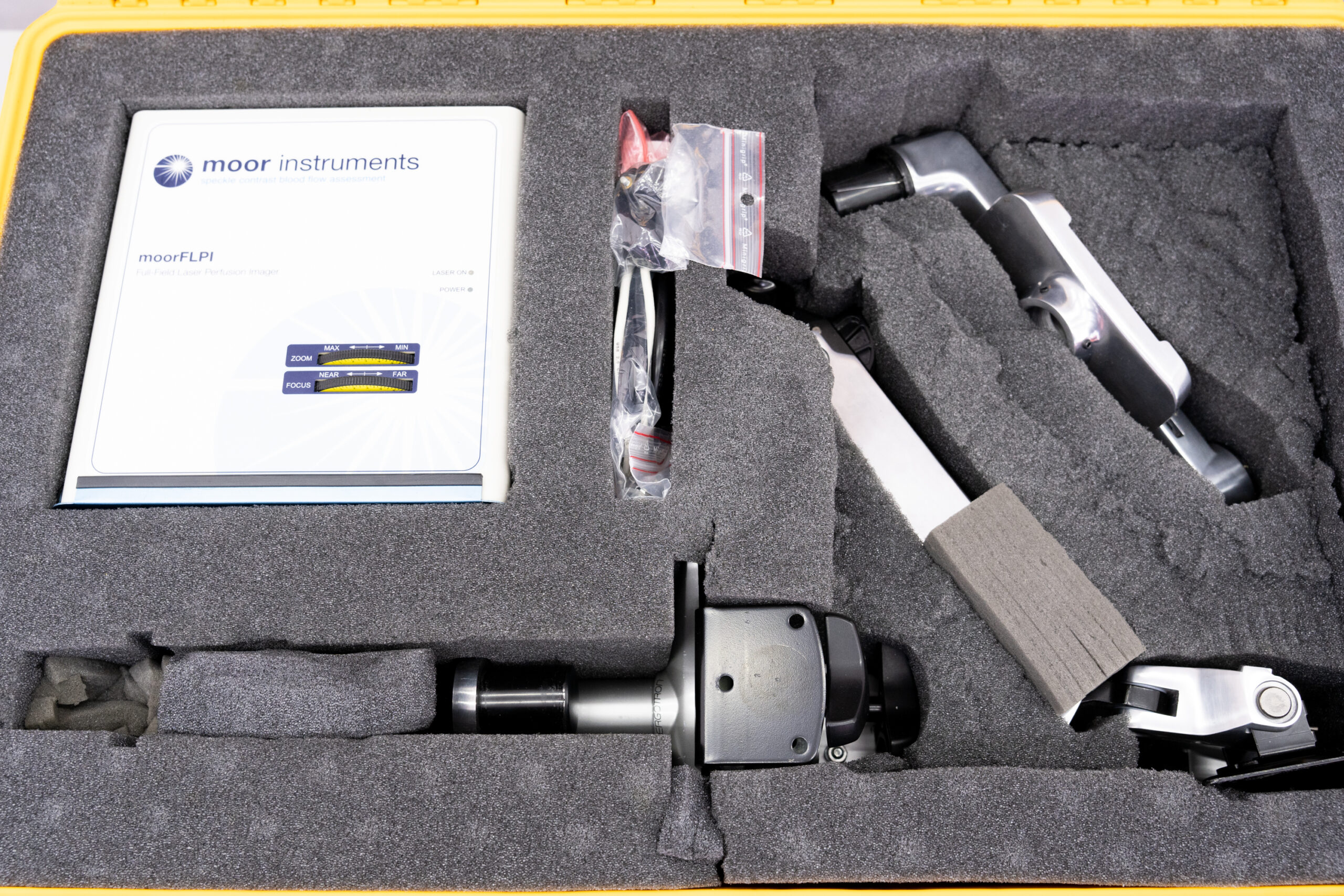

With tripod and case
Technical specifications:
Voltage: 100-230 V
Measuring principle: Contrast analysis of laser speckles.
Safe to use without eye protection.
Calibrated using temperature-controlled motility standard.
Image size from 5mm x 7mm to 15cm x 20cm
Camera/ Image resolution: 576 x 768/ 113 x 152 to 576 x 768.
Pixel resolution: lowest resolution 14,500 pixels per cm² to highest resolution of 1,000,000 pixels per cm².
Software: Based on Moor Instruments’ moorLDI software – refined over 15 years to customer requirements, including advanced image acquisition, processing, editing, functionality and analysis.
Includes tripod and the scan head has a standard camera mount for tripod mounting.
PC connections: 1 x USB and 1 x Firewire port (IEEE1394). Suitable for laptop/desktop or panel PC
External dimensions (W) x (D) x (H): 22 x 23 x 8 cm
Weight: 1.85kg
