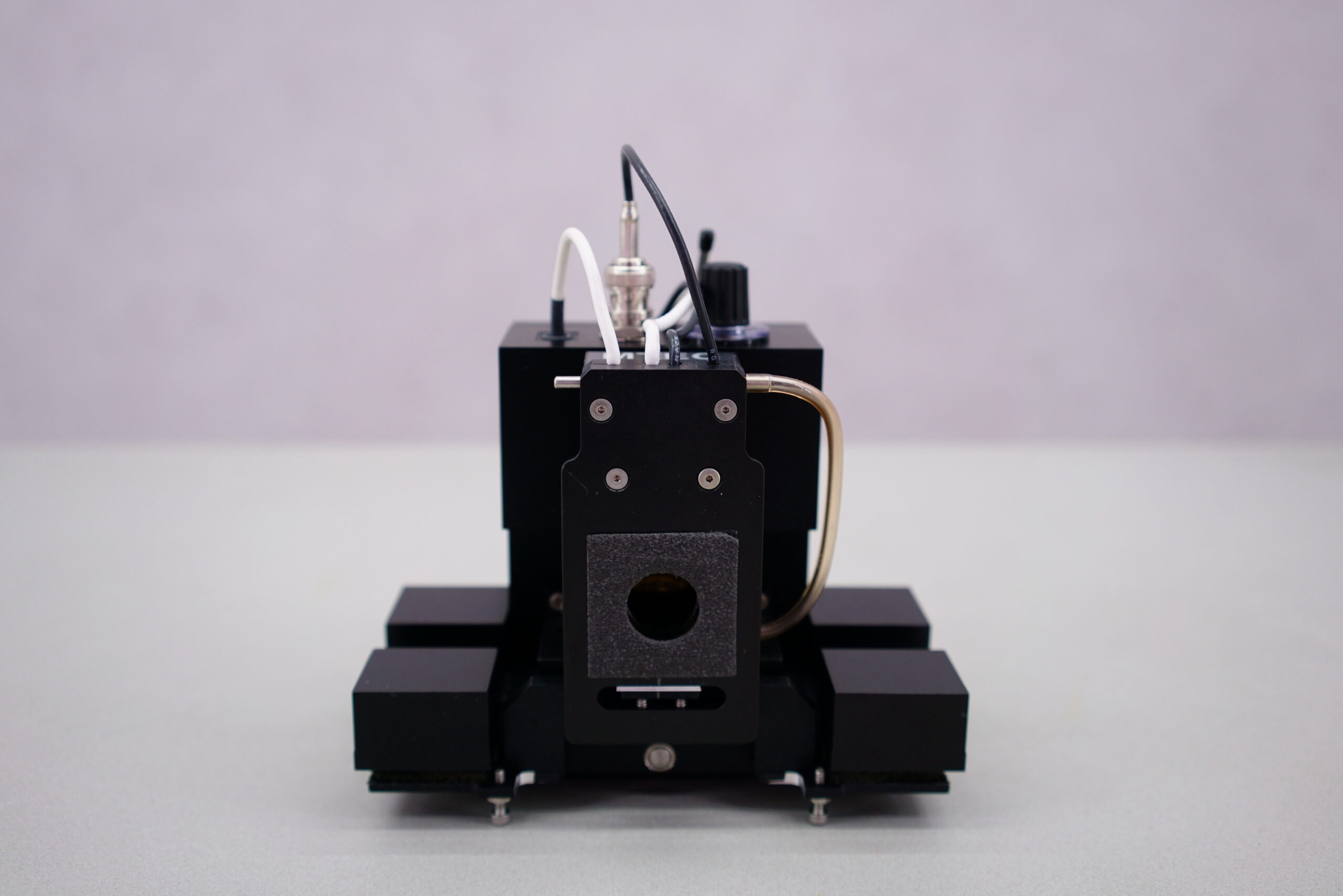

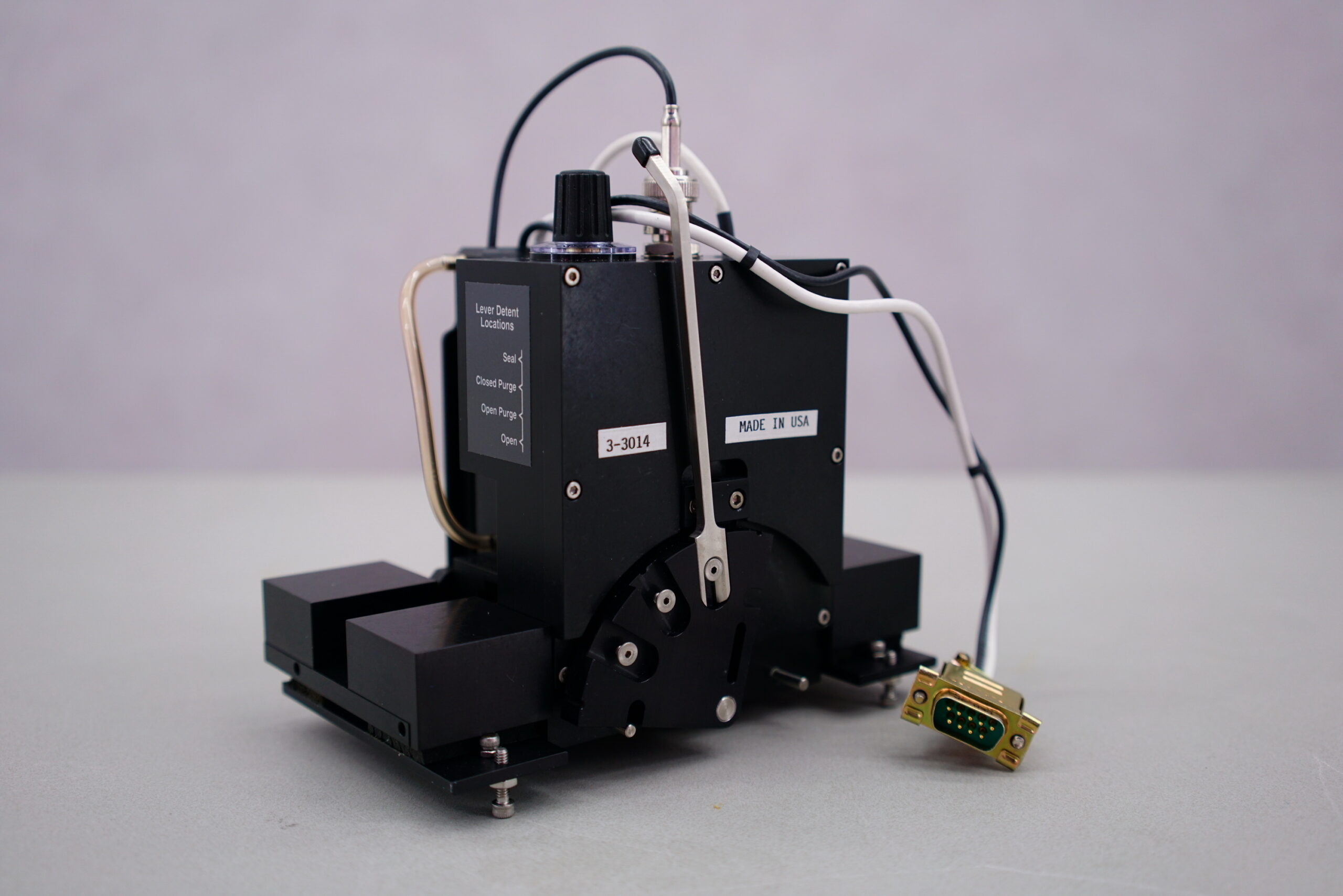

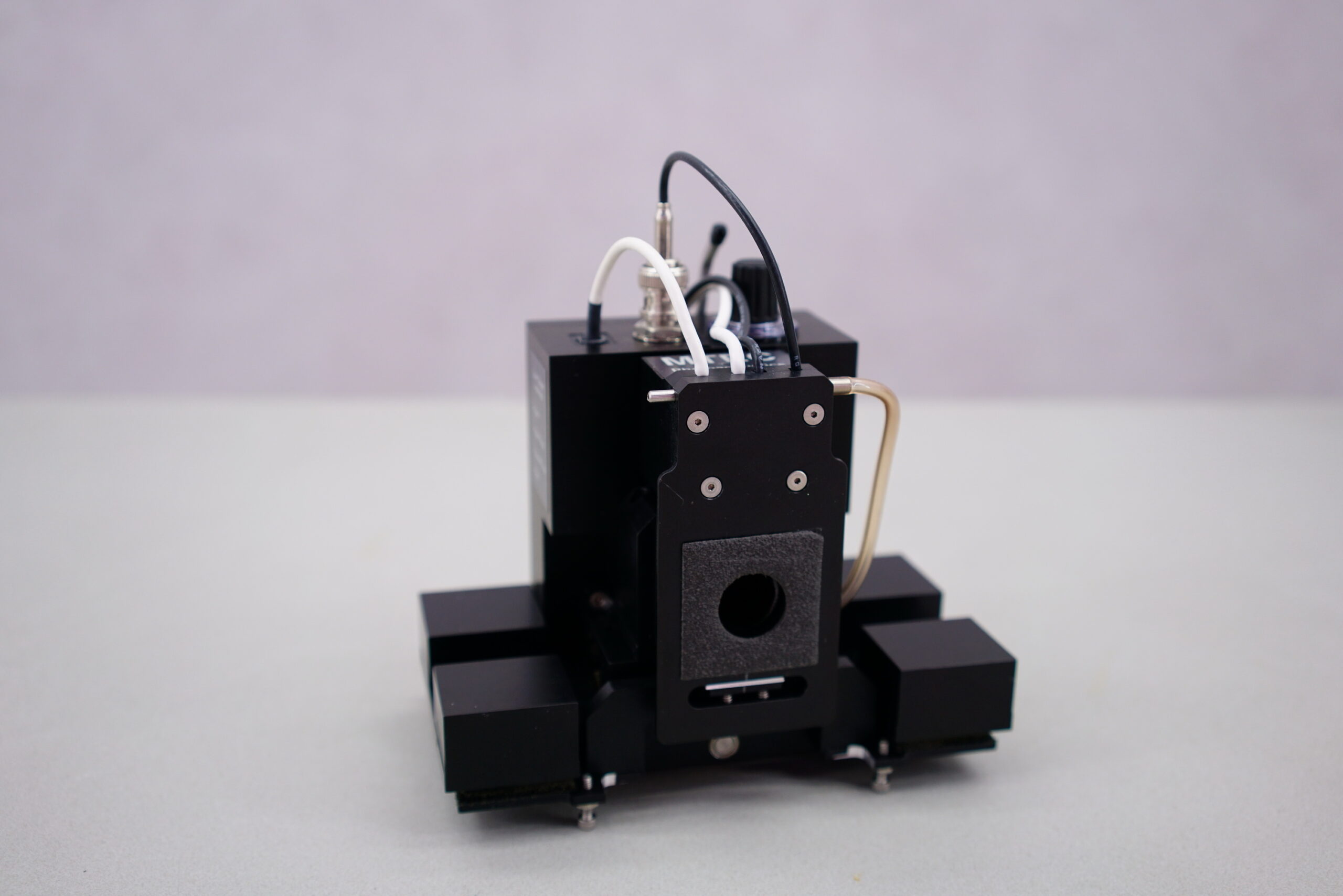

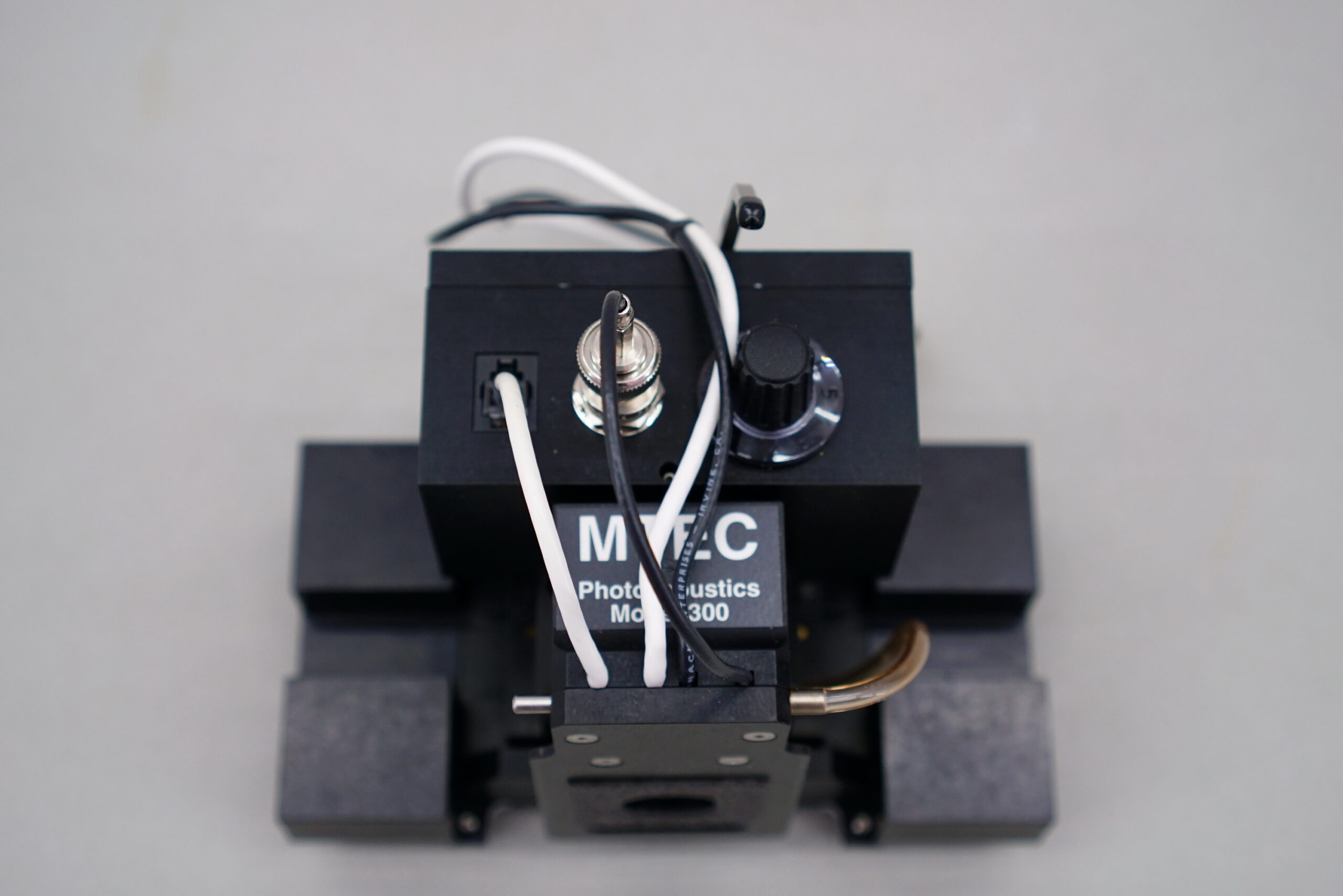

This PAC300 detector is suitable for several FTIR’s, other than Thermo-Nicolet, Agilent-Digilab-BioRad and
Perkin Elmer.
The PAC300 photoacoustic detector increases laboratory productivity by quickly measuring FTIR spectra of solid, semi-solid, and liquid samples in any form without sample preparation. The PAC300’s operating modes include depth profiling, photoacoustic absorbance, diffuse reflectance and transmittance with capabilities for both macro and microsamples. No other single accessory provides such a wide range of applicability.
Some of the features are:
- Optimized Spectra
- Photoacoustic Detection
- Controlled Sampling Depth
- Multisampler Operation
- Handles macro- and micro-samples with little or no preparation.
- Operates in diffuse reflectance, absorbance, and transmittance modes to best fit sample properties
- Automatic purge valve control
- FTIR slide mount compatibility Provides a single accessary solution for most solid and semi-solid analyses
- Allows rapid sample change without breaking FTIR purge
- Operates in all FTIR manufacturer’s instruments and spectral regions
- Compatible with qualitative and quantitative FTIR applications software
Specifications:
Peak-to-peak noise: less than 0.2% at 2000/cm-1 for 8/cm-1 resolution
Microphone nominal sensitivity: 50 mV/Pa
Mirror focusing factor: 2 to 1
Spectral range defined by window material: (KBr standard, UV to 400/cm)
Gain range: 2-10,000 in 12 steps
Slide: mountable
Maximum sample size: 10 mm diameter 8 mm height
Shipping weight: 5 kg
