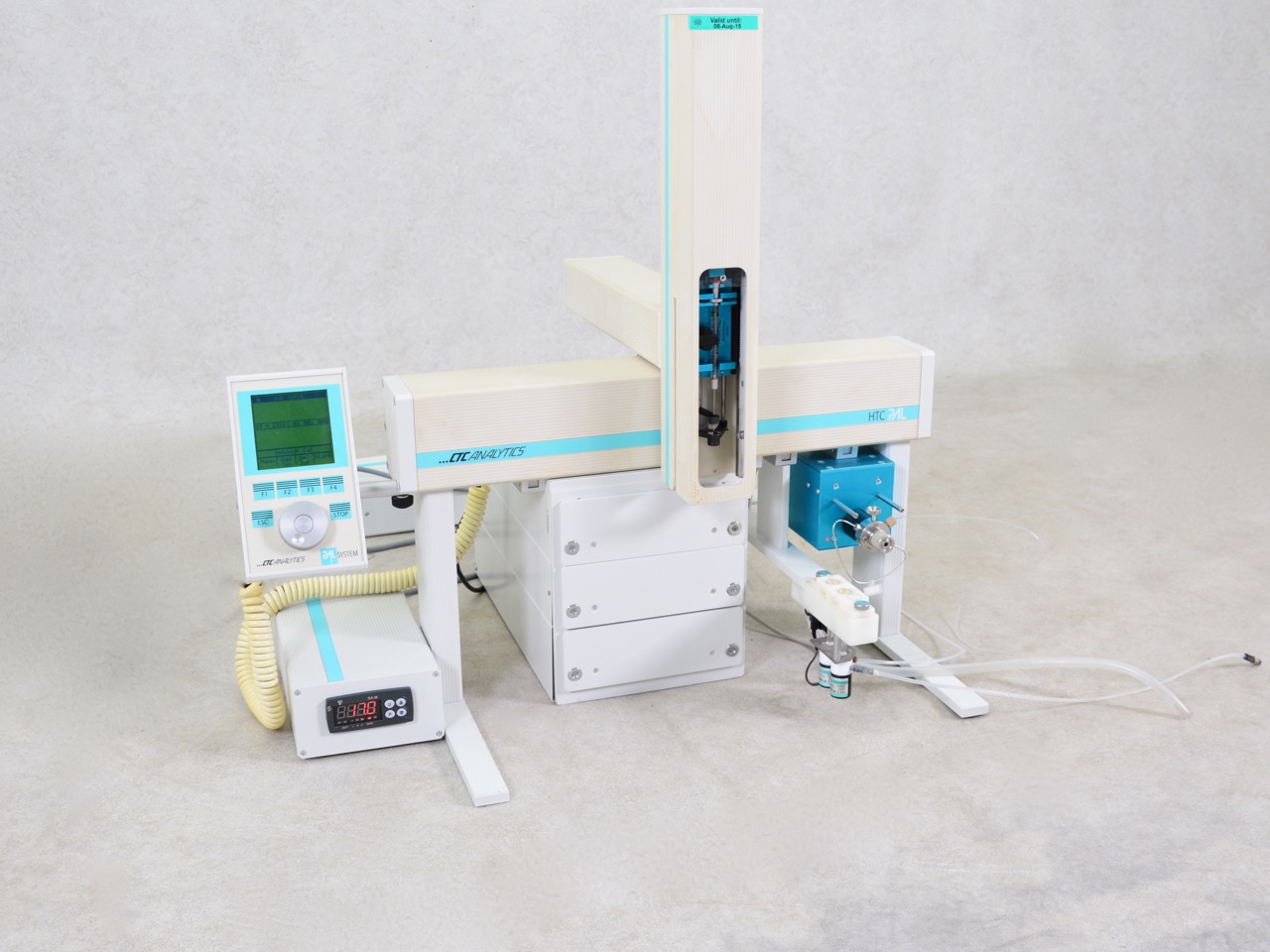

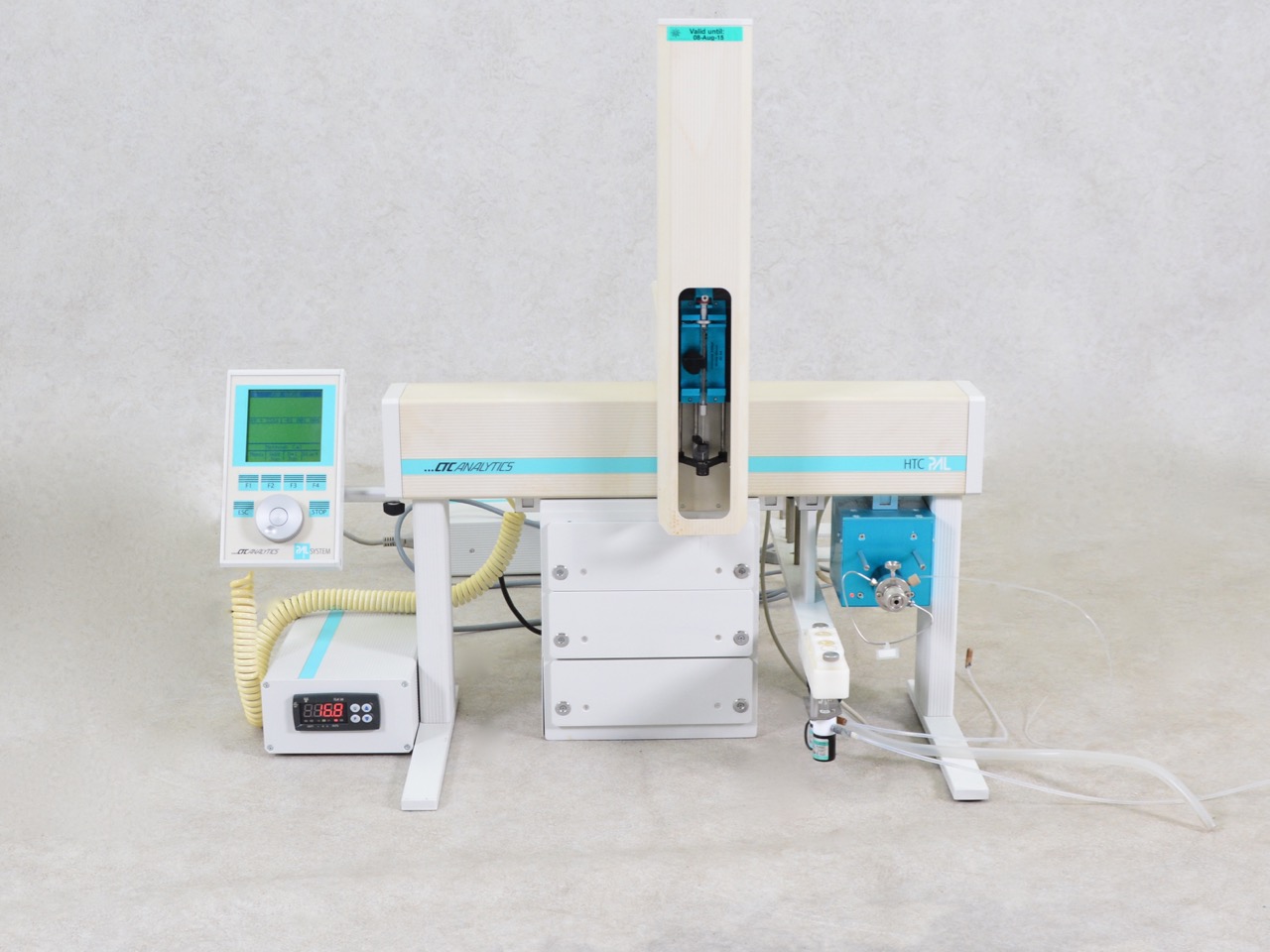

PAL HTC Autosampler

Autosampler from PAL, type HTC.

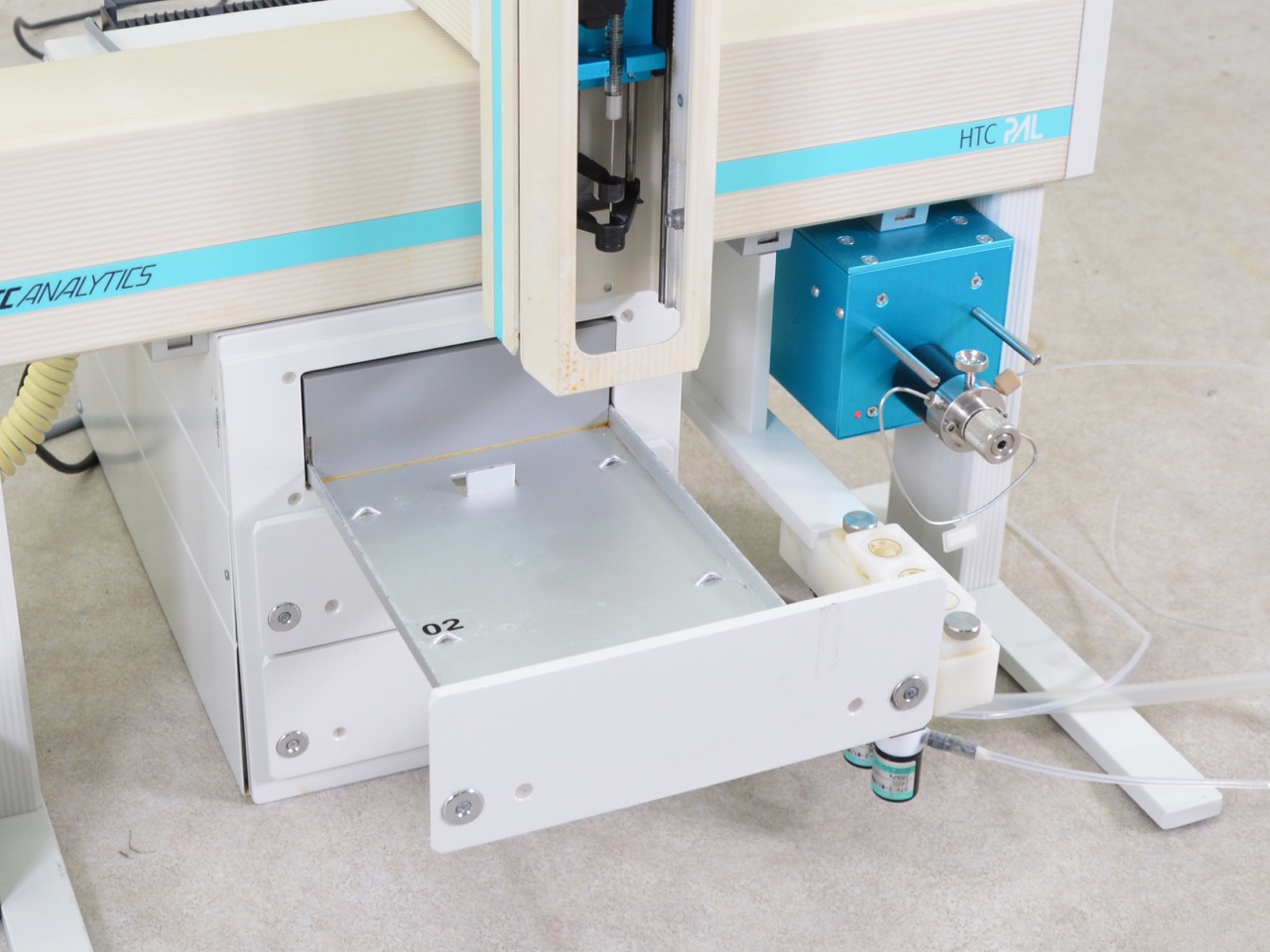

The drawers have Peltier temperature regulation.
Technical specifications:
Voltage: 220-240V, 50/60Hz
Power: 150VA
Capacity:

12x 96-deep well plates
or
24x 96-well plates
or
648x 2 ml tubes


A combination of 96-well/deep well and 2 ml tubes is also possible.
Injection range: 10 µl up to 100 µl
External dimensions (W) x (D) x (H): 68 x 59 x 65 cm
