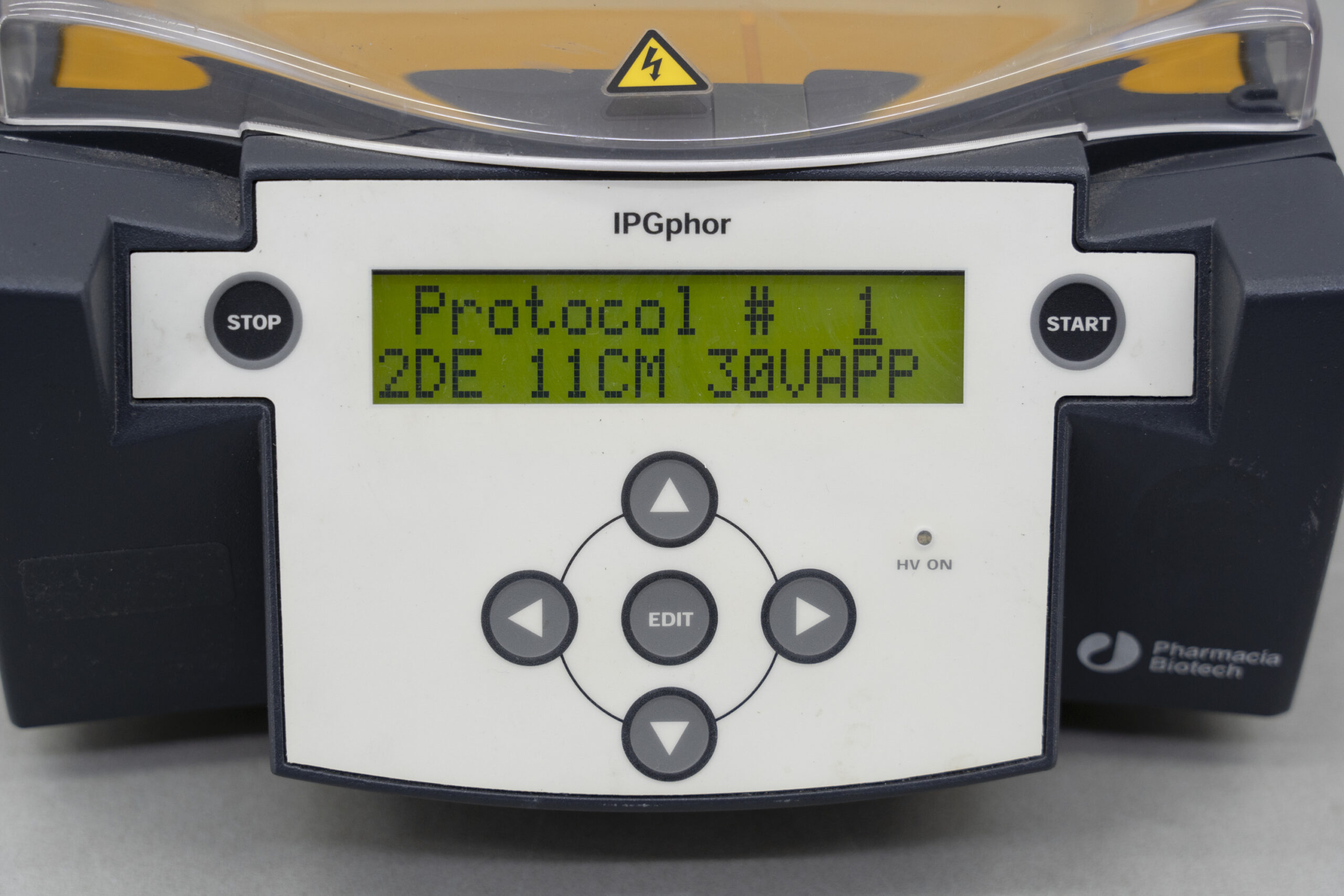

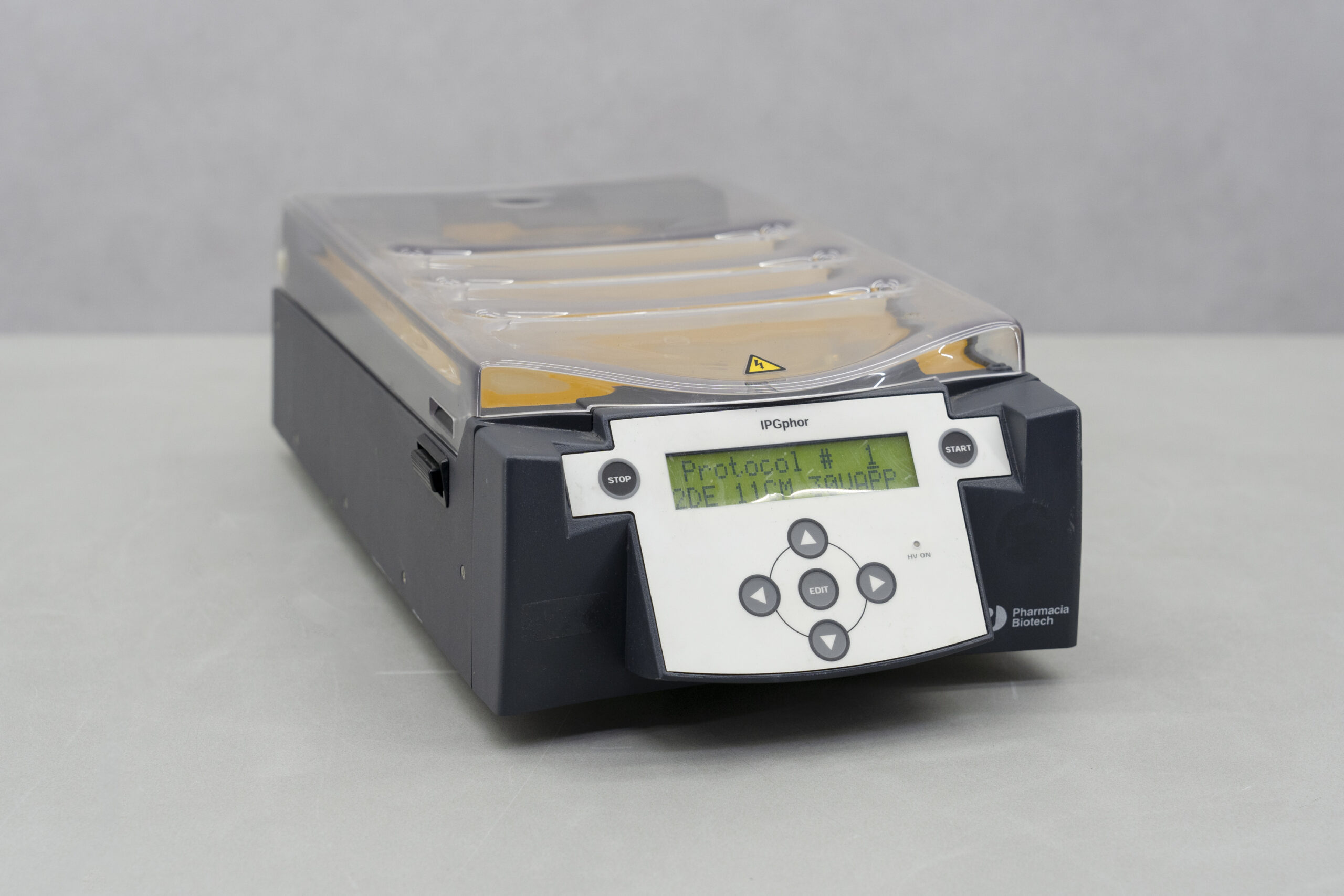

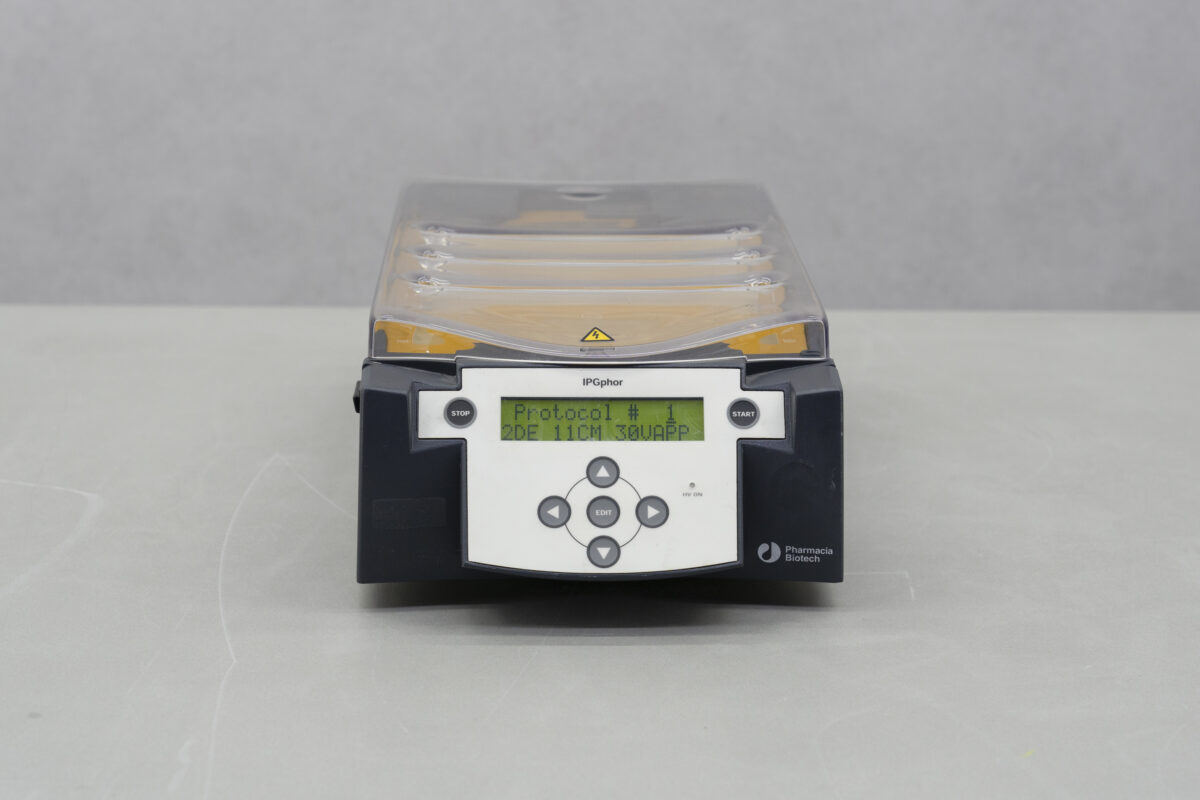

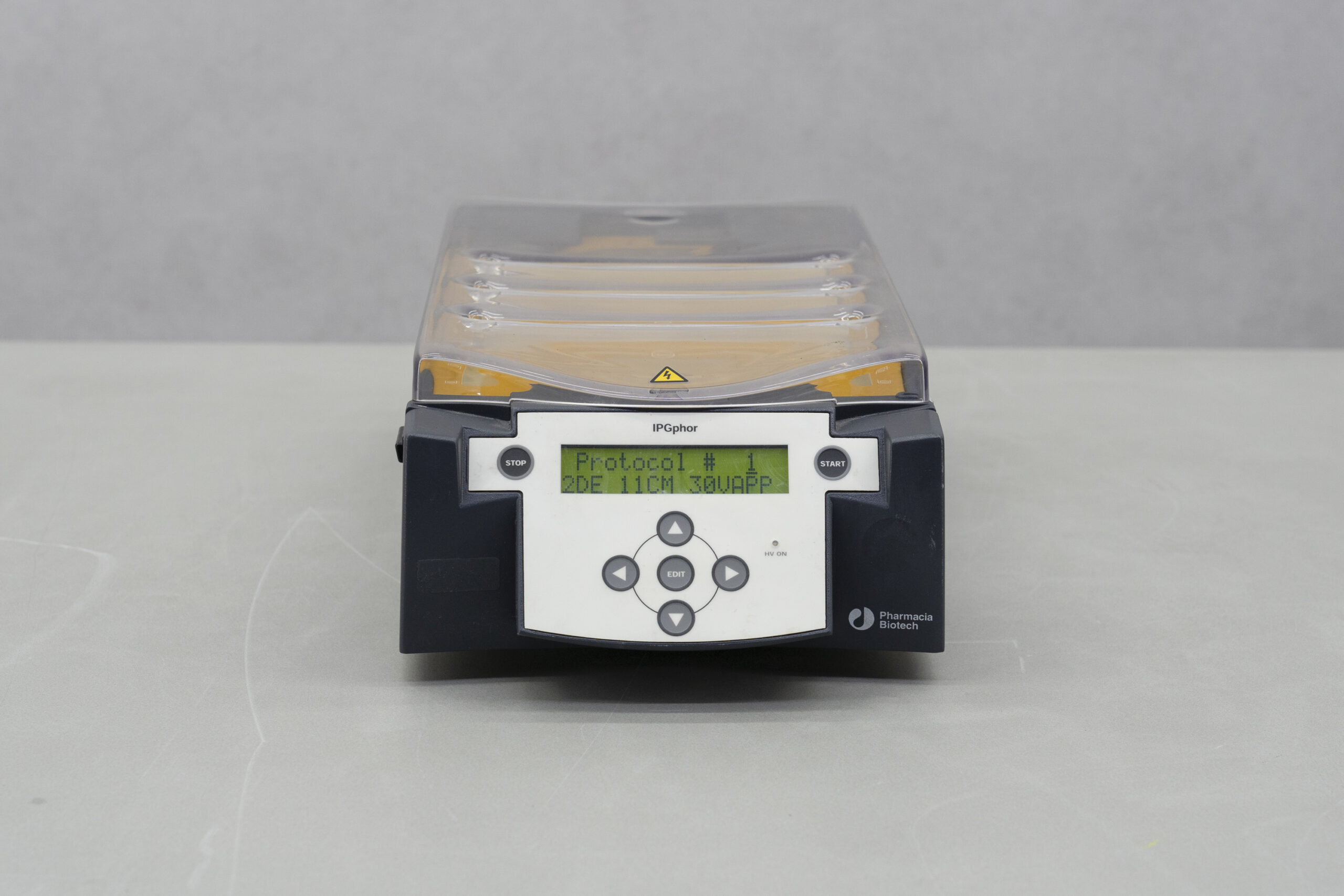

The Pharmacia Biotech IPGphor Isoelectric focusing system performs isoelectric focusing (IEF) in the first dimension in two-dimensional (2D) electrophoresis. The IPGphor unit features a high-voltage DC power supply, temperature control and can be programmed with ten IEF protocols.
Technical specifications:
Voltage: 115/230 V
Current: 1.5A
Power: 100W
Work surface: Electrode areas Gold-plated copper
Capacity of strip holders Up to 12 fixed lengths
Platform temperature: 18–25 °C
Operating environment: Temperature 15–35 °C
Relative humidity: 0–90%
External dimensions (W) x (D) x (H): 23 x 45 x 14 cm
Weight: 6.8kg
