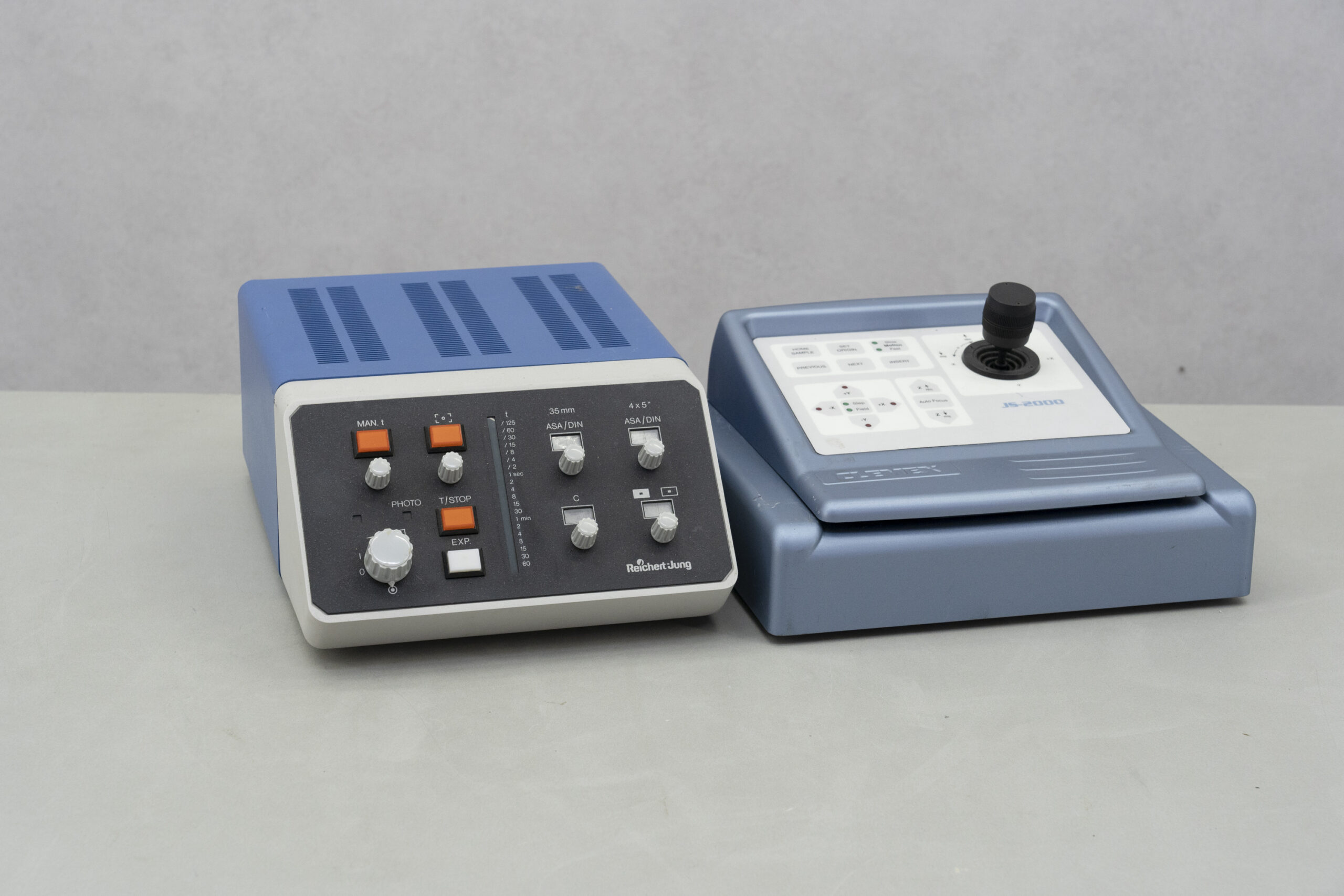

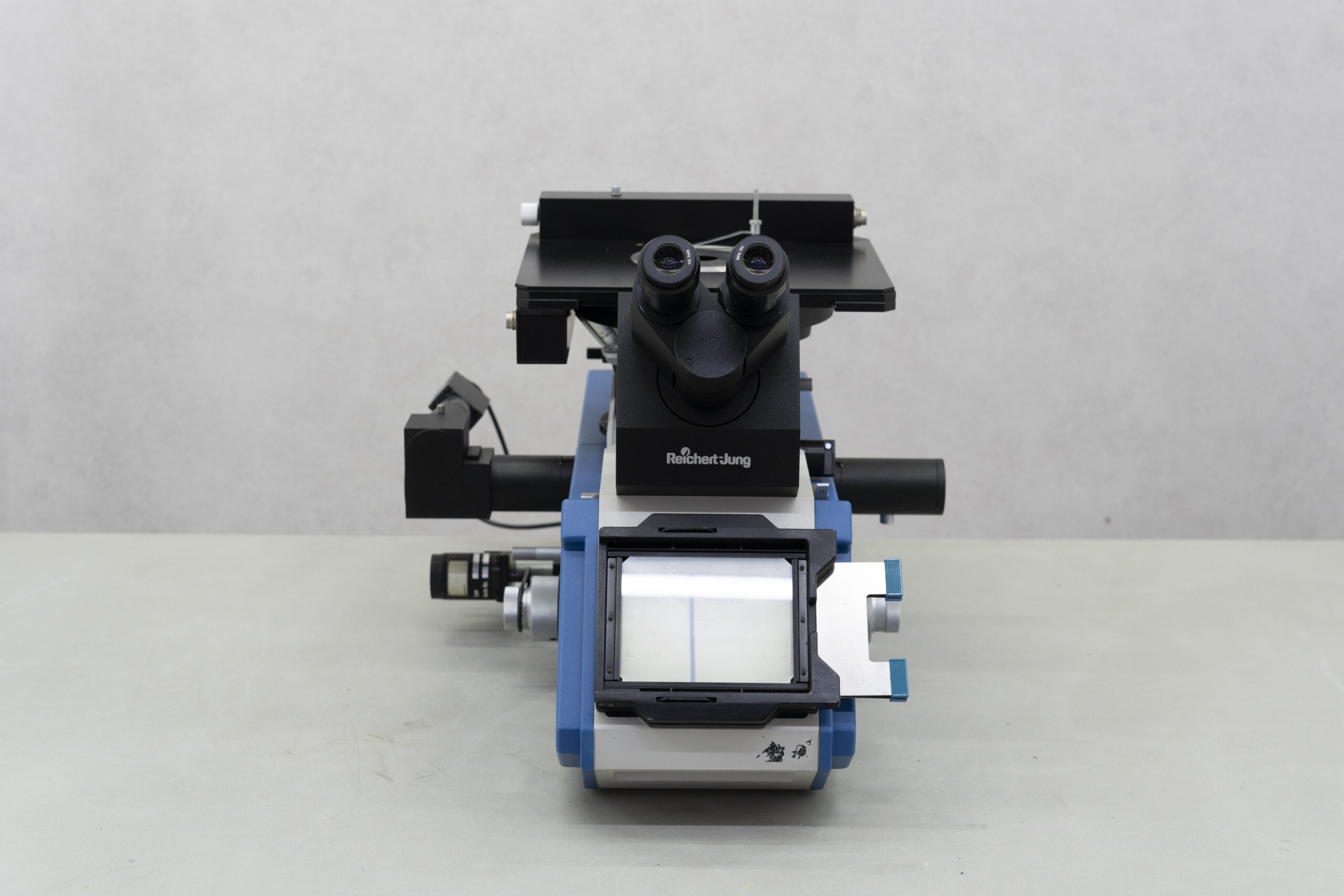

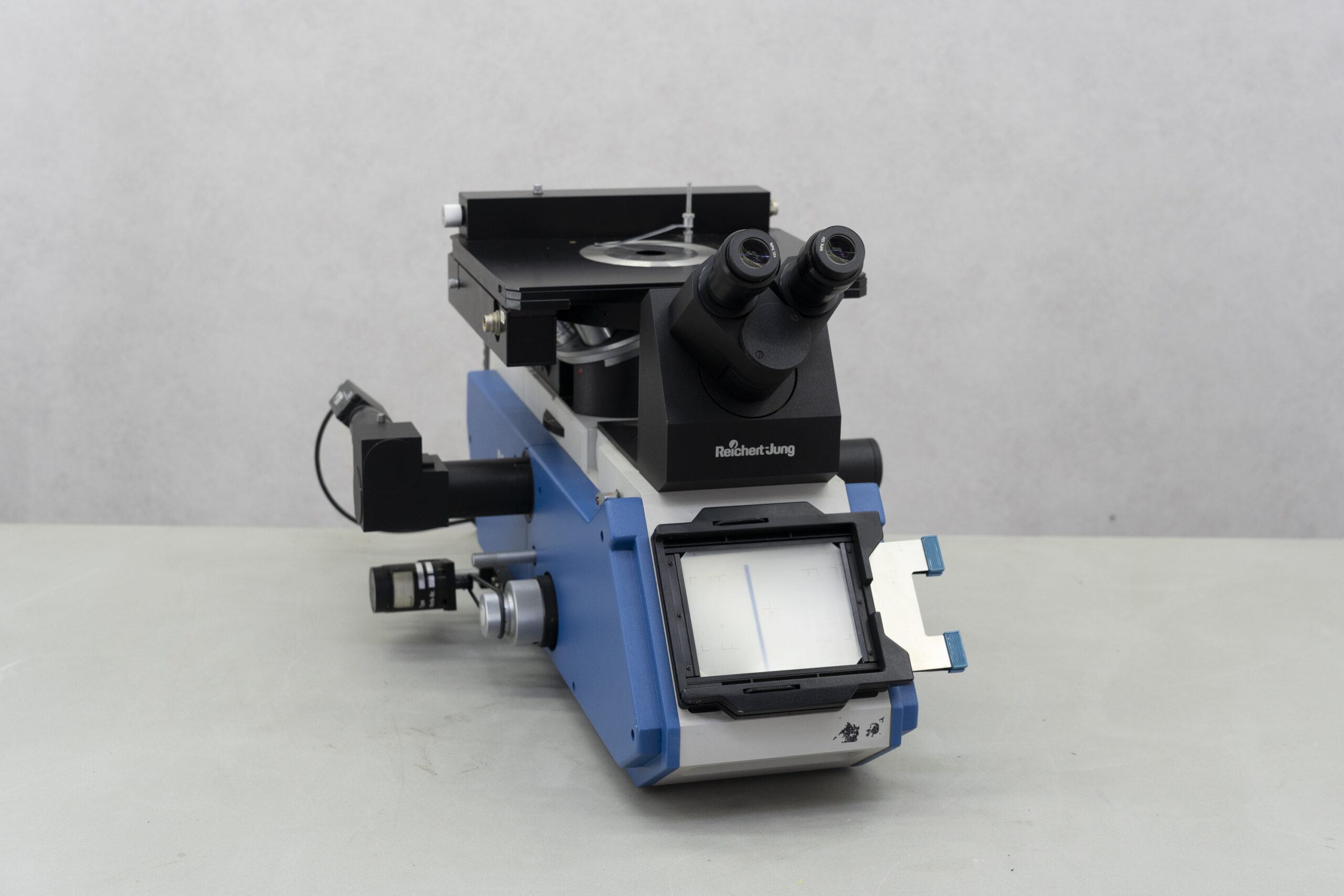

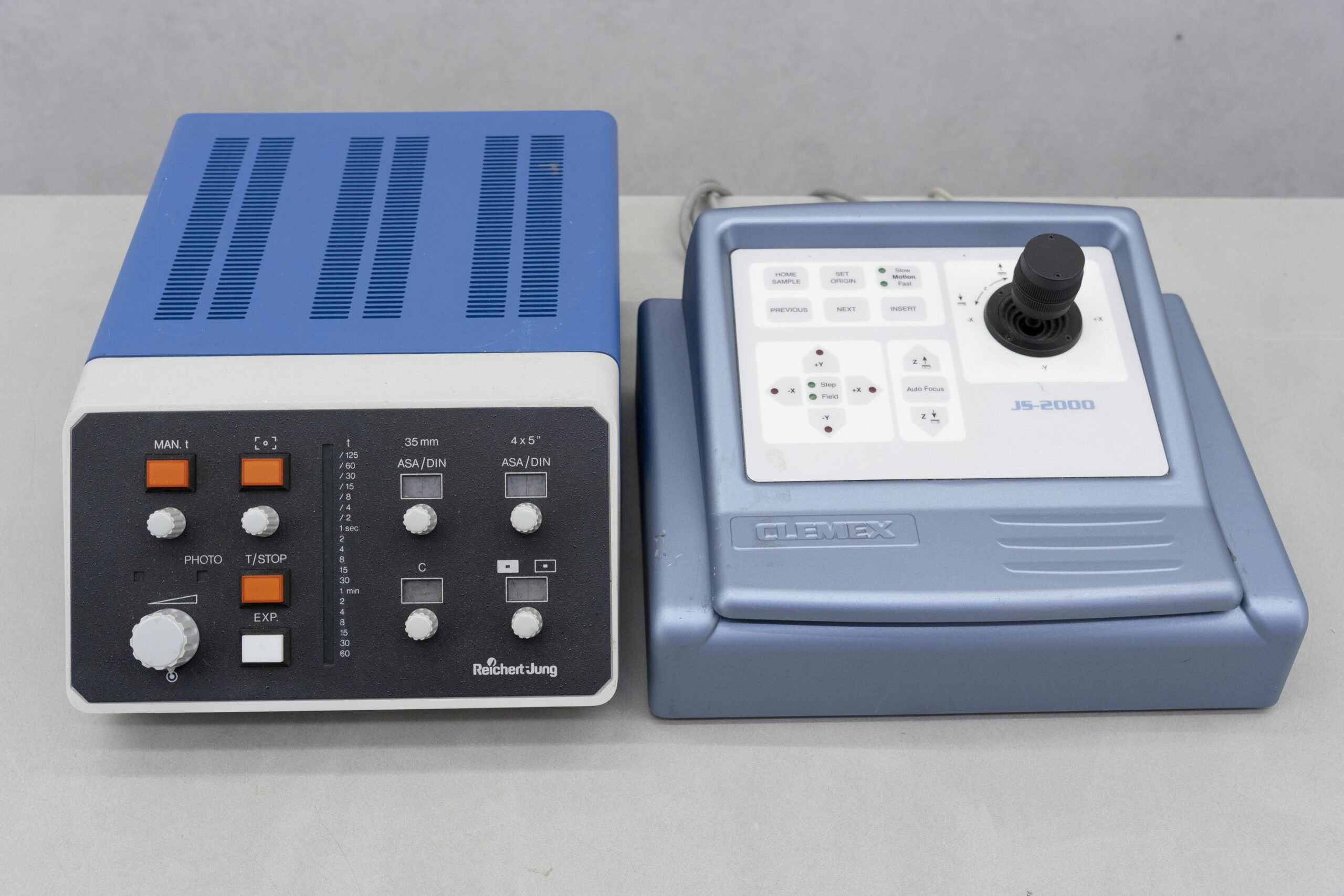

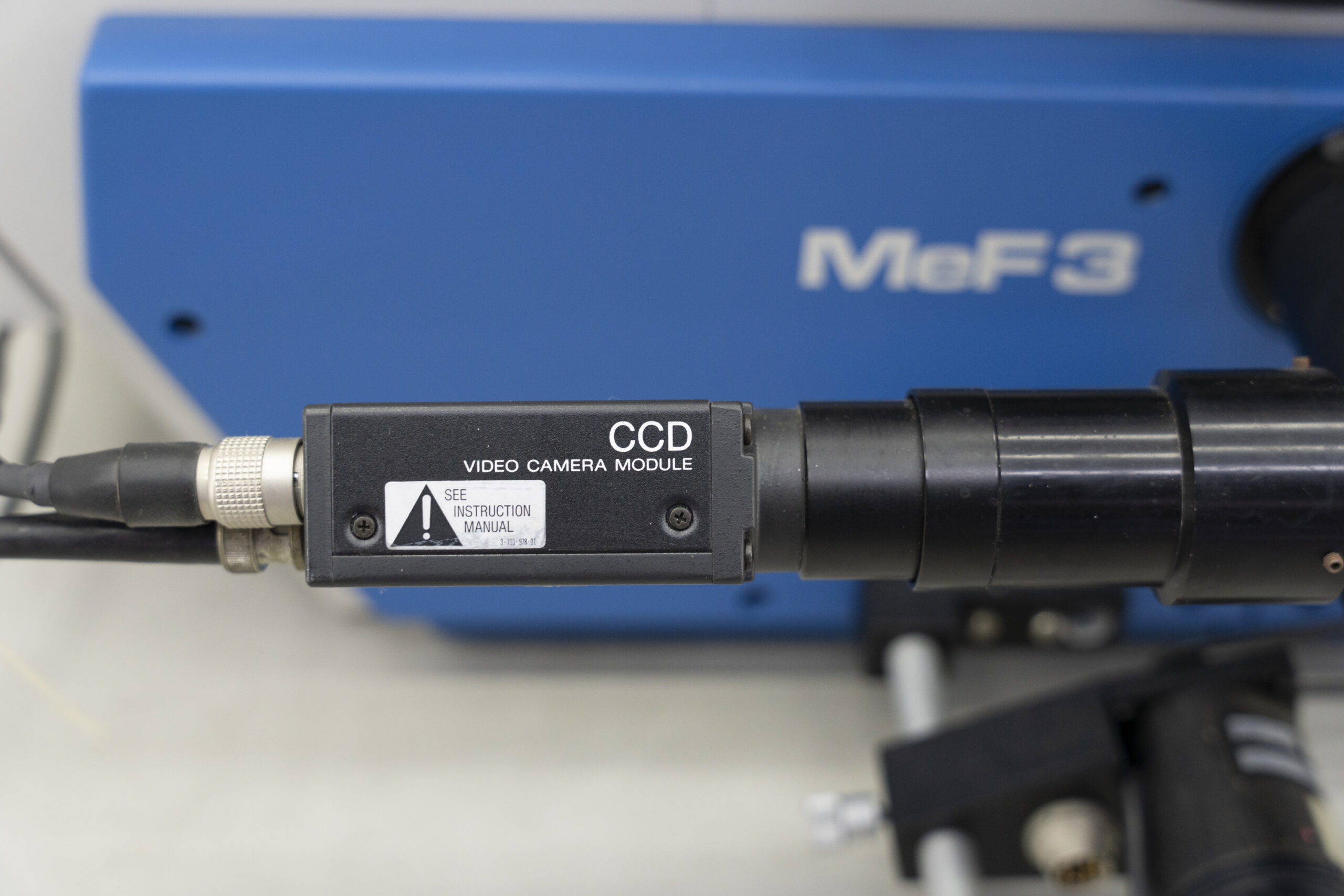

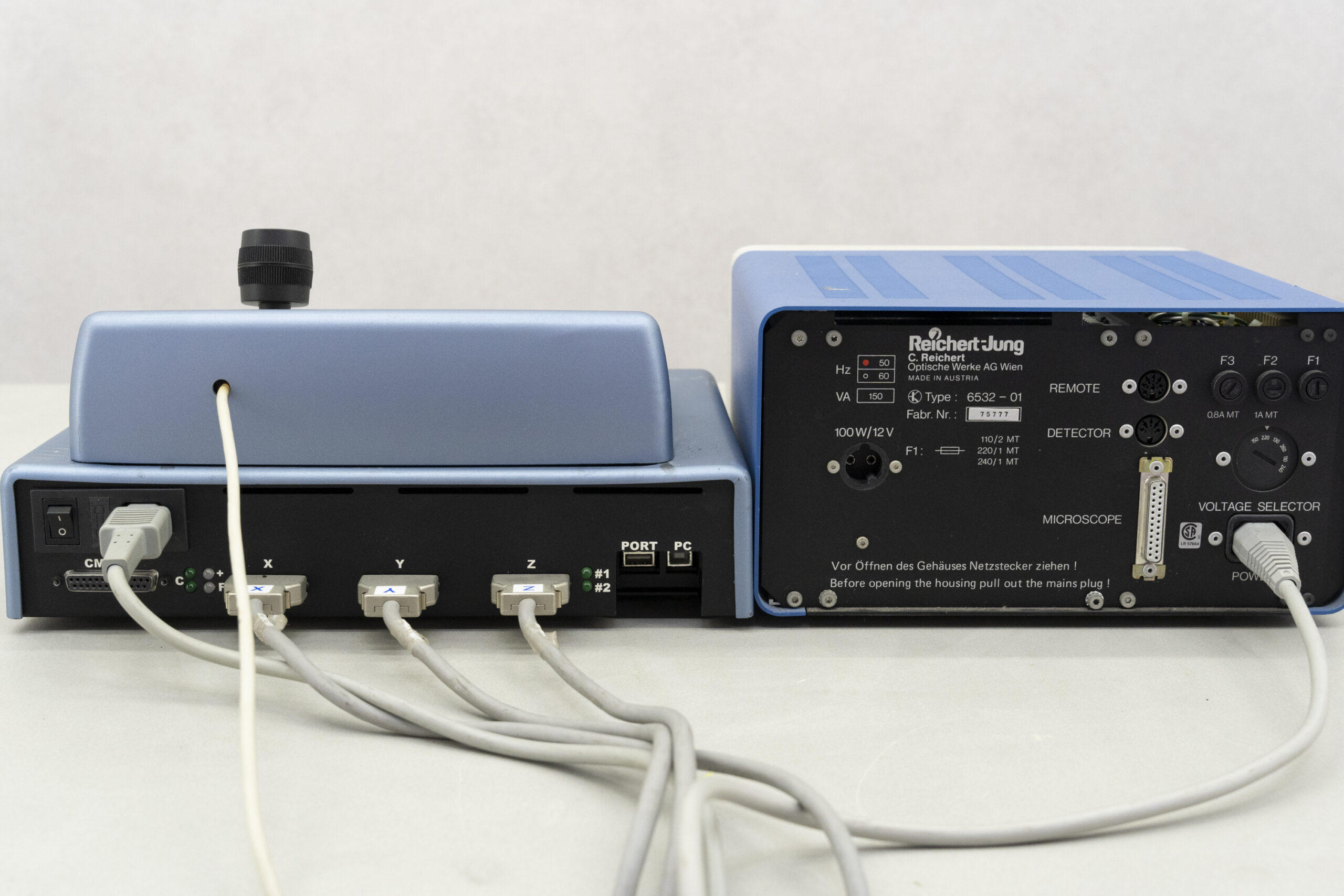

The Reichart-Jung MeF3 Metallurgical Microscope with Clemex joystick is a traditional inverted microscope that can be used to analyze a variety of materials from ceramics to thin films. Being an inverted microscope, it has a natural advantage when it comes to photographing flat-polished samples, eliminating the negative effects of grinding and polishing, such as chamfering.
Imaging mode
Multiplier wheel lenses
long working distance: 20x
equipped with tungsten halogen lamp and high power arc lamp
Image modes: bright field, dark field, polarized, DIC
Objective lenses – 2x, 5x, 10x, 20x, 50x, 100x, 150x
Auxiliary lenses – 0.8x, 1x, 1.25x, 1.6x

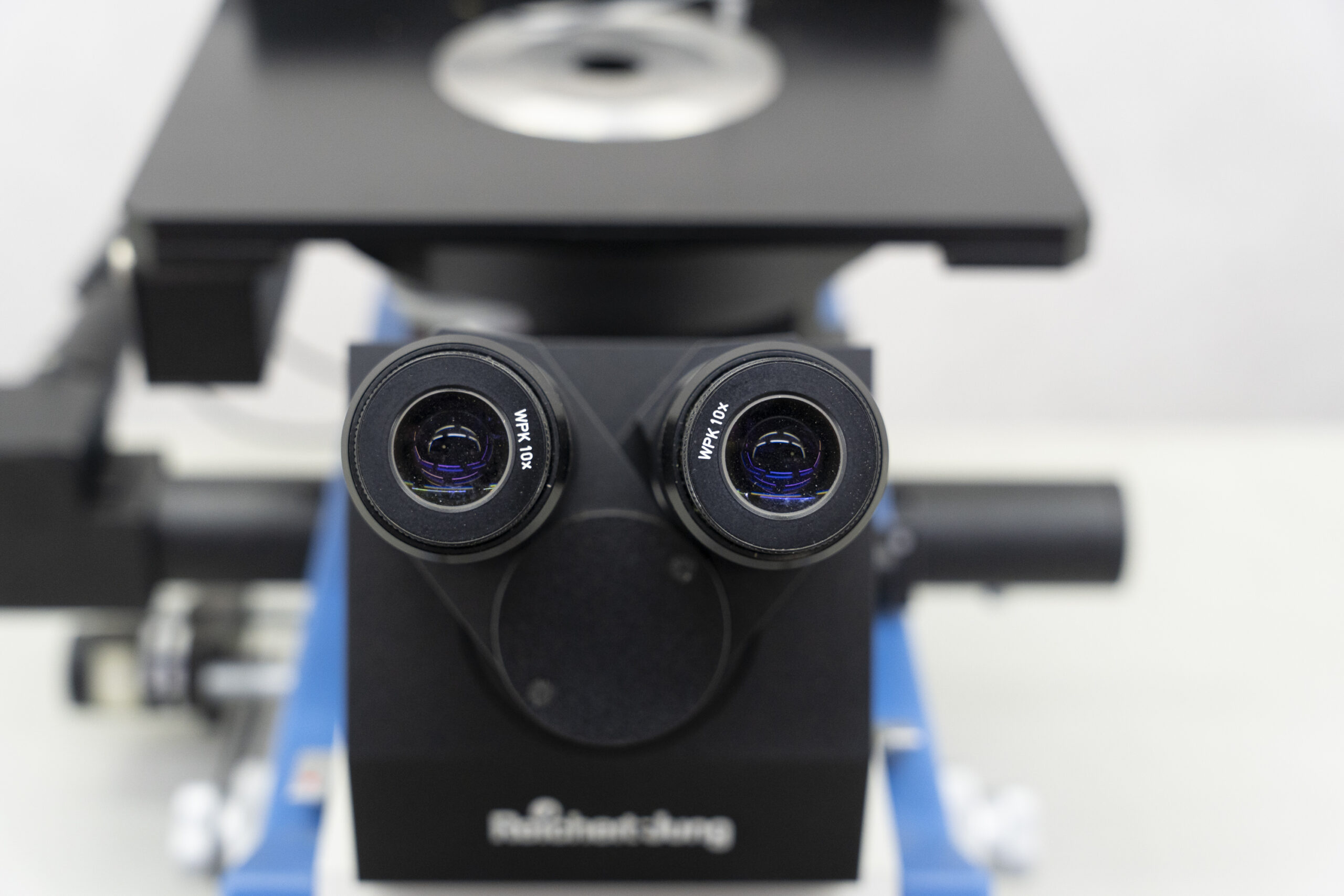

Eyepiece lens – 10x
Technical specifications:
Voltage: 220-240 V
External dimensions (W) x (D) x (H): 47 x 74 x 43.5 cm
