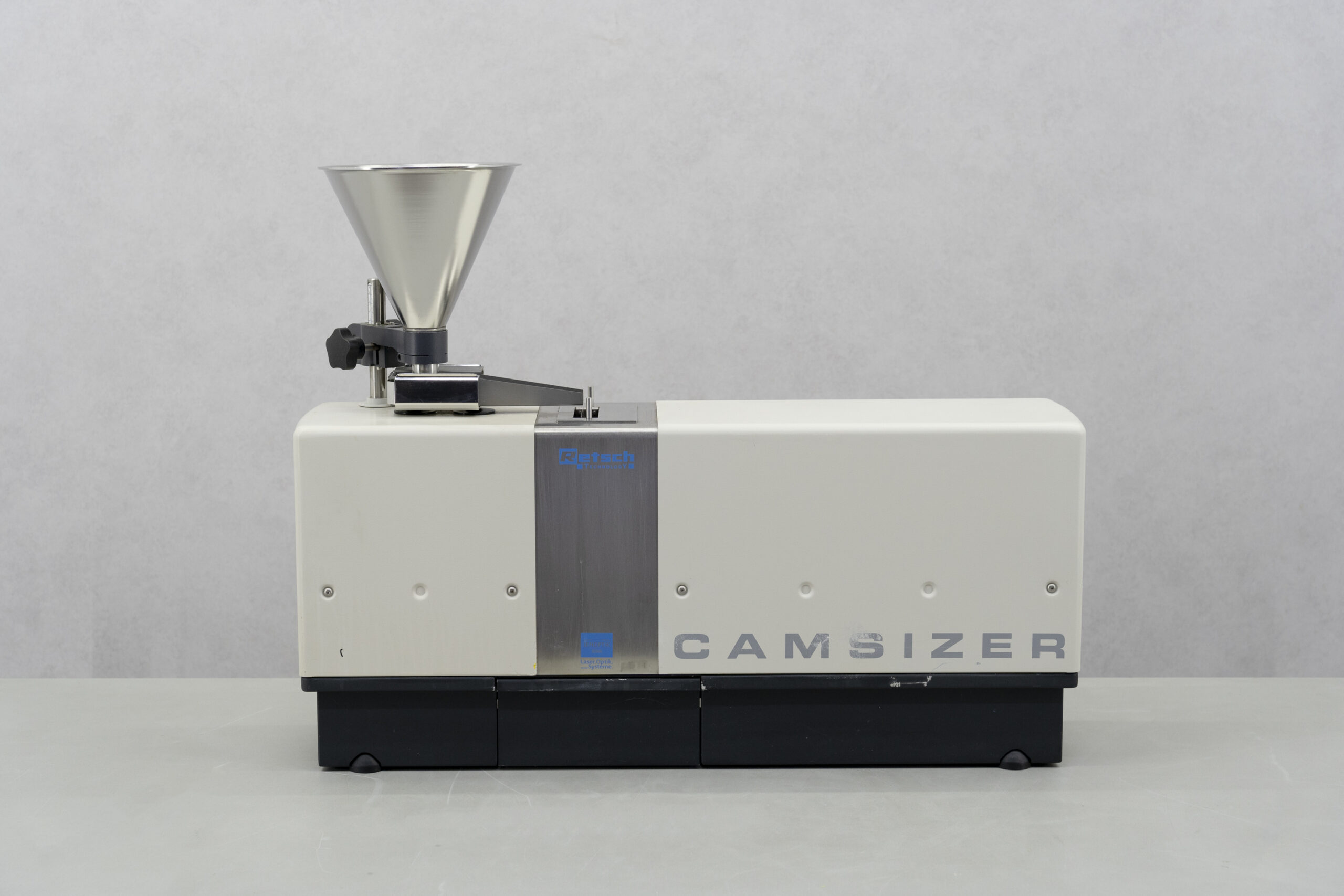

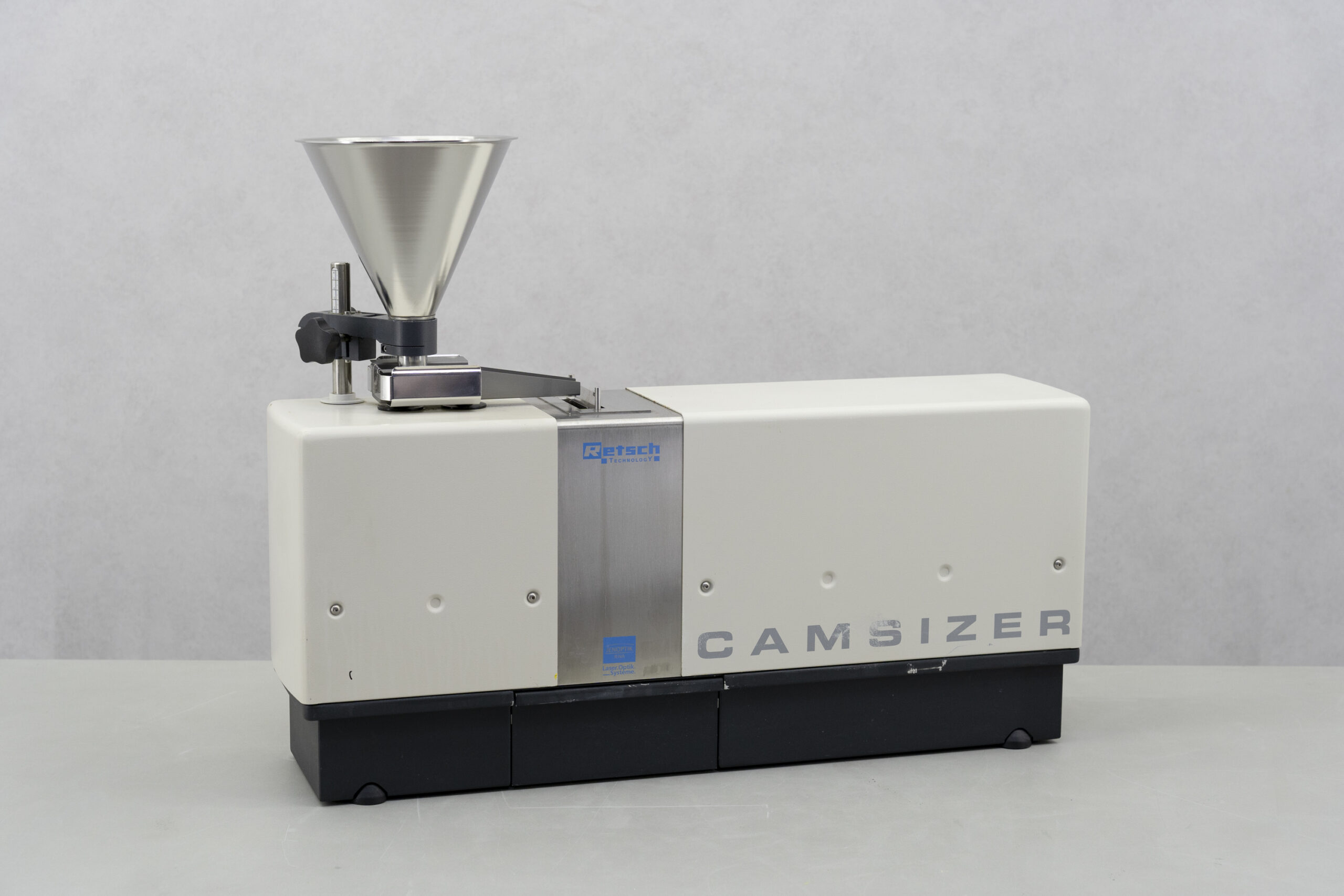

Retsch/Jenoptik Camsizer particle size-shape analyzer uses a modern particle characterization method to determine size distributions and shape parameters. It enables fast analyzes with excellent accuracy and reproducibility over an extremely wide measurement range. Includes cables and network card/PC interface cards, no software and not tested.
Technical specifications:
Voltage: 230 V
Power: 35W
Measuring range: 0.8 µm to 8 mm
Measurement time: 1 – 3 min (depending on desired measurement statistics)
Number of cameras: 2
Sample volume < 20 mg – 500 g (depending on sample type and measurement mode)
Safety level: IP50
External dimensions (W) x (D) x (H): 26 x 40 x 62 cm
Weight: 50 kg
