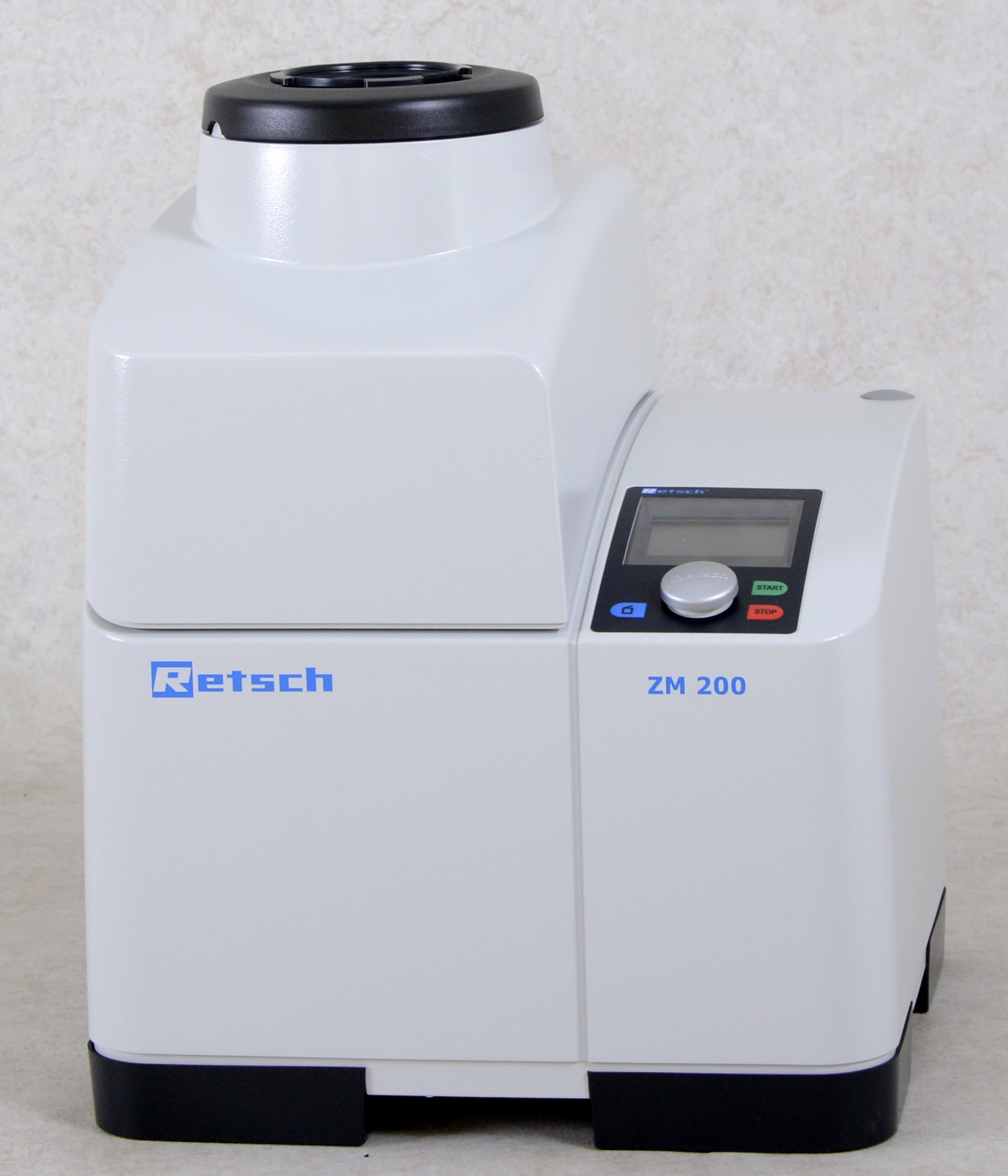

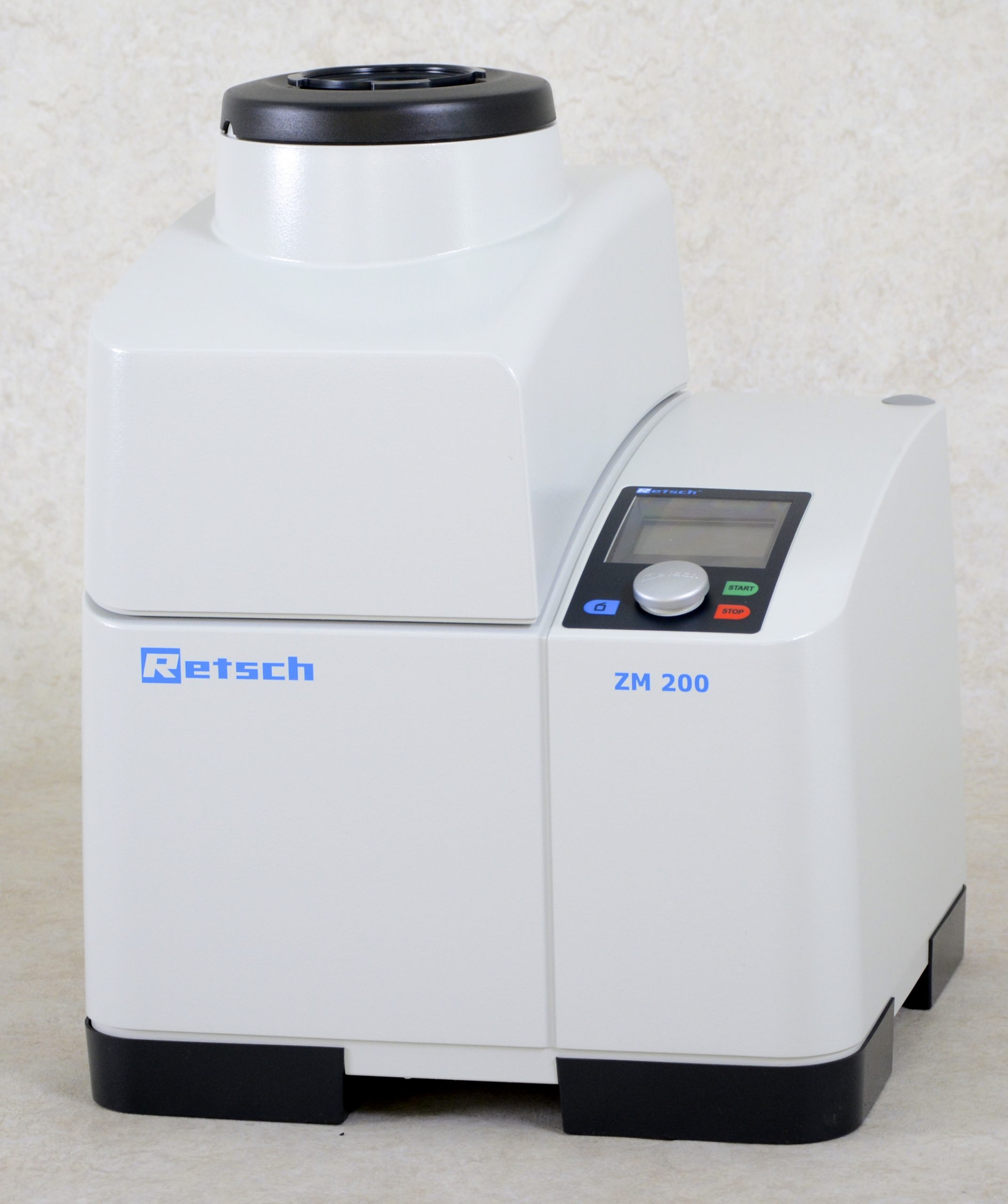

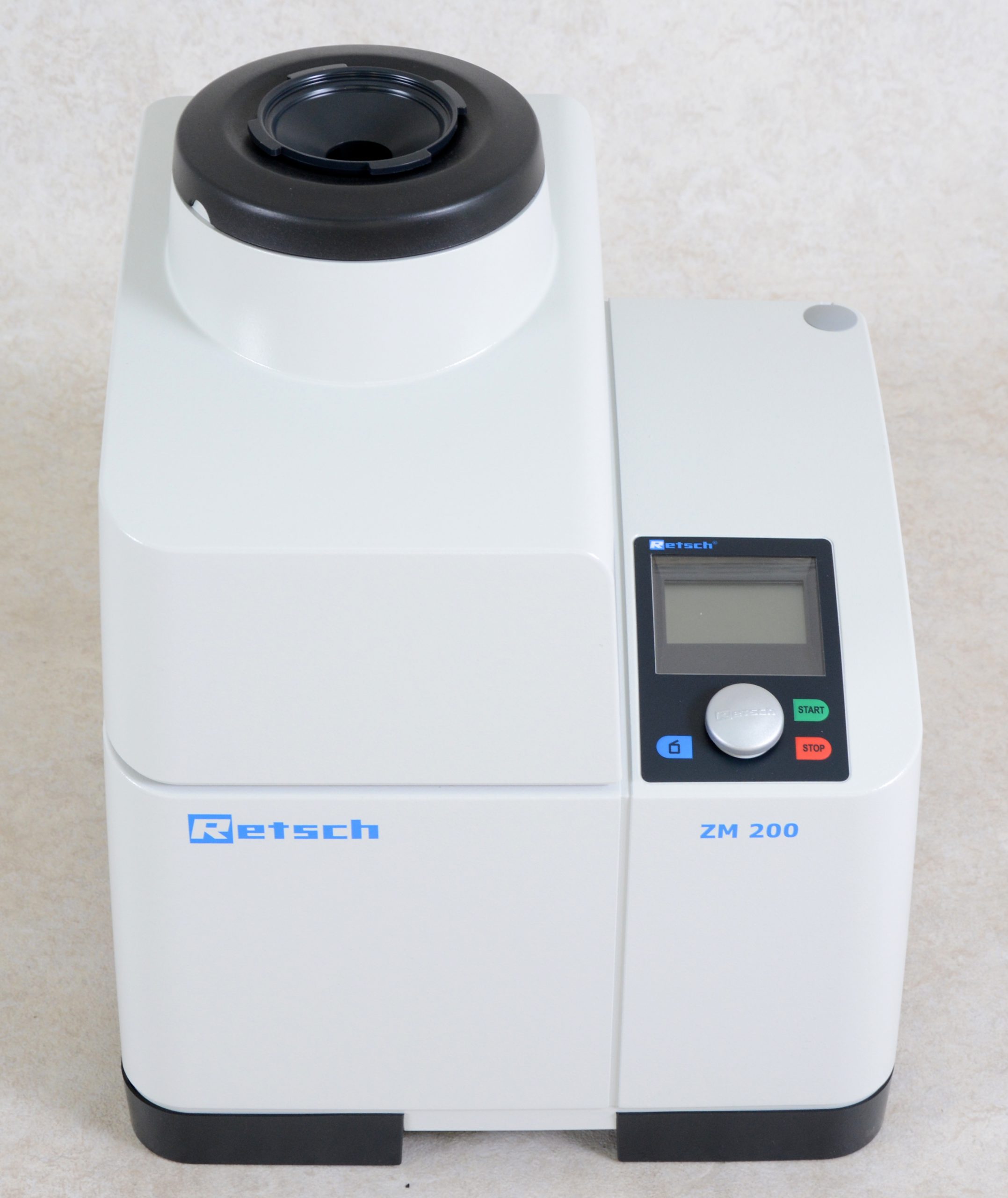

Retsch ZM200 Grinder

New grinding mill from Retsch, type ZM200.
The Retsch ZM200 mill is used to grind fast way. Soft to medium-hard and fibrous materials to a grain size of 10 mm
The achievable final fineness is determined by:
• The nature of the rotor
• The speed of the rotor
• The ring sieve
• The breaking behavior of the material to be crushed
Technical specifications:
Voltage: 240V, 50-60Hz
Power: 1100W
Current: 12A
Maximum supply quantity:
• Max. to 20 ml with the collecting reservoir for small volumes.
• Max. recommended feeding amount of standard collection tank 300ml.
Maximum size of the granules: up to 10 mm.
Maximum achievable final fineness: 40μm, depending on the material and the ring sieve.
Rotor speed: adjustable from 6,000 to 18,000 RPM

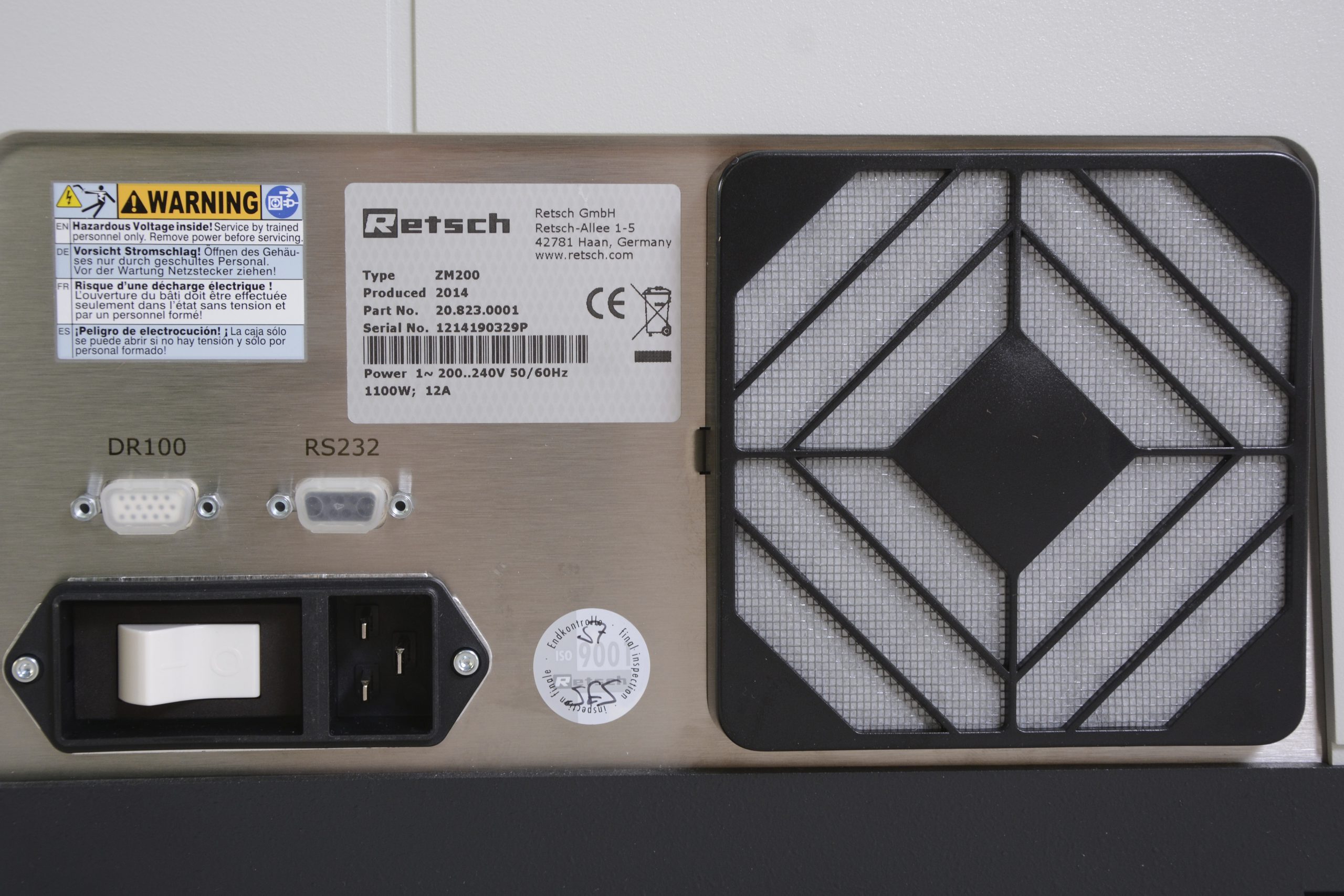

Equipped with an RS232 connection and a DR100.
Caution! The ZM200 is supplied without rotor, rotor is available at extra cost.
Dimensions (W) x (D) x (H): 66.5 x 41 x 36.5 cm.
