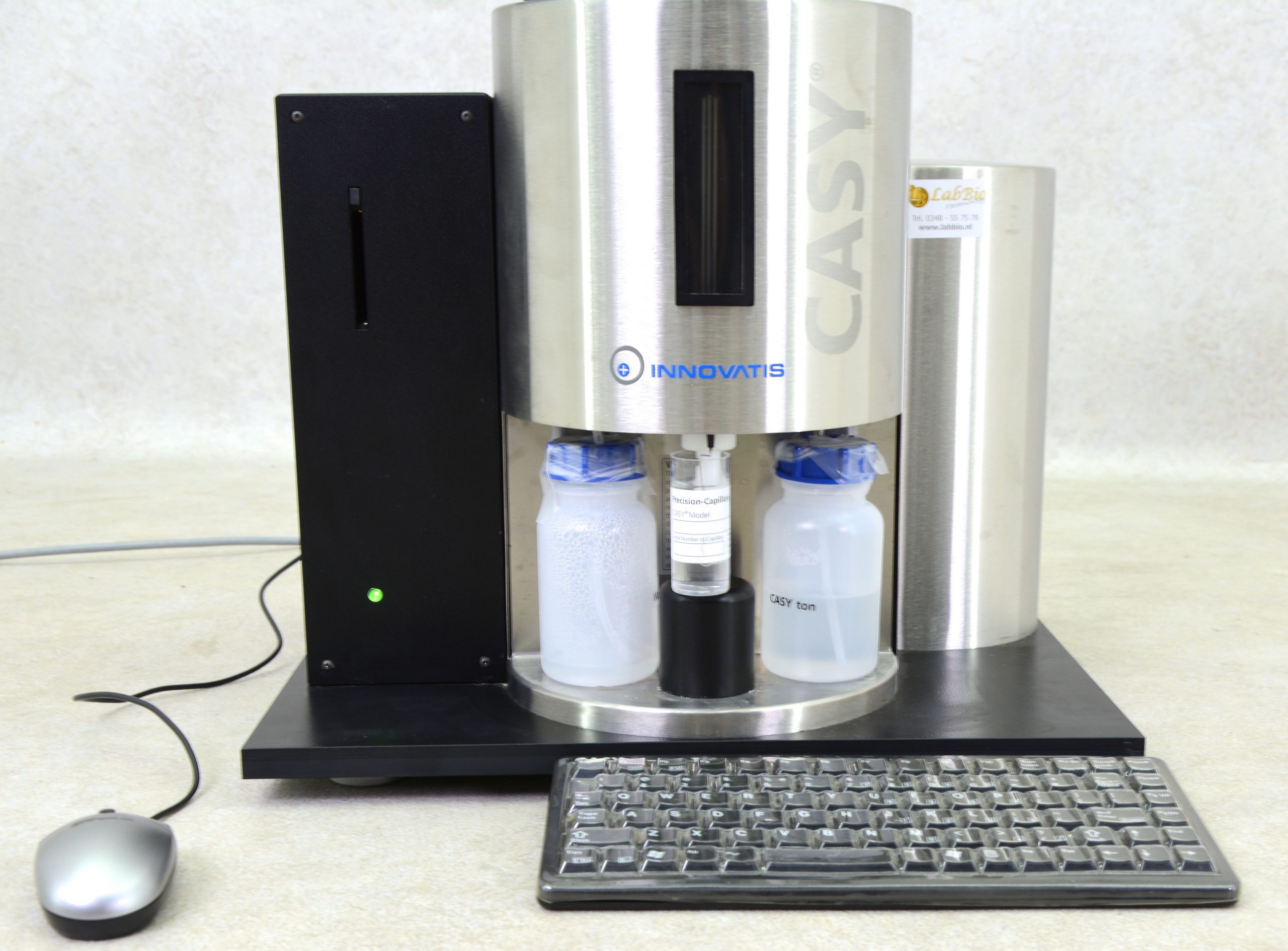

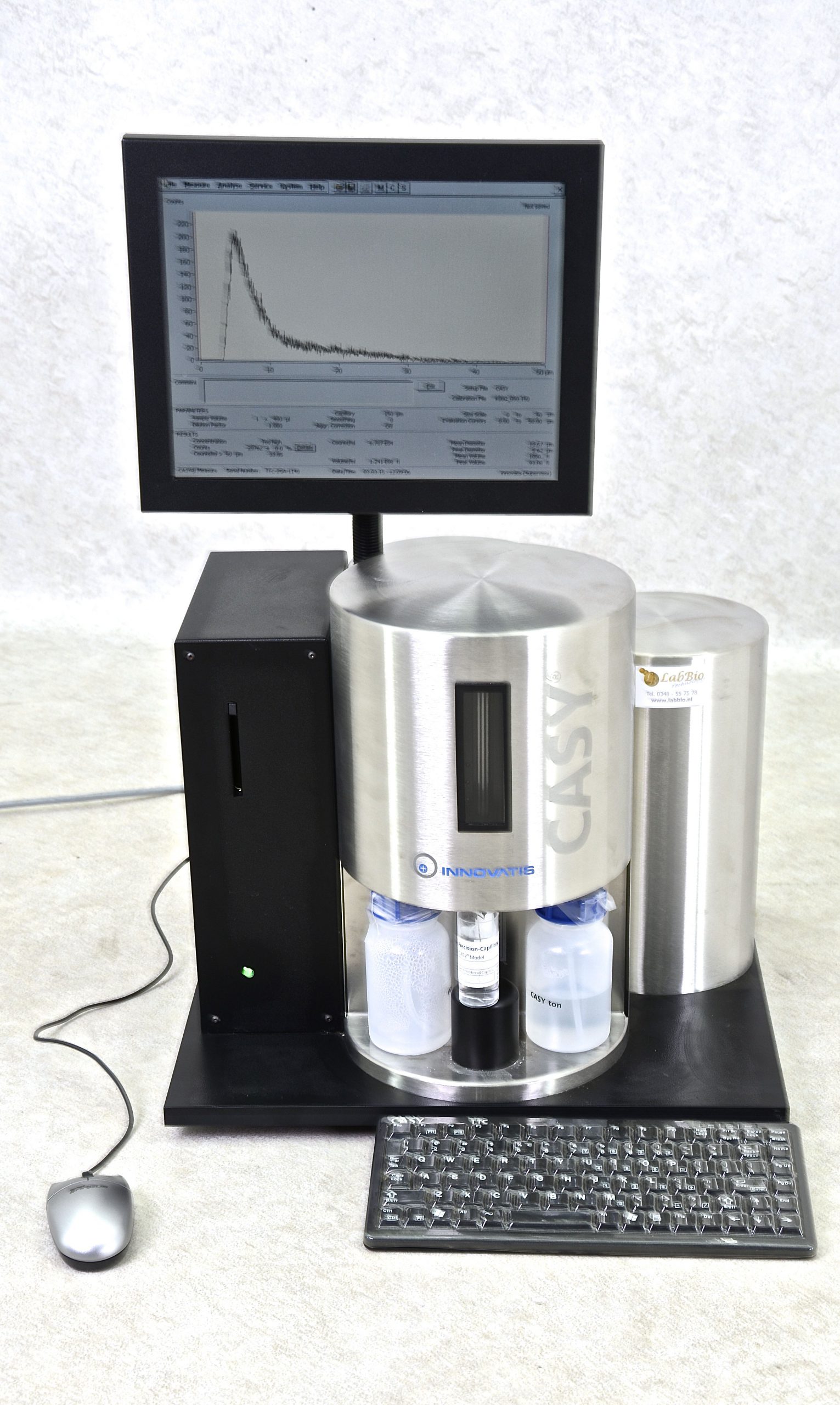

Cell counter Innovatis Roche AG, type CASY TT.

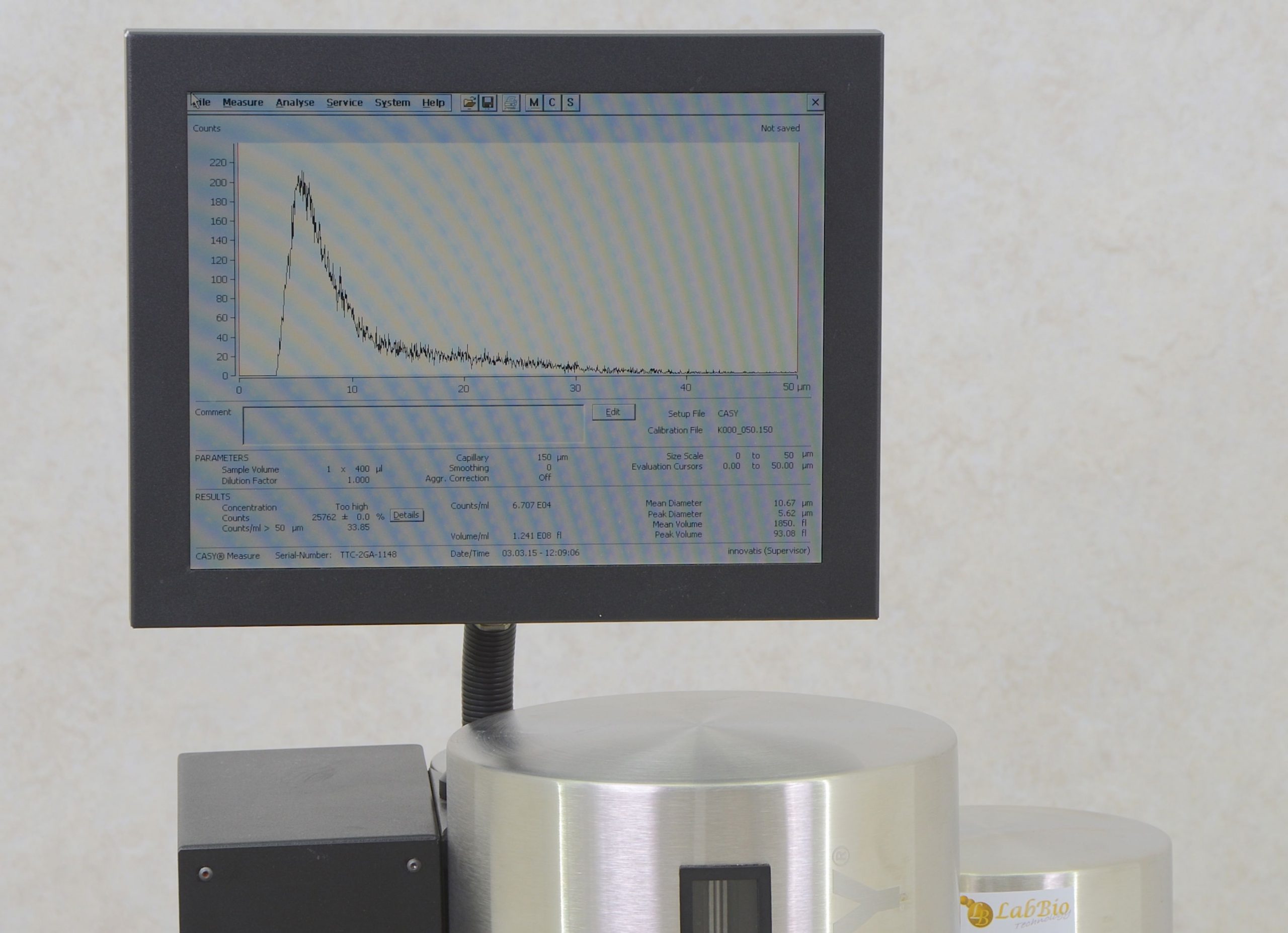

The CASY TT is designed as a research instrument for distribution of cell size and the absolute number of cells in a sample and displays the end result in a graph.
The measurement of the amount of cells is done by suspending the cells in an electrolyte (CASYton). Thereafter, the liquid and cells will be pumped through a pore in which the cells are counted.
The counting itself works by means of sending an electric current through the pore with a frequency of 1 MHz, if a cell is insithe pore the voltage drops.
Larger cells provia higher resistance in the pore, and thereby a lower voltage.
Technical specifications:
Voltage: 230V, 50Hz
Power: 112W
Range: 0.7 microns to 160 microns
Pore sizes: 45 µm and 150 µm
Dynamic range:
Volume: 1:70.000
Diameter: 1:40
Dimensions (W) x (D) x (H): 41.5 x 39 x 64.5 cm
