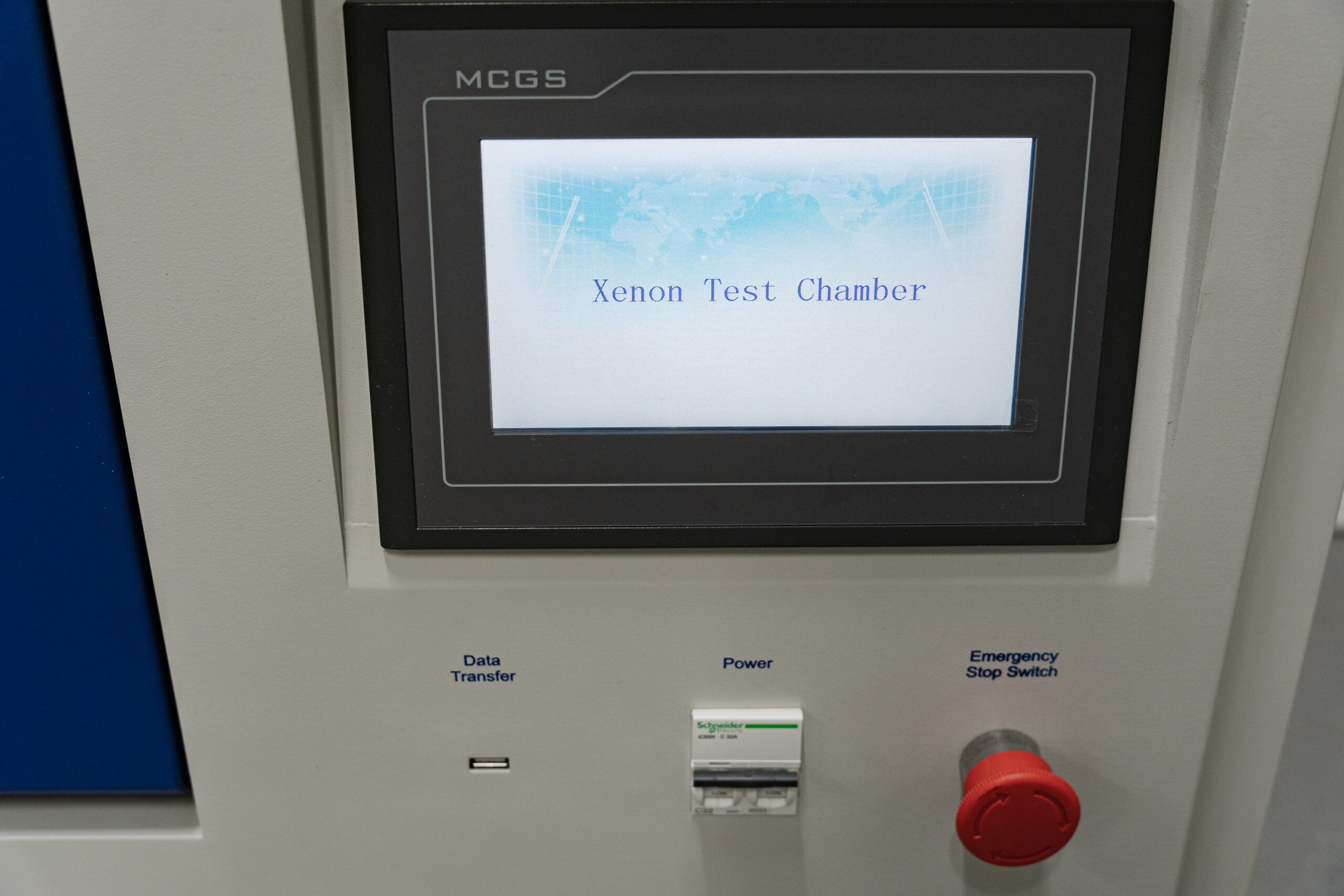

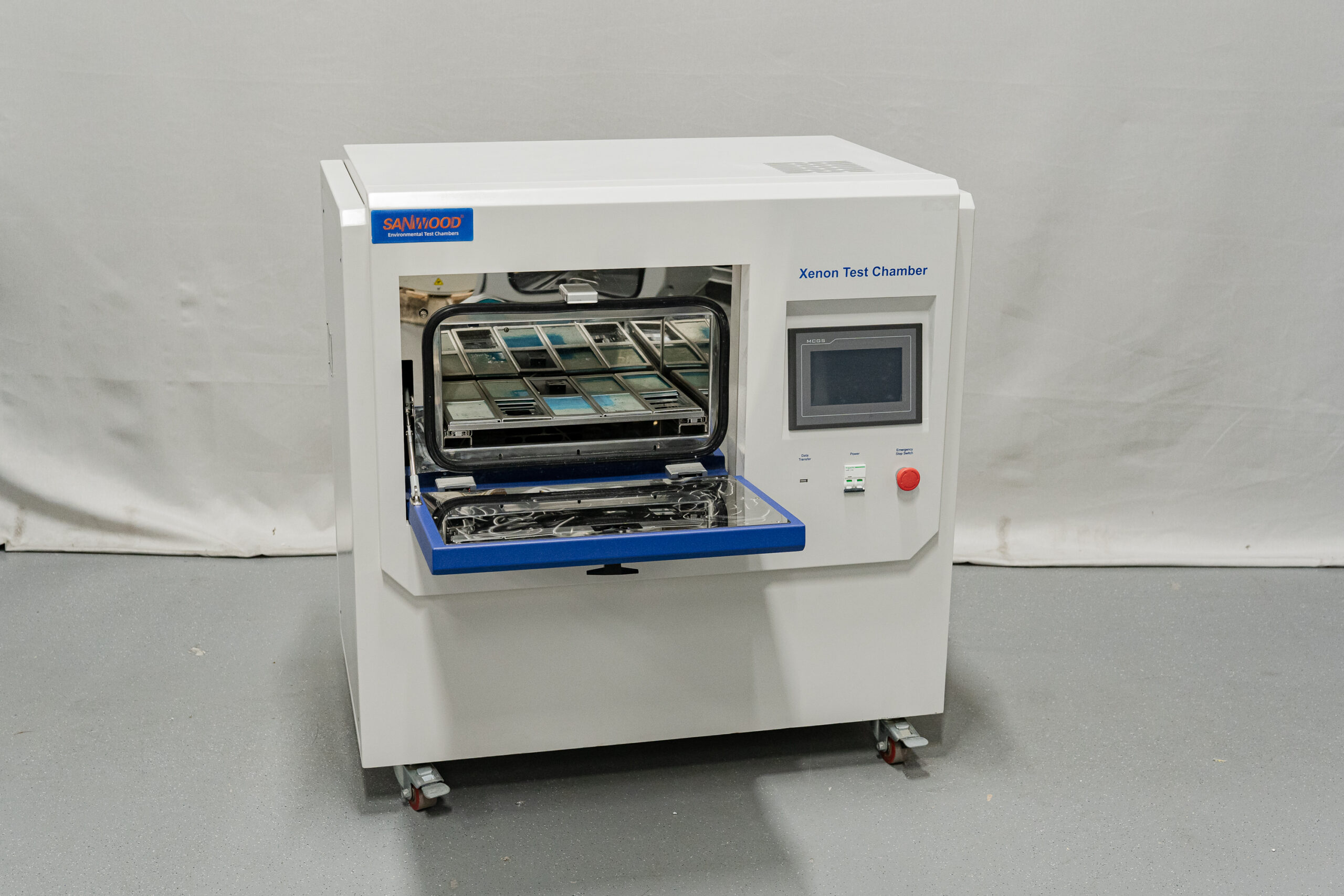

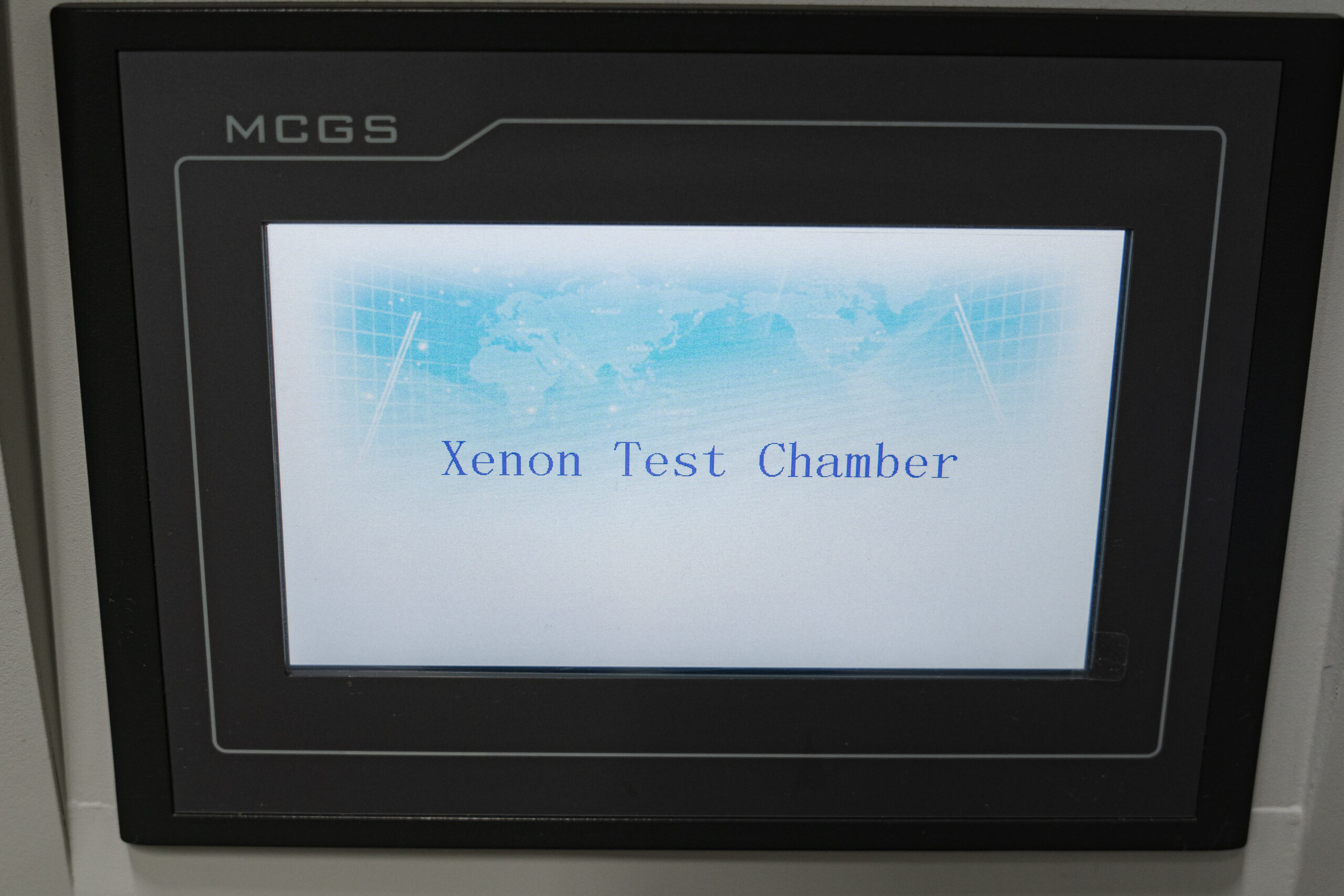

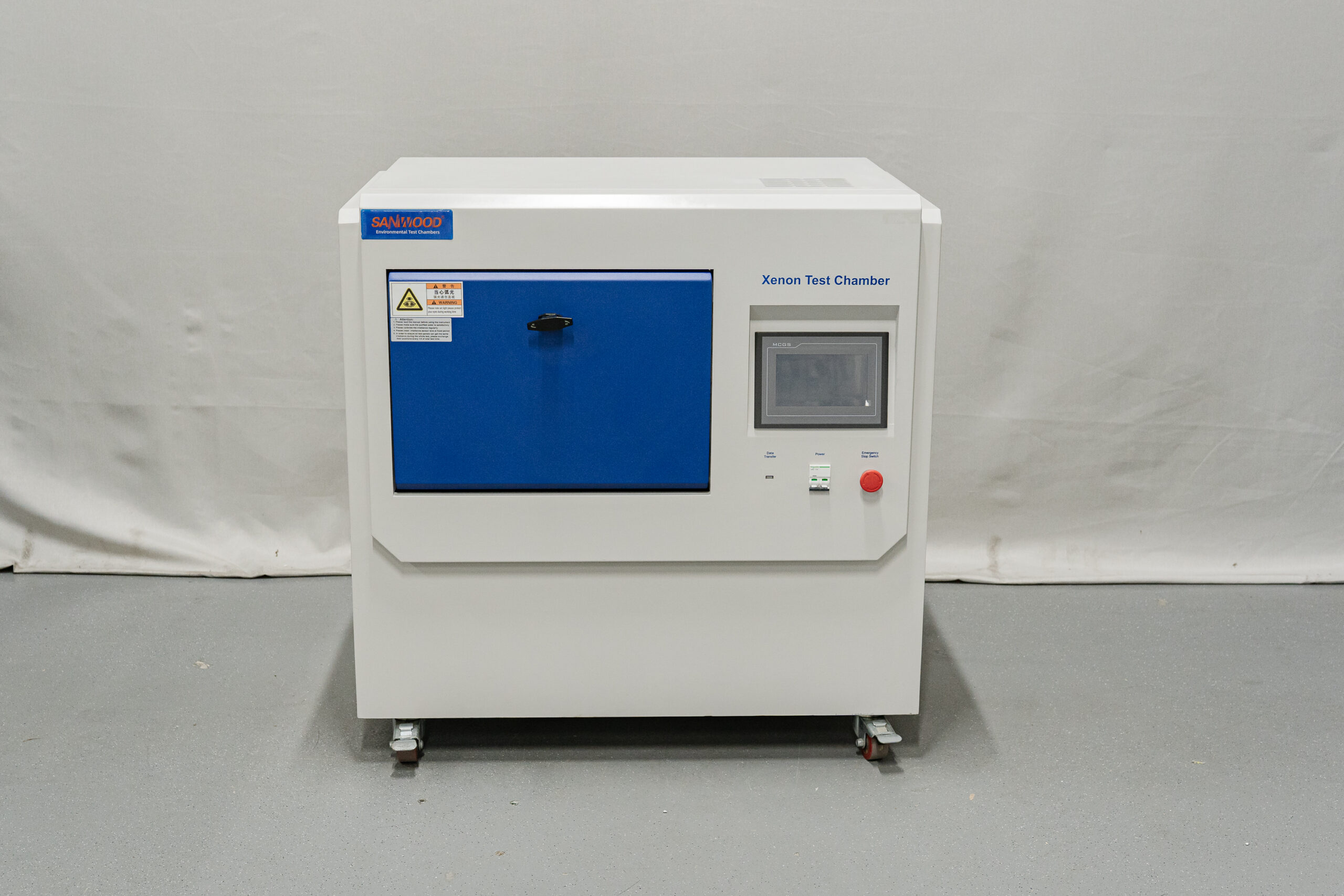

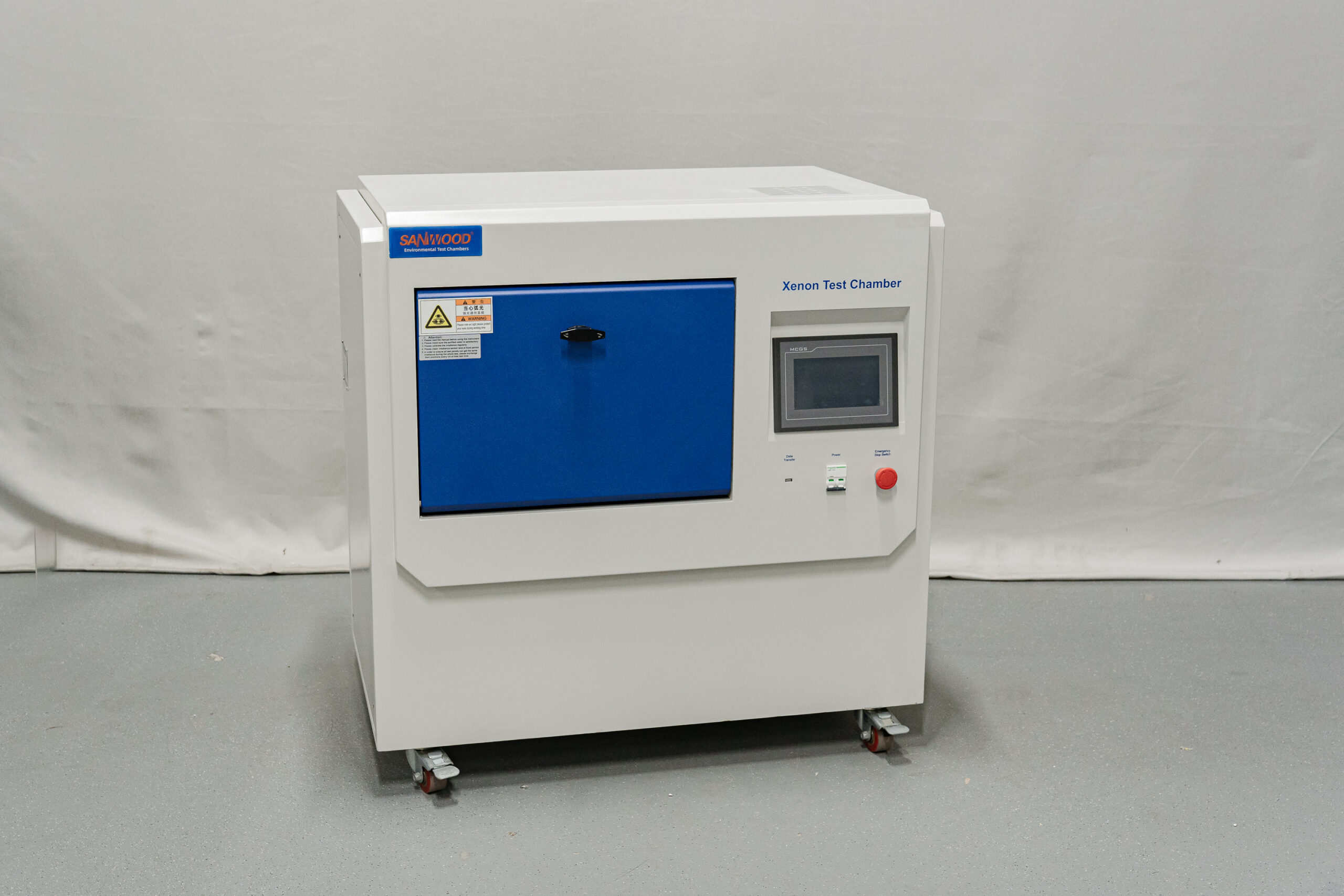

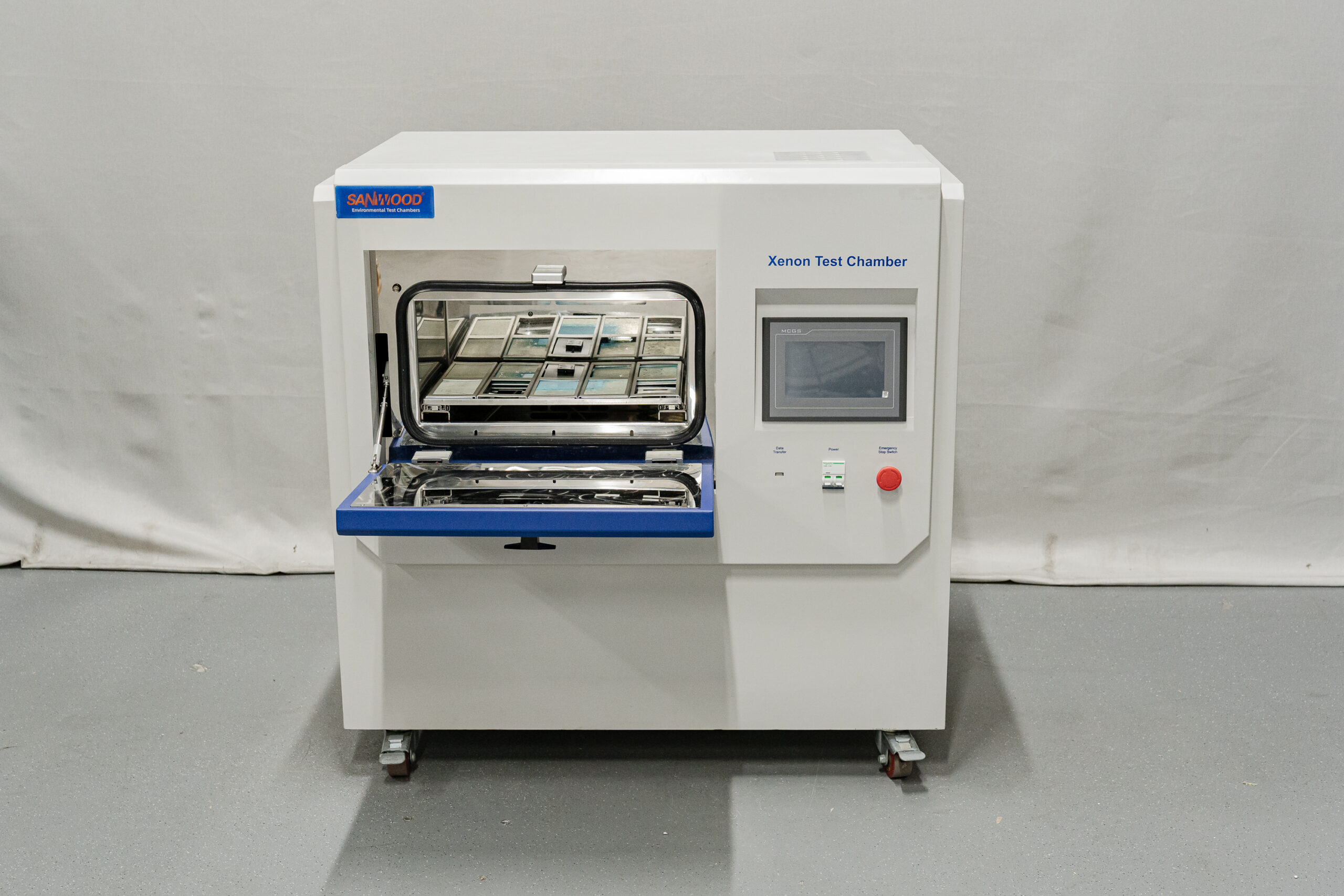

A complete weathering test instrument that supports climate aging tests and polymer fixation tests regarding lightfastness. The operator can arbitrarily set the test parameters for Sanwood SM-866 – E-sun Weathering Tester/ Xenon Lamp Weathering Test Chamber and monitor the whole experiment process at any time. It is equipped with a high-precision Pt100 board temperature sensor and a black spot thermometer to monitor the board temperature and the black spot temperature of the sample chamber.

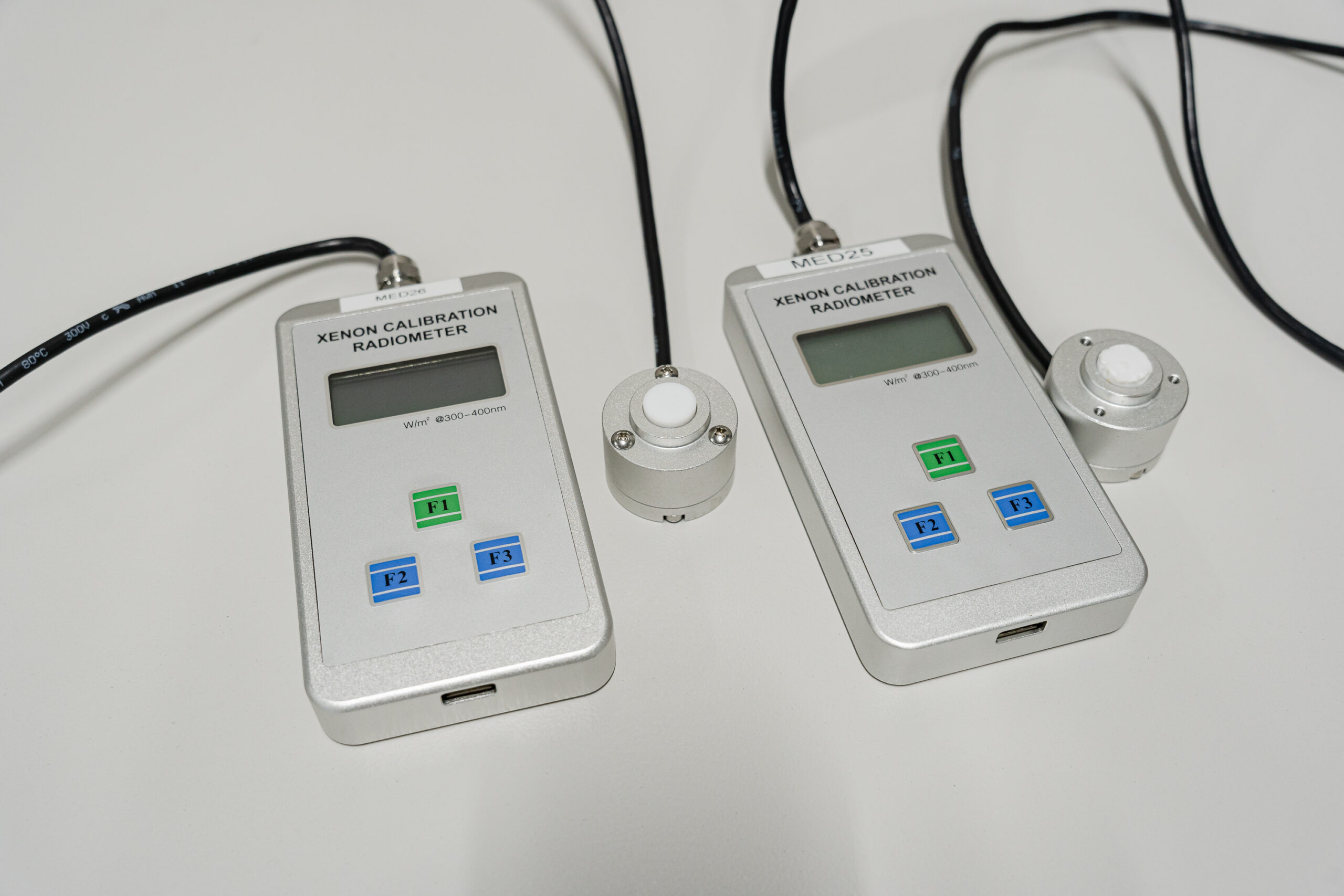

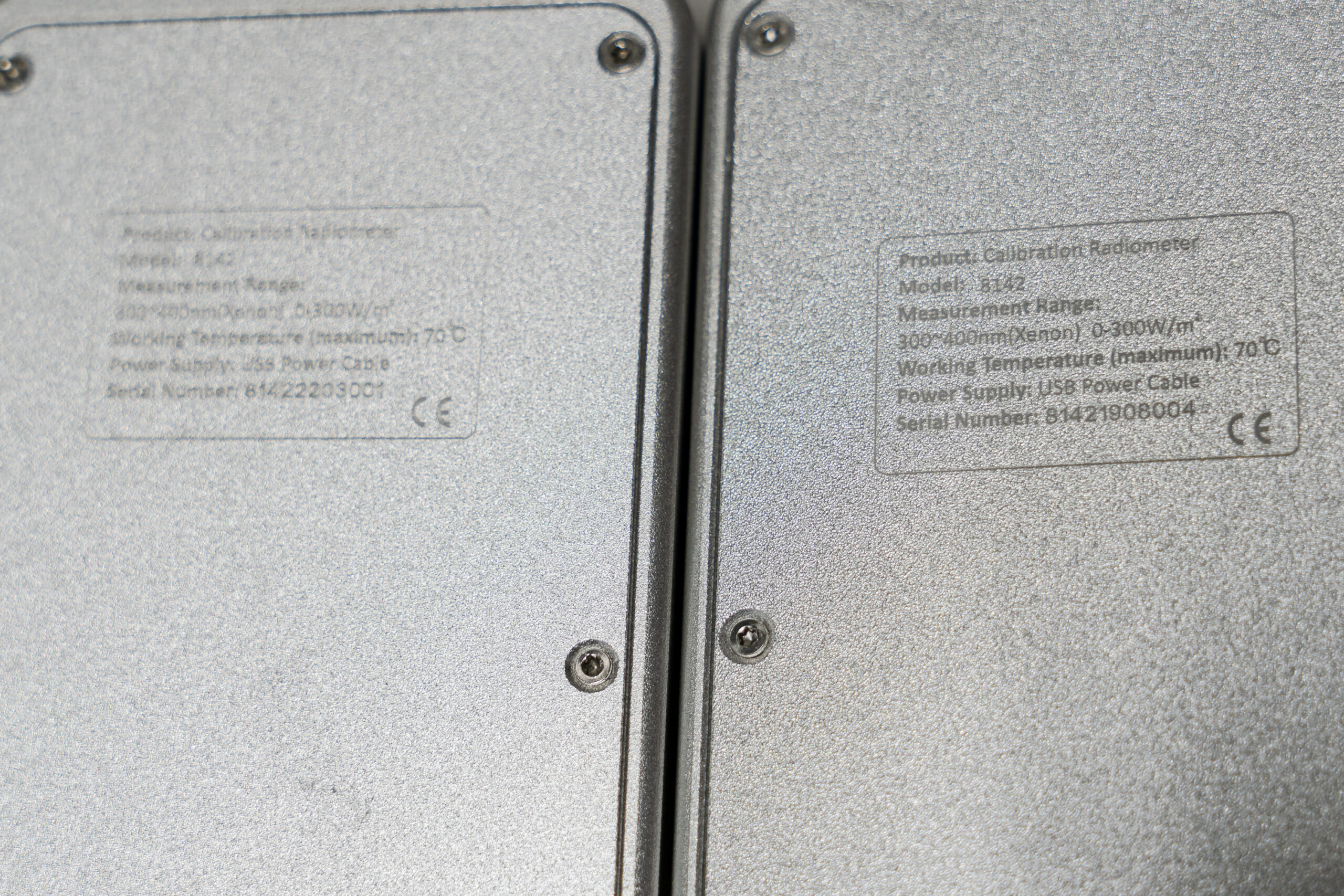

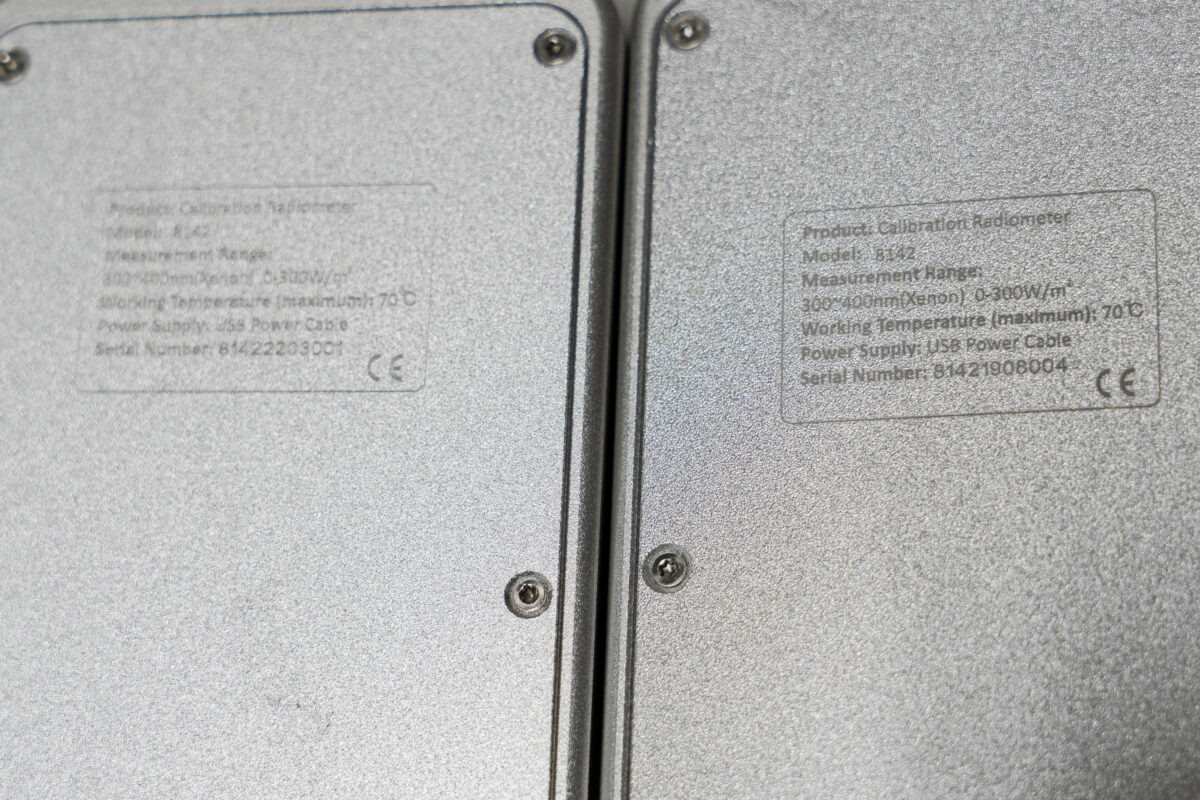

Calibration Radiometer – Model 8142
Measuring range: 300 – 400nm Xenon
Working temperature: 70℃
Technical specifications:
Voltage: 220V
Current: 16A
Power: 2.5kW
Adjustable temperature range: +30℃ – 90℃
Irradiation point control: 340nm or 420nm or 300nm-400nm
Interior material of chamber: stainless steel – SUS 304 material
Exterior material of chamber: powder coating
Xenon lamp: 1.8kW
Fliter: Daylight filter
Lamp life: almost 1,500 hours

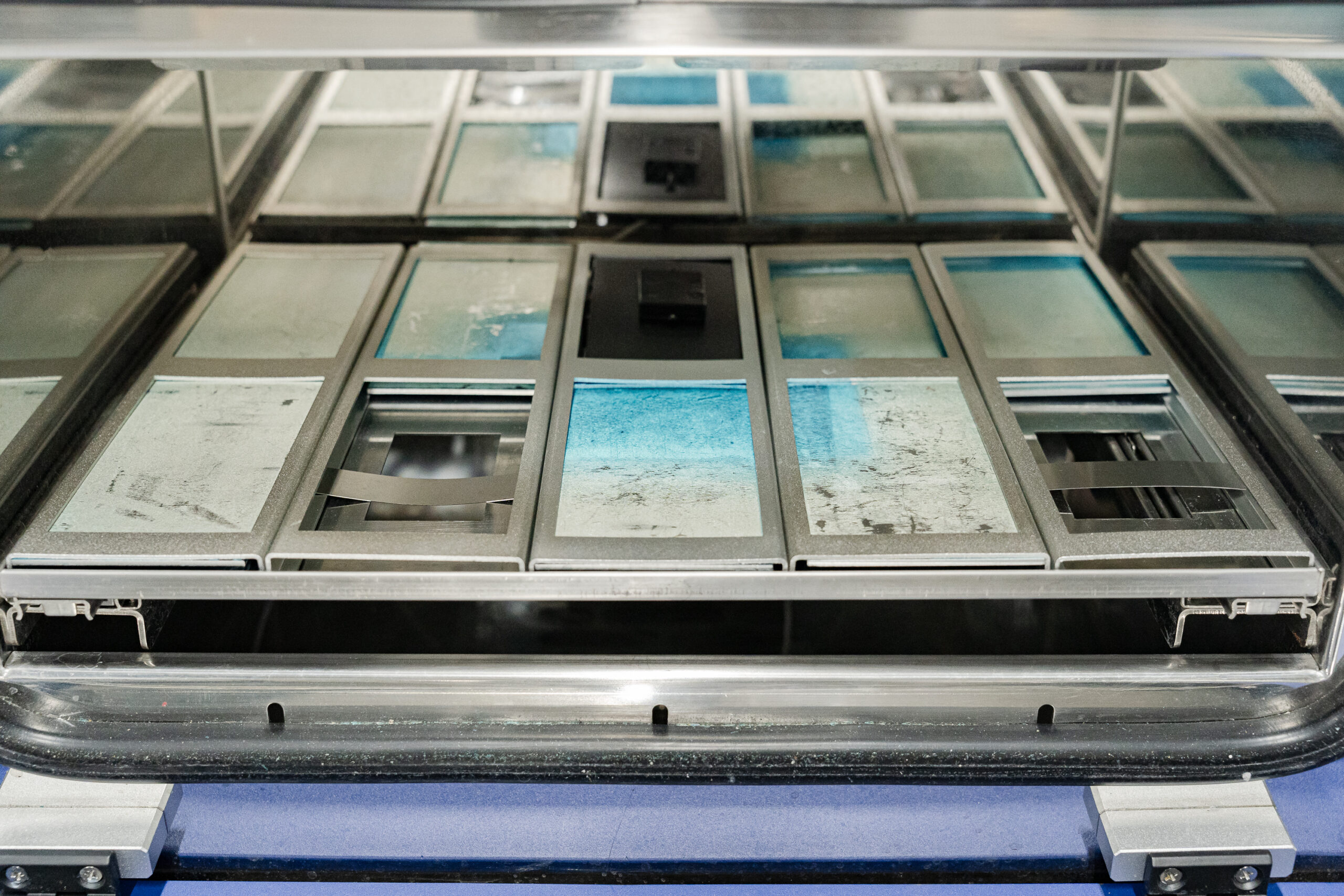

Exposure area: 1,000cm2 (can place 9 standard samples of 150×70mm)
External dimensions (W) x (D) x (H): 925 x 600 x 1050mm
Net weight: 140 kg (gross weight 180 kg)
