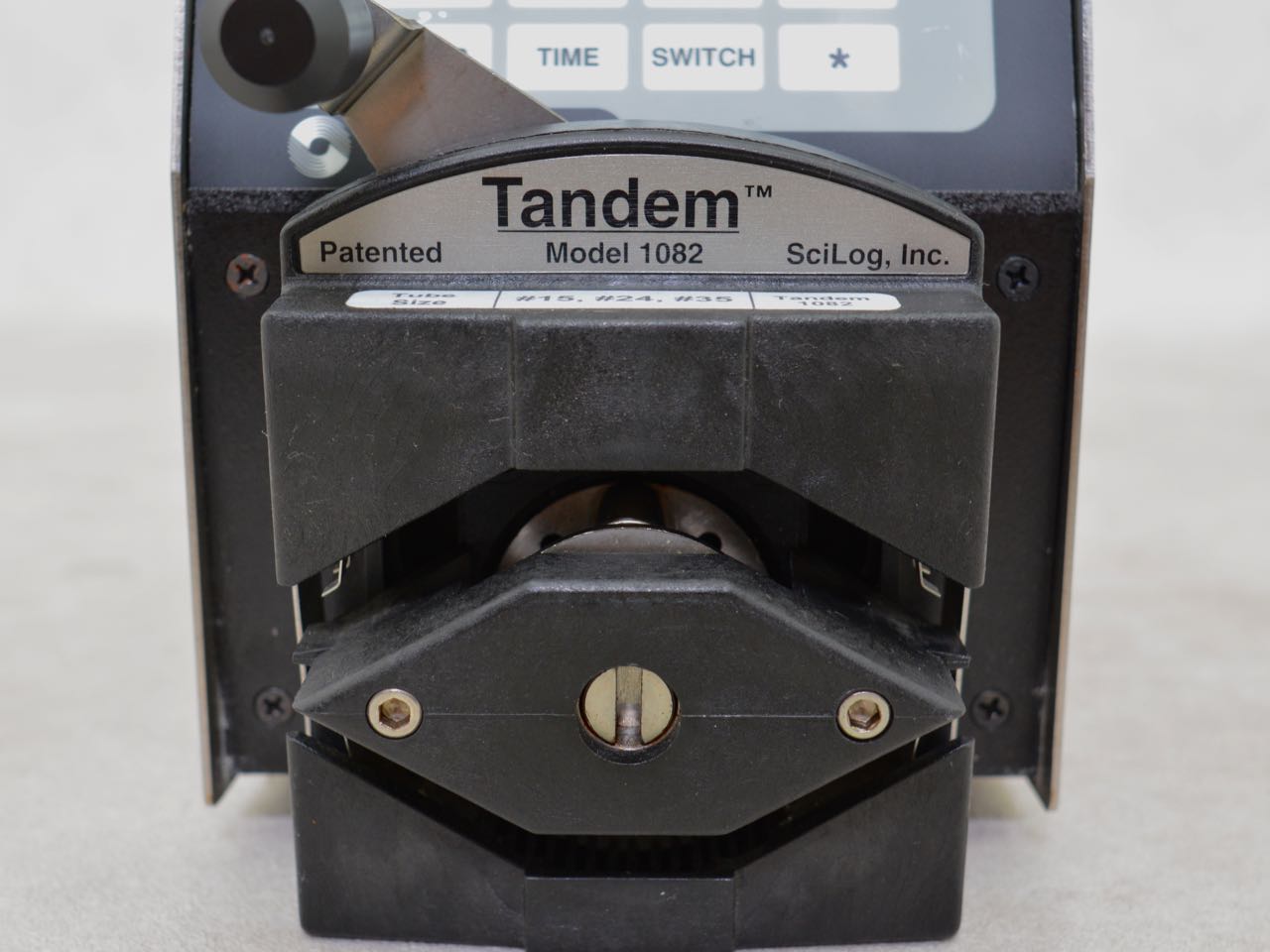

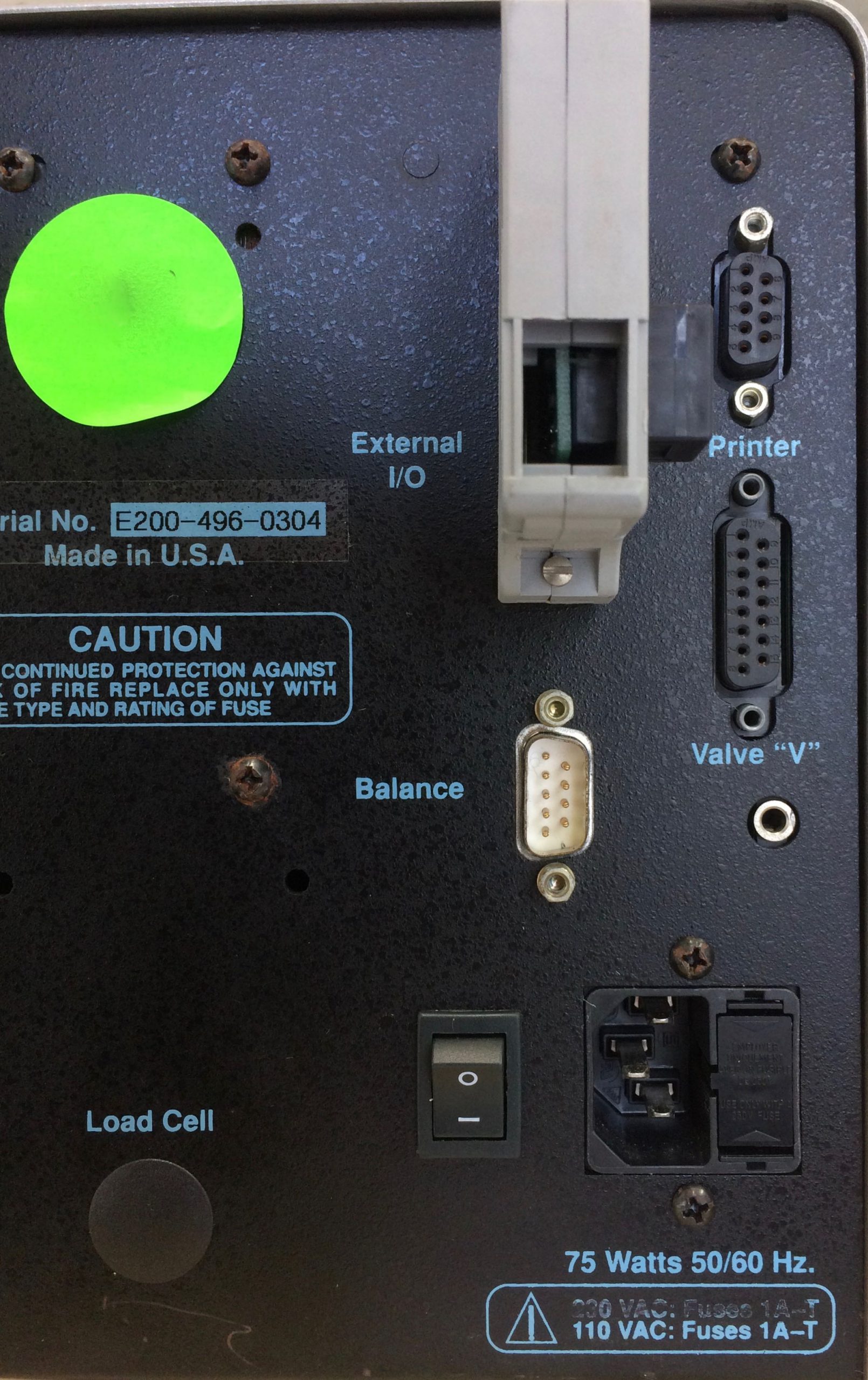

The peristaltic pump of Scilog Type UltraTec is a standalone pump with pump head type Tandem 1082. This pump is suitable for filtration and ultrafiltration without damaging the device itself. This device can be connected to a balance via the Male DB9 S1 connector port. Additionally, this device has an external I/O port for the Female DB37 connector that is used for remote On/Off control of the device. This connector is also used to interface with various devices and allows up to three 4-20 ma analogue inputs (A1, A2 and A3) to store data.
The software for this device is available on: https://scilog.com/products/lab/puretec-tangential-flow-filtration-cross-flow-filtration-system
Technical specifications
Voltage: 220V, 50/ 60Hz
Power: 75W
Flow Rate: 59 to 2.258 mL / min
External dimensions (W) x (D) x (H):
16x 36 x 24 cm

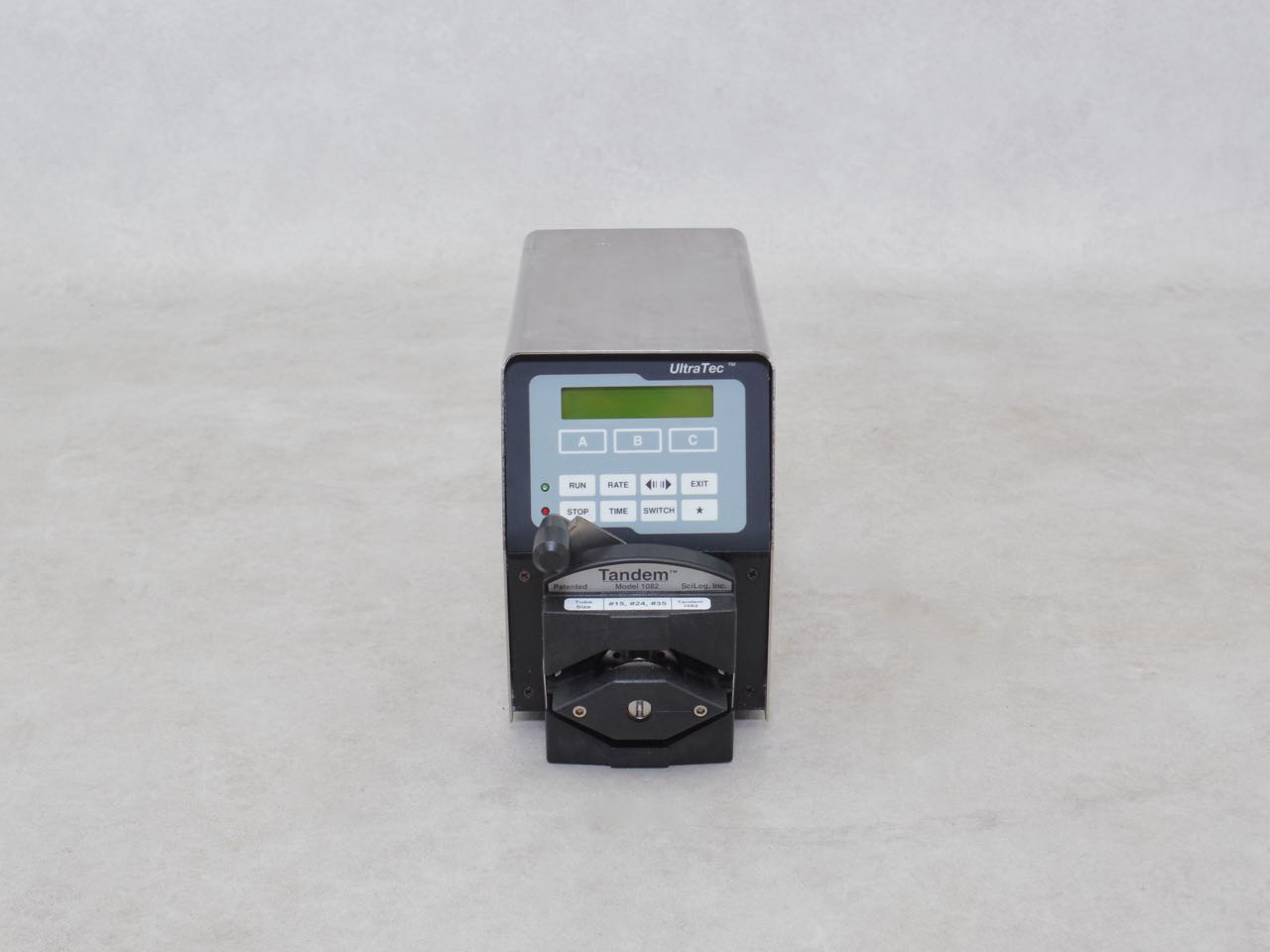

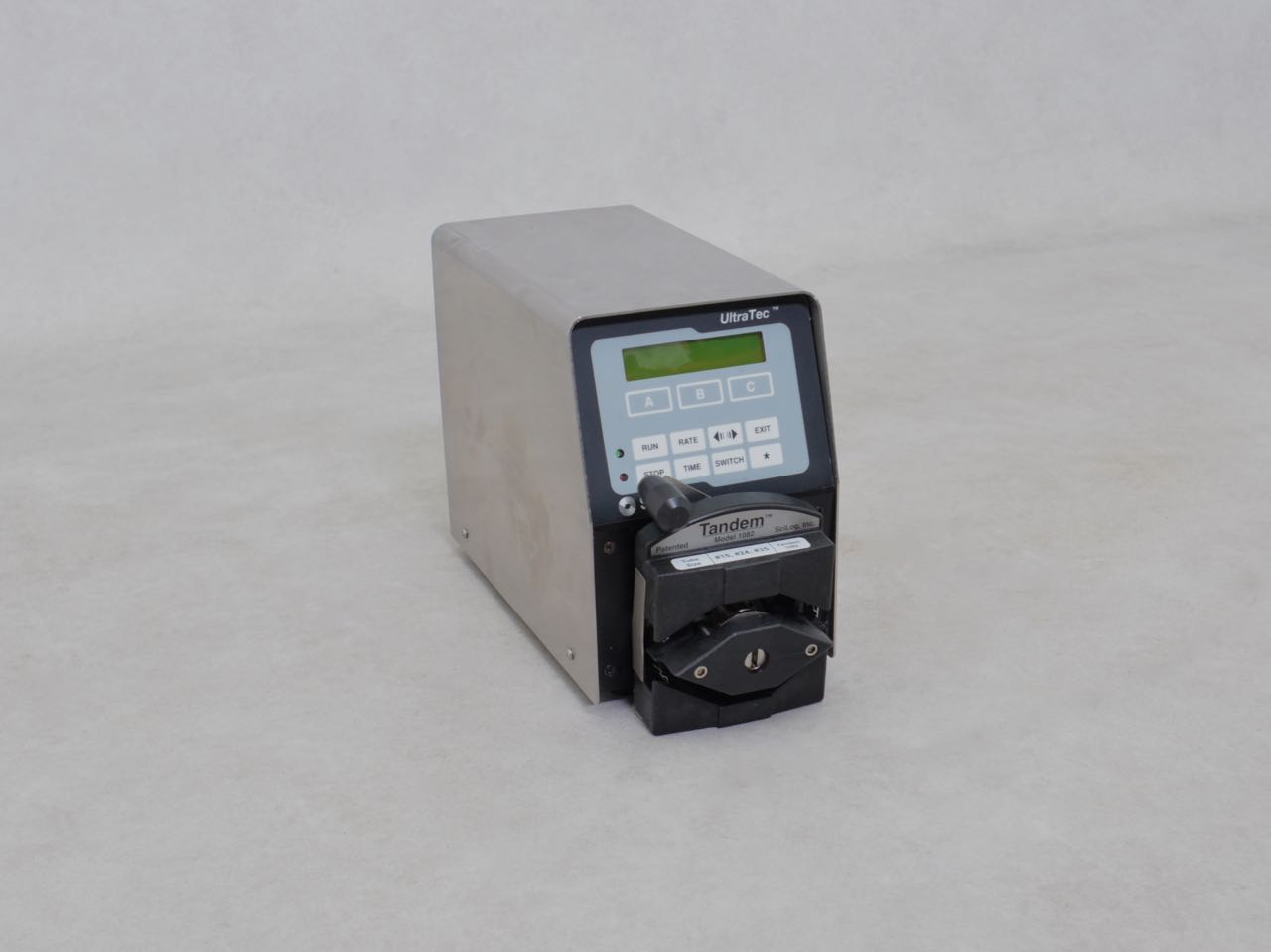

Scilog UltraTec Peristaltic pump
Click for price
Location: NN1-3
description
Specifications
Status | |
---|---|
Guarantee | |
Manufacturer |
Downloads
