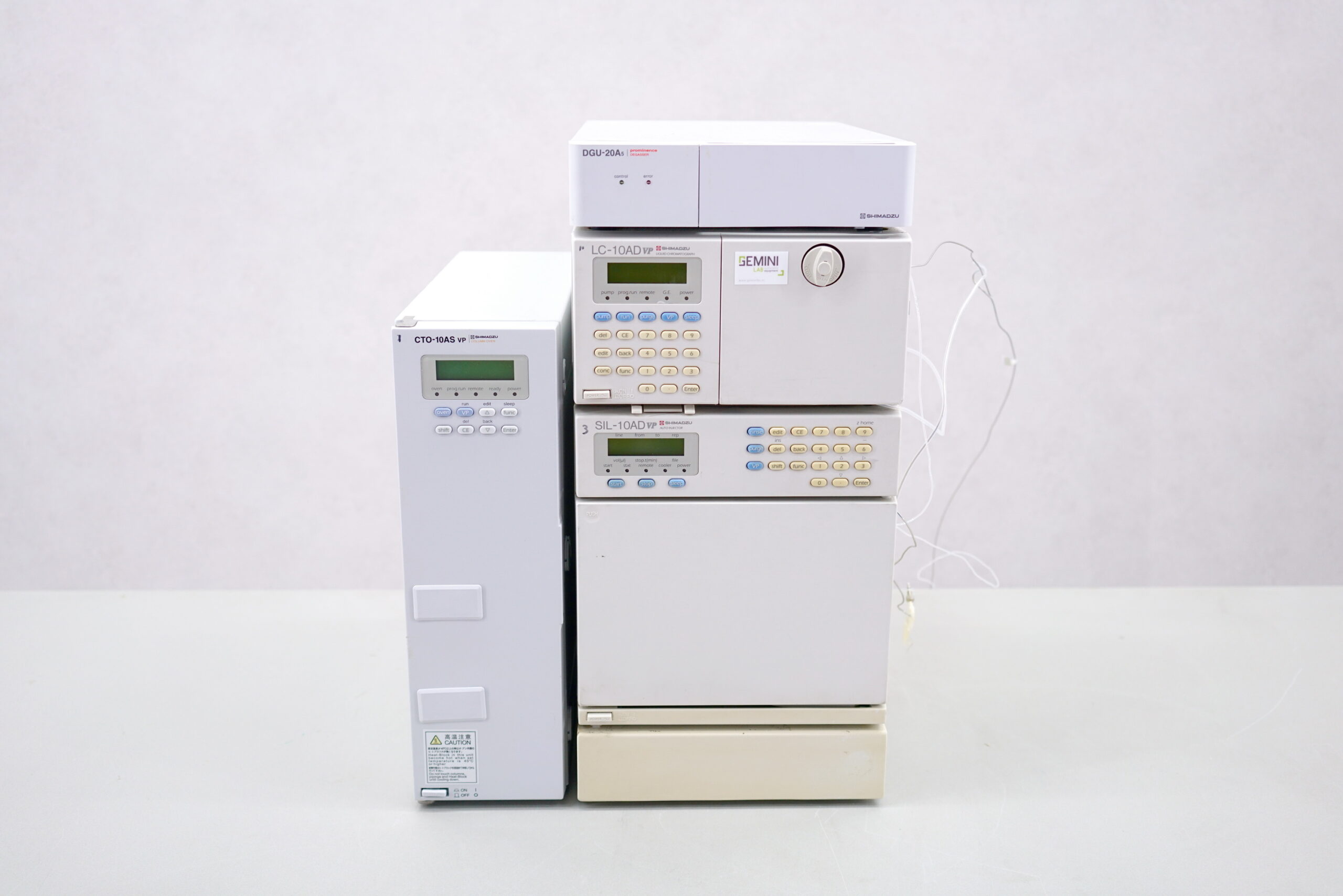

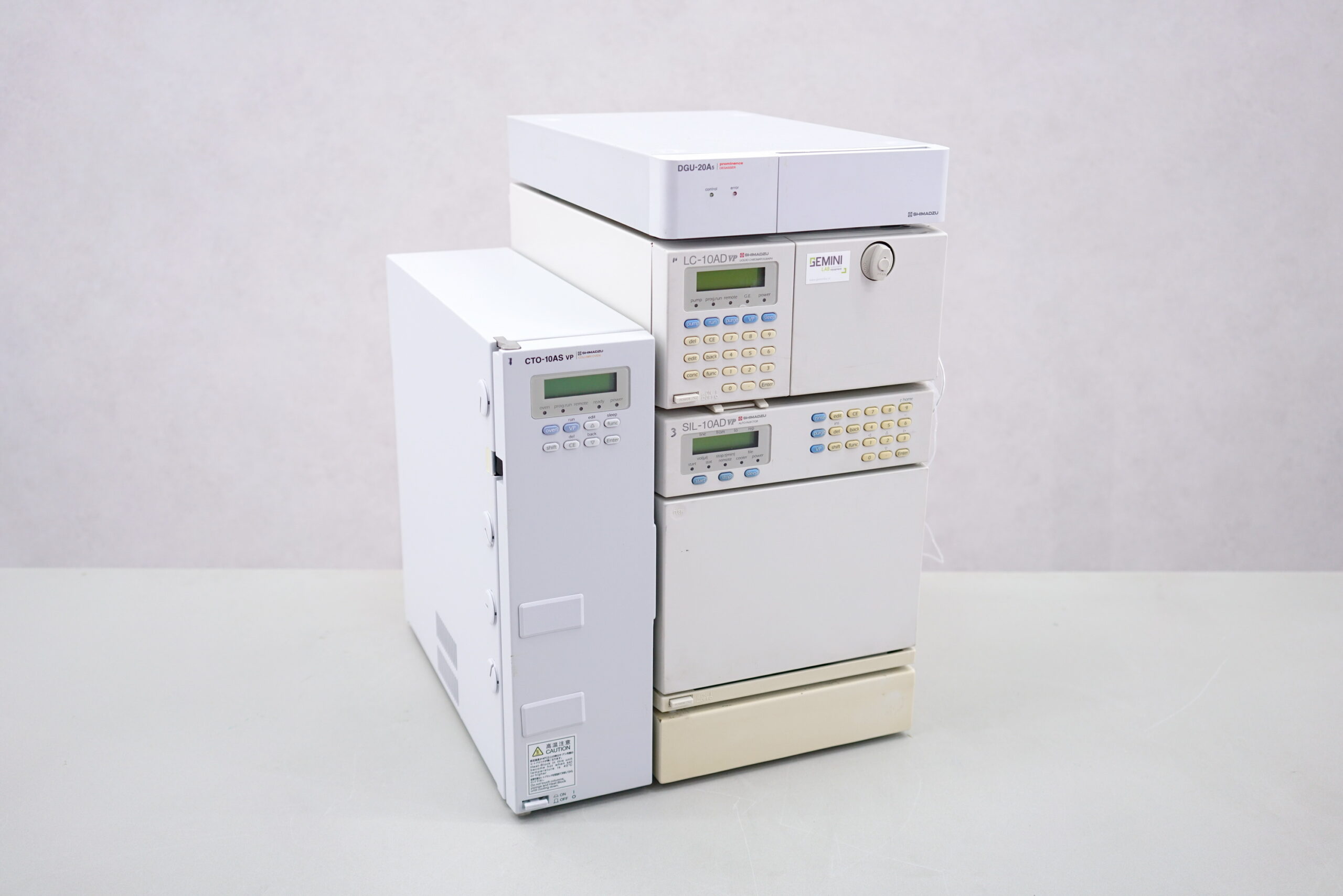

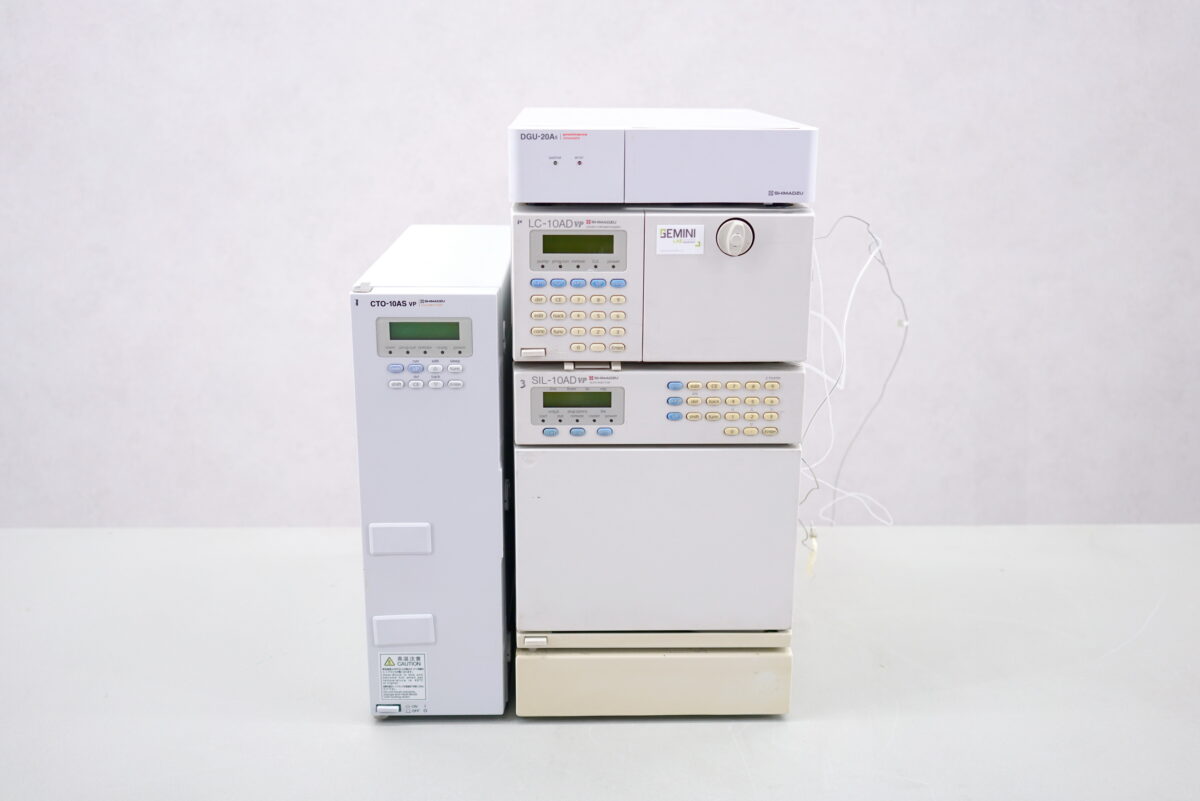

This Shimadzu HPLC consists of 4 modules which can be described as follows.
CTO-10ASvp column oven
The Shimadzu CTO-10AS VP Column Oven is a space-saving, compact and affordable oven with a block heating mechanism. The CTO-10ASVP controls temperature from –15°C below room temperature to 60°C, and accommodates two manual injectors.
The oven has following features:
- Precise temperature regulation
The interior of the oven is precisely regulated with a high-performance thermistor. The temperature is calibrated at two different temperatures to ensure a high level of temperature accuracy. - Large Inner Space
In addition to the column, other system parts can be accommodated. These include: manual injector, gradient mixer, high-pressure flow-line selection of valves, conductivity-detection cell block, and pre-or post-column reaction coil.
LC-10ADvp pump
The Shimadzu LC-10ADvp Solvent Delivery Pump is unsurpassed for stable, pulse-free solvent delivery. The dual reciprocating 10µL plungers enable superior detector baseline stability and minimal baseline noise, making this pump ideally suited for high sensitivity applications including refractive index, conductivity, electrochemical, and mass spectrometer detection.
Pump specifications:
- Pumping methods: Constant flow delivery and constant pressure delivery
- Flow rate setting range: 1 to 392 Bar (0.001-5mL/min) or 1 to 196 Bar (5.001-9.999 mL/min)
- Flow accuracy: ±2% or ±2uL/min, whichever is the greater
- Flow rate pressure: Within ± 0.3%
- Constant pressure pumping
- Pressure setting range: 1 to 392 Bar
DGU-20A5 prominence degasser
The Shimadzu DGU-20A5 degasser features 5 channels for autosampler rinse solution. The DGU-20A5 is designed for efficient degassing in a low-volume and has a compact design.
Specifications degasser:
- Internal volume: 380ul
- Operating temperature range: 4°C to 35°C

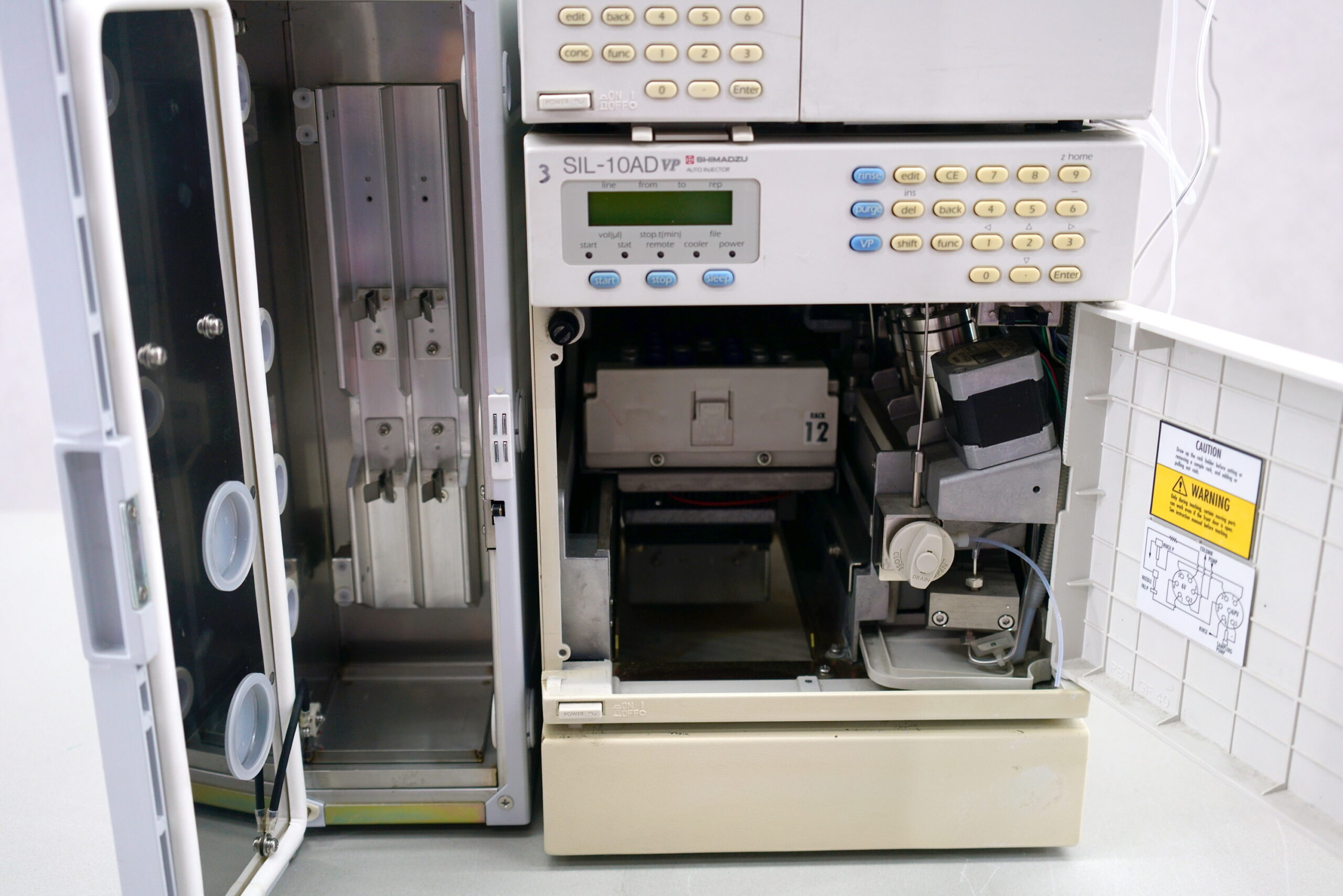

SIL-10ADvp auto injector
The SIL-10AVP injects samples from 0.1 µL to 500 µL with high reproducibility and linearity at volume increments as low as 0.1 µL. You’ll have greater confidence in your results because the SIL-10ADVP offers outstanding precision (C.V. of 0.3% for a 10 µL injection). Precise fluid control delivers sample in 6 nL steps for stable performance. The SIL-10ADVP can reliably automate semi-micro LC analyses or LC/MS analyses.
Auto injector features:
- Increased sampling capacity
- No Sample Loss at Injection and Minimized Sample
- Avoid carryover as needle can be rinsed both inside and out and before and after injection.
- GLP/GMP Compliance
- Customized Continuous Analysis
General technical specifications:
Voltage: 220-240 V
