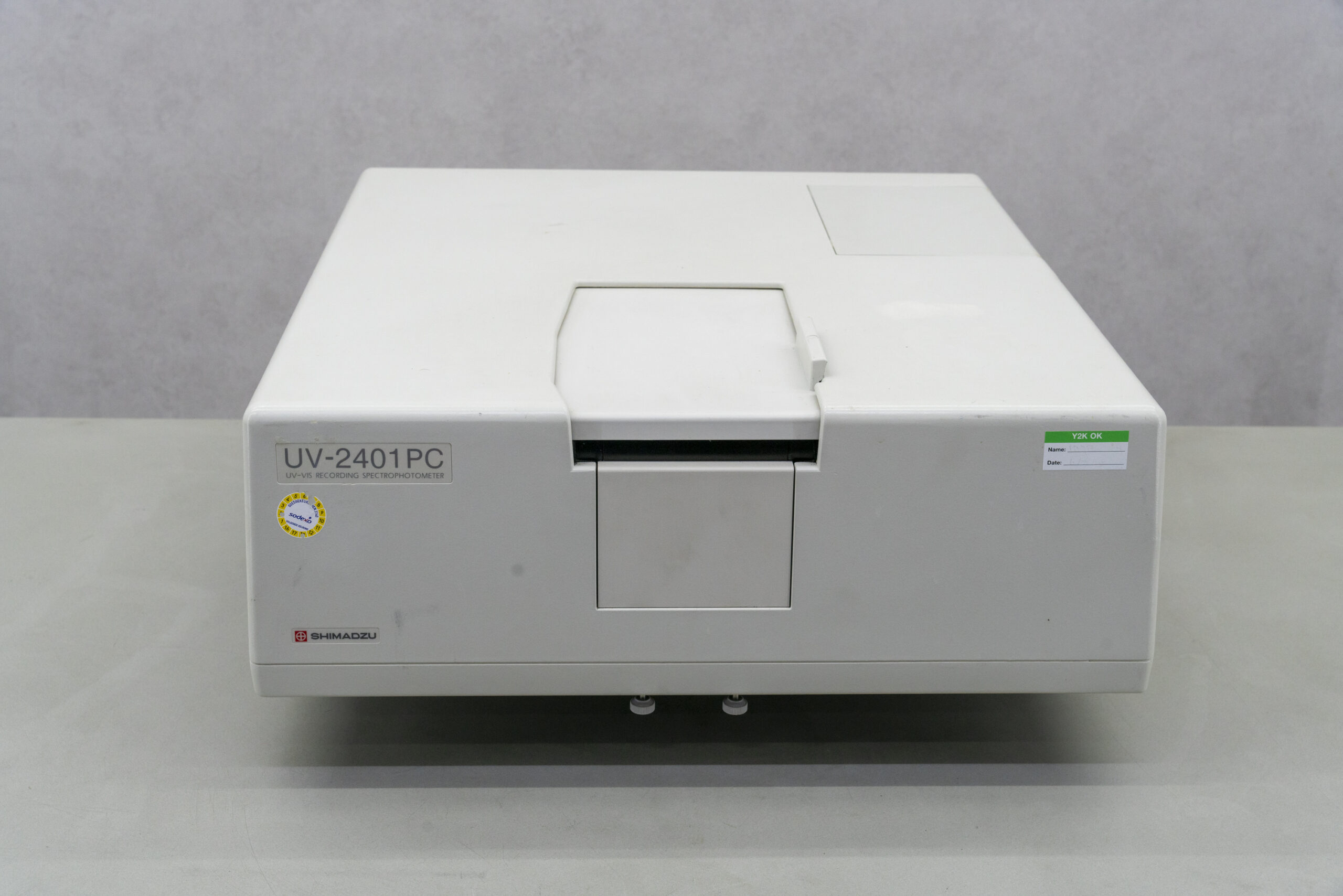

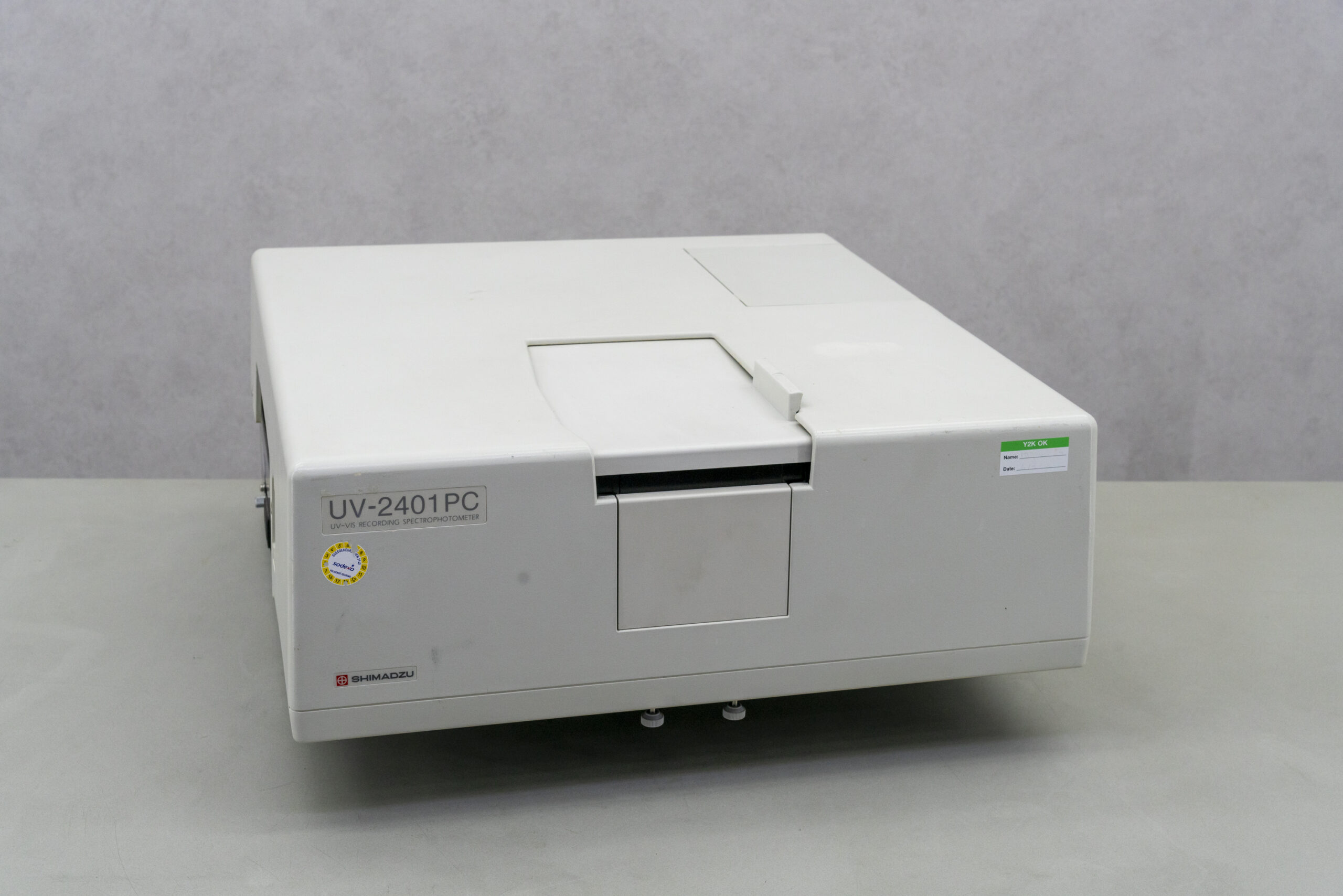

This single monochromator system provides the analyst with the reliability and performance our customers have come to expect from Shimadzu instruments. The combination of low stray light/wide dynamic range/small beam size makes this instrument very suitable for a wide range of practical situations.
From small sample volumes to highly absorbent samples, the software gives you the power and versatility of a highly advanced system in a package that is easy to learn and use. Additional software enhancements such as Kubelka-Munk conversion, area calculations and peak picks make this a tool for the real world. In addition, it can easily resolve the triplet peaks in the vapor spectrum of benzene near 250 nm.
Technical specifications:
Wavelength range: 190 to 900 nm (guaranteed range), expandable to 1,100 nm
Monochromator system: single monochromator
Resolution: 0.1nm
Spectral bandwidth: 0.1, 0.2, 0.5, 1, 2 and 5 nm
Wavelength repeatability: +/- 0.1 nm
Wavelength accuracy: +/- 0.3 nm
Wavelength scanning speed: fast, medium, slow and super slow
Light sources: 50 W halogen lamp (lifetime 2,000 hours) and D2 lamp (lifetime 500 hours)
Light source lamp switching: selectable between 282nm and 393nm
Stray light: less than 0.015% at 220nm and 340nm
Detector: R-928 photomultiplier
Voltage: 220-240 V
Power: 500 W
External dimensions (W) x (D) x (H): 660 x 570 x 275 mm
Weight: 36 kg
Software: UVProbe 2.42 (without PC)
