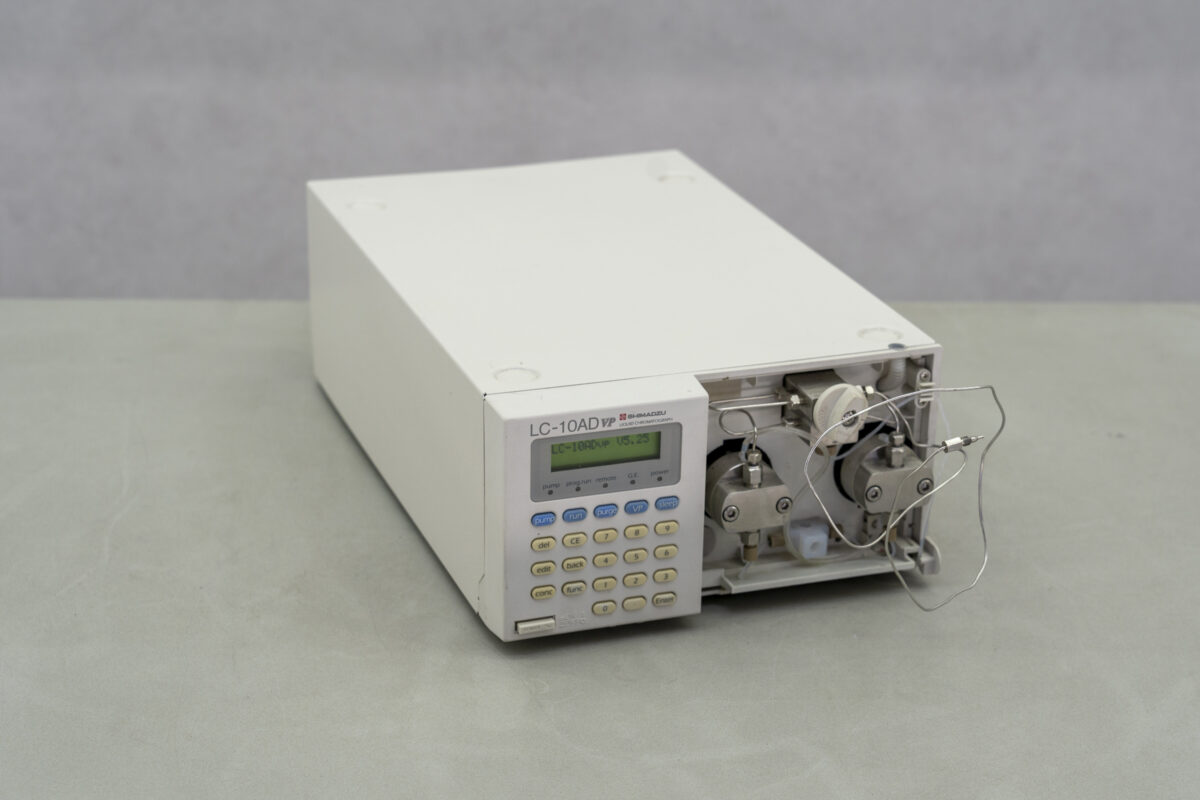

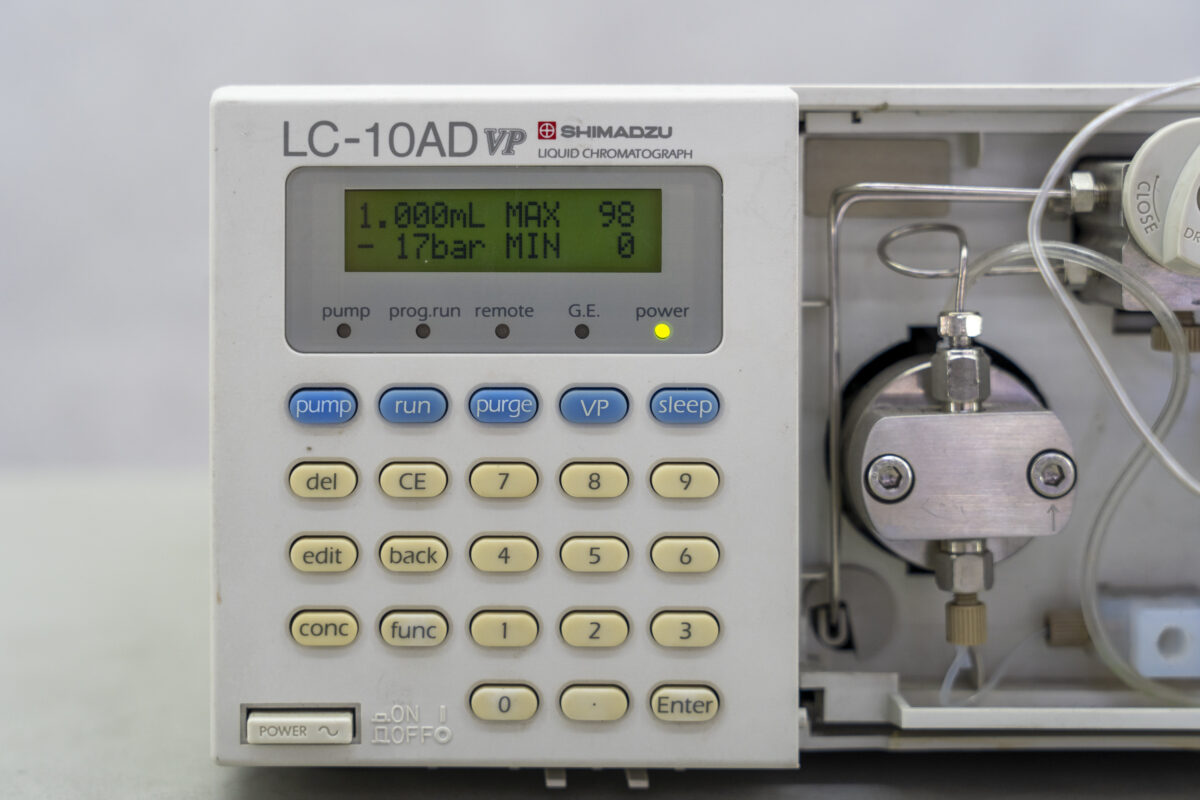

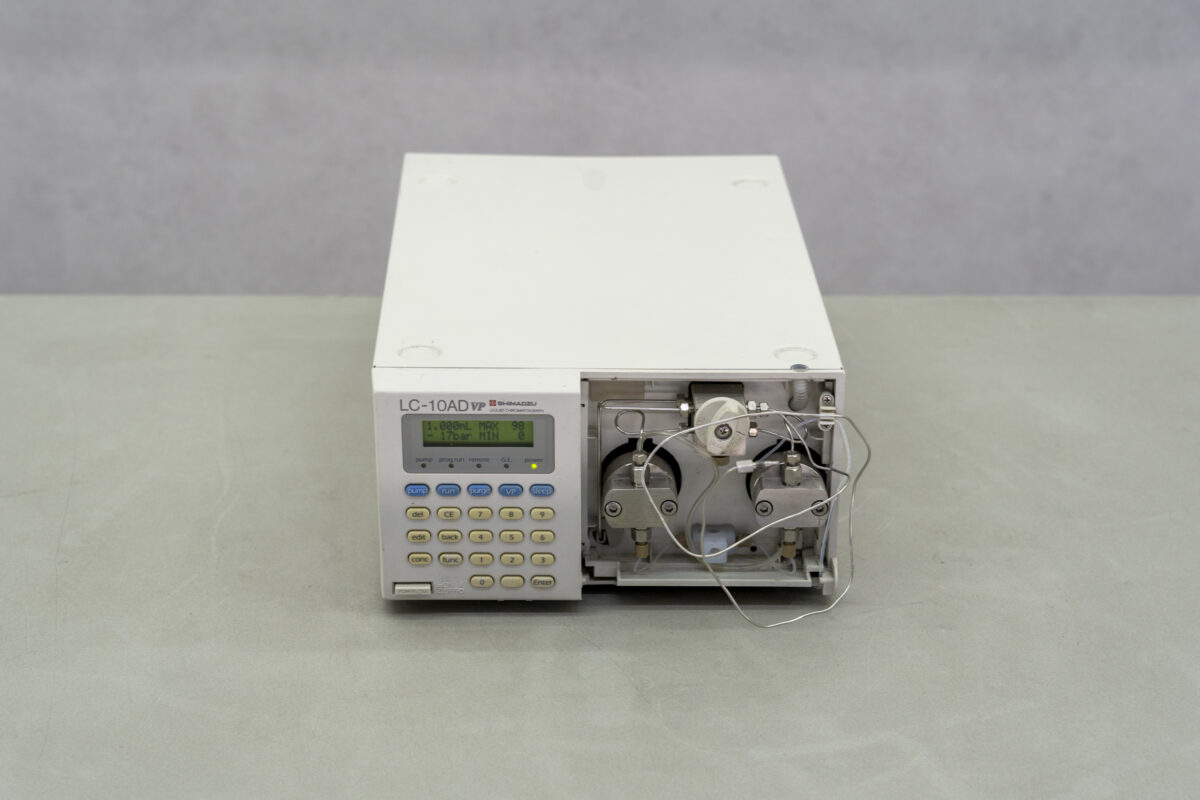

This Shimadzu micro-plunger pump for Shimadzu VP Series HPLC system is unsurpassed for stable, pulse-free solvent delivery. It has built-in validation functions for GLP/GMP compliance. Its improved seal and plunger materials provide increased pump durability, and a standard leak sensor adds safety. Its dual reciprocating 10µL plungers enable superior detector baseline stability and minimal baseline noise, making this pump ideally suited for high sensitivity applications including refractive index, conductivity, electrochemical, and mass spectrometer detection.
General technical specifications:
Voltage: 220-240 V
Pumping methods: Constant flow delivery and constant pressure delivery
Flow rate setting range: 1-392 Bar 0.001-5mL/min or 1-196 Bar 5.001-9.999 mL/min
Flow accuracy: ±2% or ±2uL/min, whichever is the greater.
Flow rate pressure: Within ± 0.3%
Pressure setting range: 1-392 Bar
Outer dimensions (W) x (D) x (H): 300 x 430 x 150 mm
